30W-200W IP66

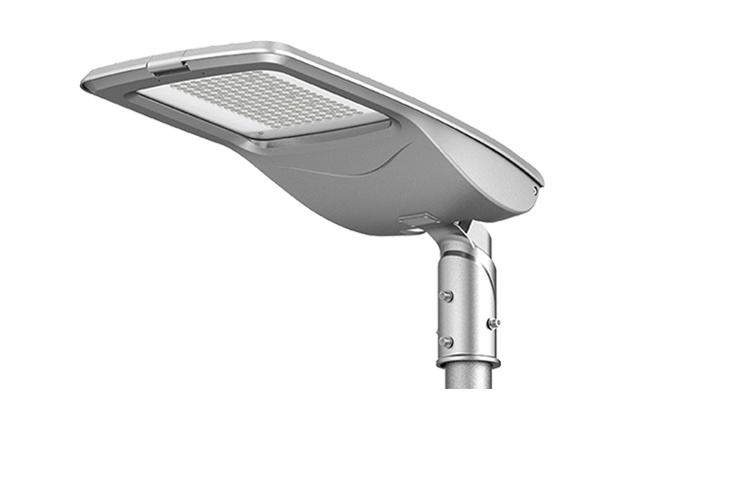

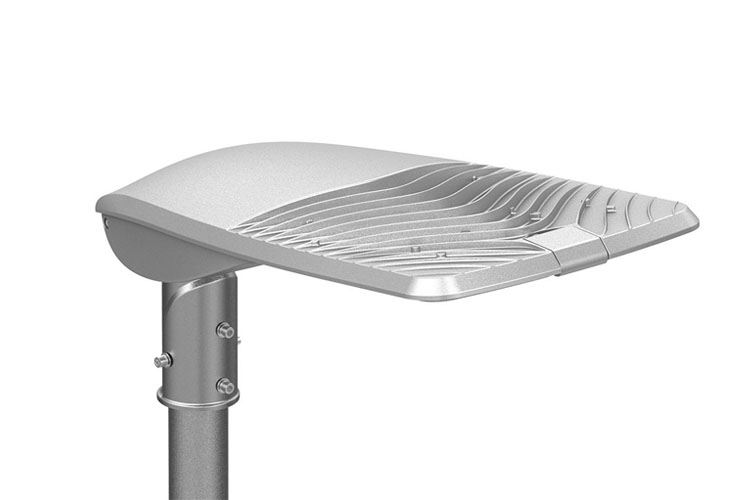

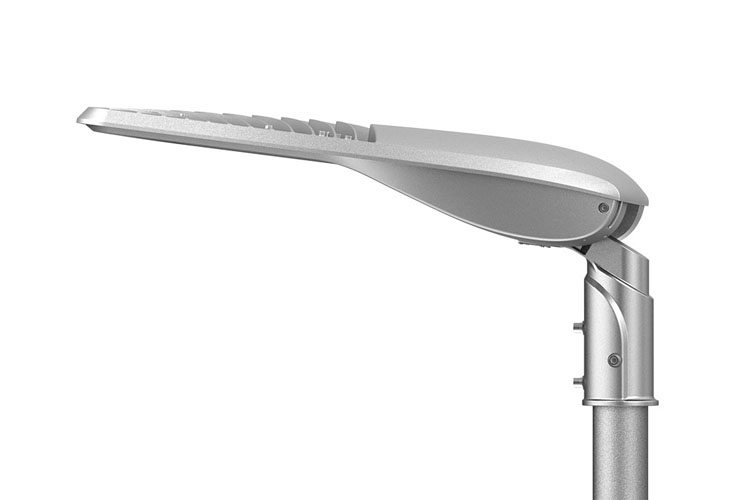

LED STREET LIGHTING

LED STREET LIGHTING is finished by Die-cast aluminium with separated and integrated LED Driver Box, with surface anti-ageing electrostatic spray processing,super resistance to corrosion and rotated bracket, Gaskets in anti-aging rubber , tempered clear Glass and Heat Resisting Cable.  It’s as well a great alternative to urban furniture due to its IP protection rating and IK08 Impact protection, anti-corrosion and vibration test approved,durable and state-of-the-art fixture.Designed for roadway and parking lot area,replace traditional street and area light with quick payback and superior performance. Adopt modular light distribution Lens and super clear tempered glass. Button design for opening LED driver box for easy power circuit connection. And, It is able to be controlled by  1-10V,DALI,Zigbee dimming system. LED module: high-power NICHIA LED, CRI>80 up to 130lm/w. TM21 L70 performance approve >60,000 hours; Fixing: Top or side fitting for pole with adjustable bracket.

Technical Data

  • Luminaire Type-安裝方式

    Tipo de luminaria

    Arm Mounting / Pole Mounting / Bracket Mounting-臂安裝/杆安裝/支架安裝

    Brazo de montaje / montaje / poste de montaje del soporte

  • Power Consumption with LED Driver

    LED燈具包括LED驅動電源功率

    Consumo de energía con controlador de LED

    • 30W      38W       40W    50W      70W
    • 75W      80W       90W    110W    120W
    • 140W    150W    180W   200W
  • Input Voltage / 輸入電壓 Voltaje de entrada

    90-305 VAC  50-60Hz,

  • Control

    控制

    Control



    • SW -ON/OFF
    • 1-10V / DALI
    • 5-Step Time ( programmable LED driver dimming rate in  5 time zone )

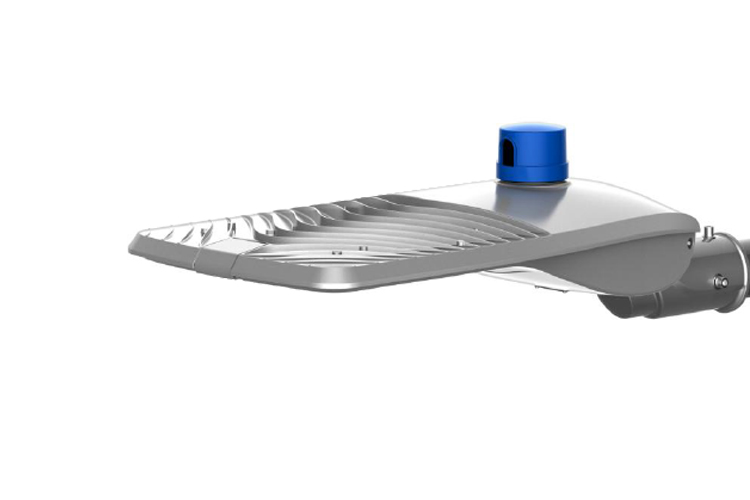

    • NEMA photocell  (3PIN)  with SW- ON/OFF  ( Pre Setting Lux level :  Light ON: 6 lux ON , Light OFF: 50lux)
    • NEMA photocell  (5PIN) with 0-10V Dimming for  auto adjustment in brightness
    • NEMA photocell  (5PIN) with Dali Dimming Control for  auto adjustment in brightness
    • Zigbee Wireless Control
  • Power Factor / 功率因數/Factor de potencia

    PF>0.95  refer to LED driver data sheet

  • Total Harmonic Distortion/總諧波失/Distorsión armónica total

    THD<10%  refer to LED driver data sheet

  • Protection Against Surgers/防護措施/

    PROTECCIÓN CONTRA LAS PROMOCIONES:

    10KV surge protection 10KV防雷保護 Protección contra sobretensiones de 10KV

  • Light Source Brand-光源品牌-Fuente de luz de marca

    NICHIA JAPAN

  • Photobiological safety-IEC 62471 /  of Luminaire

    光生物安全檢驗(IEC/EN 62471) 结果:

    Seguridad fotobiológica-IEC 62471

    • RG1 -Risk Group 1
    • 1 類危險(低危)
    • RG1 - Grupo de riesgo 1
  • "Lumen Maintenance LM-80 Reported by ISTM &TM-21"

    • L70  > 215,000hrs @70W &50W&40W&38W&30W            L70 > 212,000hrs @90W&80W&75W
    • L70  > 202,000hrs @120W &110W              L70 > 189,000hrs @150W & 140W     L70  > 164,000hrs @180W&200W
  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature-色溫 Temperatura y color

    • 3000K      4000K      5000K
  • Color Rendering Index-顯色指數

    Índice de reproducción cromáca

    • >70
    • >80
  • MacAdam Ellipses Binning  麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM   標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Beam Angle-光束角-ángulo de haz

    • A1 @ Asymmetric @ 75°x150°         A2 @ Asymmetric @ 45°x155°       A3 @ Asymmetric @ 45°x145°
    • A4 @ Asymmetric @ 55°x145°         S1 @ Symmetric @ 145°x145°
  • Luminaire Efficacy  燈具效率

    La eficacia de la luminaria

    • 130 Lm/w(3000K) @CRI >70 ;    140 Lm/w(4000K) @CRI >70      145 Lm/w(5000K) @CRI >70
    • 110 Lm/w(3000K) @CRI >80 ;    120 Lm/w(4000K) @CRI >80      130 Lm/w(5000K) @CRI >80
  • LED Source Luminous Efficacy LED光源光效

    Fuente luminosa LED Eficacia

    • 143 Lm/w(3000K) @CRI >70 ;    163 Lm/w(4000K) @CRI >70;     171 Lm/w(5000K) @CRI >70 ;
    • 134 Lm/w(3000K) @CRI >80;     143 Lm/w(4000K) @CRI >80 ;    153 Lm/w(5000K) @CRI >80
  • Housing materials 外殼材料 Materiales de la carcasa

    Die-cast aluminium and Tempered glass --壓鑄鋁和鋼化玻璃--Die fundición de aluminio y vidrio templado

  • Housing Color  外殼顏色

    color de la carcasa

    Polyester powders Coating(RAL 9006 Silver).  聚酯粉末塗料 (RAL 9006 銀灰色)

    Polvos de poliéster Revestimiento(RAL 9006 Plata).

  • Ingress Protection-防護等級 Protección de ingreso

    IP66

  • Mech impact protection 機械衝擊保護

    Protección contra impactos mecánicos

    IK08

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -30 °C / +50 °C /  -22 °F / +122 °F

  • Storage Temperature 儲藏溫度

    Temperatura de almacenamiento

    -40 °C / +70 °C /  -40 °F / +158 °F

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Dimension (LxWxH)/尺寸/ Dimensión

    763x352x167mm (30"×13.86"x6.58")

  • Net Weight /淨重/Peso Neto

    • 8.5±0.3kg @ 30W   / 8.8±0.3kg @ 50W&70W  / 9.0±0.3kg @ 90W   / 9.2±0.3kg @ 120W&150W&180W&200W
  • Packing box size/包裝箱尺寸

    Tamaño de la caja de embalaje

    790x390x150mm(31.1"×15.35"×5.91")



  • Certificate Standard Complied

    符合安規標準

    estándar certificado de cumplimiento

    • LED Luminaries:  LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-3;IEC62471;IEC/EN 62031;IEC 62722 / IEC/EN 62493 ;RoHS
    • LED Driver:          IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;
    •                              IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384
  • Certification-認證-Certificación

Specification Code

Example Product Code:
STEA-150W
STEA
-
POWER CONSUMPTION

POWER CONSUMPTION

  • 30W
    30W
  • 38W
    38W
  • 40W
    40W
  • 50W
    50W
  • 70W
    70W
  • 75W
    75W
  • 80W
    80W
  • 90W
    90W
  • 110W
    110W
  • 120W
    120W
  • 140W
    140W
  • 150W
    150W
  • 180W
    180W
  • 200W
    200W

Technical Drawing
