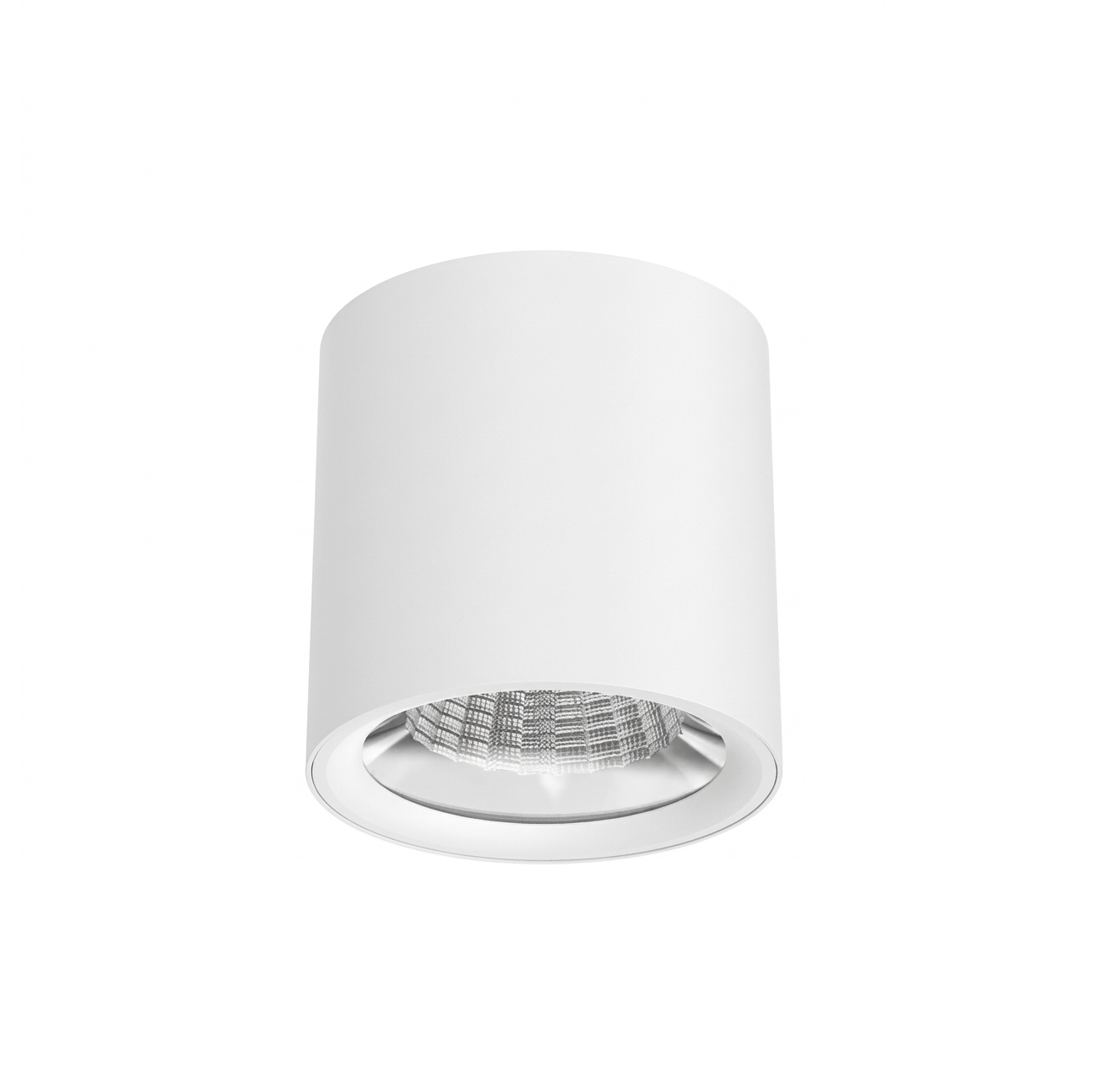

Features
25° 45°beam angle optional.
Finished color: Black/white.
100mm,120mm,150mm,170mm and 200mm diameter for option.
Internal flicker-free LED Driver
Dimming ways: 0/1-10V Dim, DALI Dim, Non-Dim.
Applications: Supermarket, Shop, School, Hotel, etc. It is also widely used for public areas, such as Stairway, Lobby, Reception, Corridors etc.
Installation Method / 安裝方式
Método de instalación
Surface Mounted / 明裝式 / Montaje en superficie
Dimension / 尺寸 / Dimensión
Dia 100 x H 120mm
Dia 120 x H 150mm
Dia 150 x H 180mm
Dia 170 x H 200mm
Dia 200 x H 240mm
LED Types / LED類型 / Tipos de LED
COB
Light Source Brand / 光源品牌 / Fuente de luz de marca
Cree / Osram
Power Consumption / 燈具功率
Consumo de energía
Dia 100mm @ 8W 9W 10W
Dia 120mm @ 9W 12W 15W
Dia 150mm @ 15W 22W 25W
Dia 170mm @ 25W 30W 35W 40W
Dia 200mm @ 35W 40W 50W 60W
Input Voltage / 輸入電壓 / Voltaje de entrada
AC220-240V 50/60HZ
LED Driver Type
LED驅動款式
Tipo de controlador LED
Integrated-type LED Driver-Refer to LED driver specification
請參閱LED驅動器規格
Consulte la especificación de controlador de LED
1. ON/OFF Switch AC220-240V 50/60HZ
2. 0/1-10V Dimming Driver AC220-240V 50/60HZ
3. DALI Dimming Driver AC220-240V 50/60HZ
4. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia
LED Driver Features / 驅動特性
Funciones del controlador de LED
Power Factor: >0.9
Total Harmonic Distortion <20%
Control Protocol / 控制協議
Protocolo de Control
0/1-10V / DALI
Beam Angle / 光束角 / ángulo de haz
24° 45°
Lumen Maintenance LM-80 Reported by TM-21
L70 > 54,000 Hours
LED Life / LED壽命 / La vida del LED
>100,000 Hours
Color Temperature / 色溫 / Temperatura del color
3000K / 4000K / 5000K / 6500K
Color Rendering Index / 顯色指數
Índice de reproducción cromática
> 80
> 90
MacAdam Ellipses Binning
麥克亞當橢圓分級
Mac Adam binning elipse
Standard Deviation Colour Matching < 3 SDCM
標準偏差配色< 3 SDCM
Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy / 具效率
La eficacia de la luminaria
CRI:80
100 LM/W (3000K) 110 LM/W (4000K) 110 LM/W (5000K) 110 LM/W(6500K)
CRI:90
90 LM/W (3000K) 100 LM/W (4000K) 100 LM/W (5000K) 100 LM/W(6500K)
LED Source Luminous Efficacy / LED光源光效
Fuente luminosa LED Eficacia
CRI:80
140 LM/W (3000K) 150 LM/W (4000K) 150 LM/W (5000K) 150 LM/W (6500K)
CRI:90
130 LM/W (3000K) 140 LM/W (4000K) 140 LM/W (5000K) 140 LM/W (6500K)
Housing materials / 外殼材料
Materiales de la carcasa
Die-cast aluminum and Polycarbonate Diffuser
壓鑄鋁和聚碳酸酯擴散器
Difusor de aluminio fundido a presión y policarbonato
Housing Color
外殼顏色
color de la carcasa
Matte White / Matte Black
啞白 / 啞黑
Blanco mate / Negro mate
Ingress Protection / 防護等級
Protección de ingreso
IP20
Operating Humidity / 工作濕度
Humedad de funcionamiento
0~90%, non-condensing / 不結霜
sin condensación
Operating Temperature Range / 工作溫度範圍
Rango de temperatura de funcion amiento
-20 °C / +45 °C
Comply Testing Standard
符合測試標準
Cumplir el estándar de prueba
LED Luminaires: IEC 60598-1 / IEC 60598-2-1/ Photometric data-IES format
LED Driver: EN 55015 / IEC 61000-3-2 /IEC 61347-1 /IEC 61347-2-13/IEC 61547
