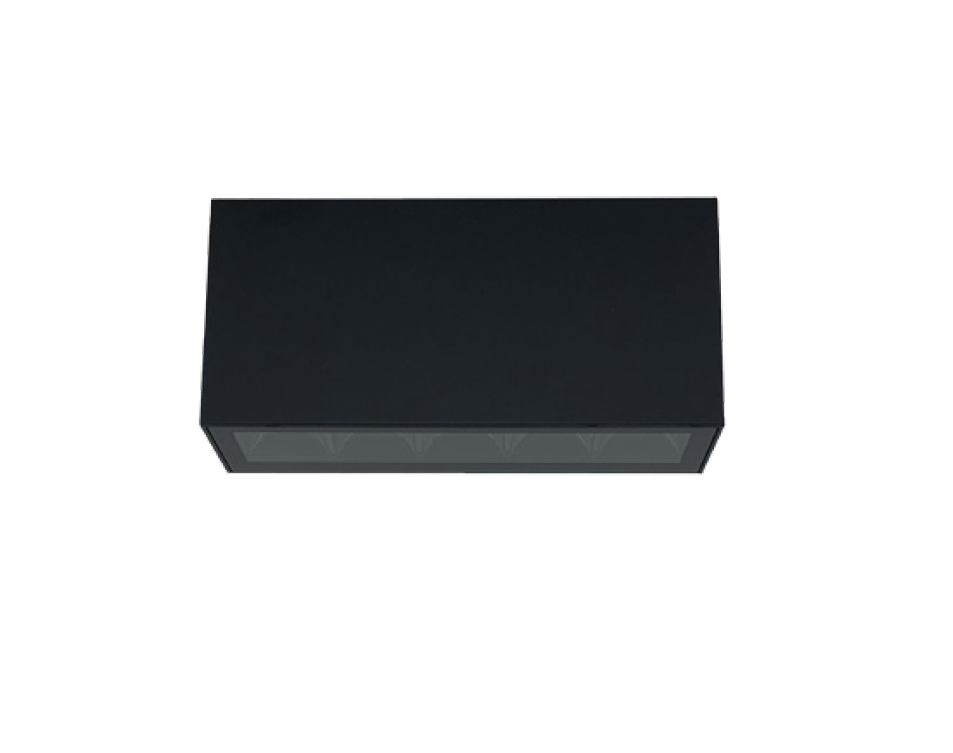

Die-cast aluminium housing with corrosion resistance powder coating.
Extra-thick tempered glass to meet IK09 requirements.
Anti-glare reflector to distribute comfortable light.
Ingress Protection: IP66.
Fitted with anti-drop steel wire rope.
Integrated 0/1-10V or DALI LED Driver.
Installation method / 安裝方式 / Metodo de instalacion
Surface Mounted Type / 明裝式燈具 / Superficie Tipo Montado
Dimension / 尺寸 / Dimensión
L155 x W50 x H100mm
Input Voltage / 輸入電壓 / Voltaje de entrada
AC220-240V 50/60HZ
Power Consumption Max-燈具功率
Consumo de energía Max
6W 7W 8W 9W 10W 11W 12W
LED Driver Type
LED驅動款式
Tipo de controlador LED
Integrated type LED Driver-Constant Current LED Driver: Refer to LED driver specification 請參閱LED驅動器規格
1. ON/OFF Switch AC220-240V 50/60HZ
2. 0/1 -10V Dimming Driver AC220-240V 50/60HZ
3. DALI Dimming Driver AC220-240V 50/60HZ
4. DMX Driver AC100-240V 50/60HZ (Dimming range from 0-100%)
5. Zigbee Wireless Control Driver AC220-240V 50/60HZ
6. Remoted Type Emergency Battery Kit for 2 Hours or 3 hours.
LED Driver Features / 驅動特性
Funciones del controlador de LED
Power Factor: PF>0.9
Total Harmonic Distortion: <15%
Control Protocol / 控制協議
Protocolo de Control
0/1-10V / DALI / DMX 512 / ZIGBEE Wireless Control
Beam Angle / 光束角 / Ángulo de haz
12° 35° 48° 65°
Light Source Brand / 光源品牌 / Fuente de luz de marca
Osram / Bridgelux / CREE
Lumen Maintenance LM-80 Reported by TM-21
L70 > 54,000 hrs
LED Life / LED壽命 / La vida del LED
>100,000 hours
Color Temperature / 色溫
Temperatura del color
2700K / 3000K / 4000K / 6500K
Color Rendering Index / 顯色指數
Índice de reproducción cromática
> 80
> 90
Luminaire Efficacy / 燈具效率
La eficacia de la luminaria
CRI80:
70 LM/W (2700K) 75 LM/W (3000K) 75 LM/W (4000K) 80 LM/W (6500K)
CRI90:
65 LM/W (2700K) 70 LM/W (3000K) 70 LM/W (4000K) 85 LM/W (6500K)
For a product with a beam angle of 65 degrees that employs an optical film, the LM/W will decrease by approximately 15%.
LED Source Luminous Efficacy / LED光源光效
Fuente luminosa LED Eficacia
CRI80:
140 LM/W (2700K) 145 LM/W (3000K) 150 LM/W (4000K) 155 Lm/w(6500K)
CRI90:
130 LM/W (2700K) 135 LM/W (3000K) 140 LM/W (4000K) 145 Lm/w(6500K)
MacAdam Ellipses Binning
麥克亞當橢圓分級
Mac Adam binning elipse
Standard Deviation Colour Matching 3 SDCM
標準偏差配色 3 SDCM
Coincidencia de color estándar Desviación 3 SDCM
Housing materials / 外殼材料
Materiales de la carcasa
Die-cast aluminum & Clear Tempered Glass
壓鑄鋁和透明鋼化玻璃
Aluminio fundido a presión y vidrio templado transparente
Housing Color / 外殼顏色
color de la carcasa
UV resistant Powder Coating : Matte Black RAL 9005 / Matte White RAL 9003
抗紫外線粉末塗料：啞光黑色燈身 RAL 9005 / 啞光白色燈身 RAL9003
Resistente a los rayos UV Recubrimiento en Polvo: Matte Black RAL 9005 / Matte Blanco RAL 9003
Operating Temperature Range / 工作溫度範圍
Rango de temperatura de funcion amiento
-10 °C / +45 °C
Operating Humidity -工作濕度
Humedad de funcionamiento
0~90%, non-condensing-不結霜
sin condensación
Ingress Protection / 防護等級
Protección de ingreso
IP66 / (IEC 60529)
Impact Protection / 衝擊保護
Protección contra impactos
IK09 (IEC 62262)
Comply Testing Standard
符合測試標準
Cumplir el estándar de prueba
LED Luminaries: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471; IEC TR 62778:2014 IEC/EN 62031; IEC/EN 62493; IEC 60529; IEC/EN 55015; IEC/EN 61000-3-2; IEC/EN 61000-3-3; IEC/EN 61547
LED Driver: EN 55015; IEC/EN 61000-3-2; IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN61574; IEC/EN 62384;
