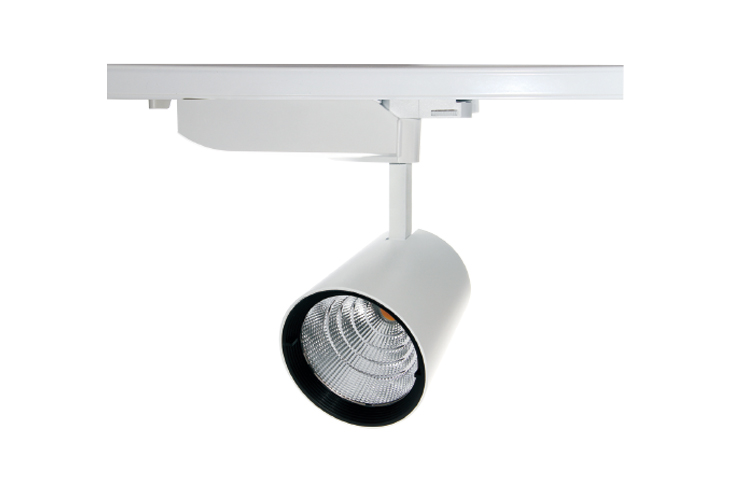

TESTEX

TESTEX
TESTEX-1
D125xL258mm 50W Max IP20
LED TRACK LIGHT

LED Lrack Light Feature:

Housing: die-cast aluminium with Anti-glare reflector and diffusor system made of PMMA.

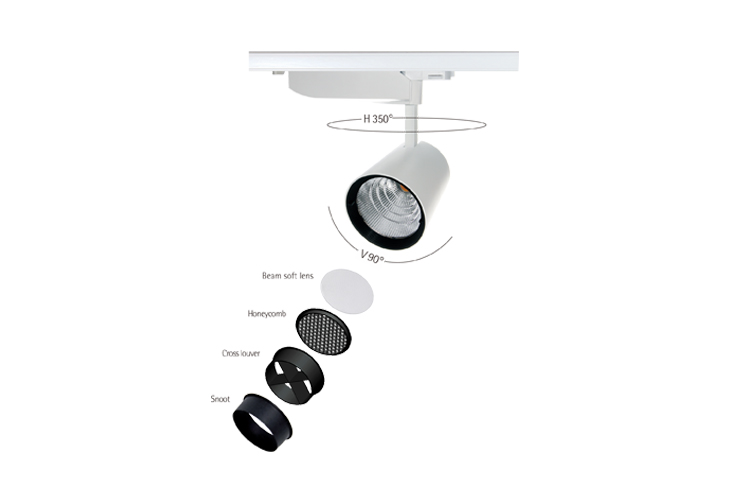

Roated Through 350° and Tilted up to 90°.

DMX 512 control.



Technical Data

  • Luminaire Type-

    安裝方式

    Tipo de luminaria



    Track Mounted Type

    軌道燈具

    Tipo de huella Montado

  • Dimension-尺寸-Dimensión

    Dia:125 x L: 258 x H:256  mm



  • QTY of LEDs-燈珠數量-CANT de LEDs

    1 pcs LEDs

  • Input Voltage-輸入電壓-Voltaje de entrada

    DC24V

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    20W     25W     30W     40W     50W

  • Control Protocol-控制協議

    Protocolo de Control

    DMX 512

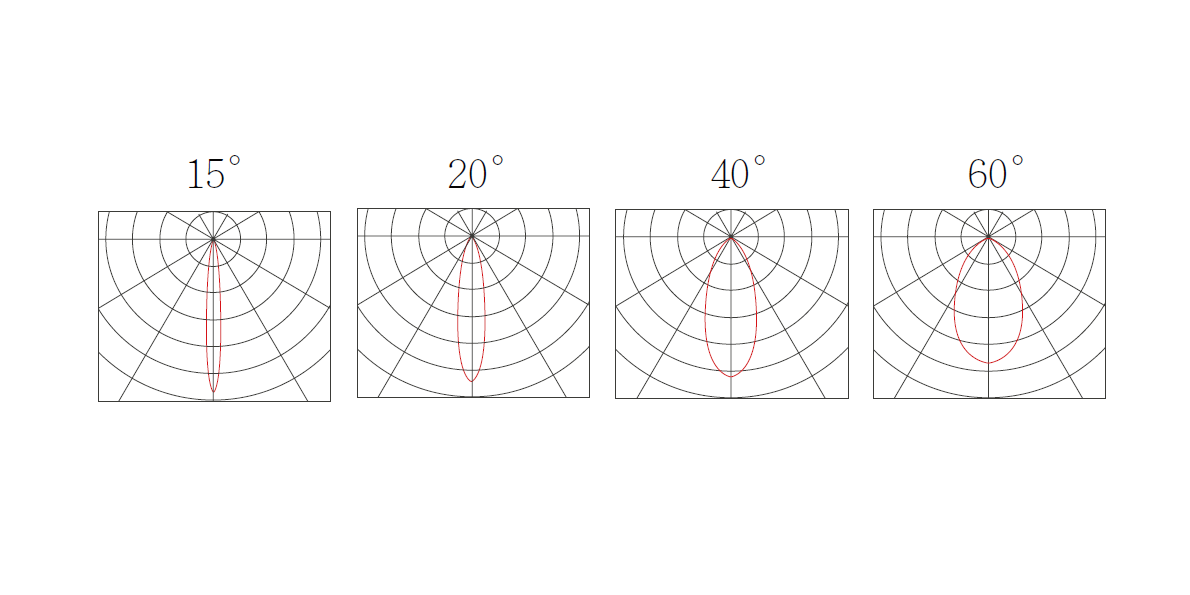

  • Beam Angle

    光束角

    ángulo de haz



    • 15°
    • 20°
    • 40°
    • 60°
  • Light Source Brand-光源品牌-Fuente de luz de marca

    CREE - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )

  • "Lumen Maintenance LM-80 Reported by TM-21"@ 25°

    1. L90(10k) = 50,700 hrs

    2. L80(10k) > 63,500 hrs

    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color -顏色-Color

    • RED(620nm-630nm)         GREEN (520-530nm)         BLUE (450-460nm)
    • RGBW (White:   O: 2700K        W: 3000K      N: 4000K       D:5000K       C: 6500K)
    • MONO: 2700K / 3000K / 4000K / 5000K / 6500K
  • MacAdam Ellipses Binning   麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy

    燈具效率

    La eficacia de la luminaria



    • 50 Lm/w(RED);
    • 75 Lm/w (GREEN)
    • 20 Lm/w (BLUE)
    • 55 Lm/W @ RGBW
    • 85 Lm/w(2700K),      85 Lm/w(3000K),     90 Lm/w(4000K),
    • 95 Lm/w(5000K),     95 Lm/w(6500K),
  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia



    • 70 Lm/w(RED);
    • 95 Lm/w (GREEN)
    • 40 Lm/w (BLUE)
    • 75 Lm/W @ RGBW
    • 110 Lm/w(2700K),      110 Lm/w(3000K),     120 Lm/w(4000K),
    • 125 Lm/w(5000K),     125 Lm/w(6500K),
  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    • >80 @ Mono Color LED
    • >90 @ Mono Color LED
  • Housing materials-外殼材料

    Materiales de la carcasa

    Die-cast aluminum and acrylic

    壓鑄鋁和亞克力

    Fundición de aluminio y acrílico

  • Housing Color

    外殼顏色

    color de la carcasa



    Matte white / Matte black

    啞光白色 / 啞光黑色

    Blanco mate / Matte black

  • Ingress Protection-防護等級

    Protección de ingreso

    IP20 - (IEC 60529)

  • Environment-使用環境-medio ambiente

    Indoor

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

     -30 °C / +50 °C

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data-IES format

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
TESTEX-50W
TESTEX
-
LED Driver Type

LED Driver Type

  • 20W
    20W
  • 25W
    25W
  • 30W
    30W
  • 40W
    40W
  • 50W
    50W

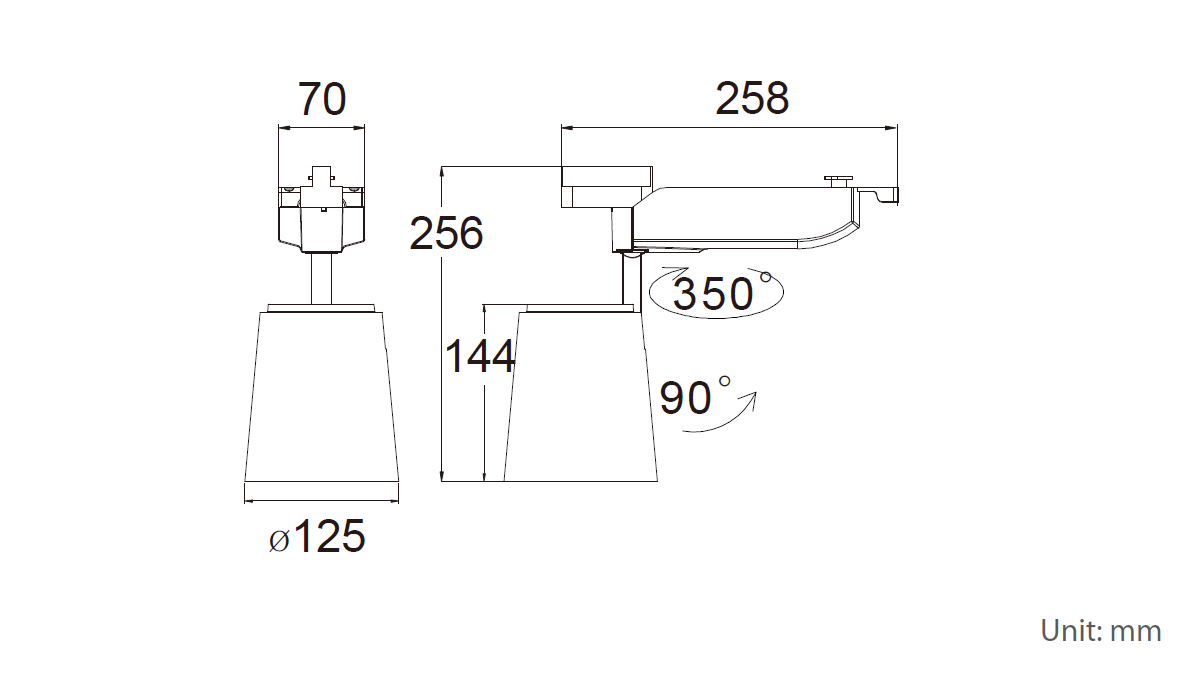

Technical Drawing
