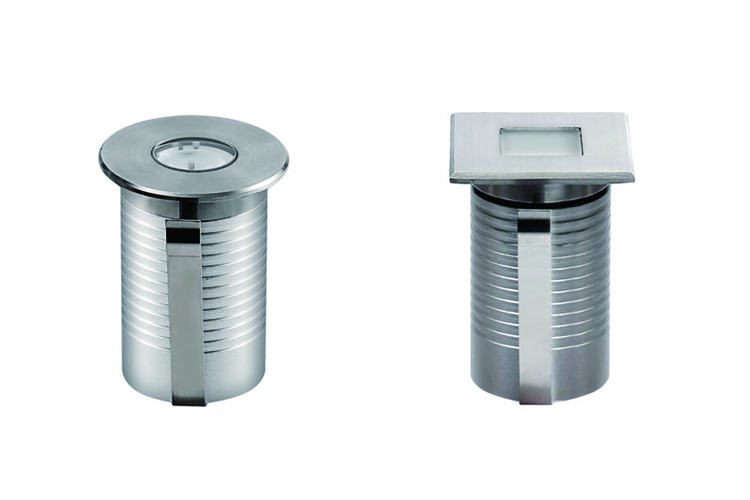

D45&SQ45mm 3W Max IP67
INGROUND UP LIGHT

LED in-ground luminaires with small dimensions for flush-mounting installation. The luminaire housing made of die-cast alumiumim and AISI 316 stainless steel Cover with tempered glass. Optics with PMMA lens.It is available in monocolor and RGBW color. Outer casing made of ABS material. It is able to be controlled by DMX and RDM. It’s as well a great alternative to urban furniture due to its IP67 protection rating.

Technical Data

  • Luminaire Type

    安裝方式

    Tipo de luminaria

    Recessed In-Ground Type

    內嵌式地埋燈

    Empotrada en el suelo del Tipo

  • Power Consumption Max

    燈具功率

    Consumo de energía Max

    • 1W
    • 2W
    • 3W
  • Input Voltage

     輸入電壓

    Voltaje de entrada

    DC24V

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    Remote-type  LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC100-240V 50/60HZ @ Integrated-type

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0 -10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

    5. DMX Driver AC100-240V 50/60HZ

    6. RDM Driver  AC100-240V 50/60HZ

    7. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia

  • Control Protocol

    控制協議

    Protocolo de Control

    0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

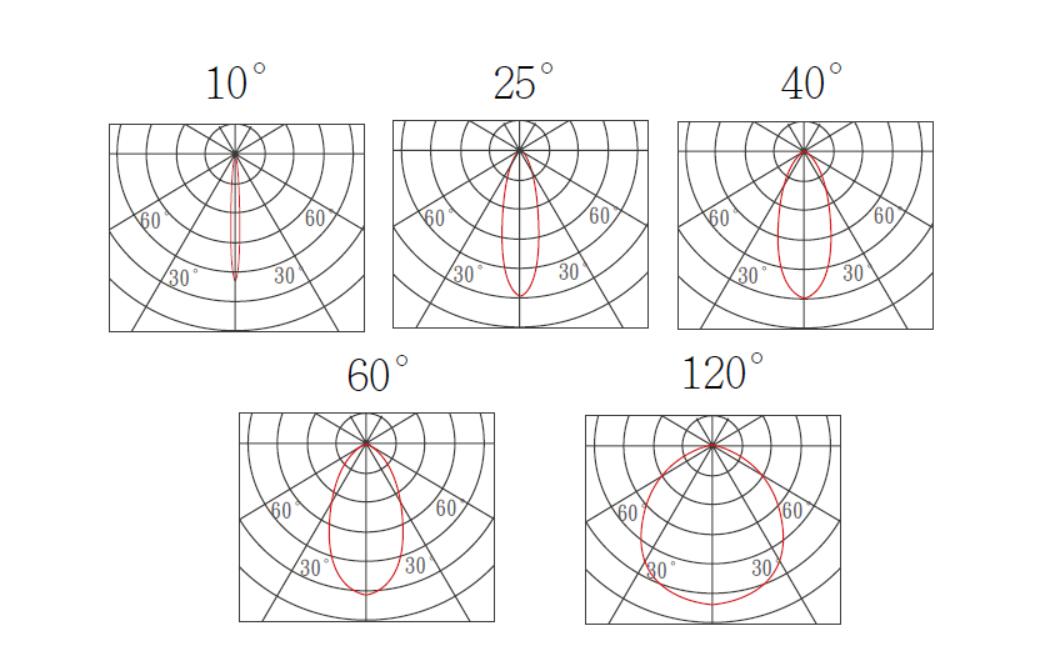

  • Beam Angle

    光束角

    ángulo de haz

    • 10°
    • 25°
    • 40°
    • 60°
    • 120°



  • Light Source Brand/光源品牌

    Fuente de luz de marca

    OSRAM - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )

  • "Lumen Maintenance LM-80 Reported by TM-21"

     L90(10k) = 50,700 hrs / L80(10k) > 63,500 hrs /  L70(10k) > 63,500 hrs

  • LED Life/LED壽命

    La vida del LED

    >60,000 hours

  • Color Temperature / 色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6500K / RGB







  • Color Rendering Index/顯色指數

    Índice de reproducción cromática

    >80 @ MONO

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy

    燈具效率

    La eficacia de la luminaria

    • 60 Lm/w(2700K),
    • 60 Lm/w(3000K),
    • 65 Lm/w(4000K),
    • 70 Lm/w(5000K),
    • 70 Lm/w(6500K),
    • 40 Lm/w(RGB),
  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia

    • 100 Lm/w(2700K),
    • 100 Lm/w(3000K),
    • 105 Lm/w(4000K),
    • 120 Lm/w(5000K),
    • 120 Lm/w(6500K),
    • 70 Lm/w(RGB),
  • Housing materials/外殼材料

    Materiales de la carcasa

    Die cast aluminium , 4mm thick tempered glass wiht #316 Stainless Steel Cover

    壓鑄鋁,鋼化玻璃和#316不锈鋼面蓋

    Aluminio fundido, vidrio templado de 4 mm de espesor con # 316 de la cubierta de acero inoxidable

  • Housing Color/ 外殼顏色

    Color de la carcasa

    #316 Stainless Steel Cover

    #316不锈鋼面蓋

    # 316 de la cubierta de acero inoxidable

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -30 °C / +50 °C



  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Ingress Protection/ 防護等級

    Protección de ingreso

    IP67- (IEC 60529)

  • Mech impact protection

    機械衝擊保護

    Protección contra impactos mecánicos

    IK10

  • Dimension/尺寸

    Dimensión

    • Light Fixture: Dia 45 x H: 65mm or L: 45 x W: 45 x H: 65 mm
    • Outer casing: Dia 42 x Dia 67 x H: 83 mm
    • Cut off: Dia 67mm
  • Environment/ 使用環境

    Medio ambiente

    Outdoor /戶外/al aire libre

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-13 / Photometric data-IES format

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1  / IEC 61347-2-13 6 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
IARE-3W-SW-30-S
IARE
-
Power Consumption
-
LED Driver Type
-
Color Temperature
-
Beam Angle

Power Consumption

  • 1W
    1 x 1W
  • 2W
    1 x 2W
  • 3W
    1 x 3W

LED Driver Type

  • SW
    ON/OFF Switch
  • ELV
    ELV Leading Edge Control
  • AN
    Analog 0 -10V Dimming
  • DA
    DALI Dimming
  • DMX
    DMX Dimming
  • RDM
    RDM Dimming
  • EM
    Emergency Battery
  • ZI
    ZIGBEE Wireless Control

Color Temperature

  • 27
    2700K
  • 30
    3000K
  • 40
    4000K
  • 50
    5000K
  • 65
    6500K
  • RGB
    RGB

Beam Angle

  • N
    10°
  • S
    25°
  • M
    40°
  • L
    60°
  • XL
    120°

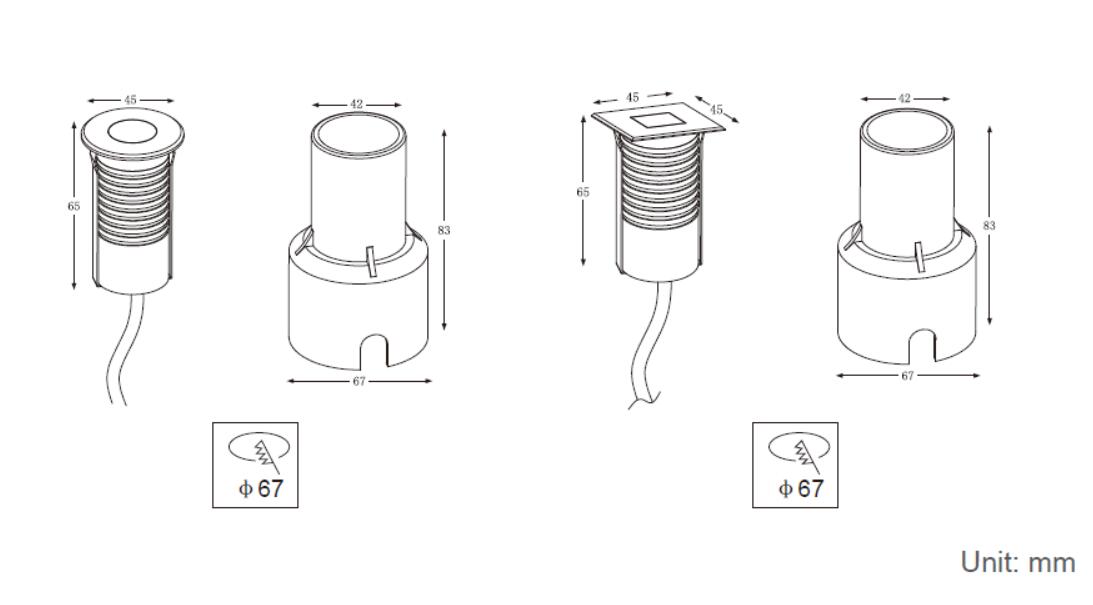

Technical Drawing

Accessories

  • HLG-100H
