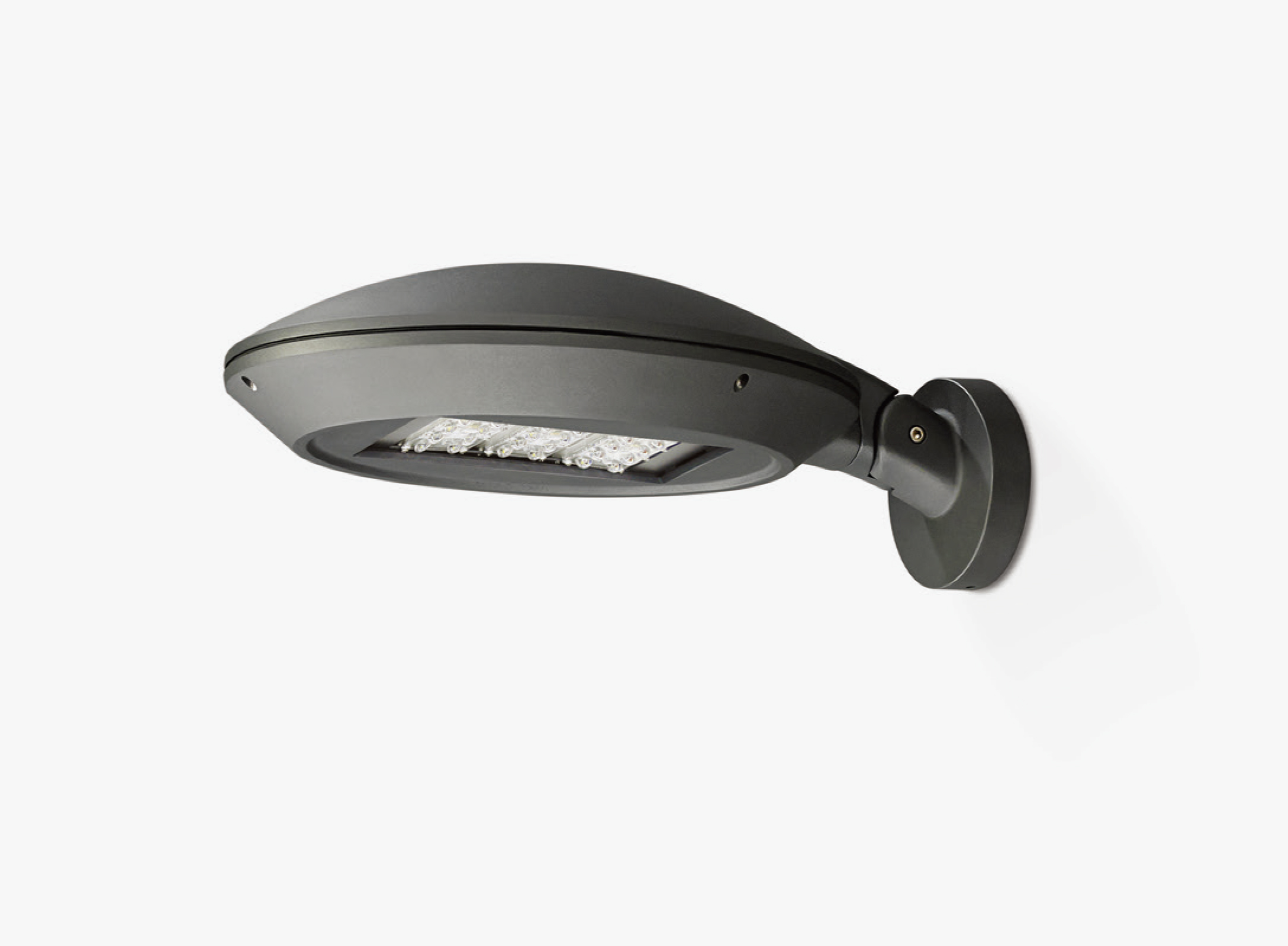

BEETLE

BEETLE

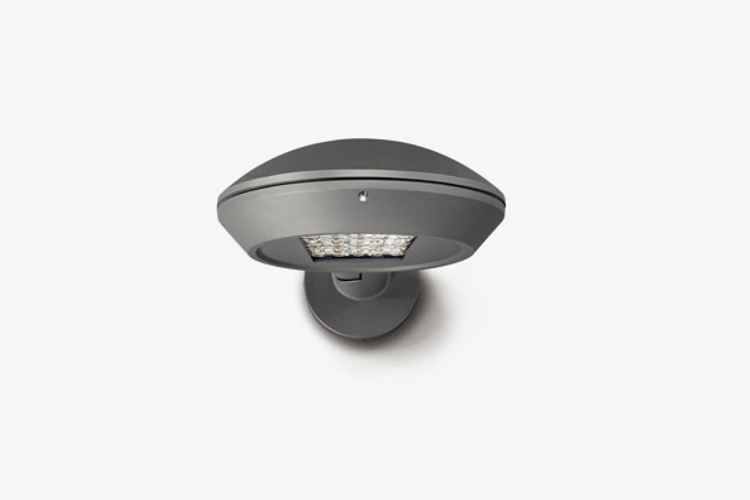

BEETLE-1

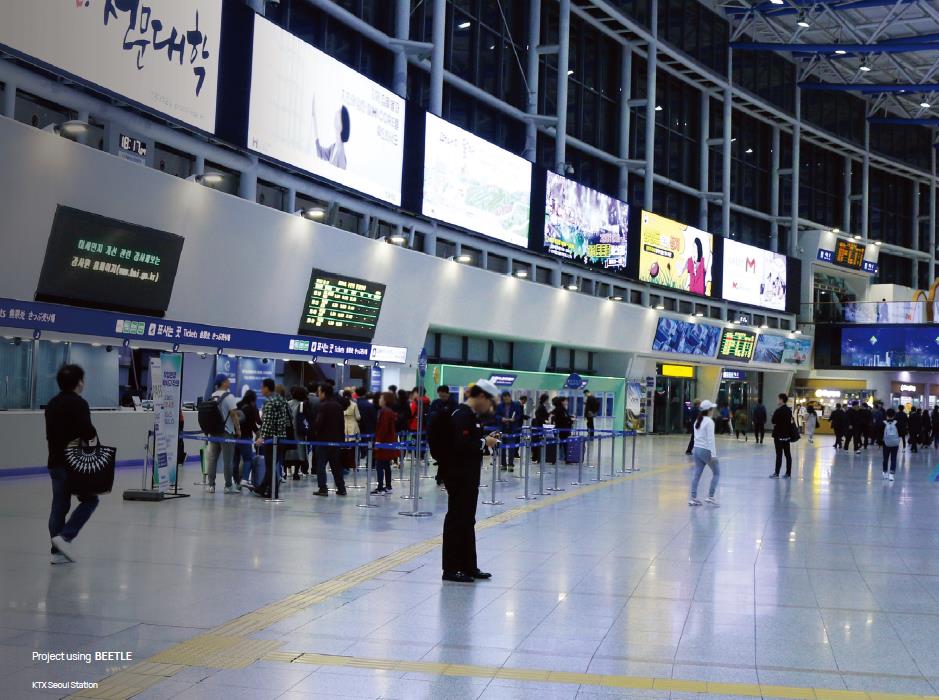

BEETLE-2
L561xW332xH198mm 60W Max IP65
ARCHITECTURAL WALL LIGHT

ARCHITECTURAL WALL LIGHT

Beetle is a surface mounted wall luminaire developed to brighten the night and outdoor building facade using the high performance of the LED light source. The outdoor lighting fixture is designed with downward-facing and oval shape lighting head with a simple arm to complete a contemporary look. Especially, the modern lighting head can be tilted in the vertical direction and a High-performance IPrated built-in LED module offers high-lumen output and long-lasting performance.

· High-performance IP-rated built-in LED module
· High-efficiency lens optic
· Cast aluminum
· 70˚ tiltable hinge, 360˚ rotatable plate
· Dark gray (powder-coated) color
· Protection class IP65



Technical Data

  • Luminaire Type-安裝方式-Tipo de luminaria

    Surface Mounted Type明裝式燈具Superficie Tipo Montado

    70˚ tiltable hinge, 360˚ rotatable plate

  • Dimension-尺寸-Dimensión

    L: 561 x W: 332 x H: 198 mm (Dia 84mm @ Mounting Base)

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    • 50W        60W



  • Input Voltage-輸入電壓-Voltaje de entrada

    AC100-240V 50/60HZ

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC100-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0-10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

    5. DMX Driver AC100-240V 50/60HZ

  • LED Driver Features 驅動特性

    Funciones del controlador de LED

    POWER FACTOR : PF>0.90 @ Full Load

    TOTAL HARMONIC DISTORTION: THD< 20%

  • Control Protocol-控制協議

    Protocolo de Control

    0-10V / Dali/ DMX 512  / RDM / ZIGBEE WIRELESS CONTROL

  • Beam Angle 光束角 ángulo de haz

    Asymmetric

  • Light Source Brand-光源品牌-Fuente de luz de marca

    CREE LED- (Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk))

  • "Lumen Maintenance LM-80 Reported by TM-21"

    1. L90(10k) = 50,700 hrs

    2. L80(10k) > 63,500 hrs

    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    3000K / 4000K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 80

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy 燈具效率

    La eficacia de la luminaria

    110 Lm/w(3000K),      120 Lm/w(4000K)

  • LED Source Luminous Efficacy LED光源光效

    Fuente luminosa LED Eficacia

    130 Lm/w(3000K),    140 Lm/w(4000K)

  • Housing materials-外殼材料

    Materiales de la carcasa

    Cast aluminum , Clear tempered glass diffuser , Stainless steel screws, Silicon seal gaskets

    壓鑄鋁,透明鋼化玻璃擴散器,不銹鋼螺釘,硅密封墊圈

    Aluminio fundido, difusor de vidrio templado transparente, tornillos de acero inoxidable, juntas de sello de silici

  • Housing Color

    外殼顏色

    color de la carcasa

    corrosion -resistance powder coating 耐腐蝕粉末塗料recubrimiento en polvo resistente a la corrosión:

    Dark gray (powder-coated) color

    深灰色

    Color gris oscuro (con recubrimiento en polvo)

  • Ingress Protection-防護等級

    Protección de ingreso

    IP65

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

     -30 °C / +50 °C

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

     -30 °C / +50 °C

  • Country of Origin 產地País de origen

    Korea 韓國Corea

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    EN/ IEC  60598-1;EN/IEC 60598-2-1;EN/IEC 62471 (RG1) ;EN/IEC 62493;EN/IEC 62031;IEC TR 62778; IEC62262;

    IEC62722-1; IEC 62722-2-1  RoHS  CIBSE TM5 or IES  TM21-L70

    EN 55015; EN/IEC 61547 ;EN/IEC 61000-3-2; EN/IEC 61347-1;EN/IEC 61347-2-13;EN/ IEC 62384

  • Certification-認證-Certificación

Specification Code

Example Product Code:
BEETLE-60W
BEETLE
-
Power Consumption

Power Consumption

  • 50W
    50W
  • 60W
    60W
