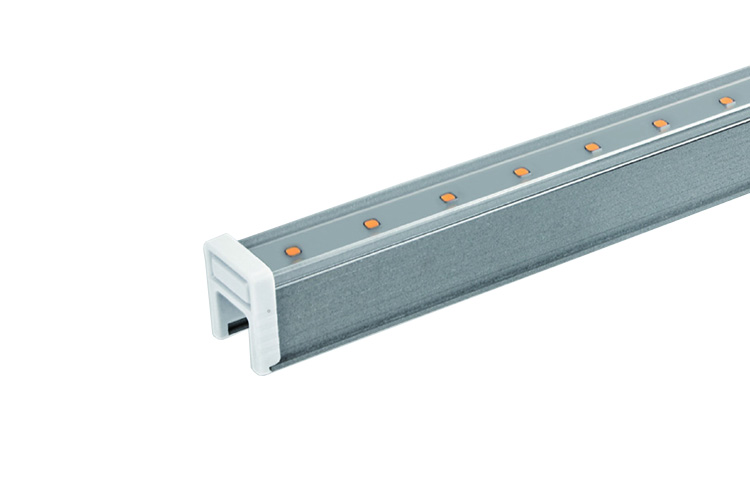

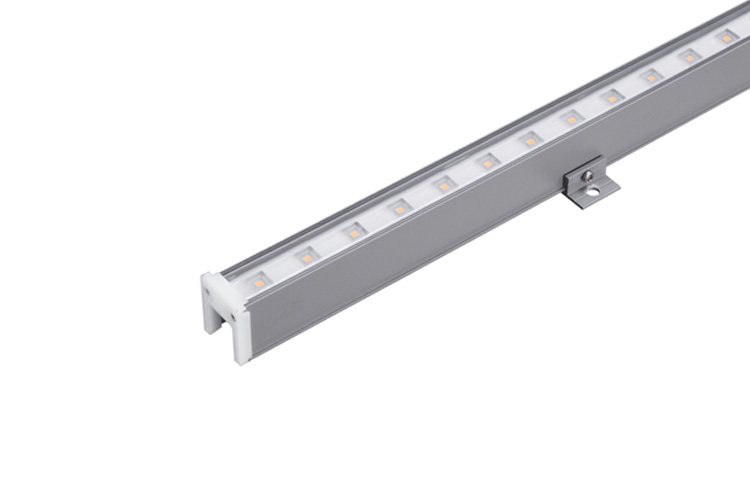

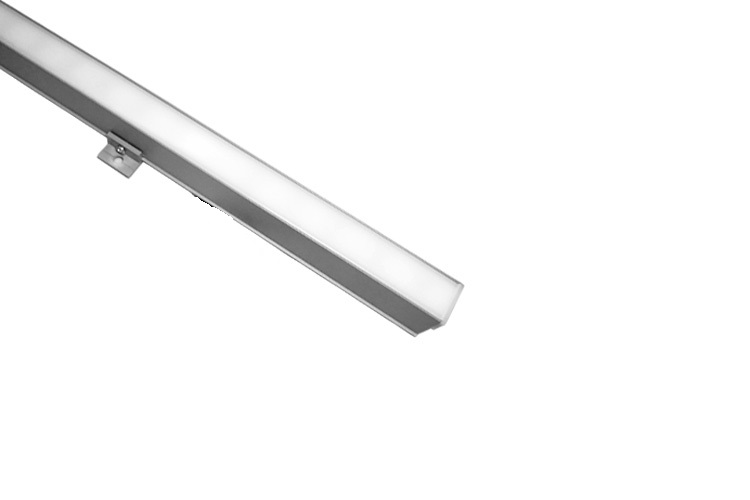

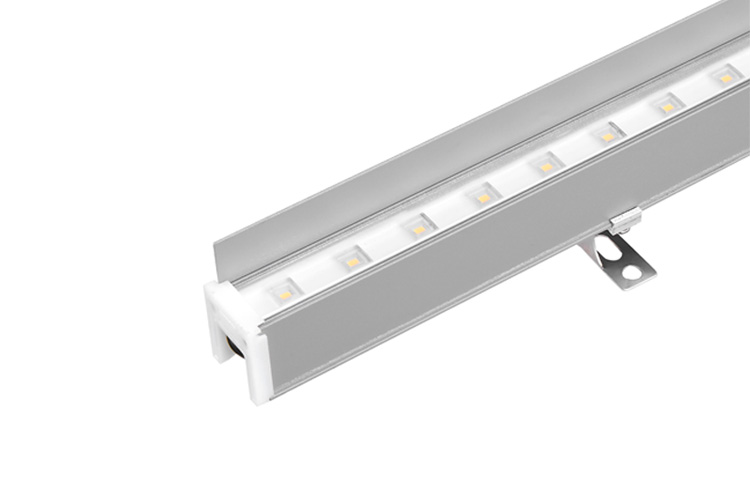

LEAMY

W20mm 15W Max IP67

MEDIA LINEAR BAR

LED MEDIA LINEAR BAR is a indoor and outdoor fixture with RGB , RGBW or MONO color for media façade application. Made by 6063 extruded aluminium & with Dot-Light effect Polycarbonate Diffuser. UV Resistant and Anodised Aluminium for Anti-corrosion Protection. High Level Ingress Protection: IP67 .Photobiological safety grade -Blue light hazard raiance : RG1 (Risk Group 1)

Technical Data

Luminaire Type/ 安裝方式 Tipo de luminaria

Surface Mount Type 明裝安裝腳 Tipo de montaje en superficie
Color -顏色-Color
- RGBW (White: O: 2700K W: 3000K N: 4000K D:5000K C: 6500K)
- RGB
- Color Temperature Adjustment CTA ( 2700K to 6500K)
- MONO:2700K / 3000K / 4000K / 5000K / 6500K
Power Consumption Max 燈具最大功率

Consumo de energía Max

3W @250mm 6W@500mm 9W@500mm 12W@1000mm 15W@1000mm 18W@1000mm

Tailor-made - 客制生產-Hecho a medida
Input Voltage / 輸入電 /Voltaje de entrada
- DC24V
- DC24+DMX512A
- DC24V + Remote Dali Dimming LED Driver
- DC24V + Remote 0-10V Dimming LED Driver
Pixels & DMX Channels //Meter

像素和DMX 通道/米

Píxeles y canales DMX // Metro

If under DMX Control
- 1Pixel (1 DMX Channel@Mono; 3 DMX Channel@RGB; 4 DMX Channel@RGBW; 2 DMX Channel@CTA )
- 2Pixels(2 DMX Channel@Mono; 6 DMX Channel@RGB; 8 DMX Channel@RGBW; 4 DMX Channel@CTA )
- 4Pixels(4 DMX Channel@Mono; 12 DMX Channel@RGB; 16 DMX Channel@RGBW; 8 DMX Channel@CTA )
- 5Pixels(5 DMX Channel@Mono; 15 DMX Channel@RGB; 20 DMX Channel@RGBW; 10 DMX Channel@CTA)
- 10Pixels(10 DMX Channel@Mono; 30 DMX Channel@RGB;40 DMX Channel@RGBW; 20 DMX Channel@CTA)
Control Protocol-控制協議

Protocolo de Control
- Remote LED Driver for 1-10V / Dali
- Built- In DMX 512 Decorder in the Linear
Color Range

顏色範圍

Gama de colores

16.7 Million additive RGB colors and White LED

1670萬RGB顏色配合白光LED

16.7 Millones de colores aditivos RGB; LED blanco
Mono, RGB or RGBW Color Resolution with Gamma correction

單色, RGB, RGBW顏色經過伽馬校正的分辨率

Resolución de color mono, RGB o RGBW con corrección gamma

16-bit gray scale control and Gamma correction, supports up to 65,536 gray scales for color depths

16位灰度控制，支持高達65,536個灰度級的顏色深度

control de escala de grises de 16 bits, soporta hasta 65.536 escalas de gris para profundidades de color

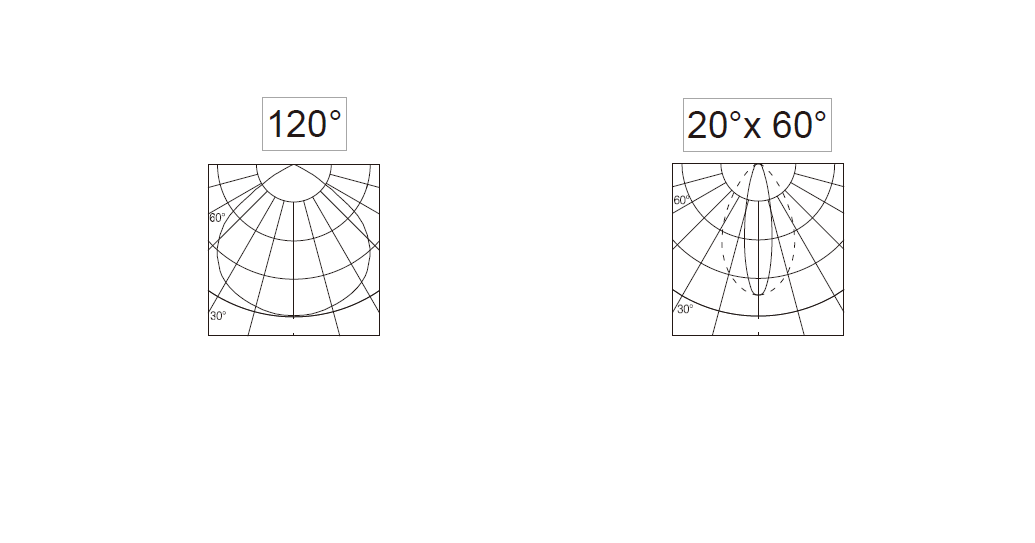

Beam Angle/光束角 ángulo de haz
- 20°x 60° or 120°
Light Source Brand/光源品牌

Fuente de luz de marca
- OSRAM LED for White Color LED
- GREE LED For RGB or RGBW
Color Rendering Index-顯色指數

Índice de reproducción cromáca
- >80
- >90
Lumen Maintenance Reported by TM-21 TM-21光衰壽命

Mantenimiento del lumen informado por TM-21

L70 > 53,500 hrs
LED Life/LED壽命 La vida del LED

>50,000 hours
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy-燈具效率

La eficacia de la luminaria

55lm/W @ RGBW 70 Lm/w(2700K) @ MONO 85 Lm/w(3000K) @ MONO

90 Lm/w(4000K) @ MONO 100 Lm/w(5000K) @ MONO 100 Lm/w(6500K) @ MONO

48lm/w@ RGB 80 Lm/w @ CTA
LED Source Luminous Efficacy-LED光源光效

Fuente luminosa LED Eficacia

70lm/W @ RGBW 130 Lm/w(2700K) @ MONO 130Lm/w(3000K) @ MONO

140 Lm/w(4000K) @ MONO 150 Lm/w(5000K) @ MONO 150 Lm/w(6500K) @ MONO

65lm/w@ RGB 150 Lm/w @ CTA
Housing materials/外殼材料

Materiales de la carcasa

6063 extruded aluminium & Clear PMMA Diffuser or PC Milky Diffuser with Dot Point Light effect

6063擠壓鋁和透明PMMA擴散罩或PC 擴散乳白罩帶點光源效果

Aluminio extruido 6063 y difusor de PMMA transparente o difusor lechoso con efecto de punto de luz
Housing Color/ 邊框殼顏色

Color de la carcasa

• Anodised Aluminium Titanium 陽極氧化鋁鈦 Aluminio anodizado titanio
• Anodised Aluminium Black 陽極氧化鋁黑 Aluminio anodizado Negro
• Tailor-made/客制生產-Hecho a medida
Ingress Protection/ 防護等級

Protección de ingreso

IP67
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +60 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Dimension/尺寸Dimensión

(Lx W x H)
- W: 20x H:27.5 x L: 1000mm (With Bracket)
- W: 20x H:27.5 x L: 500mm (With Bracket)
- W: 20x H:27.5 x L: 250mm (With Bracket)
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LVD Testing : EN 60598-1 / EN 60598-2-1 / EN62471 (RG1) / EN 62493 / EN 62031 / IEC 62262 Photometric data

EMC Testing : EN 55015 / EN 61547

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2; IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384
