BOURG

H: 465 to 4000mm Max 90W
LED BOLLARDS LIGHT IP54

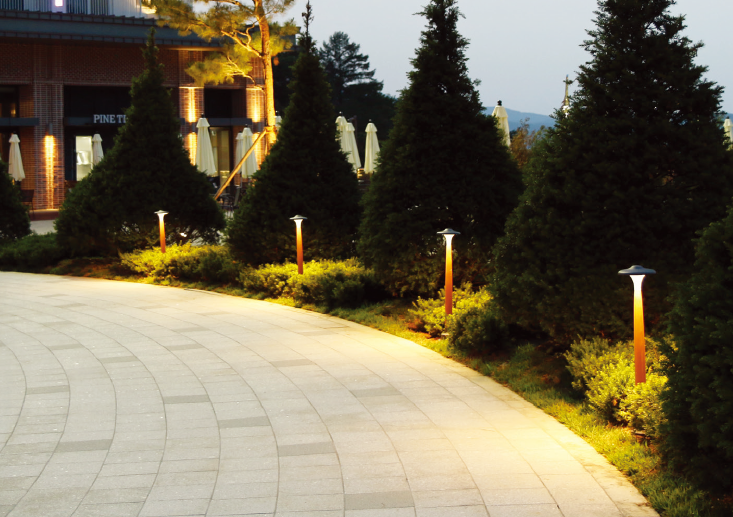

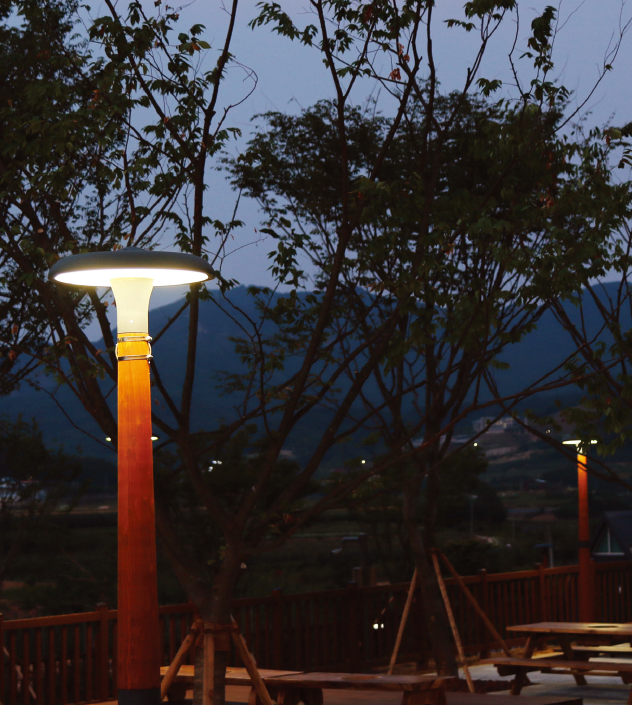

BOURG is a landscape bollard luminaire developed to illuminate the ground using the high performance of the LED light source. The outdoor lighting fixture is designed to complete
the unique and eco-friendly two-tone with a mushroom-shaped lighting head and red cedar wooden pole that protects against moisture and sunlight The luminaire that features the lowdazzle omnidirectional light distribution brightly blends into any outdoor landscape environment. The bollard provides the merit of the aesthetic appearance and anti-dazzle.

  • 4000mm height Pole -Stell Pole is available

Technical Data

  • Luminaire Type-安裝方式-Tipo de luminaria

    • Spike Mounted for H: 465mm   / Cast in Bolt Mounted for Higher Version
    • 草地釘安裝為H:465mm /其他高度螺栓安裝
    • Montado en punta para H: 465 mm / montado en perno montado para versión superior
  • Dimension-尺寸-Dimensión

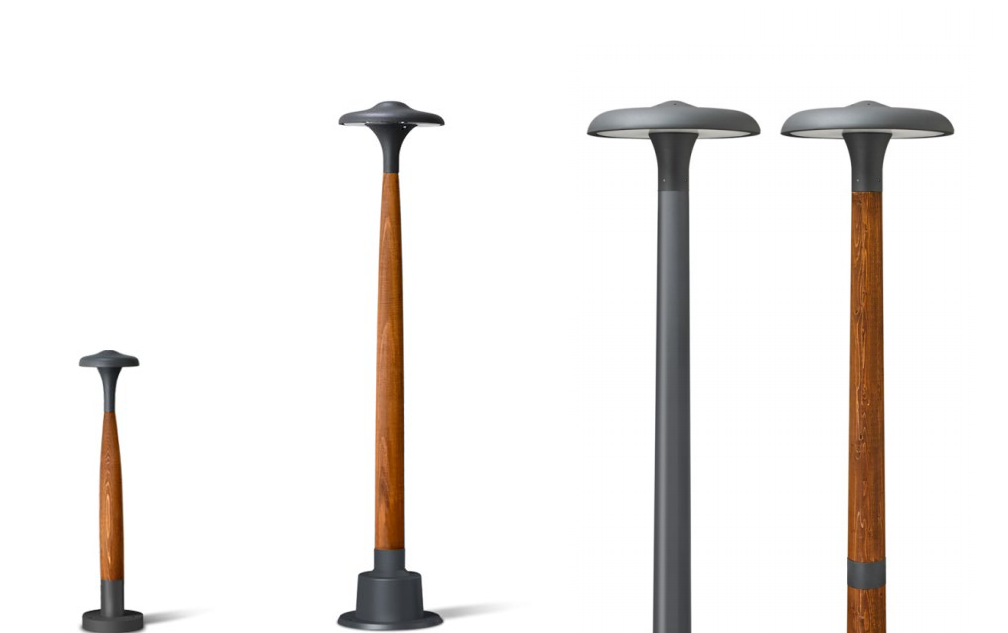

    DIA 100 x H 465 mm              DIA 200x H 950mm          DIA 650 x H 4000 mm

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    •  8W   @ DIA 100 x H 465 mm
    • 16W @ DIA 200x H 950mm
    • 70W @ DIA 650 x H 4000 mm
    • 90W @ DIA 650 x H 4000 mm
  • Input Voltage-輸入電壓-Voltaje de entrada

    • DC 24V for  8W   @ DIA 100 x H 465 mm and Remote LED Driver
    • AC 100-240V 50/60Hz for other size
  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED



    Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC100-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 220-240V 50/60HZ

    3. 0-10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

  • LED Driver Features驅動特性

    Funciones del controlador de LED

    POWER FACTOR : PF≧0.90 @ Full Load

    TOTAL HARMONIC DISTORTION: THD< 20%

  • Control Protocol-控制協議 Protocolo de Control

    0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

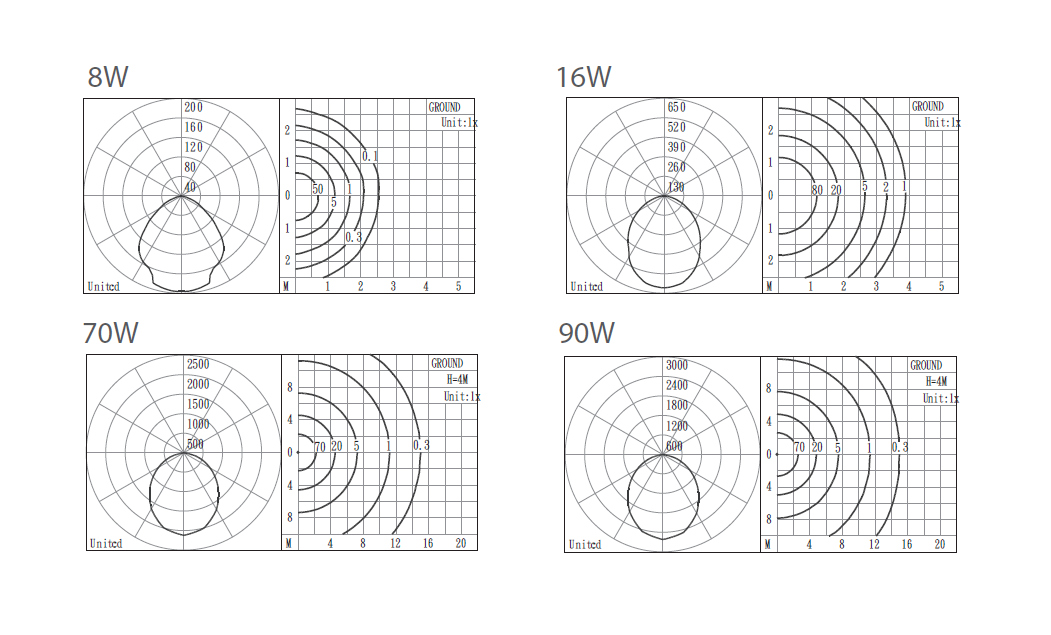

  • Beam Angle 光束角 ángulo de haz



    110°



  • Light Source Brand-光源品牌-Fuente de luz de marca

    CREE - (Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk))

  • "Lumen Maintenance LM-80 Reported by TM-21"

    L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    >80

    >90

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse



    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy 燈具效率

    La eficacia de la luminaria

    • 70Lm/w(2700K),         80 Lm/w(3000K),     90 Lm/w(4000K),
    • 100 Lm/w(5000K),     100 Lm/w(6500K),
  • LED Source Luminous Efficacy LED光源光效

    Fuente luminosa LED Eficacia

    • 120Lm/w(2700K),      130 Lm/w(3000K),     140Lm/w(4000K),
    • 150 Lm/w(5000K),     150 Lm/w(6500K),
  • Housing materials-外殼材料

    Materiales de la carcasa

    Cast aluminum, Pine  Wooden pole and White opal acrylic

    鑄鋁,松木桿和乳白亞克力

    Aluminio fundido, poste de madera de pino y acrílico opal blanco

  • Housing Color

    外殼顏色

    color de la carcasa



    Anti-corrosion and UV-resistant powder-coating : Dark Gray  and Pine Wood

    防腐和抗紫外線粉末塗料:深灰色和松木

    Recubrimiento en polvo anticorrosivo y resistente a los rayos UV: gris oscuro y madera de pino



  • Ingress Protection-防護等級

    Protección de ingreso

    IP54

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -20 °C / +50 °C

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Mech impact protection

    機械衝擊保護

    Protección contra impactos mecánico

    IK08

  • Comply Testing Standard符合測試標準

    Cumplir el estándar de prueba

    LED Luminaries:  IEC/EN  60598-1 ; IEC/EN 60598-2-3; IEC TR 62778;  IEC 62031

    LED Driver:         IEC 61347-1; IEC 61347-2-13; EN 55015; IEC 61000-3-2;IEC 61000-3-3;

                                IEC 61547;EN 62384

  • Certification-認證-Certificación

Specification Code

Example Product Code:
BOURG-25W
BOURG
-
Power Consumption

Power Consumption

  • 8W
    8W @ DIA 100 x H 465 mm DC24V
  • 16W
    16W @ DIA 200x H 950mm
  • 70W
    70W @ DIA 650 x H 4000 mm
  • 90W
    90W @ DIA 650 x H 4000 mm
