BOUSA

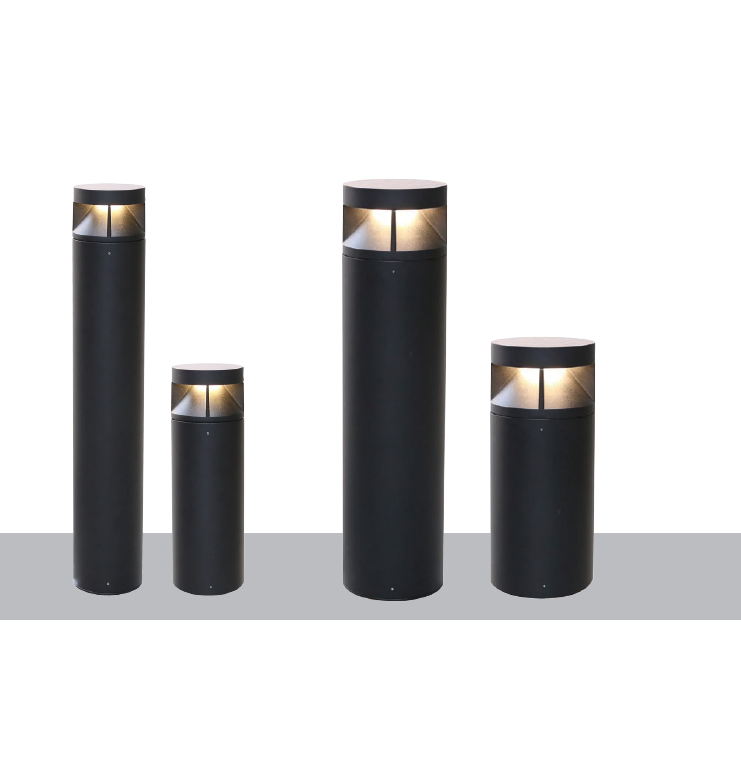

Dia 140 & 200mm

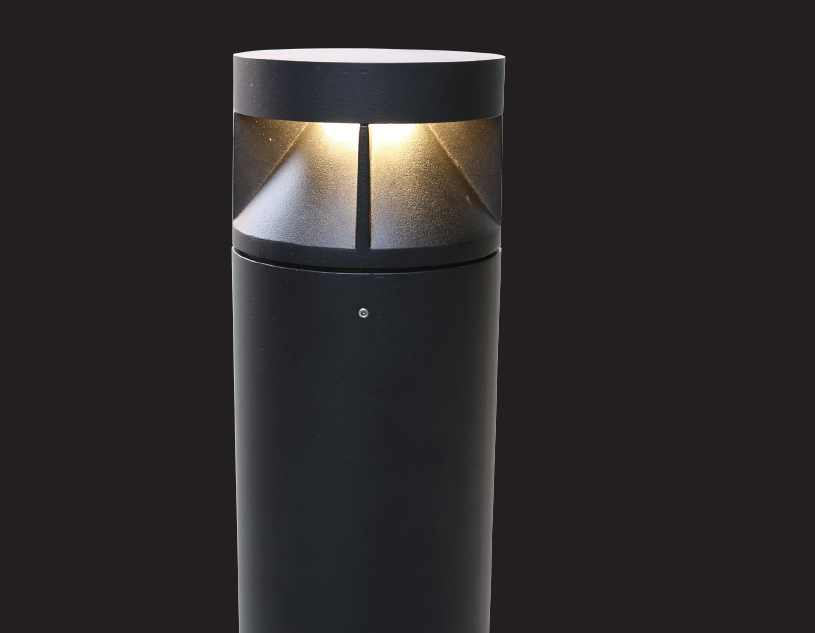

LED BOLLARDS LIGHT IP65

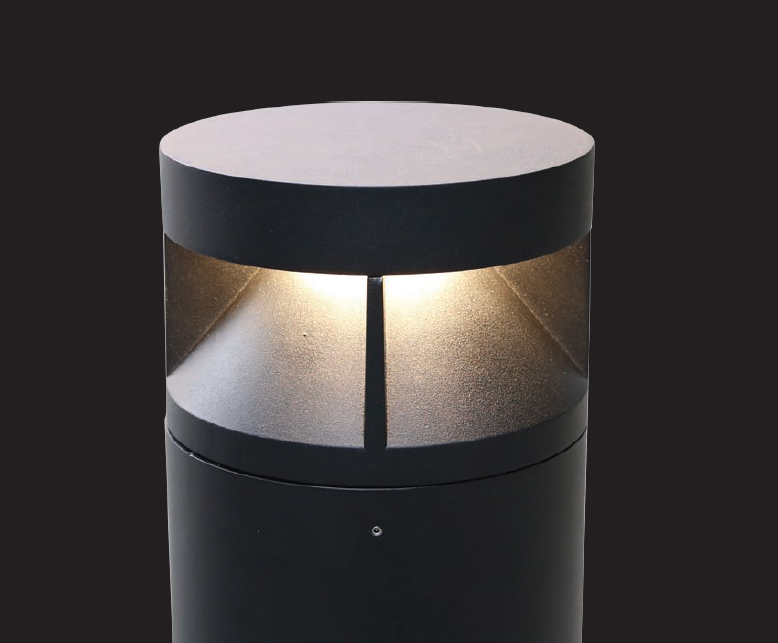

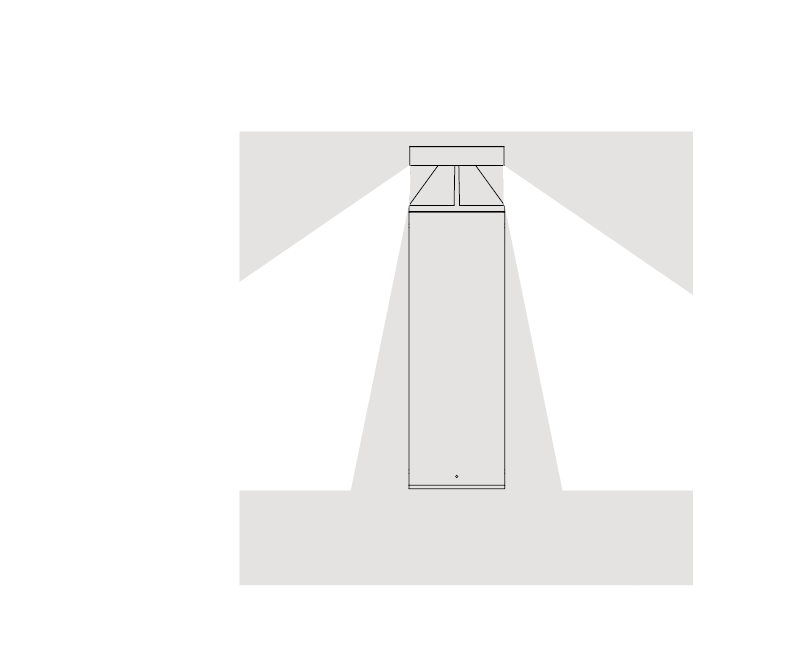

LED BOLLARDS LIGHT IP65. This luminaire is one of the modern bollard types. The body is made of extruded and die-ast aluminum. The light is distributed through aluminum reflector and White silk screen tempered glass. with stainless steel screws and fire resistant silicon seal gaskets.. The high efficient LED technology has been introduced into this bollard luminaire, thus guaranteeing a high degree of efficiency and optimal visual comfort. Designers or architects can easily apply this luminaire at various locations.

Technical Data

Luminaire Type-安裝方式 Tipo de luminaria

Surface Mounted Type 明裝式燈具 Superficie Tipo Montado
Dimension-尺寸-Dimensión

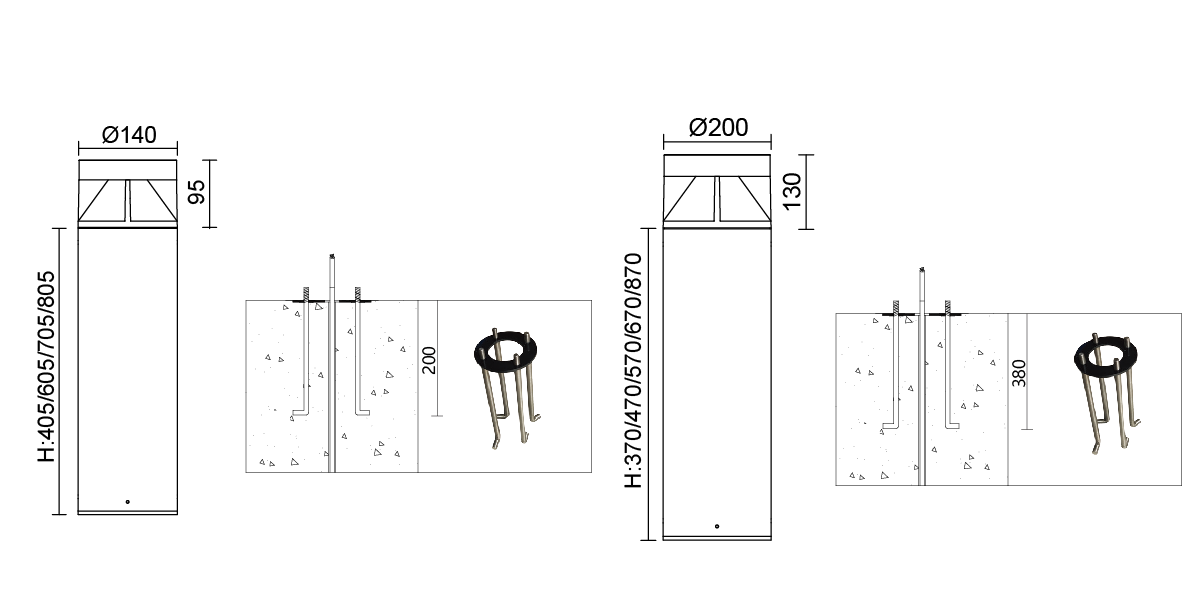

Refer to Technical Drawing 請參閱技術圖紙 Consulte el dibujo técnico
Power Consumption Max-燈具功率

Consumo de energía Max
- 8W @ Dia 140mm 10W @ Dia 140mm 12W @ Dia 140mm
- 15W @ Dia 200mm 18W @ Dia 200mm 20W @ Dia 200mm
- 24W @ Dia 200mm 26W @ Dia 200mm 30W @ Dia 200mm
Input Voltage-輸入電壓-Voltaje de entrada

AC 100-240V 50/60Hz
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC100-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. 0 -10V Dimming Driver  AC100-240V 50/60HZ

4. Dali Dimming Driver AC100-240V 50/60HZ

5. DMX Driver AC100-240V 50/60HZ

6. RDM Driver  AC100-240V 50/60HZ
LED Driver Features驅動特性

Funciones del controlador de LED

POWER FACTOR : PF≧0.90 @ Full Load

TOTAL HARMONIC DISTORTION: THD< 20%
Control Protocol-控制協議

Protocolo de Control

0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

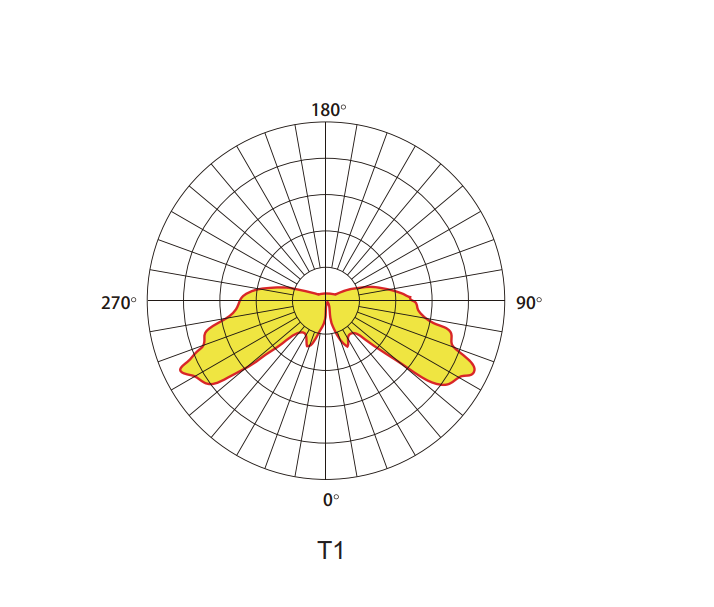

Beam Angle光束角ángulo de haz

130°
Light Source Brand-光源品牌-Fuente de luz de marca

CREE - (Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk))
"Lumen Maintenance LM-80 Reported by TM-21"

L70(10k) > 60,000 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática
- >80
- >90
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy燈具效率La eficacia de la luminaria
- 80Lm/w(2700K), 80 Lm/w(3000K), 90 Lm/w(4000K),
- 100 Lm/w(5000K), 100 Lm/w(6500K),
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia
- 120Lm/w(2700K), 120 Lm/w(3000K), 130Lm/w(4000K),
- 140 Lm/w(5000K), 140 Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa

Aluminium and Tempered glass 鋁和鋼化玻璃 Aluminio y vidrio templado
Housing Color 外殼顏色

color de la carcasa
- Dark Black 深黑色 Negro oscuro
- Grey灰色 Gris
Ingress Protection-防護等級

Protección de ingreso

IP65
Mech impact protection

機械衝擊保護

Protección contra impactos mecánicos

IK10
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC 60598-1 / IEC 60598-2-1 / Photometric data-IES format

LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547
