40W-100W IP66

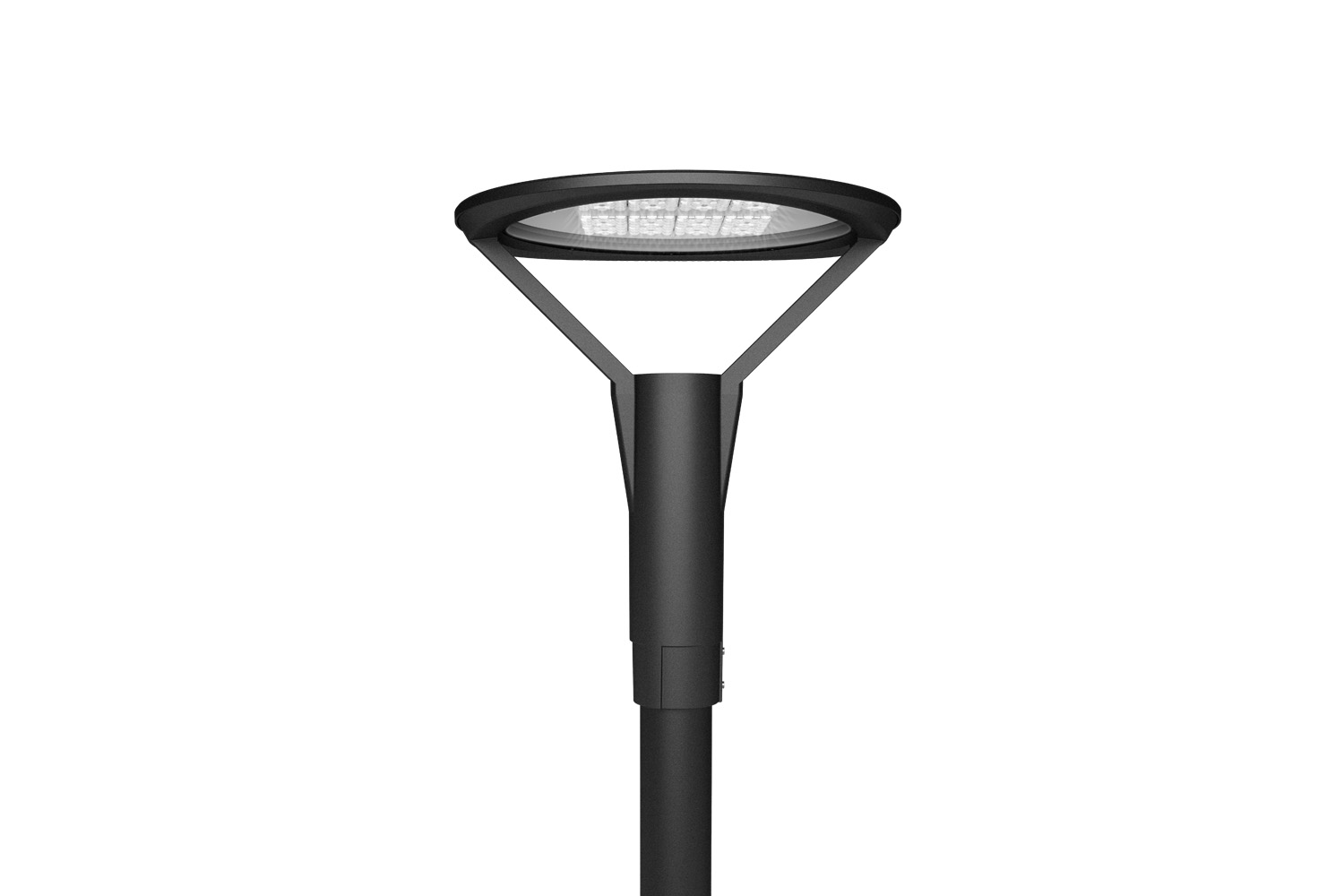

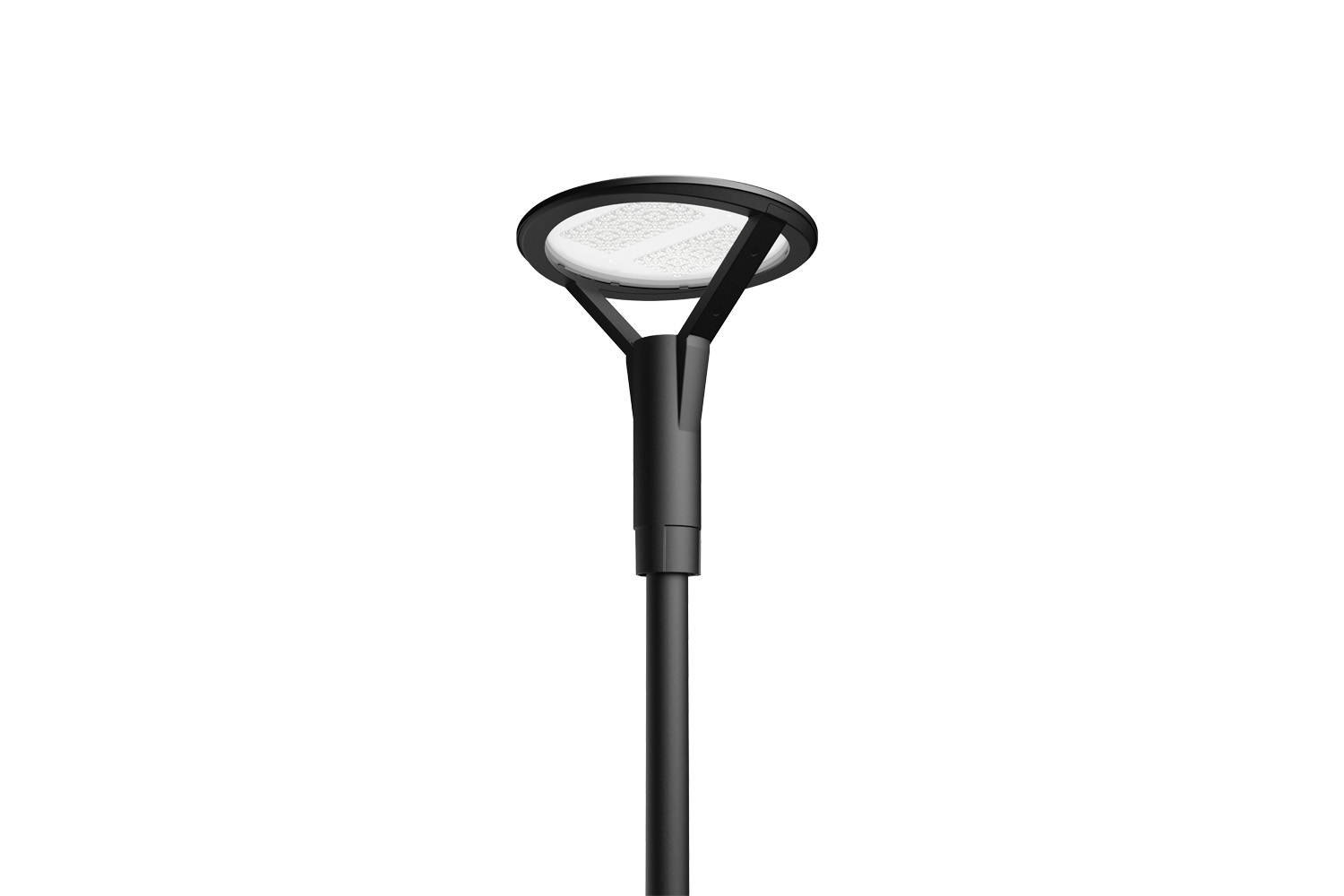

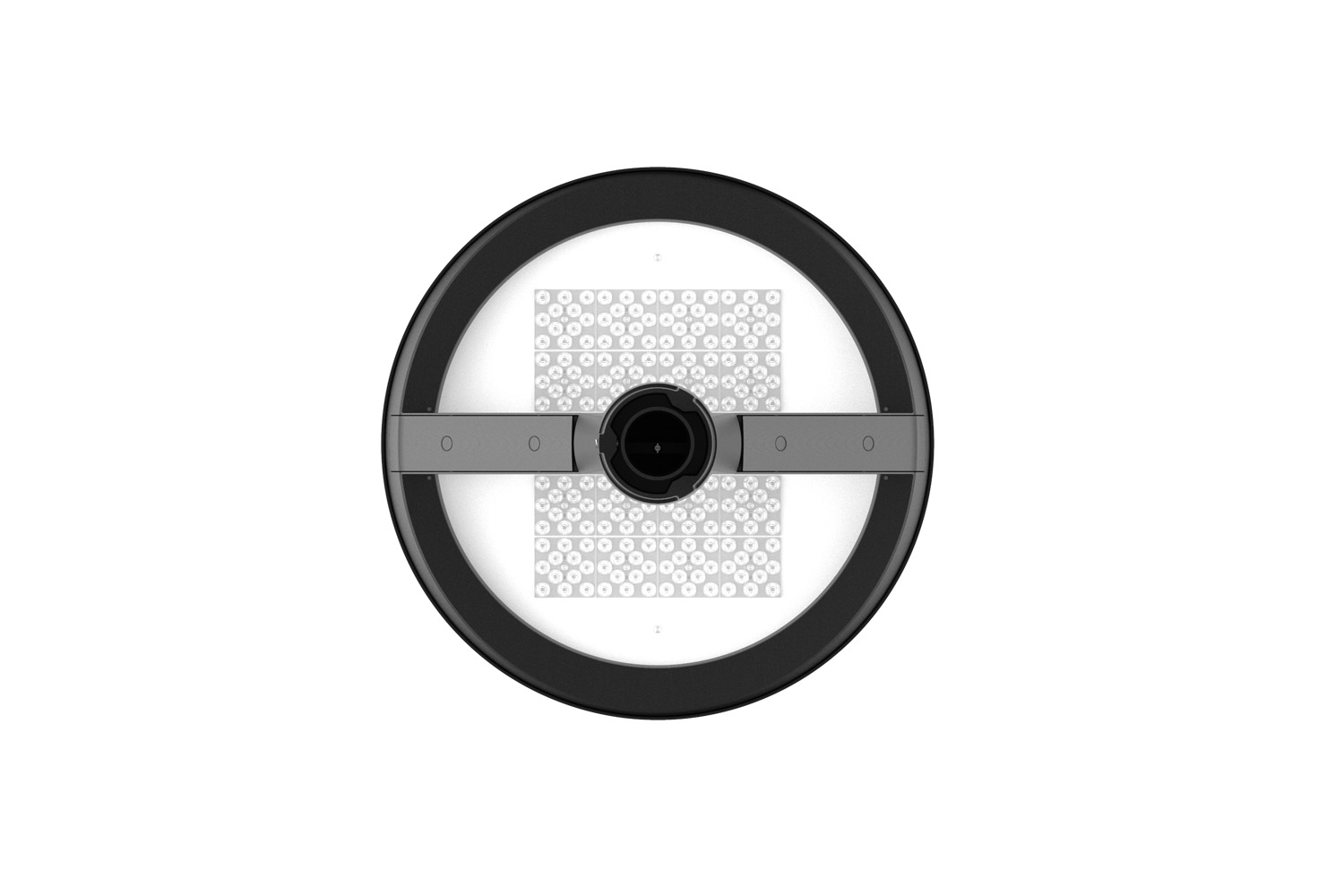

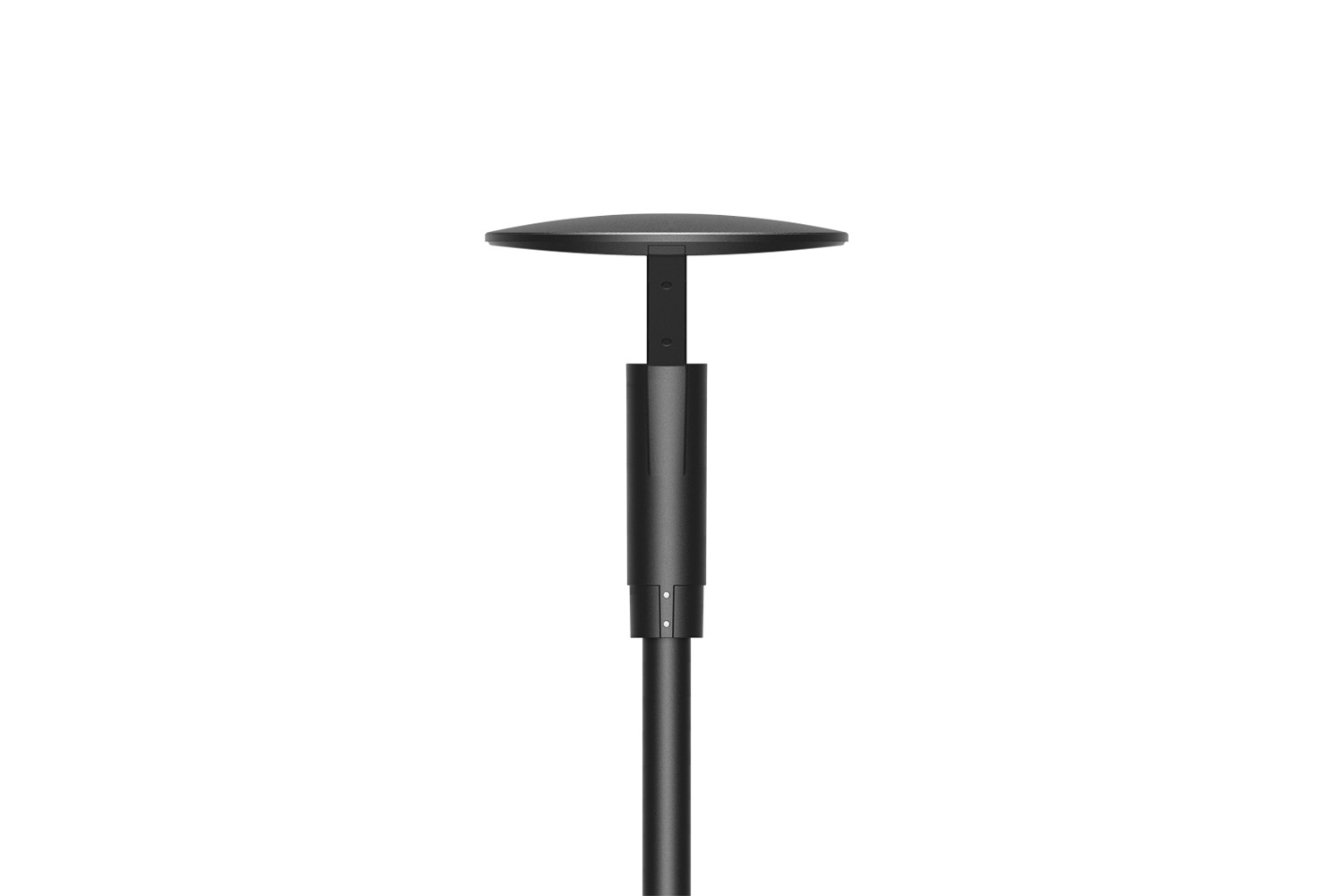

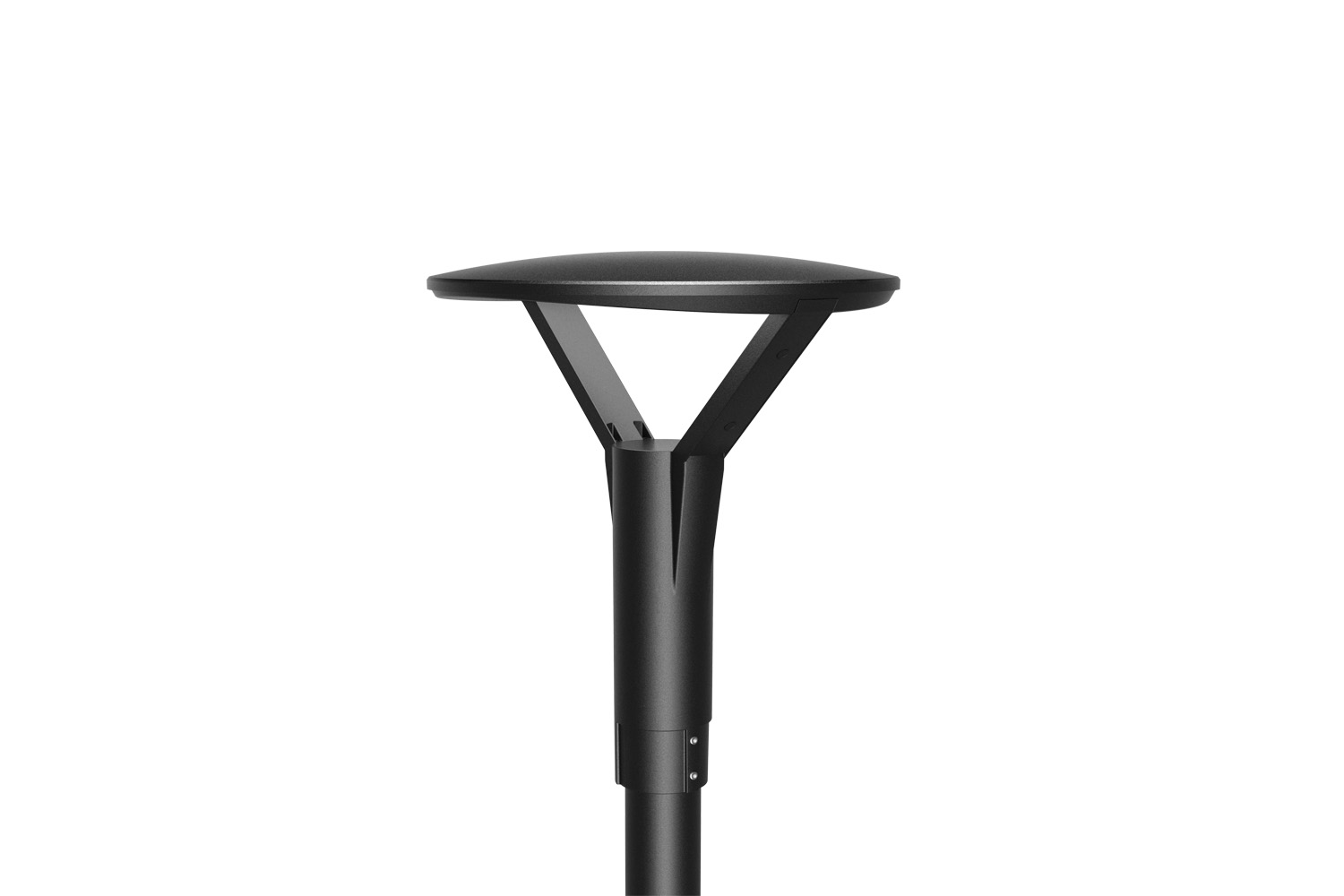

LED Garden Light IP66

The aesthetics of the city is inseparable from lighting, Lotus satisfied the trend of urban differentiation with smooth curvature, which effectively prevents the accumulation of dust and leaves, not only creates a neat atmosphere, but also provides excellent heat dissipation.In general, the traditional industrial lighting design is not obvious enough, in contrast, the design of lotus is inspired by the Pine Greeting Guests, and through continuous optimization, the overall display is more modern.

• Professional optic provide an excellent effect, managing glare while
providing high Levels of visibility.
• IK08, IP66 Rated
• φ60mm & φ76mm mount available
• Area, site and pedestrian scale applications

Technical Data

  • Luminaire Type- 安裝方式 Tipo de luminaria

    Post top φ60mm & φ76mm

    杆安裝 φ60mm & φ76mm

    Poste superior φ60mm y φ76mm



  • Power Consumption with LED Driver

    LED燈具包括LED驅動電源功率

    Consumo de energía con controlador de LED

    40W      60W     75W      100W

  • Input Voltage / 輸入電壓

    Voltaje de entrada

    100 ~ 240VAC (50~60HZ)

  • Control Protocol/控制協議

    Protocolo de Control

    SW: ON/OFF Switch Driver                   AN: 1-10V Dimming Driver                   DA: Dali  Dimming Driver

  • Power Factor / 功率因數/Factor de potencia

     PF>0.95

  • Total Harmonic Distortion/總諧波失/Distorsión armónica total

    THD<18%

  • Protection Against Surgers/防護措施/PROTECCIÓN CONTRA LAS PROMOCIONES:

    • Line-Earth:10KV
    • Line-Line:6KV
  • Light Source Brand-光源品牌-Fuente de luz de marca

    CREE

  • "Lumen Maintenance LM-80 Reported by TM-21"

    L70 > 45,000 Hours

  • LED Life-LED壽命-La vida del LED

    >50,000 hours

  • Color Temperature 色溫  Temperatura y color

    3000K      4000K      5000K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    • >70
    • >80
  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Beam Angle

    光束角

    ángulo de haz

    A1     A2     A3     A4     A5     A6     A7

  • Luminaire Efficacy燈具效率

    La eficacia de la luminaria

    • 110 Lm/w(3000K) @CRI >70 ;    120 Lm/w(4000K) @CRI >70      130 Lm/w(5000K) @CRI >70
    • 100 Lm/w(3000K) @CRI >80 ;    110 Lm/w(4000K) @CRI >80      120 Lm/w(5000K) @CRI >80
  • LED Source Luminous Efficacy LED光源光效

    Fuente luminosa LED Eficacia

    • 143 Lm/w(3000K) @CRI >70 ;    163 Lm/w(4000K) @CRI >70;     171 Lm/w(5000K) @CRI >70 ;
    • 134 Lm/w(3000K) @CRI >80;     143 Lm/w(4000K) @CRI >80 ;    153 Lm/w(5000K) @CRI >80
  • Housing materials 外殼材料

    Materiales de la carcasa

    Die-cast aluminium and Tempered glass   壓鑄鋁和鋼化玻璃

    Aluminio fundido a presión y Vidrio templado

  • Housing Color 外殼顏色 color de la carcasa

    Polyester powders Coating  (RAL 9005 Black)

    聚酯粉末塗料(RAL 9005 啞光黑色)

    Recubrimiento de polvos de poliéster (RAL 9005 negro)

  • Ingress Protection-防護等級

    Protección de ingreso

    IP66

  • Mech impact protection

    機械衝擊保護

    Protección contra impactos mecánicos

    IK08

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -30 °C / +50 °C

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Dimension 尺寸 Dimensión

    450x450x526mm

  • Net Weight /Gross Weight  淨重/毛重

    Peso Neto / Peso bruto

    • 7.58±0.2kg & 9.14±0.2kg @ 40W      7.88±0.2kg & 9.44±0.2kg @ 60W
    • 7.94±0.2kg & 9.50±0.2kg @ 75W      7.97±0.2kg & 9.53±0.2kg @ 100W



  • Certificate Standard Complied

    符合安規標準

    estándar certificado de cumplimiento

    LED Luminaries:  IEC/EN  60598-1 ; IEC/EN 60598-2-3; IEC TR 62778;  IEC 62031

    LED Driver:         IEC 61347-1; IEC 61347-2-13; EN 55015; IEC 61000-3-2;IEC 61000-3-3;

                                IEC 61547;EN 62384

  • Certification-認證-Certificación

Specification Code

Example Product Code:
GOLLOP-100W
GOLLOP-T
-
POWER CONSUMPTION

POWER CONSUMPTION

  • 40W
    40W
  • 60W
    60W
  • 75W
    75W
  • 100W
    100W
