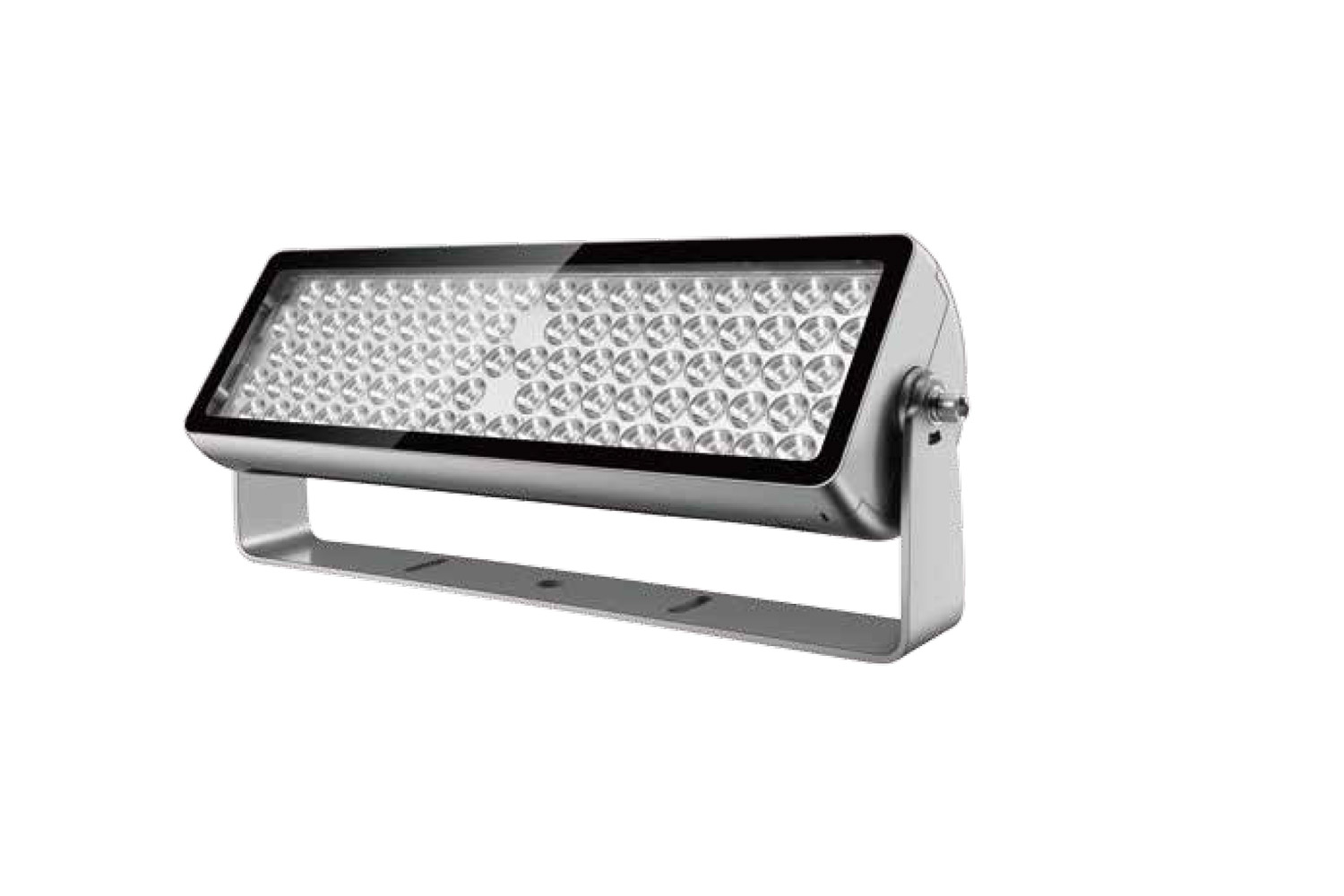

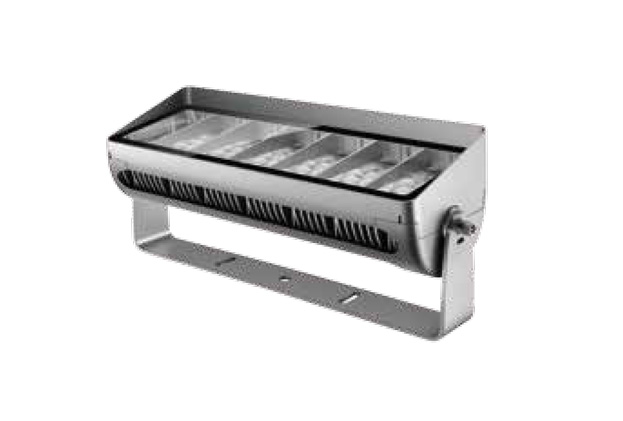

FLARRY

210W-360W Max IP66

ARCHITECTURAL FLOOD LIHGT

LED Flood Light IP66. The fixture coated with electrophoresis and powder for excellent anti-corrosion performance. It is durable with great performance. It also goes through rigorous test which reaches excellent IP66 and IK08 rating.Die-cast aluminium. separate electric housing with super white tempered glass.Many different optical lens and reflector to distribute Asymmetric & symmetric beam anlge.Bracket design to adjustable installation angle.

Technical Data

Luminaire Type/ 安裝方式 / Tipo de luminaria

Surface Mount and Adjustable Type-Adjustment Options

明裝可調安裝

Montaje en superficie y opciones de ajuste de tipo ajustable
Power Consumption Max

燈具功率

Consumo de energía Max
- 210W @ RGBW 90pcs LEDs(24R 24G 24B 18W)
- 270W @ RGBW(4 in 1) 40pcs LEDs
- 300W @ Mono @ 90pcs LEDs
- 360W @ RGBW(4 in 1) 40pcs LEDs
Input Voltage / 輸入電壓

Voltaje de entrada

AC100V - 305V 50/60Hz
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type LED Driver--Refer to LED driver specification

請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC100-305V 50/60HZ

2. 1-10V Dimming Driver  AC100-240V 50/60HZ

3. Dali Dimming Driver AC100-240V 50/60HZ

4. DMX Driver AC100-240V 50/60HZ

5. RDM Driver  AC100-240V 50/60HZ
LED Driver Features / 驅動特性

Funciones del controlador de LED

POWER FACTOR : PF＞0.90 @ Full Load

TOTAL HARMONIC DISTORTION: THD< 20%
Pixels & DMX Channels

像素和DMX 通道

Píxeles y canales DMX

1Pixel (1 DMX Channel @ Mono; 4 DMX Channel @ RGBW)
Control Protocol/控制協議

Protocolo de Control

1-10V / Dali/ DMX 512 / RDM
Beam Angle/光束角ángulo de haz

2.6° 3.5° 12° 20° 30° 60° 10° x 70° 5° x 20° @ Mono @ RGBW

8° 25° 10°x 45° @ RGBW(4 in 1)
Light Source Brand/光源品牌

Fuente de luz de marca

CREE
"Lumen Maintenance LM-80 Reported by TM-21"

L90(10k) = 50,700 hrs / L80(10k) > 63,500 hrs / L70(10k) > 63,500 hrs
LED Life/LED壽命La vida del LED

>60,000 hours
Color Temperature / 色溫

Temperatura del color

MONO:2700K / 3000K / 4000K / 5000K / 6500K

RGBW (White: O: 2700K W: 3000K N: 4000K D:5000K C: 6500K)
Color Rendering Index/顯色指數

Índice de reproducción cromática

>80@White Color / >90@White Color
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy

燈具效率

La eficacia de la luminaria
- 90 Lm/w @ 2700K 90 Lm/w @ 3000K 100 Lm/w @ 4000K
- 110 Lm/w @ 5000K 110 Lm/w @5 700K 110 Lm/w @ 6500K
- 50 Lm/W @ RGBW
LED Source Luminous Efficacy

LED光源光效

Fuente luminosa LED Eficacia
- 120 Lm/w @ 2700K 120 Lm/w @ 3000K 130 Lm/w @ 4000K
- 140 Lm/w @ 5000K 140 Lm/w @ 5700K 140 Lm/w @ 6500K
- 90 Lm/W @ RGBW
Housing materials/外殼材料

Materiales de la carcasa

Die-Casted Aluminium and Tempered Glass

壓鑄鋁及鋼化玻璃

Aluminio fundido a presión y vidrio templado
Housing Color/ 外殼顏色

Color de la carcasa

Powder Coated in Silver Grey- UV Resistant powder coating for Anti-corrosion Protection

銀灰色粉末塗料 (抗紫外線和抗腐蝕)

Recubrimiento en polvo en gris plateado - Recubrimiento en polvo resistente a los rayos UV para protección anticorrosión

Tailor-made/客制生產-Hecho a medida
Ingress Protection/ 防護等級

Protección de ingreso

IP66
Mech impact protection 機械衝擊保護

Protección contra impactos mecánicos

IK08
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C / -22 °F / +122 °F
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación

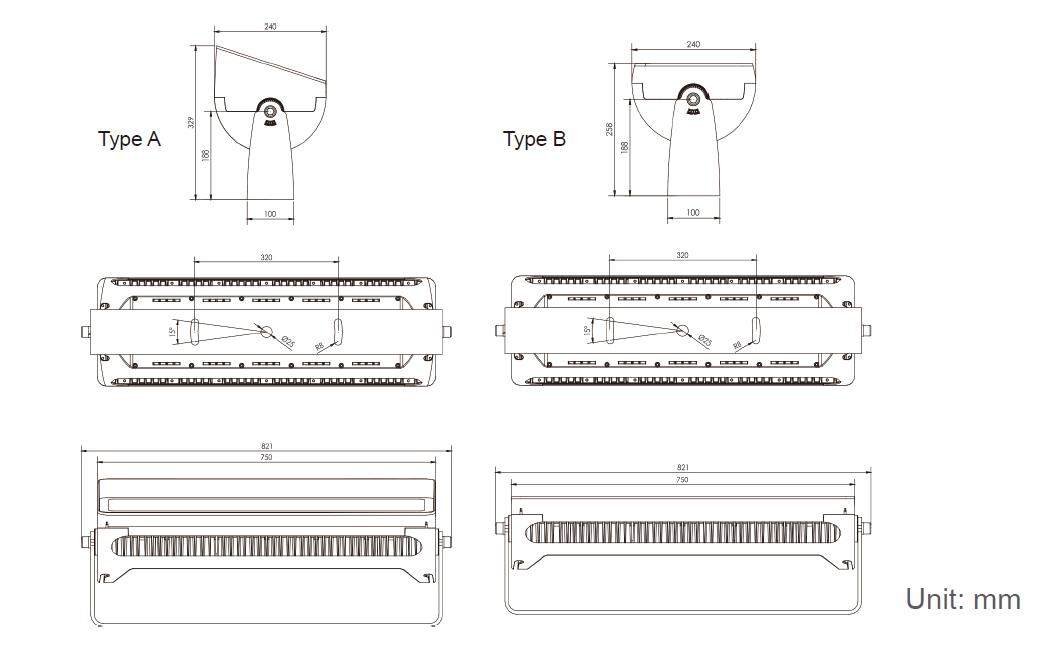

Dimension/尺寸/Dimensión
- L: 821 x W: 240 x H: 329 mm @ Typce A
- L: 821 x W: 240 x H: 258 mm @ Typce B
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaries: LVD: IEC 60598-1; IEC 60598-2-1;IEC62471;IEC 62031; IEC62471

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384
