CHLOE @ SKY118

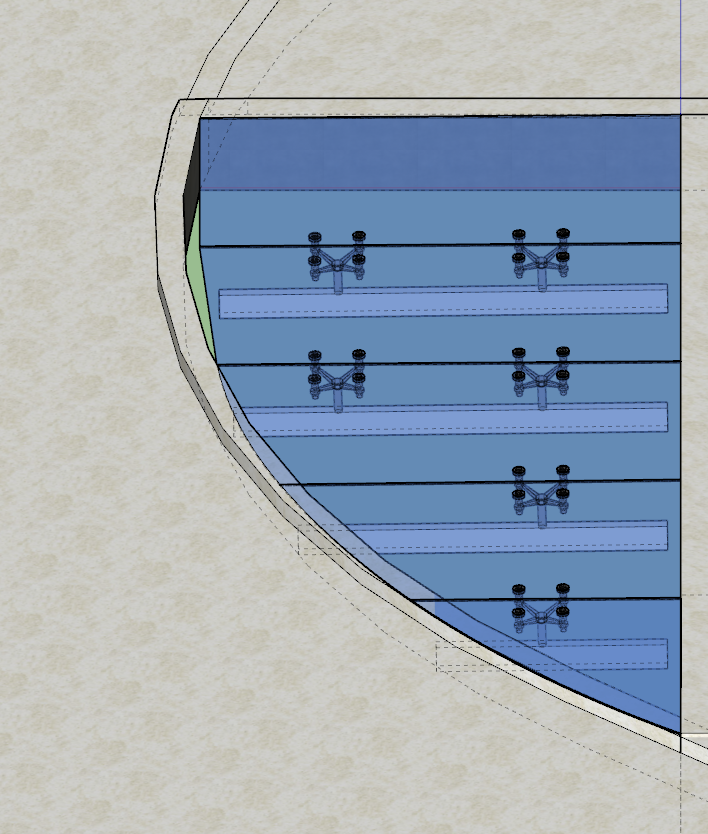

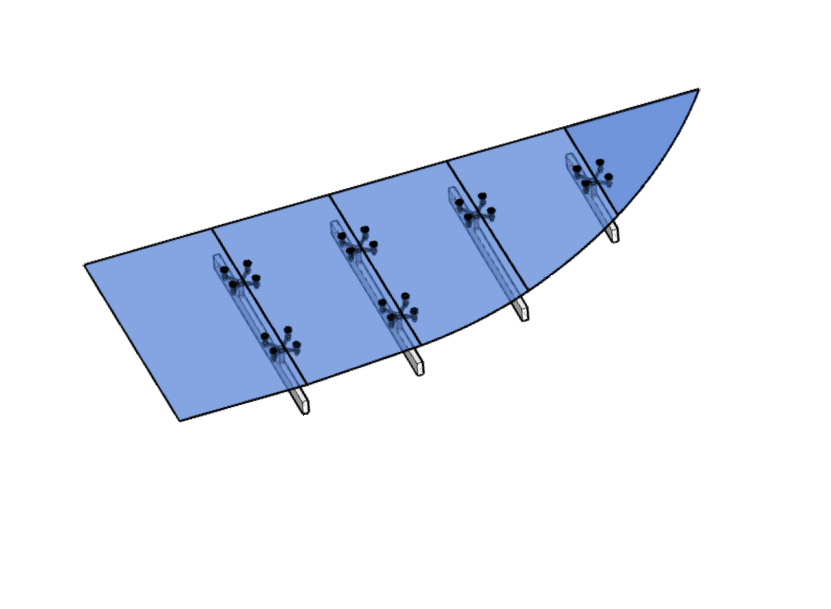

Spider fitting frame-less glass Canopy
Spider fitting frame-less glass Canopy
  • Spider system fitting frame-less glass Canopy Design to Comply below  Specification
  • Building (Construction) Regulations Chapter 123-1990 ;
  • Code of Practice on Wind Effects Hong Kong -2004
  • Code of Practice for the structural use of Steel -2011
  • Code of Practice for the structural use of Concrete-2004 (2nd Edition)
  • Code of Practice for the structural use of Aluminium -BS8118: Part 1:1991
  • Practice Note for Authorized person, registered structural engineers and registered geotechnical engineers: BD APP-37 (PNAP 106)
  • Code of Practice for Dead and Imposed loads-2011

Technical Data

  • Major Material:

    • S.S 316 Spider System
    • Stainless Steel Grade S316L with ASTM A511 and Plate with ASTM A240  Proof Stress = 220 MPa
    • 8 mm THK Clear Laminated Tempered Glass comply BS 952 Part 1 and BS 6262 , Allowable Stress 50MPa
    • Welding comply BS EN 1011-1; BS EN 1011-2;  BS EN ISO 15614
    • Stainless Steel Fasteners  A4-70 comply wiht BS EN ISO 3506-1. Permanent Stain 450Mpa
    • Sealants -Dow Corning 795/995/983 or Equivalent Material
    • M16.S.S A4-70 Blot & Nut
  • Tempered Glass color

    • Clear
    • Dark Grey,
    • Euro grey;
    • Ocean blue,
    • Ford blue,
    • Dark blue
  • Tempered Glass Pattern

    Custom-made

  • Design Basic Wing Pressure

    2.04KPa

  • Color Finishes

    Hairline Finish

  • Certificate

Technical Drawing

Product Download Tab

DATA SHEET

TECHNICAL DRAWING

Building structure and Windload Design Calculation of CHLOE@ SKY 118 V2
