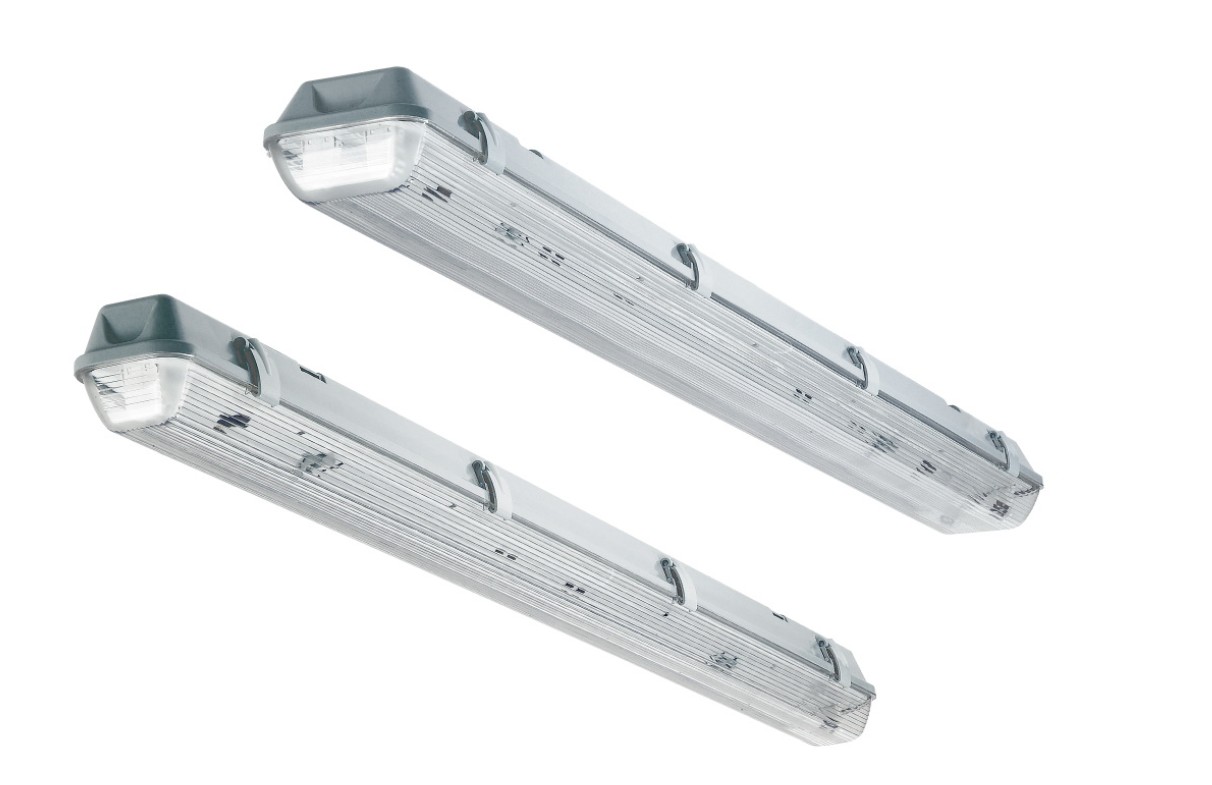

BAWATY Waterproof Batten

For LED T5 and T8
Waterproof Batten IP66
  • Well design for resistant Dust and Moisture resistance and waterproof.
  • Anti-UV  Light Grey Glass fibre reinforced polyester (FRP)and and high transmission Anti-UV Clear  polycarbonate with refraction prisms diffuser.
  • Silicone-sponge Gasket , stainless steel toggles and stainless-steel Quick fix bracket. Ingress-protected to a level of IP66.
  • Comply with Hot Wire Testing: 850°C and  Electrical protection class I. Mech impact protection : IK10

Technical Data

  • Luminaire Type- 安裝方式 Tipo de luminaria

    Pendent mounted Type / Surface mounted Type / Wall Mounted Type

    吊裝燈具 / 吸頂式燈具 / 壁掛式燈具

    Pendent  tipo  / Surface mounted / Tipo montado en la pared

  • Dimension-尺寸-Dimensión

    • Single Tube Batten LED T5 or LED T8

    W:104 x H:101 x L:660 mm        W:104 x H:101 x L:1260 mm        W:104 x H:101 x L:1560 mm



    • Twin Tube  Batten LED T5 or LED T8

    W:153 x H:101 x L:660 mm        W:153 x H:101 x L:1260 mm        W:153 x H:101 x L:1560 mm

  • Input Voltage-輸入電壓-Voltaje de entrada

    AC220 -240V 50/60HZ

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    Single Tube Batten  LED T5  or LED T8

    • 2feet : 7W  - 1 pcs x  7W LED T5  or LED T8           8W  - 1 pcs x 8W LED T5  or LED T8
    • 2feet : 9W  - 1 pcs x  9W LED T5  or LED T8          10W - 1 pcs x 10W  LED T5  or LED T8
    • 4feet : 12W  - 1 pcs x 12W  LED T5  or LED T8      14W  - 1 pcs x 14W  LED T5  or LED T8
    • 4feet : 16W  - 1 pcs x 16W  LED T5  or LED T8      18W  - 1 pcs x  18W LED T5  or LED T8
    • 4feet : 20W   - 1 pcs x 20W  LED T5  or LED T8
    • 5feet : 22W  - 1 pcs x  22W  LED T5  or LED T8      25W   - 1 pcs x 25W  LED T5  or LED T8
    • 5feet : 28W  - 1 pcs x 28W LED T5  or LED T8        30W   - 1 pcs x 30W  LED T5  or LED T8



    Twin Tube Batten  LED T5  or LED T8

    • 2feet : 14W  - 2 pcs x 7W LED T5  or LED T8        16W  - 2 pcs x 8W LED T5  or LED T8
    • 2feet : 18W  - 2 pcs x  9W LED T5  or LED T8        20W -  2 pcs x 10W  LED T5  or LED T8
    • 4feet : 24W  - 2 pcs x 12W  LED T5  or LED T8      28W  - 2 pcs x 14W  LED T5  or LED T8
    • 4feet : 32W  - 2 pcs x 16W  LED T5  or LED T8      36W  - 2 pcs x  18W LED T5  or LED T8
    • 4feet : 40W   - 2 pcs x 20W  LED T5  or LED T8
    • 5feet : 44W  - 2 pcs x  22W  LED T5  or LED T8      50W   - 2 pcs x 25W  LED T5  or LED T8
    • 5feet : 56W  - 2 pcs x 28W LED T5  or LED T8        60W   - 2 pcs x 30W  LED T5  or LED T8

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC220-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 220-240V 50/60HZ for DC LED Tube

    3. 1-10V Dimming Driver  AC220-240V 50/60HZ  for DC LED Tube

    4. Dali Dimming Driver AC220-240V 50/60HZ  for DC LED Tube

    5. DMX Driver AC220-240V 50/60HZ  for DC LED Tube

    6. RDM Driver  AC220-240V 50/60HZ  for DC LED Tube

    7. ZIGBEE Wireless Control (Remoted Driver ) AC220-240V 50/60HZ for DC LED Tube

    8. Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia

    9. Microwave Sensor ON/OFF

  • Control Protocol-控制協議

    Protocolo de Control

    1-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

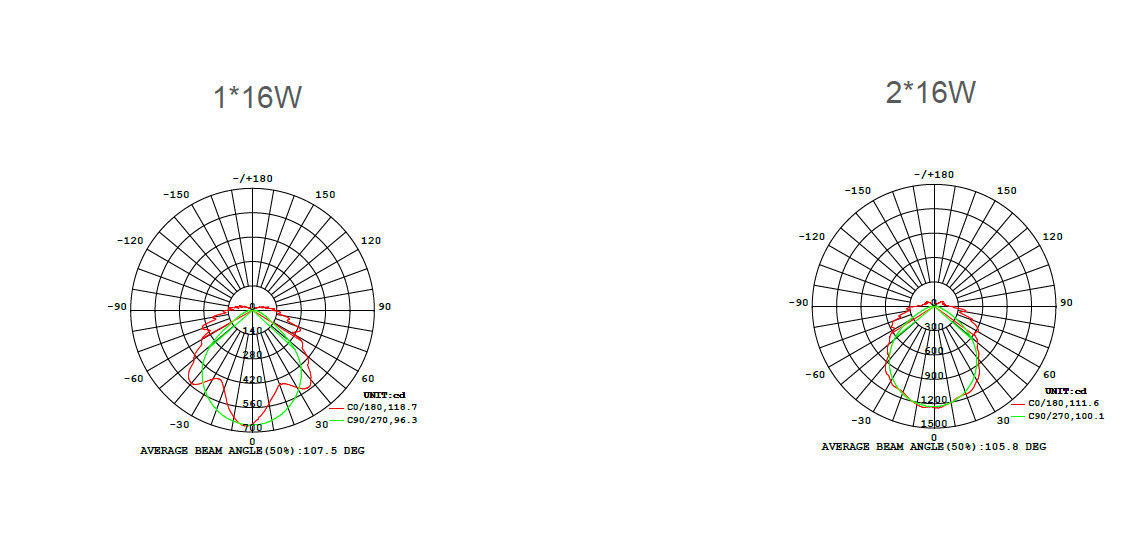

  • Beam Angle 光束角 ángulo de haz

    Refer to LED T5 / T8 tube data sheet

  • Photobiological safety-IEC 62471 /  of Luminaire

    光生物安全檢驗(ICE/EN 62471) 结果:

    Seguridad fotobiológica-IEC 62471

    • Low Risk Group 1 (RG1) Refer to LED T5 / T8 Specification
    • 低風險組1 (RG1) 參閱LED T5 / T8規格
    • Grupo de bajo riesgo 1 (RG1) Consulte la especificación LED T5 / T8

  • Housing materials-外殼材料

    Materiales de la carcasa

    Anti-UV Glass fibre reinforced polyester (FRP) and  Anti-UV Polycarbonate Linear-Prisms diffuser ,

    Silicone-sponge Gasket , stainless steel toggles and  Stainless-steel Quick fix bracket.

    抗紫外線玻璃纖維增強聚酯FRO, 和抗紫外線PC棱鏡擴散罩，矽膠墊片，不銹鋼扣和不銹鋼快速固定支架。

    Poliéster reforzado con fibra de vidrio (FRP) anti-UV y difusor de prismas lineales de policarbonato anti-UV,

    Junta de esponja de silicona, palancas de acero inoxidable y soporte de fijación rápida de acero inoxidable.

  • Housing Color

    外殼顏色

    color de la carcasa

    LightGrey body and Clear Polycarbonate Linear-Prisms diffuser ,

    灰色燈身和透明棱鏡擴散罩

    Cuerpo gris y difusor de prisma lineal de policarbonato transparente,

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -30 °C / +50 °C

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Ingress Protection-防護等級 Protección de ingreso

    IP66  (IEC 60529: 2013)

  • Mech impact protection 機械衝擊保護

    Protección contra impactos mecánicos

    IK10 (IEC 62262:2002)

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC/ EN 60598-1 /  EN 60598-2-1 /  EN 62031 / EN 62493 / IEC/EN 62471 / IEC 60598-2-22 /  IEC 62031 /EN 55015 /  EN 61000-3-2 / EN 61000-3-3 /  EN 61547  / IEC 62262 /  IEC 60529 / IEC TR62778

    Luminaries Performance : IEC 62722-1 / IEC 62722-2-1   FSD regulation PPA 104A (4th Rev). RoHS

  • Certification-認證-Certificación

Specification Code

Example Product Code:
BAWATY-32W
BAWATY-WATERPROOF-BATTEN-
-
POWER
-
CONTROL TYPE

POWER

  • 7W
    1 pcs x 2feet 7W LED T5 or LED T8
  • 8W
    1 pcs x 2feet 8W LED T5 or LED T8
  • 9W
    1 pcs x 2feet 9W LED T5 or LED T8
  • 10W
    1 pcs x 2feet 10W LED T5 or LED T8
  • 14W
    1 pcs x 4feet 14W LED T5 or LED T8
  • 14W
    1 pcs x 4feet 14W LED T5 or LED T8
  • 16W
    1 pcs x 4feet 16W LED T5 or LED T8
  • 18W
    1 pcs x 4feet 18W LED T5 or LED T8
  • 20W
    1 pcs x 4feet 20W LED T5 or LED T8
  • 22W
    1 pcs x 5feet 22W LED T5 or LED T8
  • 25W
    1 pcs x 5feet 25W LED T5 or LED T8
  • 28W
    1 pcs x 5feet 28W LED T5 or LED T8
  • 30W
    1 pcs x 5feet 30W LED T5 or LED T8
  • 14W
    2 pcs x 2feet 7W LED T5 or LED T8
  • 16W
    2 pcs x 2feet 8W LED T5 or LED T8
  • 18W
    2 pcs x 2feet 9W LED T5 or LED T8
  • 20W
    2 pcs x 2feet 10W LED T5 or LED T8
  • 24W
    2 pcs x 4feet 12W LED T5 or LED T8
  • 28W
    2 pcs x 4feet 14W LED T5 or LED T8
  • 32W
    2 pcs x 4feet 16W LED T5 or LED T8
  • 36W
    2 pcs x 4feet 18W LED T5 or LED T8
  • 40W
    2 pcs x 4feet 20W LED T5 or LED T8
  • 44W
    2 pcs x 5feet 22W LED T5 or LED T8
  • 50W
    2 pcs x 5feet 25W LED T5 or LED T8
  • 56W
    2 pcs x 5feet 28W LED T5 or LED T8
  • 60W
    2 pcs x 5feet 30W LED T5 or LED T8

CONTROL TYPE

  • SW
    ON/OFF Switch
  • ELV
    ELV Leading Edge Control
  • AN
    1-10V Dimming
  • DA
    DALI Dimming
  • DMX
    DMX Dimming
  • RDM
    RDM Dimming
  • EM
    Emergency Battery
  • ZI
    ZIGBEE Wireless Control

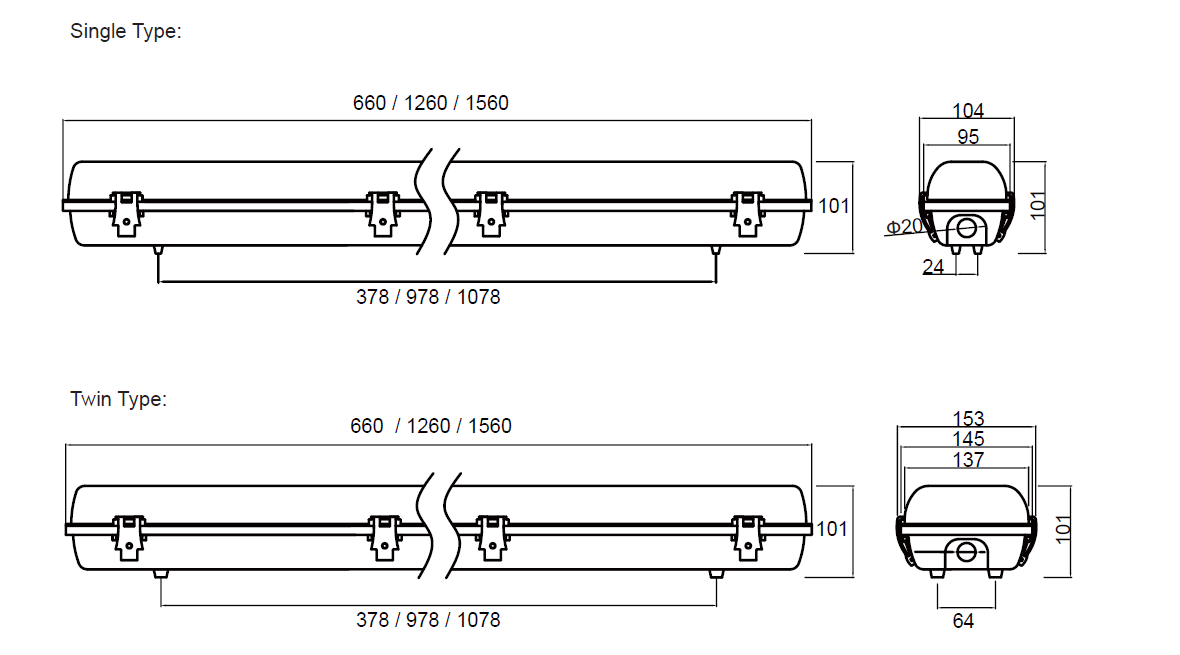

Technical Drawing
