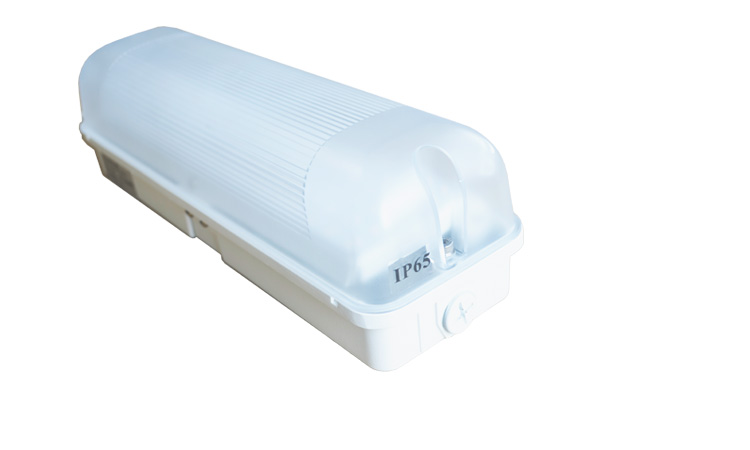

BEENA

L323xW102mm 5W-20W IP65

LED BULKHEAD LIGHT

Housing Material: die-cast aluminium with Matte White powder-coated and polyester and high transmission opal polycarbonate with refraction prisms diﬀuser.
Silicone-sponge Gasket and vandal resistant Screws
Anti UV opal polycarbonate diﬀuser.

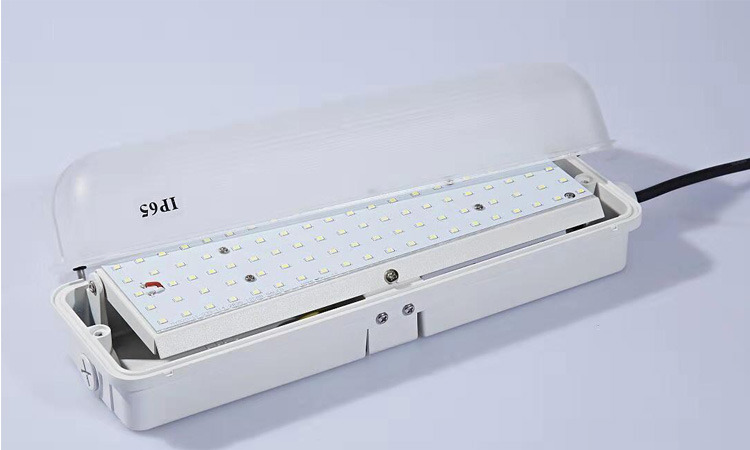

LED module: SMD LEDs with UL 94-V0 Aluminuim Circuit Borad .
LED module is worked in two circuit drived by two LED drivers
Ingress-protected IP65 and Mech impact protection : IK10

Technical Data

Luminaire Type

安裝方式

Tipo de luminaria

Surface Mounted Type明裝式燈具Superficie Tipo Montado

Wall mounted or Ceiling Mounted 壁掛式或吸頂式燈具

Montado en la pared o en el techo

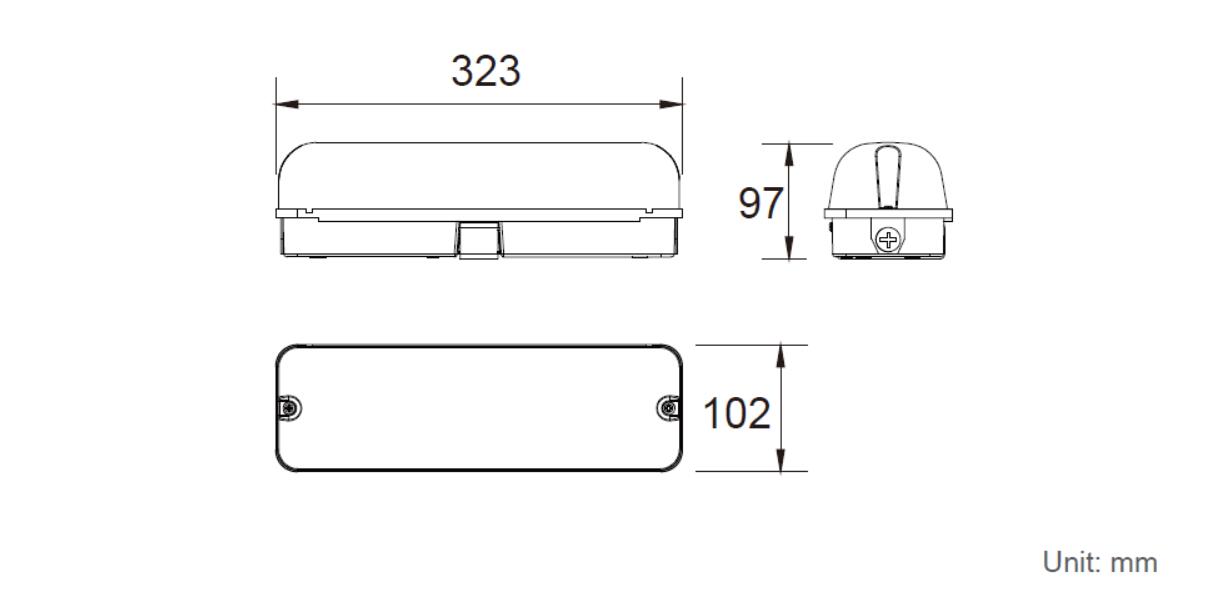

Dimension-尺寸-Dimensión

W:102 x L:323 x H:97mm
Input Voltage-輸入電壓-Voltaje de entrada
- AC100-240V 50/60Hz
- DC220V
Power Consumption Max-燈具功率

Consumo de energía Max
- 5W 7W 10W
- 12W 16W 20W
LED Driver TypeLED驅動款式

Tipo de controlador LED
- Integrated-type TWIN LED Drivers for Two LED circuit
- Integrated-type SINGLE LED Drivers for One LED circuit
- Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格Consulte la especificación de controlador de LED
- ON/OFF Switch AC220-240V 50/60HZ
- 1-10V Dimming Driver AC220-240V 50/60HZ
- Dali Dimming Driver AC220-240V 50/60HZ
- ZIGBEE Wireless Control (Remoted Driver ) AC220-240V 50/60HZ
- Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia
LED Driver Features驅動特性

Funciones del controlador de LED

POWER FACTOR : PF>0.90 @ Full Load

TOTAL HARMONIC DISTORTION: THD< 20%

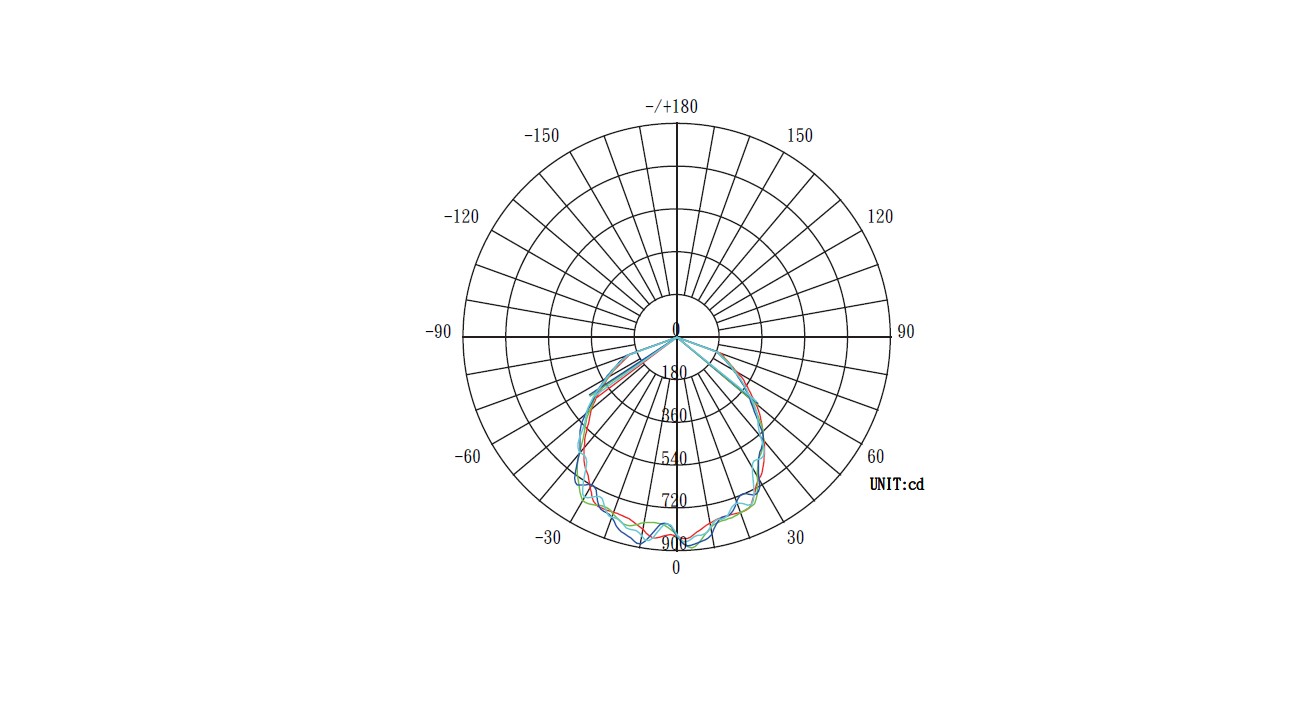

Beam Angle光束角ángulo de haz

120°
Light Source Brand-光源品牌-Fuente de luz de marca

Osram LED
LED Life-LED壽命-La vida del LED

L70(9k) > 54,000 hrs
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática
- > 80
- > 90
Luminaire Efficacy燈具效率

La eficacia de la luminaria
- 120 Lm/w(2700K), 120 Lm/w(3000K), 125 Lm/w(4000K),
- 130 Lm/w(5000K), 130 Lm/w(6500K),
LED Source Luminous EfficacyLED光源光效

Fuente luminosa LED Eficacia
- 140 Lm/w(2700K), 140 Lm/w(3000K), 150 Lm/w(4000K),
- 160 Lm/w(5000K), 160 Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa

Die-cast aluminium and Opal Polycarbonate Linear-Prisms diffuser

壓鑄鋁和乳白棱鏡擴散PC罩

Aluminio fundido a presión y policarbonato Milky difusor
Housing Color外殼顏色color de la carcasa

Matte white啞光白色Blanco mate
Ingress Protection-防護等級

Protección de ingreso

IP65
Mech impact protection 機械衝擊保護

Protección contra impactos mecánicos

IK10
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC/ EN 60598-1 / EN 60598-2-1 / EN 62031 / EN 62493 / IEC/EN 62471 / IEC 62031

EN 55015 / EN 61000-3-2 / EN 61000-3-3 / EN 61547 IEC TR62778

LED Driver: EN 55015 / EN 61000-3-2 / EN 61347-1 / EN 61347-2-13 / EN 61547 / EN 62384
