STARCO

DMX W16xH6mm 12W/M Max IP65

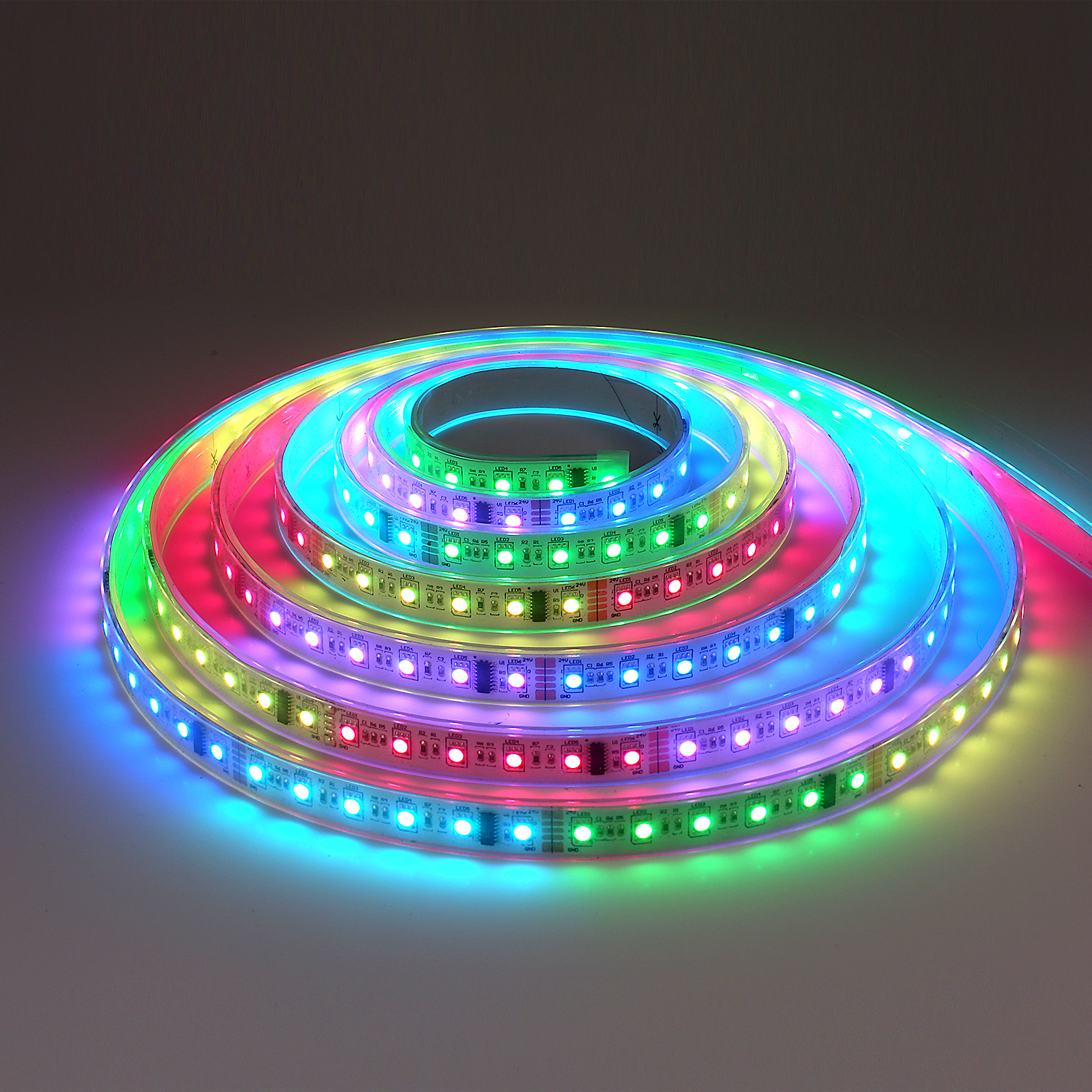

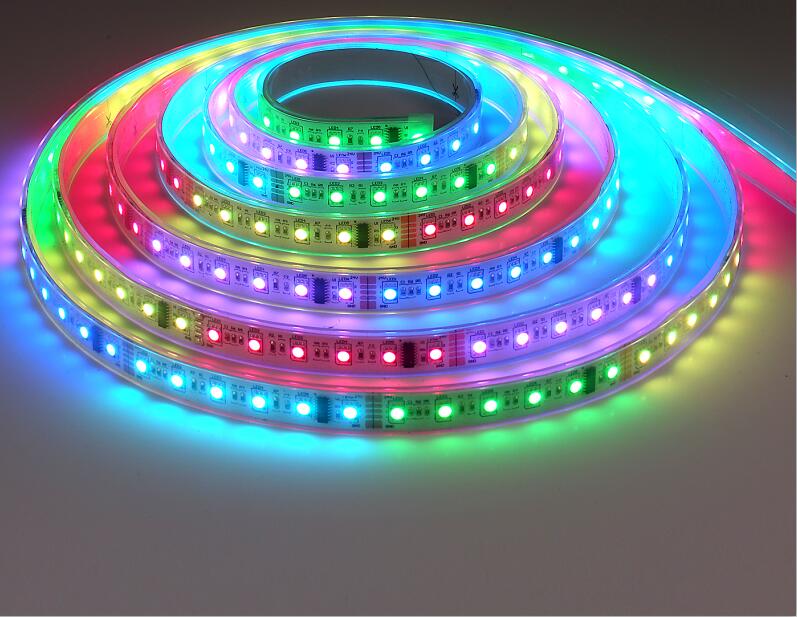

LED DMX STRIP LIGHT

LED DMX STRIP LIGHT with durable and anti-UV Silicone Case material housing protection presents good translucent, achieves seamless and uniformity. It is able to be controlled by DMX.

With 5OZ PCB copper design, LED color always keeps same brightness after at least 15meter long distance power supply. Standard DMX512 control protocol(Max 44frames/second).

Technical Data

Luminaire Type/ 安裝方式

Tipo de luminaria

Surface Mounted Type

明裝式燈具

Superficie Tipo Montado
QTY of LEDs-燈珠數量-CANT de LEDs
- 30PCS LEDs @ 1 Meter ( 30 Pixles / M DMX Channel of RGB and Mono Color: 90 / Meter ; DMX Channel of RGBW: 120 / Meter)
- 32PCS LEDs @ 1 Meter ( 16 Pixles / M DMX Channel of RGB and Mono Color: 48 / Meter ; DMX Channel of RGBW: 64 / Meter)
- 48PCS LEDs @ 1 Meter ( 16 Pixles / M DMX Channel of RGB and Mono Color: 48 / Meter ; DMX Channel of RGBW: 64 / Meter)
- 60PCS LEDs @ 1 Meter ( 10 Pixles / M DMX Channel of RGB and Mono Color: 30 / Meter ; DMX Channel of RGBW: 40 / Meter)
Color -顏色-Color

2700K / 3000K / 4000K / 5000K / 6500K / RGB/RGBO(2700K)/RGBW(3000K)/RGBN(4000K)/ RGBD(5000K)
Power Consumption Max

燈具最大功率

Consumo de energía Max
- 12W
Input Voltage / 輸入電壓

Voltaje de entrada
- DC5V @ 30LEDS
- DC12V @ 32 LEDS and 48 LEDs
- D24V @ 60 LEDS
Control Protocol-控制協議
Protocolo de Control
- Built-in 8-Bit DMX512 Control IC
- Dimming range: 0~100%, LED start at 0.01% possible.
- Flicker-free achieve the level of exemption assessment.
Length – smallest unit

長度 - 最小單位

unidad más pequeña
100mm
Beam Angle/光束角

ángulo de haz

120°
Light Source Brand/光源品牌

Fuente de luz de marca

CREE - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
LED Life/LED壽命

La vida del LED

>50,000 hours
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy-燈具效率

La eficacia de la luminaria
- 60 Lm/w(2700K@Full Load),
- 70 Lm/w(3000K@Full Load),
- 80 Lm/w(4000K@Full Load),
- 90 Lm/w(5000K@Full Load),
- 90 Lm/w(6500K@Full Load),
- 40 Lm/w (RGB@Full Load)
- 50 Lm/w (RGBO, RGBW, RGBN, RGBD@Full Load)
LED Source Luminous Efficacy-LED光源光效

Fuente luminosa LED Eficacia
- 110Lm/w(2700K@Full Load),
- 120Lm/w(3000K@Full Load),
- 130 Lm/w(4000K@Full Load),
- 140Lm/w(5000K@Full Load),
- 140Lm/w(6500K@Full Load),
- 60Lm/w (RGB@Full Load)
- 80 Lm/w (RGBO, RGBW, RGBN, RGBD@Full Load)
Housing materials/外殼材料

Materiales de la carcasa

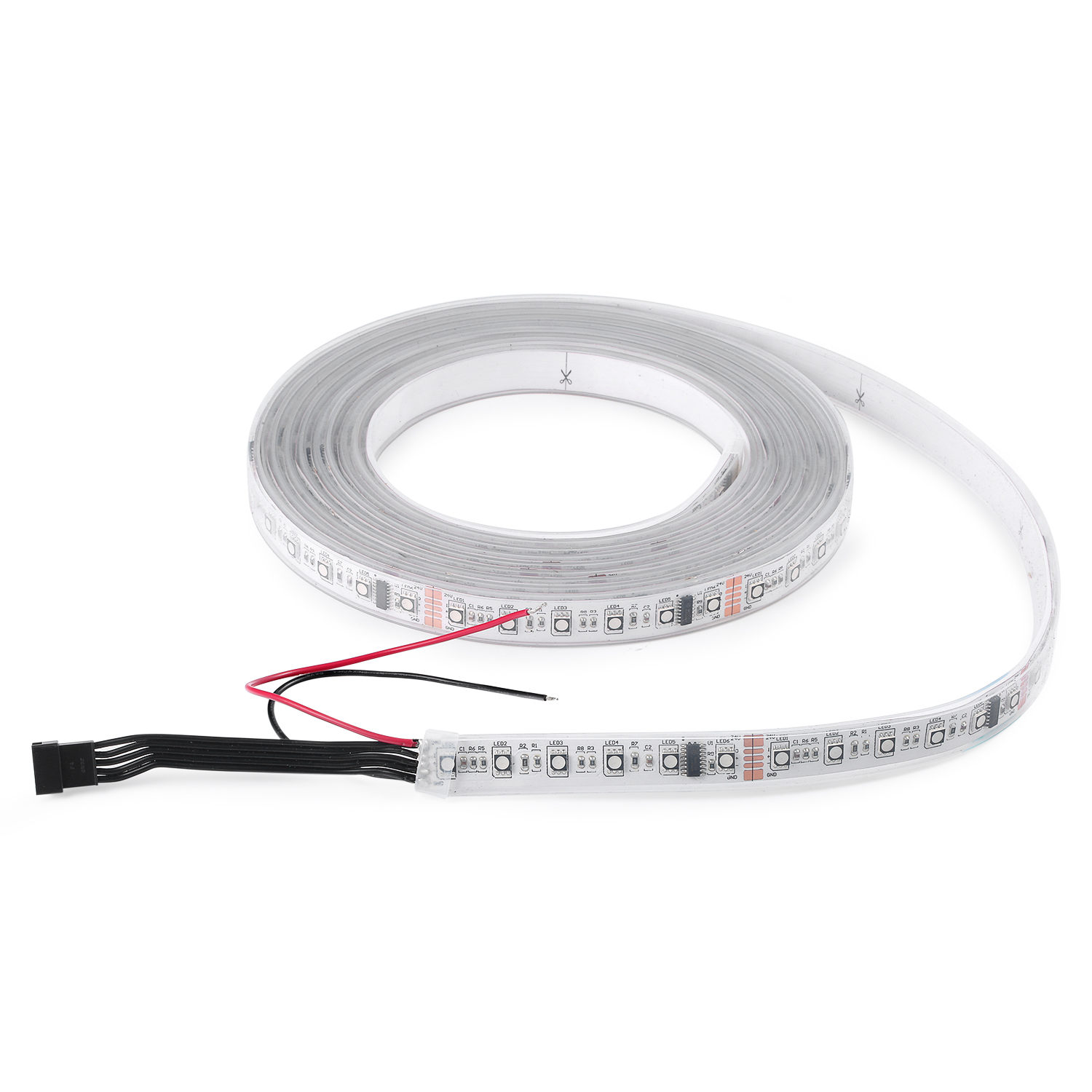

- IP44 - Silicone Case with open cable

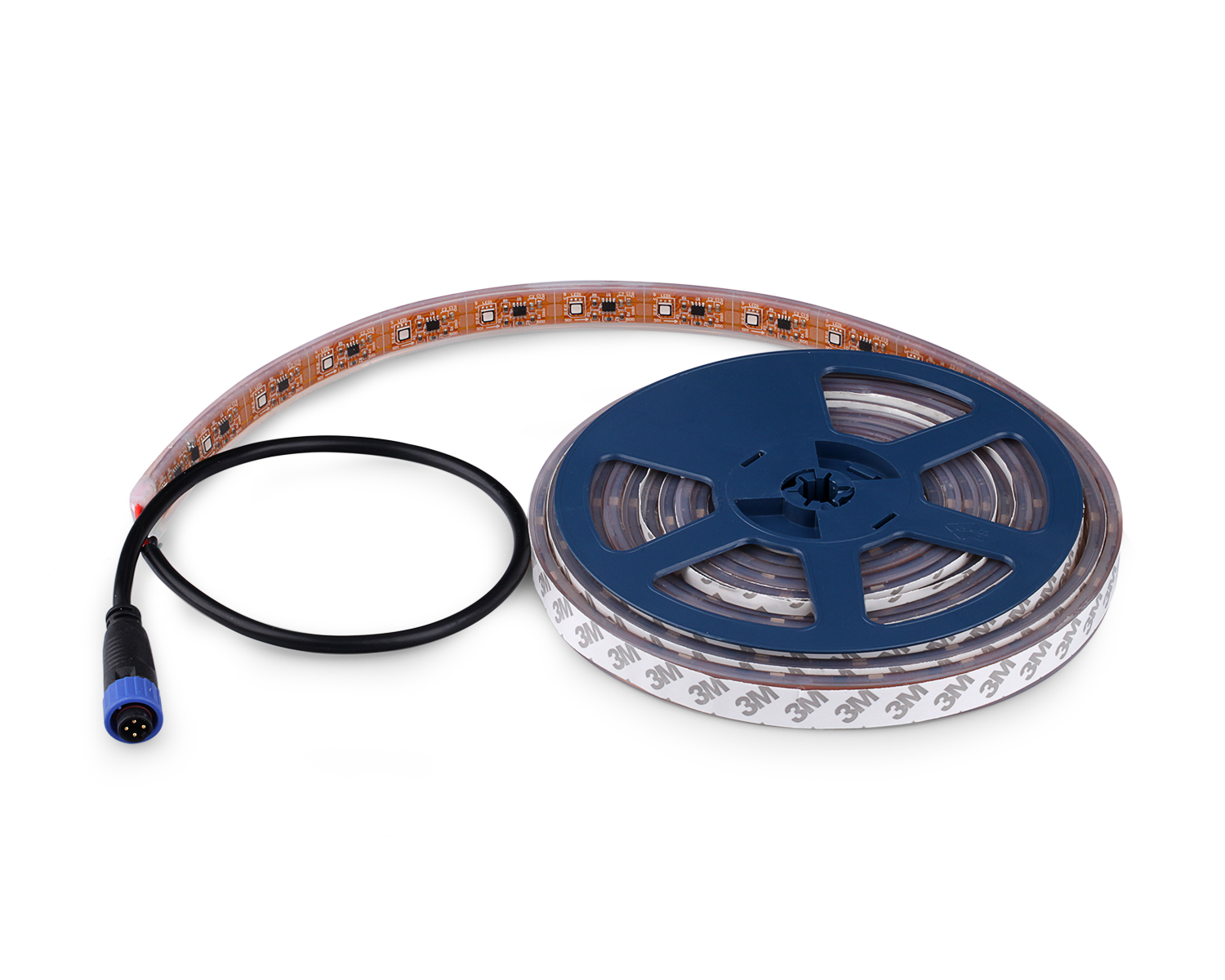

- IP65 -Silicone Case with IP65 Connector
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Ingress Protection/ 防護等級

Protección de ingreso
- IP44 - (IEC 60529)
- IP65 - (IEC 60529)
Dimension/尺寸

Dimensión
- W: 16 x H: 6 mm @ IP44
- W: 16 x H: 6 mm @ IP65 Connector Dia : 20mm
Package Dimension -包裝尺寸

Dimensión del paquete

5M or 10M / Roll
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC 60598-1 / IEC 60598-2-3 / Photometric data-IES format

LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 6 / IEC 61547
