0-10V Dimmer

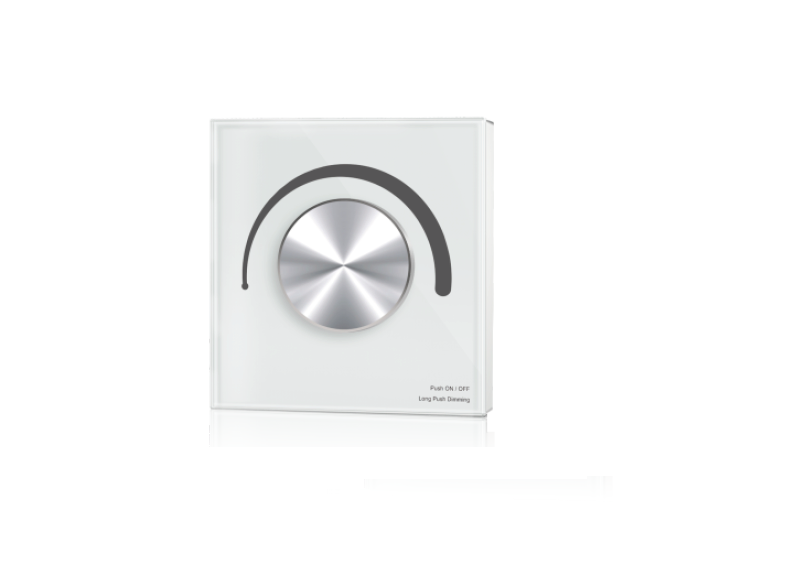

A wall mounted 0-10V Dimmer

● Rotary glass panel 1-10V dimmer, 1 channel output.
● Output 1 channel 1-10V signal, connect with 1-10V dimmable driver.
● High voltage AC input, High voltage AC relay output.
● Rotate knob to change brightness, support push and long push operation.
● 256 levels 0-100% dimming smoothly without any flash.
● Compatibility with RF 2.4G single zone or multiple zone dimming remote control.

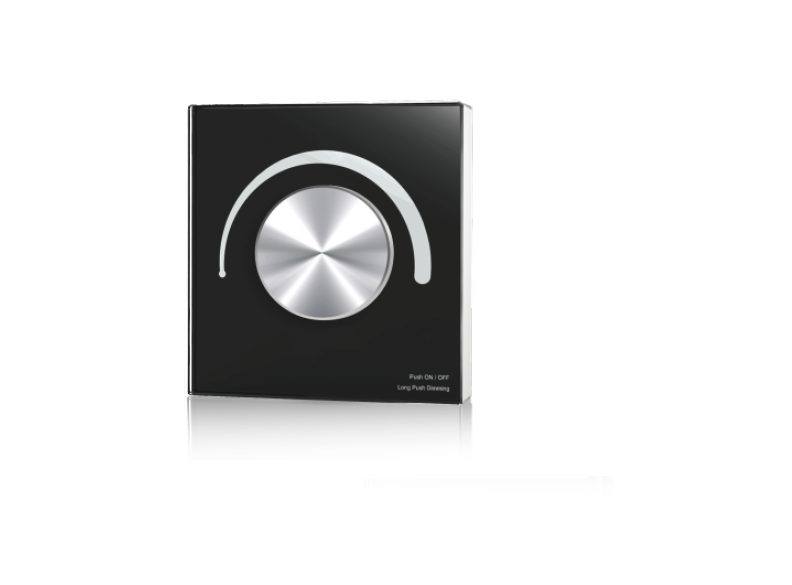

● White & Black glass panel available.

Technical Data

  • Input Voltage / 輸入電壓

    Voltaje de entrada

    100-240Vac, 50/60HZ

  • Switching Power

    El cambio de poder

    100-240Vac, 1.5A

  • Out Put/輸出

    Hacia fuera puesto


    1-10V Max, 20mA

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -20 °C / +50 °C / -4 °F / +114 °F

  • Ingress Protection-防護等級

    Protección de ingreso


  • Dimension-尺寸-Dimensión


  • Housing Color


    color de la carcasa

    Matte White 砂白色

  • Certification

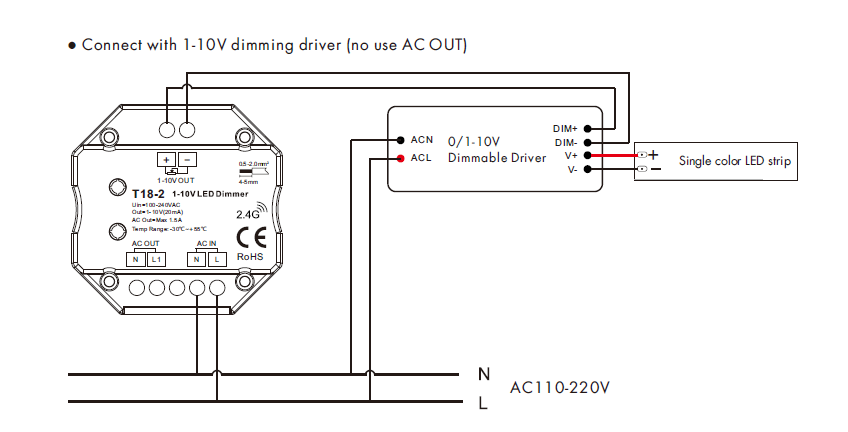

Wiring Drawing
