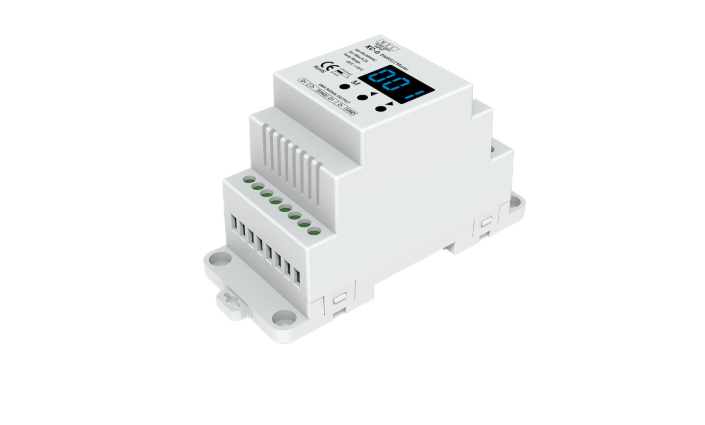

XC-D

RF-DMX512 Master
1-5 Color/1-4-8 Zone/Max 512 channel/Wireless remote control/Stand-alone function/Numeric display/Din Rail
  • ● 1/4/8 zones 1-5 colors DMX512 master with digital display, can work as stand-alone mode or RF mode.
    ● DMX signal output, comply to standard protocol DMX512, compatiible with DMX decoder from any supplier.
    ● Under stand-alone mode(no need remote), can be set as 1/4/8 zones single color, dual color, RGB, RGB+W,
    RGB+CCT light type by key.
    ● Under RF mode, full compatibility with a variety of 1/4/8 zones single color dimming, dual color, RGB/RGBW
    or RGB+CCT remote.
    ● Digital numeric display, simple to change mode, speed, brightness or color temperature.
    ● For RGB type, built in 30 mode, include static color, jump, flash or gradual change style.
    ● For multi-pixel RGB type, built in 32 mode, include horse-race, chase, flow, trail or gradual change style.

Technical Data

  • Input voltage

    85-265VAC

  • Power consumption

    Max 1W

  • Input signal

    RF 2.4GHz

  • Output (DMX512 channel number)

    • 1/4/8 Zone Dimmer-------------- 1/4/8
    • 1/4/8 Zone Dual color -----------2/8/16
    • 1/4/8 Zone RGB ------------------3/12/24
    • 1/4/8 Zone RGB+W -------------4/16/32
    • 1/4/8 Zone RGB+CCT---------- 5/20/40
    • Multi-pixel RGB -------------------510
    • Multi-pixel RGB+CCT---------- 510
    • Multi-pixel RGB+W -------------512

  • Certification
