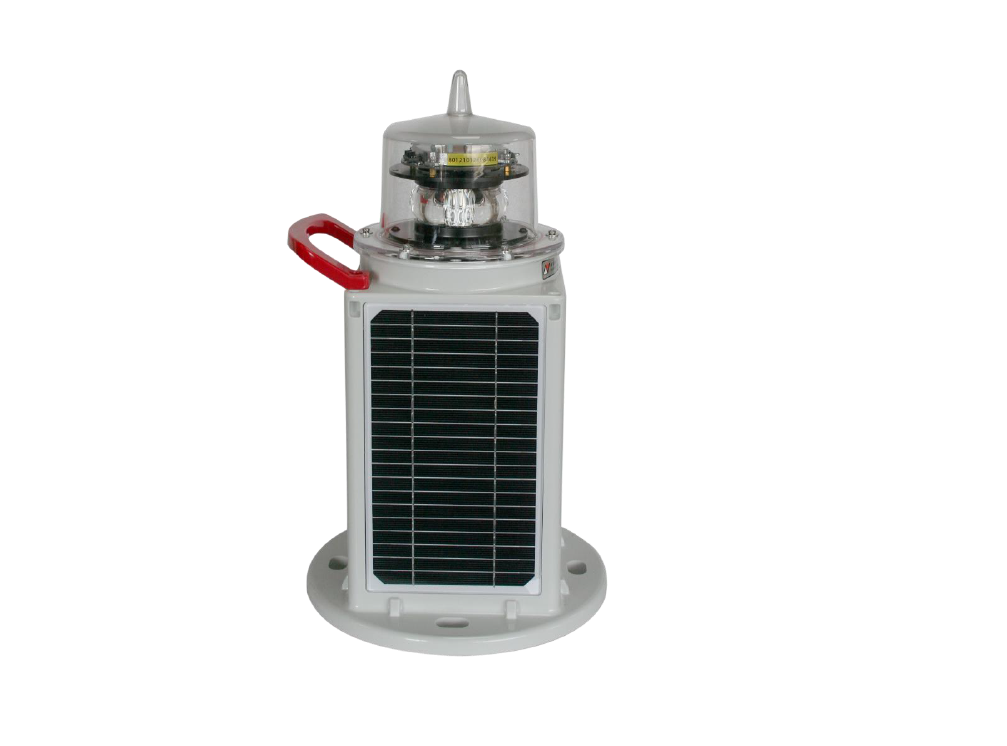

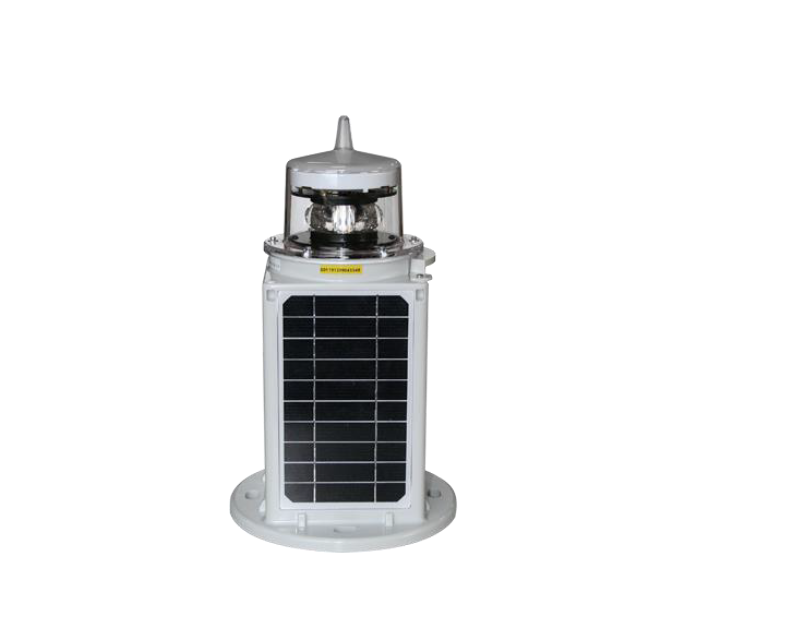

SOLAR-X-6NM

3NM~6NM-Selfcontained Marine Lartern

Solar Battery and LED Compact design

SOLAR-X-6NM series is a self-contained lantern powered by solar energy and lithium battery with integrated structure design.
It has the characteristics of low power consumption, easy maintenance and aging resistance.
It can be widely used in inland rivers, Coastal and harbor light buoys.
This series of lamps is composed of LED point light source, lens, solar panel and weather-resistant material base.
The lamp can easily realize the remote measurement and control of the lantern through the NB-IoT or 4G communication method with DIMON Marine Monitoring system App.
The GPS high-precision clock is used to realize the synchronous flash function;
The range is >6nautical miles, the vertical divergence angle is ≥8 degrees, and the horizontal divergence angle is 360 degrees.

Technical Data

Features

功能
- Long Life -LED Light Source
- 恆定電流驅動，光電轉換效率高，發光穩定，壽命長
- Optional GPS synchronisation module 可選配 GPS 同步模組
- 15 levels of luminous intensity adjustment to adapt to different range requirements.
- 15檔發光強度調節，適應不同射程需求
- Available in all IALA approved colours 提供所有IALA批准的顏色
- 256 user selectable flash characters and selectable dayligt sensor
- 256種燈具可供選擇; 日光閥值可設定
- Magnetic On/Off Switch for quick deployment and hassle free storage maintenance check
- 磁性開關，方便快速部署與維護檢查
- User selectable power and flash character settings via BLUE Tooth 5.0 up to 40meter
- 用戶可透過藍牙 5.0 設定功率和閃爍字符，有效距離可達 40 米
- Optional Control protocol : NB-IoT for Long Distance Wireless control
- 可選配 NB-IoT 控制協議，實現遠距離無線控制
- Working hours lasting up to 30 days in bad weather (1:1 ratio of light to dark).
- 標配可持續工作30個陰雨天(每天亮燈14小時，明滅比1:1).
- Optional GNSS synchronized-conotrol flash function by GPS or BDS
- 選配 GPS 或北斗 GNSS 同步控制閃爍功能
- Optional 4G wireless DIMON Monitoring system for comprehensive fault alarm and status monitoring.
- Ingress Protection: IP67 防護等級：IP67
Selectable Range
可選範圍
• 3 nautical miles (T=0.74) 3 海里 (T=0.74)
• 4 nautical miles (T=0.74) 4 海里 (T=0.74)
• 5 nautical miles(T=0.74) 5海里 (T=0.74)
• 6 nautical miles(T 0.74) 6海里 (T 0.74)
Available Colours

可選顏色
- Red 紅
- Green 綠
- Yellow黃
- White 白
- Yellow/Blue 黃/藍
Visibility能見角

360° horizon (omnidirectional)360° 地平線（全向）
Vertical Divergence
垂直發散角度

8°±0.3
Flash Codes
燈質閃爍編號

Up to 256 codes IALA , field selectable 最多可設定 256 個 IALA 代碼
Synchronisation同步

GPS-Global Positioning System + BDS-BeiDou Navigation Satellite
GPS 定位 GNSS授時(GPS+北斗)
Daylight (Lux) Sensor
日光閥值

Default 300Lux (100~1000Lux adjustable)
預設300Lux,100-1000Lux可調
LED Lamp Input Voltage
LED燈輸入電壓

DC7.3V
Solar Power
太陽能功率

20.8W (4 x 5.2W ) Solar Panels

20.8W（4 x 5.2W）太陽能電池板
Battery Capacity
電池容量

7.4 V 49AH 357.7Wh Lithium Ion (Comply IEC 62133-2 ; UL1642 , UN38., MSDS )

7.3 V 49AH 鋰離子電池（通過以下測試標準 IEC 62133-2 ; UL1642 , UN38.,
Duration 耐用時間
Working hours on rainy days
雨天工作時間
Standard configuration for 30 days @ ON/OFF : Ratio 1:1
標準配置 30 天 @ 明暗設計比例 1:1
Control Protocol Selection:
控制協議選擇：

• BLUE Tooth 5.0 up to 40meter for IALA Flasing Code, Lux Sensor and Distance setting. Battery
monitoring by APP software
• 藍牙 5.0 最遠 40 米，用於IALA閃光代碼、勒克斯感光照度和距離設置都可以通過APP軟件監控電池
• NB-IoT Overvoltage and Undervoltage, Fault, Position offset report by PC IOT Software
• 電腦軟件透過4G/ NB-IoT協議做燈具的過壓和欠壓、故障、位置偏移監測回報
• 4G Wireless control system: Overvoltage and Undervoltage, Fault, Position offset report by PC 4G Software
• 電腦軟件透過 4G協議做燈具的過壓和欠壓、故障、位置偏移監測回報
Magnetron Switch
磁控開關

For Turn On and Turn OFF Lantern Power
用於打開和關閉燈具電源
Net Weight 淨重

4.3KG
Dimension 尺寸

Dia 250mm x H: 427.5mm
Operating Temperature Range 工作溫度範圍

-35° to +60°C
Ingress Protection-防護等級

IP 67
Housing materials外殼材料

UV resistant molded polycarbonate 抗紫外線模塑PC
Mech impact protection機械衝擊保護
IK08
