DM-F2000

LED TV LIHGT PANEL 186W&199W
LED TV LIHGT PANEL

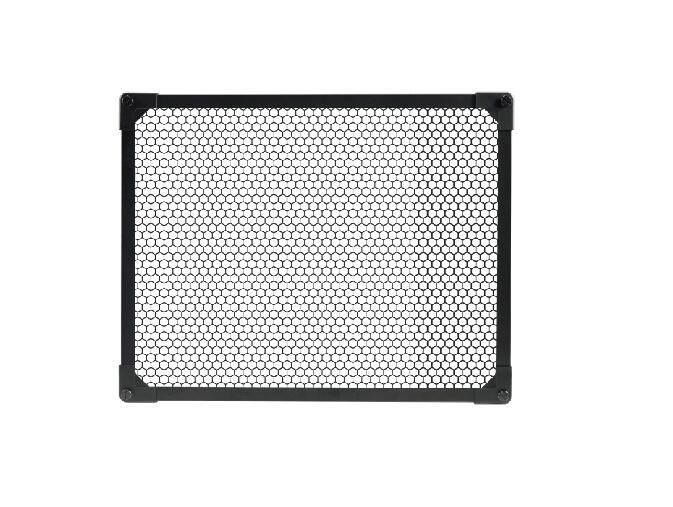

With outstanding floodlight and soft light.DM-F2000WW/CW/VW is widely applied to photographic studio, TV station, conference room, shopping mall available with mobile battery set. Optional accessories with cellular grid.

Technical Data

  • Luminaire Type/ 安裝方式

    Tipo de luminaria

    Surface Mounted and Adjustable Type

    明裝可調安裝腳

    Tipo montado en superficie y ajustable



  • Color -顏色-Color

    3200±150K

    5600±250K

  • Power Consumption Max

    燈具最大功率

    Consumo de energía Max

    186W@DM-F2000CW &DM-F2000WW

    199W@DM-F2000VW

  • DMX Channels

    DMX 通道

    Canales DMX



    1/2A/2B/3 channels (DM-F2000CW/WW)

    2/3A/3B/4/5/6 channels (DM-F2000VW)

  • Control Model /控制協議

    Modelo de control

    DMX,Master/Slave,Art-Net

  • Input Voltage / 輸入電壓

    Voltaje de entrada

    AC 100 ~ 240V, 50/60Hz

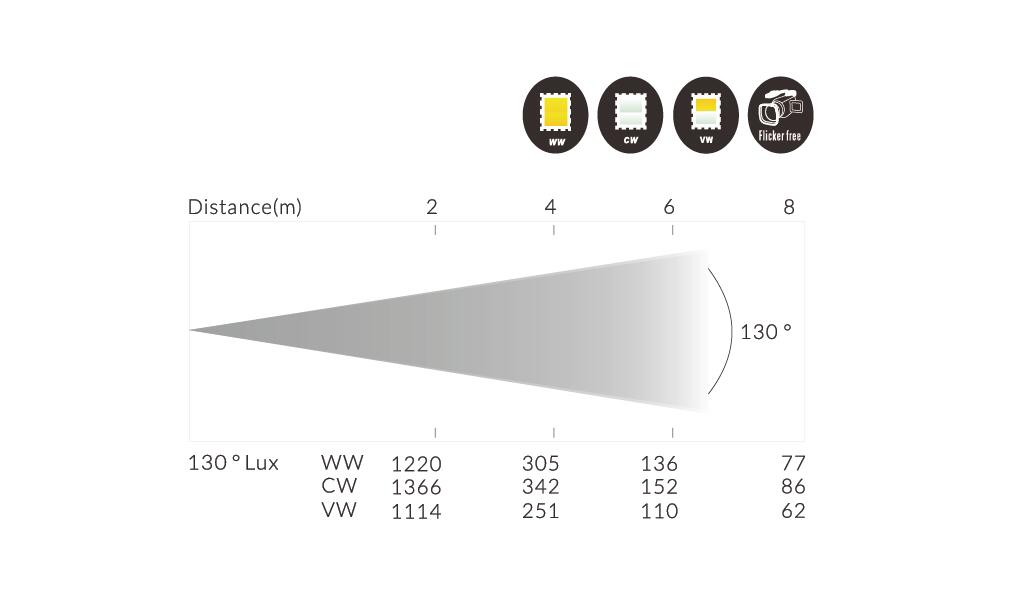

  • Beam Angle/光束角

    ángulo de haz

    130°

  • Light Source Brand/光源品牌

    Fuente de luz de marca

    480pcs CW LED @ DM-F1000CW

    480pcs WW LED @ DM-F1000WW

    480pcs CW+480pcs WW LED @ LP-F1000VW

  • LED Life/LED壽命

    La vida del LED

    >60,000 hours

  • Optical

    光學

    Optical

    CRI: WW≥95, CW≥94, VW≥94

    CQS: WW≥94, CW≥94, VW≥94

    TLCI: WW≥95, CW≥95, VW≥95

  • Construction

    結構

    Construcción

    Display: LCD display

    Data In/Out: 5-pin XLR

    Power In/Out: PowerCon in

  • Housing materials/外殼材料

    Materiales de la carcasa

    Die-cast aluminium

  • Housing Color/ 外殼顏色

    Color de la carcasa

    Matte Black

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento



    -20 °C / +50 °C



  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Ingress Protection/ 防護等級

    Protección de ingreso

    IP20

  • Dimension/尺寸

    Dimensión

    L:668 x W:487 x H:148mm







  • Environment/ 使用環境

    Medio ambiente

    Indoor / 室內 / Indoor

  • WEIGHT

    重量

    Peso

    10.0kg

  • Certification-認證-Certificación

Specification Code

Example Product Code:
DM-F2000CW
DM-F2000
-
Part NO.

Part NO.

  • DM-F2000CW
    480pcs CW LED
  • DM-F2000WW
    480pcs WW LED
  • DM-F2000VW
    480pcs CW LED+480pcs WW LED

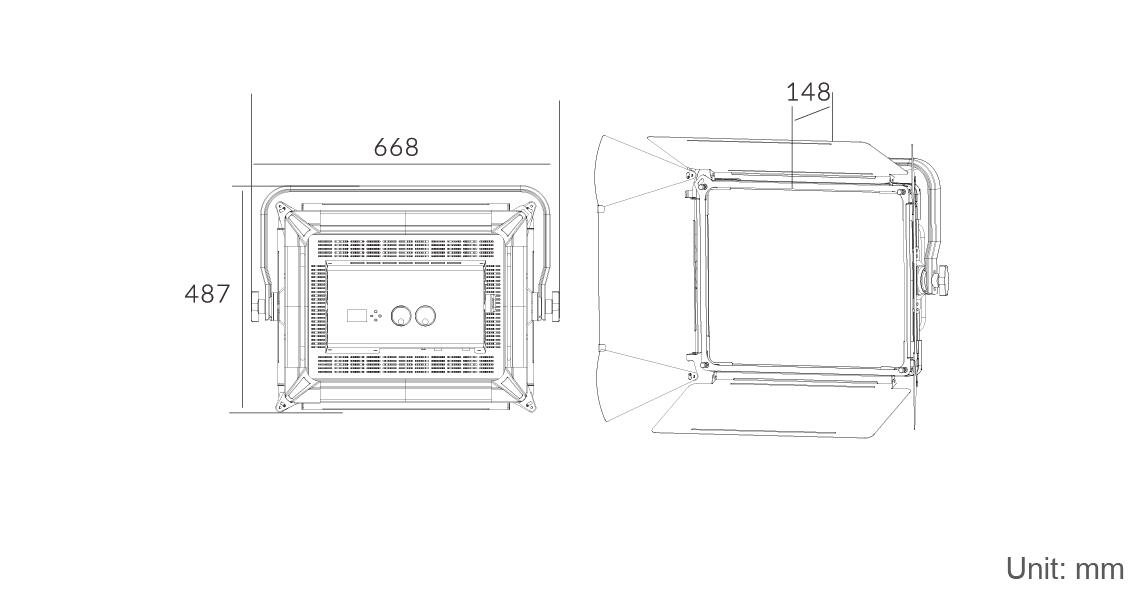

Technical Drawing

Product Download Tab
