LAHO (Diffuser) System

W57xH76 mm Max IP20

LED LINEAR LIGHT

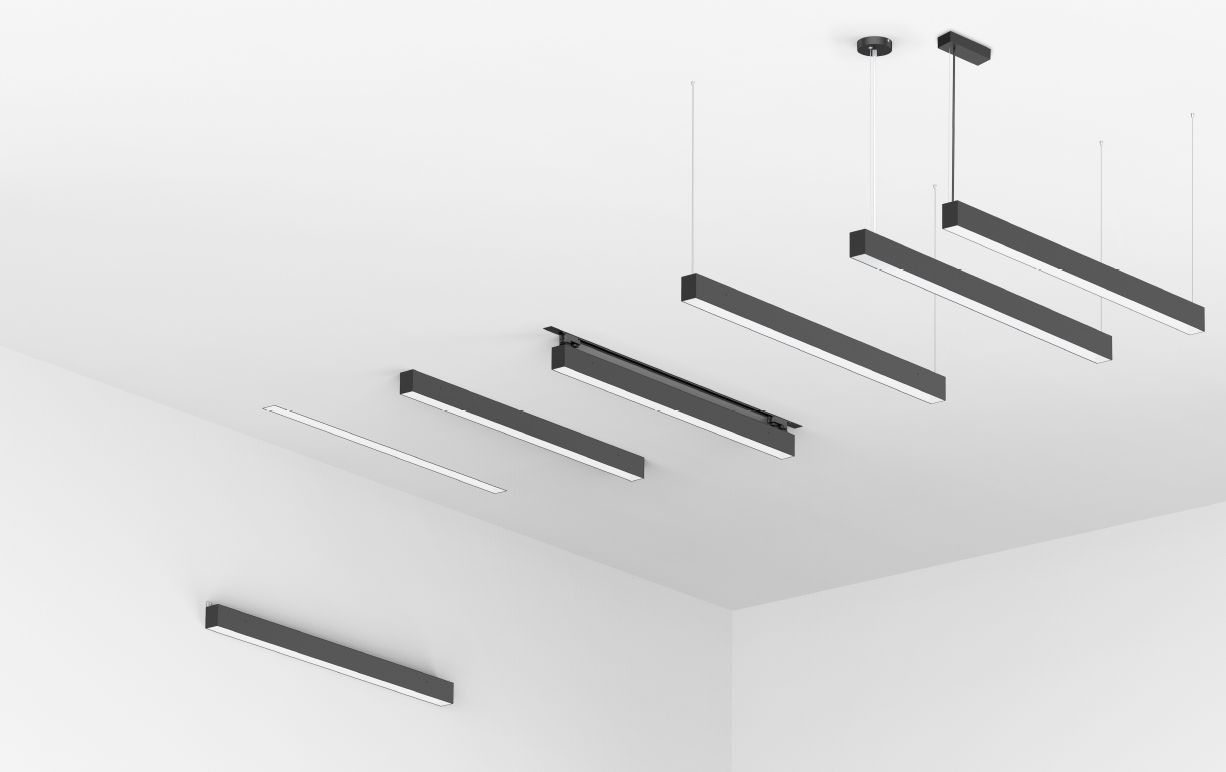

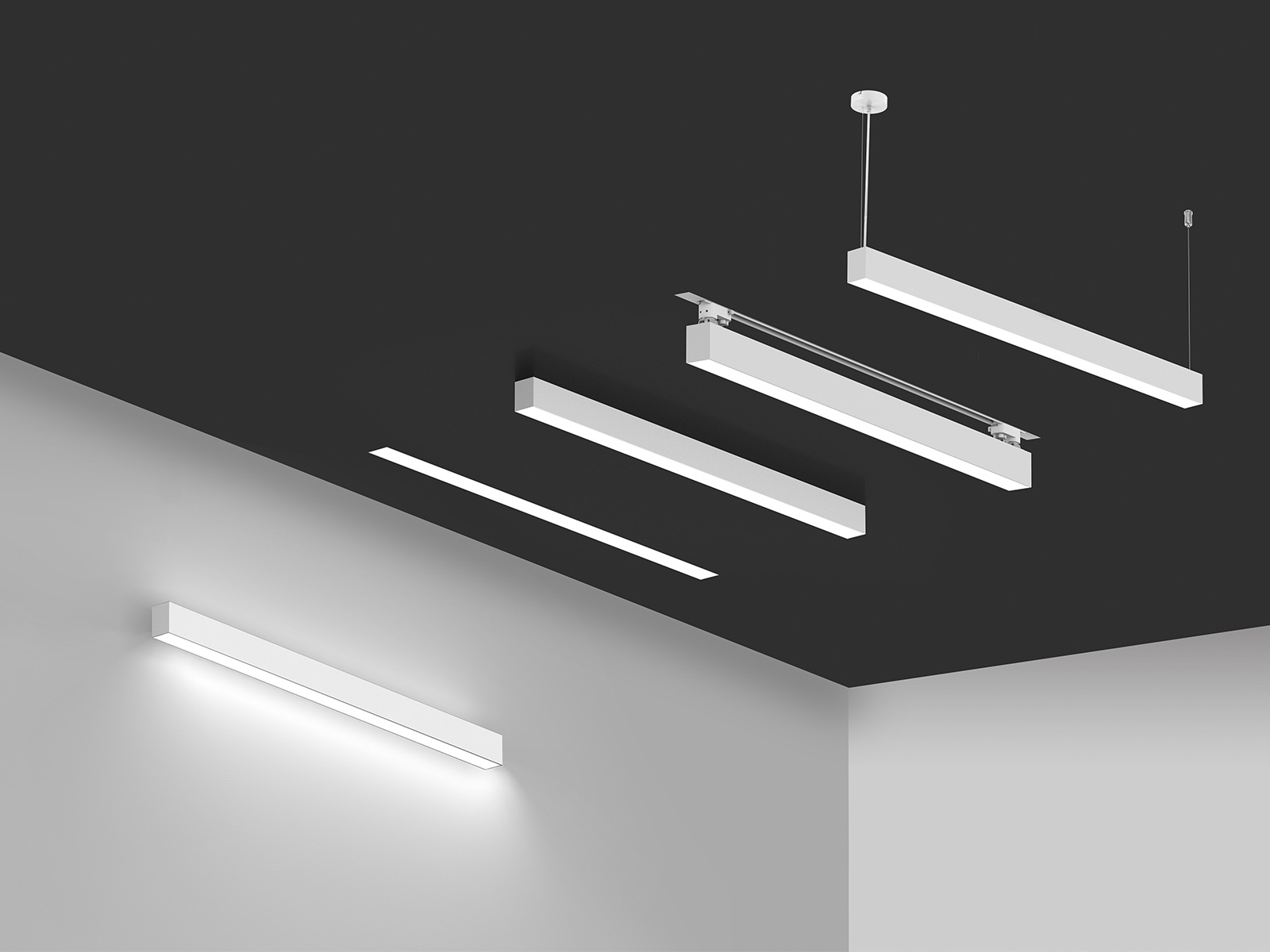

LAHO (Diffuser) System is new linkable design linear light. Adopt high lumen eﬃciency SMD LED with even light output, aluminum light body providing excellent thermal management. Pendant with steel rope, pendant with round ceiling plate, surface mounted, wall mounted, recessed and track installation are all available. With Corner /Cross/ Straight/ T shaped connectors for multiple shape design. Anti-glare design with reflector UGR<19. Continuous lighting with no dark areas with opal and prismatic polycarbonate diffuse

Technical Data

Luminaire Type-安裝方式

Tipo de luminaria

Pendant / surface mounted / wall mounted / Trimless recessed / Track

吊裝 / 明裝 / 壁裝 / 無框嵌入式 / 軌道安裝

Colgante / montado en superficie / montado en la pared / empotrado sin molduras / carril
Dimension-尺寸-Dimensión

Weight 淨重

L: 1212 xW:57 x H:76mm 2.7kg Wihtout endcap for system connection L: 1200 xW:57 x H:76mm

L: 1512 xW:57 x H:76mm 3.5kg Wihtout endcap for system connection L: 1500 xW:57 x H:76mm
Power Consumption Max-燈具功率

Consumo de energía Max
Up or Down Lighting
- L: 1212mm : 32W 36W
- L: 1512 mm : 40W 45W
Up and Down Lighting
- L: 1212mm : 45W
- L: 1512 mm : 56W
Input Voltage-輸入電壓-Voltaje de entrada

AC220-240V 50/60HZ
Power Factor / 功率因數/Factor de potencia

PF>0.95
Total Harmonic Distortion/總諧波失/Distorsión armónica total

THD<20%
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC220-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. 1 -10V Dimming Driver  AC220-240V 50/60HZ

4. Dali Dimming Driver AC220-240V 50/60HZ

5. Microwave Sensor 5.8GHz±75MHz, ISM wave band 100%/75%/50%/25%(4-7M)  5S/30S/90S/5Min/20Min/30Min 2lux/10lux/30lux/50lux/Disable

6. RDM Driver  AC220-240V 50/60HZ

7.Remoted Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia
Control Protocol-控制協議Protocolo de Control

1-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control
Beam Angle Combination

光束角組合

Combinación de ángulo de haz

PC Opal diffuser: -Down Light 120 ° Down Light 120°and Up 75°

PC 乳白罩擴散器：-向下燈光角度：120 ° 向下燈光角度120°）和向上燈光角度 75°
Light Source Brand-光源品牌-Fuente de luz de marca

OSRAM
"Lumen Maintenance LM-80 Reported by TM-21"

L70(10k) > 54,000 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫 Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

> 80

> 90
MacAdam Ellipses Binning 麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy燈具效率

La eficacia de la luminaria

100 Lm/w(2700K), 110 Lm/w(3000K), 115 Lm/w(4000K), 120 Lm/w(5000K), 120 Lm/w(6500K),
LED Source Luminous EfficacyLED光源光效

Fuente luminosa LED Eficacia

• 140 Lm/w(2700K), 150 Lm/w(3000K), 165 Lm/w(4000K), 170 Lm/w(5000K), 170 Lm/w(6500K),
Housing materials-外殼材料-Materiales de la carcasa

Aluminium Alloy and Opal Diffuser or Polycarbonate Prismatic cover or DIY soft cover for system connection

鋁合金和乳白色擴散器或聚碳酸酯棱鏡罩或 DIY軟罩(用於系統連接)
Housing Color-外殼顏色-color de la carcasa

Matte white RAL 9016/ / Matte black RAL 9005 / 啞光白色 / 啞光黑色
Ingress Protection-防護等級 Protección de ingreso

IP20
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaries: IEC 60598-1; IEC 60598-2-1;IEC62471;IEC 62031; IEC62493 ; IEC 62471

EMC: EN55015 ; IEC/EN 61000-3-2; IEC/EN 61000-3-3;IEC/EN61574 ; RoHS

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384
