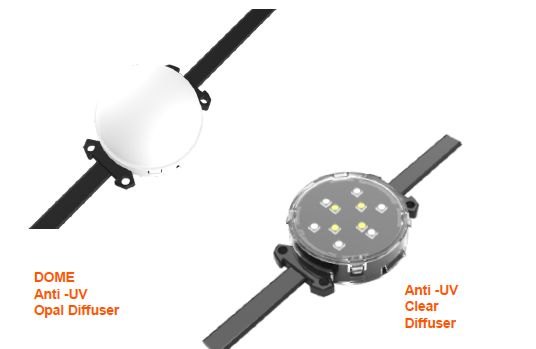

PICHA-ECO

RGBW Dia 50mm 1.9W Max IP67
LED PIXEL LIGHT

1. Adopt front glue and unique PC cover, high protection level;
2.Thick type high-quality flame retardant rubber, UV resistance, salt spray resistance, impact
resistance;
3. Adapt to multiple installation methods, simple and reliable installation;
4. High-quality imported lamp beads, high brightness, pure color, good stability;
5. This product has excellent workmanship and high cost performance, and is an ideal product
for landscape lighting of large buildings and lighting of large bridges.

Technical Data

  • Luminaire Type/ 安裝方式

    Tipo de luminaria

    Surface Mounted Type-明裝式燈具

    Superficie Tipo Montado

  • QTY of LEDs-燈珠數量-CANT de LEDs

    4pcs RGB(3 in 1) SMD LEDs + 6pcs W SMD LEDs

  • Power Consumption Max

    燈具最大功率

    Consumo de energía Max

    1.9W



  • Color -顏色-Color

    • RGBO (Orange White: 2700K)
    • RGBW (Warm White: 3000K)
    • RGBN( Nature White: 4000K)
    • RGBD ( Day White: 5000K)
    • RGBC (Cool White:  6500K)
  • Pixels & DMX Channels

     像素和DMX 通道

    Píxeles y canales DMX

    1 PXL =4 DMX Channels

  • Control Protocol-控制協議

    Protocolo de Control

    DMX 512A

  • Input Voltage / 輸入電壓

    Voltaje de entrada

    DC24V

  • Color Range

    顏色範圍

    Gama de colores

    16.7 Million additive RGB colors and White LED

    1670萬RGB顏色配合白光LED

    16.7 Millones de colores aditivos RGB; LED blanco

  • Beam Angle/光束角

    ángulo de haz

    120°

  • Light Source Brand/光源品牌

    Fuente de luz de marca

    EPISTAR

  • LED Life/LED壽命

    La vida del LED

    >50,000 hours

  • LED Pitch

    LED像素間距

    LED Pitch



    • 150 mm
    • 200 mm
    • 250 mm
    • 1000 mm
    • Custom-Made
  • Pixel Connection Max

    一串最大像素點

    Pixel Connection Max

    Max 40pcs / string

    40pcs 一串最大

    Max 40 unids / cadena

  • Luminaire Efficacy-燈具效率

    La eficacia de la luminaria

    20 Lm/w(RGBO@Full Load)

    20 Lm/w(RGBW@Full Load)

    25 Lm/w(RGBN@Full Load)

    30 Lm/w(RGBD@Full Load)

    30 Lm/w(RGBC@Full Load)

  • LED Source Luminous Efficacy-LED光源光效

    Fuente luminosa LED Eficacia

    40 Lm/w(RGBO@Full Load)

    40 Lm/w(RGBW@Full Load)

    50 Lm/w(RGBN@Full Load)

    60 Lm/w(RGBD@Full Load)

    60 Lm/w(RGBC@Full Load)

  • Housing materials/外殼材料

    Materiales de la carcasa

    Modified PVC

    PVC

    Modificado PVC

  • Housing Color 外殼顏色 color de la carcasa

    • Light Grey    淺灰色    Gris claro
  • Dimension/尺寸 Dimensión

    Dia 50*15.4mm

  • Weight

    33g / pixel

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento



    -20 °C / +55 °C



  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Mech impact protection 機械衝擊保護

    Protección contra impactos mecánicos

    IK08

  • Ingress Protection/ 防護等級

    Protección de ingreso

    IP67

  • Fireproof Grade  防火等級

    Grado a prueba de fuego

    UL94 -V0

  • UV Resistance Level 抗紫外線等級

    Nivel de resistencia a los rayos UV

    Grade 4

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-1

  • Certification-認證-Certificación

Specification Code

Example Product Code:
PICHA-1.9W-RGBW
PICHA-ECO
-
Power Consumption
-
Color Tempreture

Power Consumption

  • 1.9W
    1.9W Max
  • XXW
    Tailor-Made

Color Tempreture

  • RGBO
    RGBO(2700K)
  • RGBW
    RGBW(3000K)
  • RGBN
    RGBN(4000K)
  • RGBD
    RGBD(5000K)
  • RGBC
    RGBC(6500K)

Technical Drawing

Wiring Drawing

Accessories

  • MANYA
  • SLADE
  • CORE-DMX SPLITER
