DRAMOMY

D 68~198mm 7W~38W

RECESSED SPOTLIGHTS

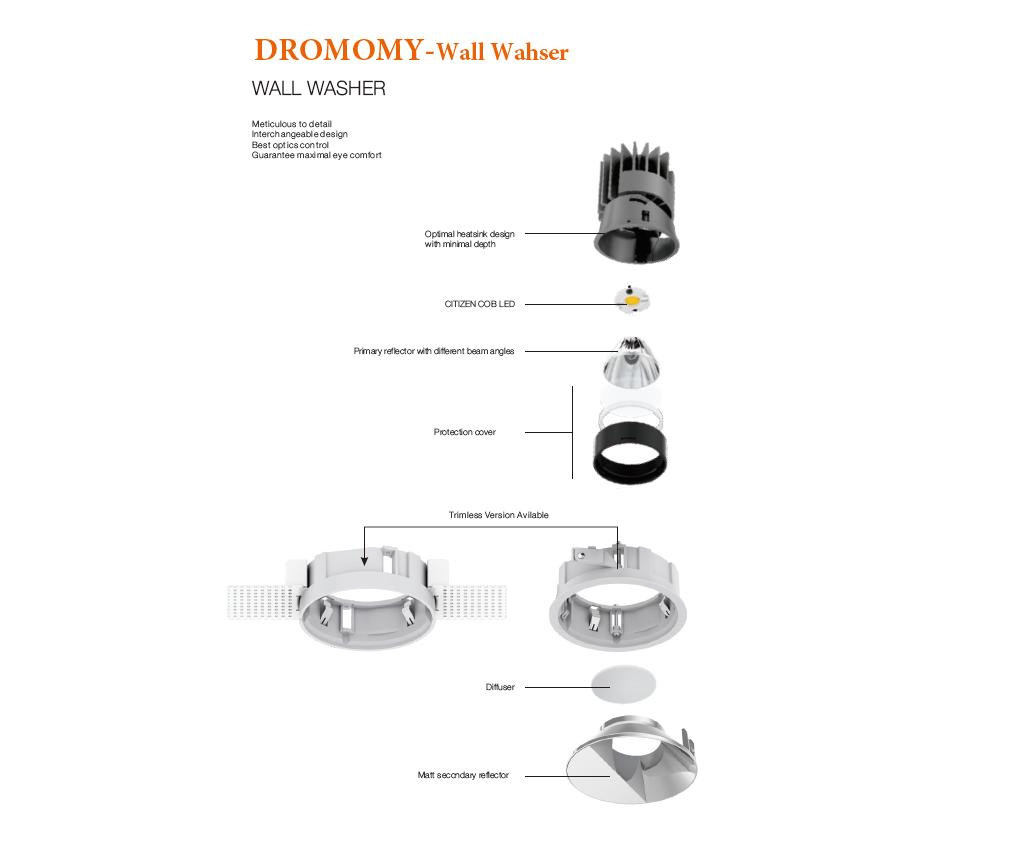

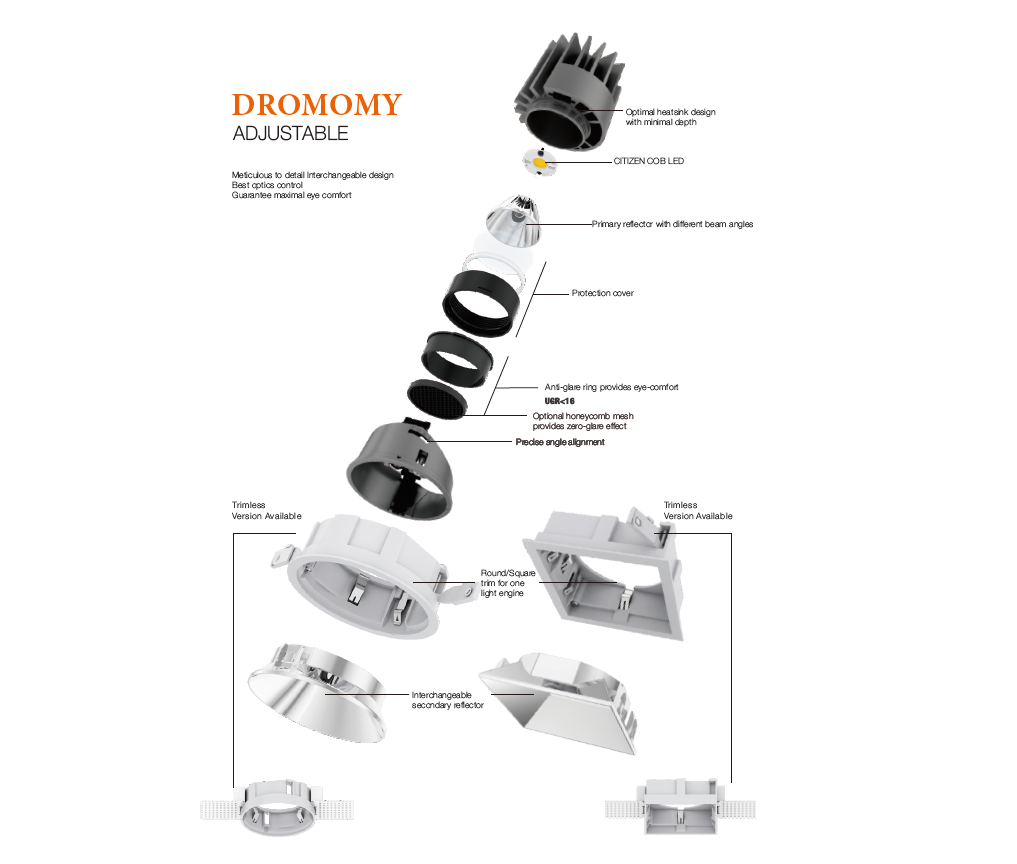

Housing: die-cast aluminium, powder-coated, Anti-glare reflector and Ring to provide Eye-comfort URG <19 , Multi-Optical System with Precise angle alignment,Optional honeycomb mesh
provides zero-glare effect, Interchangeable secondary reflector for Aesthetic design for architectural request. Ultra-narrow trim design leaves no flange between the secondary reflector and trim,meeting neat ceiling requirement. 30° tilt and 355° rotation

Technical Data

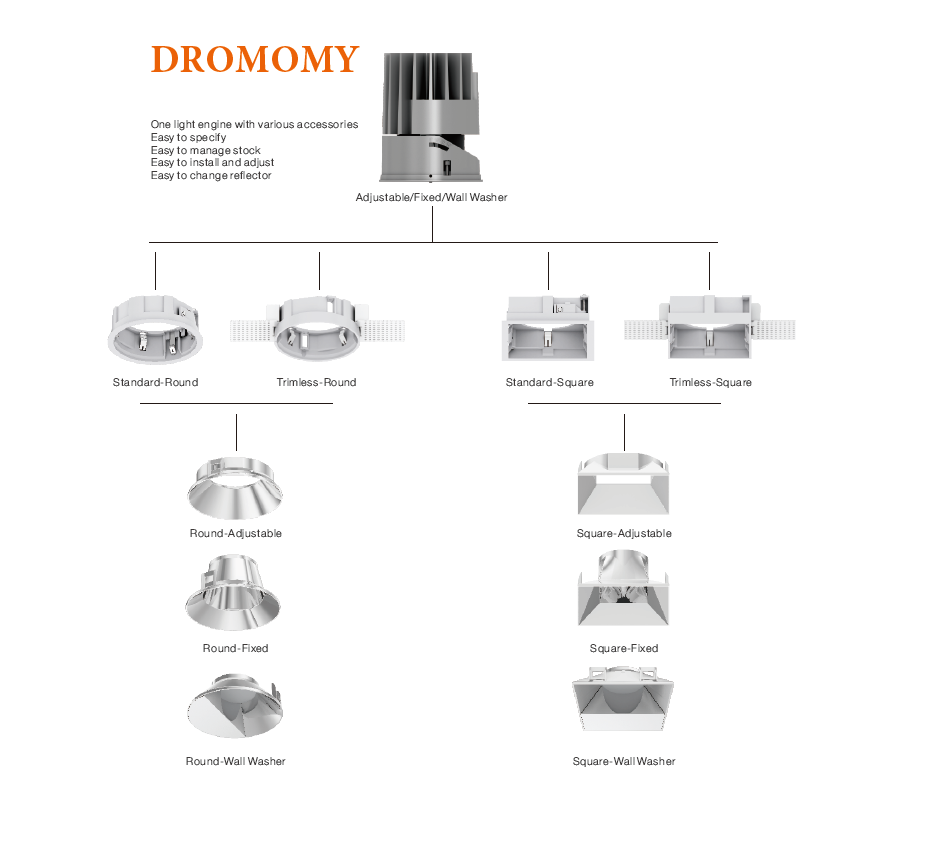

Luminaire Type-安裝方式Tipo de luminaria

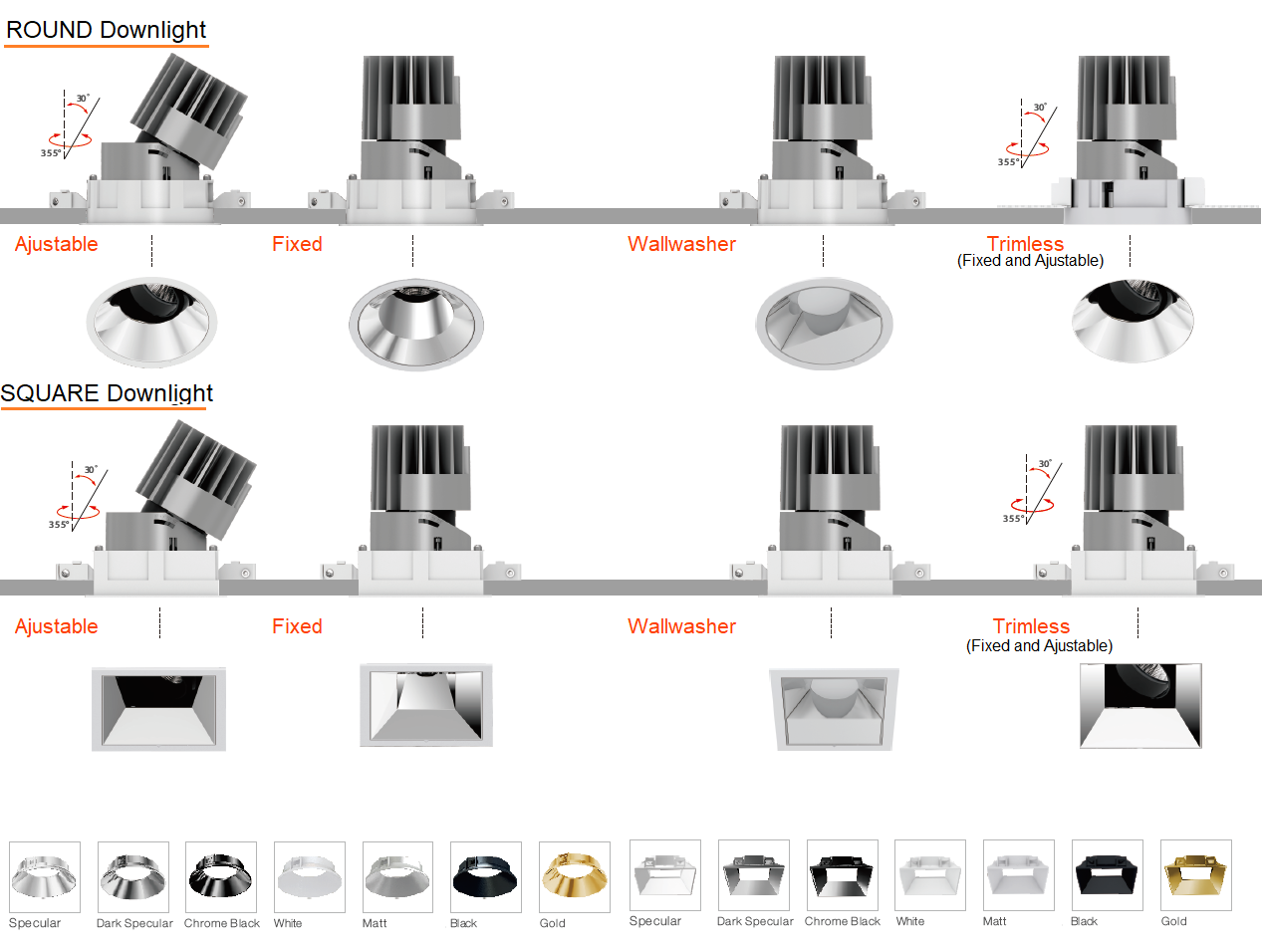

Recessed Mount Type : Tilted-Angle- Type (30° tilt and 355° rotation) , Fixed Type, Trimless Type and Wallwasher Type

嵌入式筒燈 : 可調角度類型（上下調角30°和355°旋轉），固定類型，無框邊類型和洗牆燈類型

Tipo de montaje empotrado: tipo de ángulo inclinado (inclinación de 30 ° y rotación de 355 °), tipo fijo, tipo sin molduras y tipo de bañador de pared
Dimension-尺寸-Dimensión
- Round Type :
- DIA 78 x H: 98 mm DIA 110 x H:128 mm DIA 137 x H:159 mm DIA 162 x H:198 mm
- Round and Trimless:
- DIA 70 x H: 98mm DIA 108 x H:128 mm DIA 132 x H:159 mm DIA 158 x H:190 mm
- Square Type
- 78 x 78 x H: 98mm 107 x 107 x H:129mm 134 x 134 x H:160 mm 159 x 159 x H:191 mm
- Square and Trimless Type
- 104 x 104 x 129 mm 130 x 130 x H:160 mm 154 x 154 x H:190 mm
Cut off Dimension-開孔尺寸-Cortar Dimensión

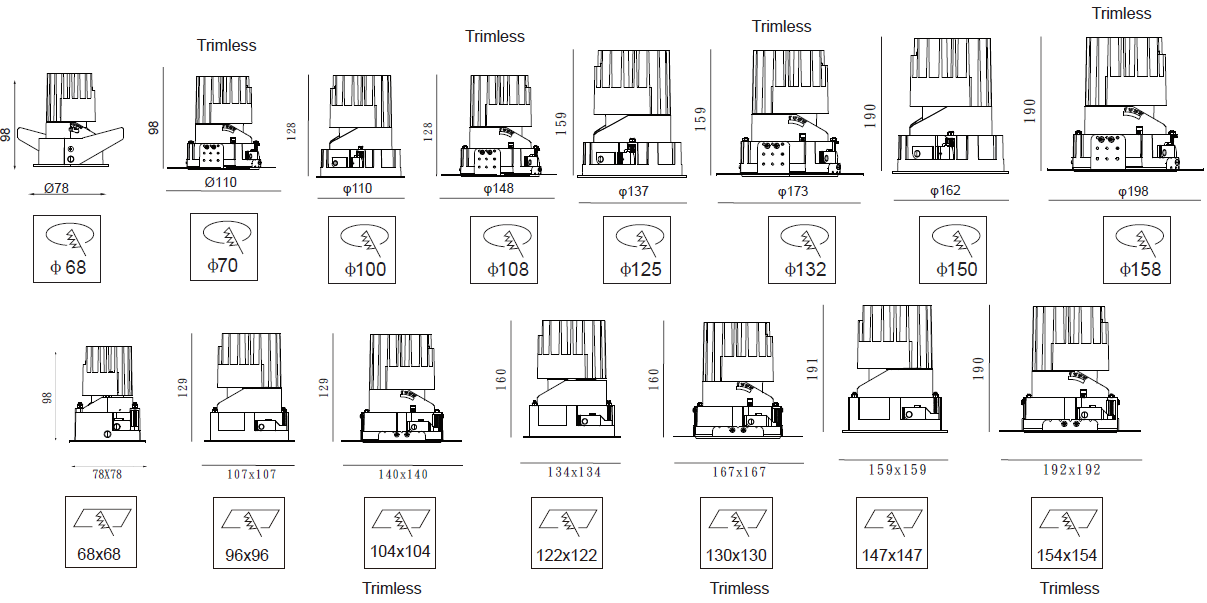

- Refer Technical Drawing 請參閱技術圖紙 Consulte el dibujo técnico
Input Voltage-輸入電壓-Voltaje de entrada

AC220-240V 50/60HZ or Refer to LED Driver data sheet
Power Consumption Max-燈具功率

Consumo de energía Max
- 7.5W @ DIA 78mm @ 78X78mm
- 12W @ DIA 78mm @ 78X78mm @ DIA 70 x H: 98mm Trimless
- 13W @ DIA 110mm @ DIA 108mm Trimless @L:107 x W:107mm @ L:104 x W:104mm Trimless
- 15W @ DIA 110mm @ DIA 108mm Trimless @L:107 x W:107mm @ L:104 x W:104mm Trimless
- 18W @ DIA 110mm @ DIA 108mm Trimless @L:107 x W:107mm @ L:104 x W:104mm Trimless
- 20W @ DIA 137mm @ DIA 132mm Trimless @L:134 x W:134mm @ L:130 x W:130mm Trimless
- 25W @ DIA 137mm @ DIA 132mm Trimless @L:134 x W:134mm @ L:130 x W:130mm Trimless
- 25W @ DIA 162mm @ DIA 158mm Trimless @L:159 x W:159mm @ L:154 x W:154mm Trimless
- 28W @ DIA 162mm @ DIA 158mm Trimless @L:159 x W:159mm @ L:154 x W:154mm Trimless
- 33W @ DIA 162mm @ DIA 158mm Trimless @L:159 x W:159mm @ L:154 x W:154mm Trimless
- 38W @ DIA 162mm @ DIA 158mm Trimless @L:159 x W:159mm @ L:154 x W:154mm Trimless
LED Driver Type

LED驅動款式

Tipo de controlador LED

Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC220-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. 0-10V Dimming Driver  AC100-240V 50/60HZ

4. Dali Dimming Driver AC100-240V 50/60HZ

5. DMX Driver AC100-240V 50/60HZ (Dimming range from 0-100%)

6. RDM Driver  AC100-240V 50/60HZ

7. Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia
LED Driver Features

驅動特性 Funciones del controlador de LED
- POWER FACTOR : PF>0.90 @ Full Load
- TOTAL HARMONIC DISTORTION: THD< 20% / LIFE HOUR : 50,000 Hours
Control Protocol-控制協議

Protocolo de Control

1-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control
Beam Angle 光束角 ángulo de haz

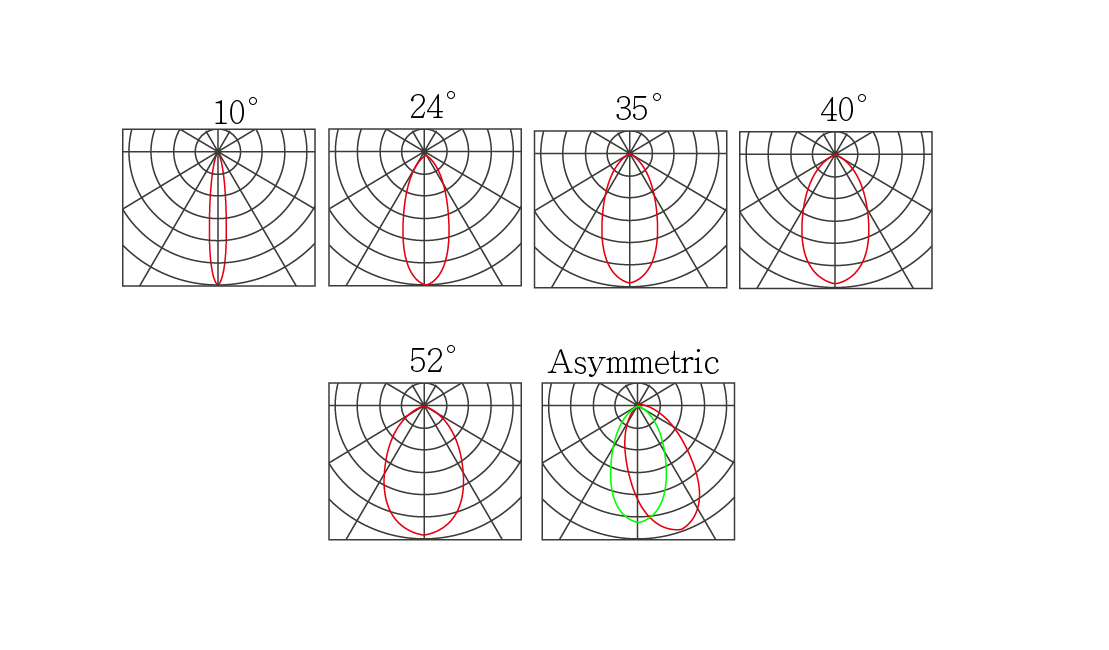

- 10° 24° 35° 40° 52° Asymmetric
Light Source Brand-光源品牌-Fuente de luz de marca

1 pcs CITIZEN LED COB Array - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"

L90(10k) = 50,700 hrs L80(10k) > 63,500 hrs L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫-Temperatura del color

2700K / 3000K / 4000K / 5000K
Color Rendering Index-顯色指數

Índice de reproducción cromática
- > 83
- > 90
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy 燈具效率

La eficacia de la luminaria
- 100 Lm/w(2700K), 115 Lm/w(3000K),
- 120 Lm/w(4000K), 120Lm/w(5000K),
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia
- 130 Lm/w(2700K), 145 Lm/w(3000K),
- 150 Lm/w(4000K), 150 Lm/w(5000K),
Housing materials-外殼材料

Materiales de la carcasa

Die-cast aluminum with titanium grey coating in headsink and acrylic

鈦金灰塗層壓鑄鋁和亞克力

Aluminio fundido a presión con revestimiento gris titanio en el fregadero y acrílico
Trim Color-框邊顏色-Estilo Color

Matte white / Matte black 啞光白色 / 啞光黑色 Blanco mate / Matte black
Reflector Color-反光杯顏色-Reflector color

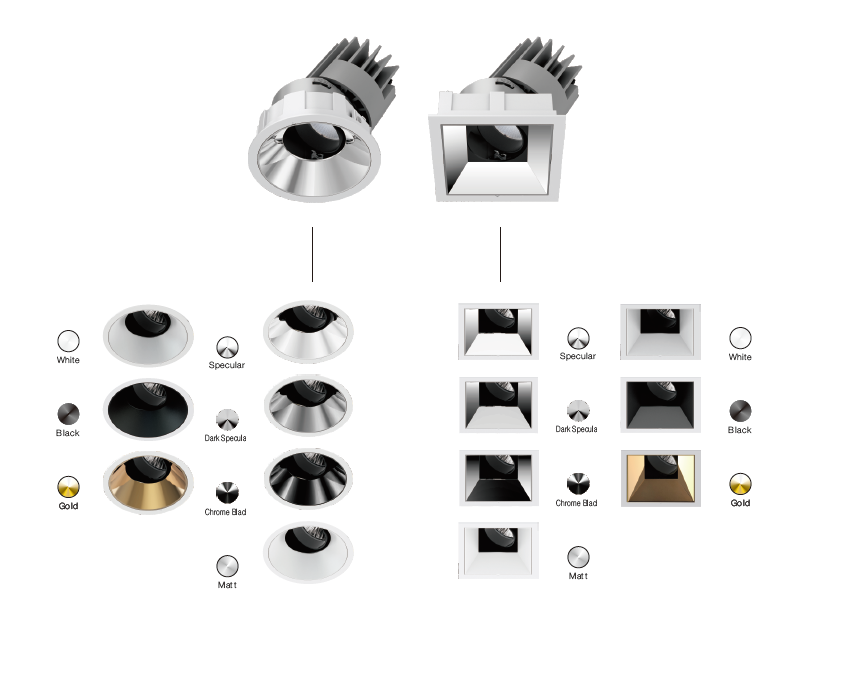

- Specular 亮銀 De espejo / Dark Specular 亮黑Especular oscuro / Chrome Black 鉻黑 Cromo negro /
- White 白色 Blanco / Matt Sliver 啞銀 Plata mate / Black 黑色 Negro / Gold 金色 Oro
Ingress Protection-防護等級

Protección de ingreso

IP54 IP65 (LED Module only )
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Comply Testing Standard符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC 60598-1 / IEC 60598-2-2

LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547

Certification-認證-Certificación

Specification Code

Example Product Code:

DRAMOMY-25W

DRAMOMY

Power Consumption

7.5W
7.5W @ DIA 78mm @ 78X78mm
12 W
12W @ DIA 78mm @ 78X78mm @ DIA 70 x H: 98mm Trimless
13W
13W @ DIA 110mm @ DIA 108mm Trimless @L:107 x W:107mm @ L:104 x W:104mm Trimless
15W
15W @ DIA 110mm @ DIA 108mm Trimless @L:107 x W:107mm @ L:104 x W:104mm Trimless
18W
18W @ DIA 110mm @ DIA 108mm Trimless @L:107 x W:107mm @ L:104 x W:104mm Trimless
20W
20W @ DIA 137mm @ DIA 132mm Trimless @L:134 x W:134mm @ L:130 x W:130mm Trimless
25W
25W @DIA 137mm @ DIA 132mm Trimless @L:134 x W:134mm @ L:130 x W:130mm Trimless
25W
25W@ DIA 162mm @ DIA 158mm Trimless @L:159 x W:159mm @ L:154 x W:154mm Trimless
28W
28W@ DIA 162mm @ DIA 158mm Trimless @L:159 x W:159mm @ L:154 x W:154mm Trimless
33W
33W@DIA 162mm @ DIA 158mm Trimless @L:159 x W:159mm @ L:154 x W:154mm Trimless
38W
38W@ DIA 162mm @ DIA 158mm Trimless @L:159 x W:159mm @ L:154 x W:154mm Trimless
