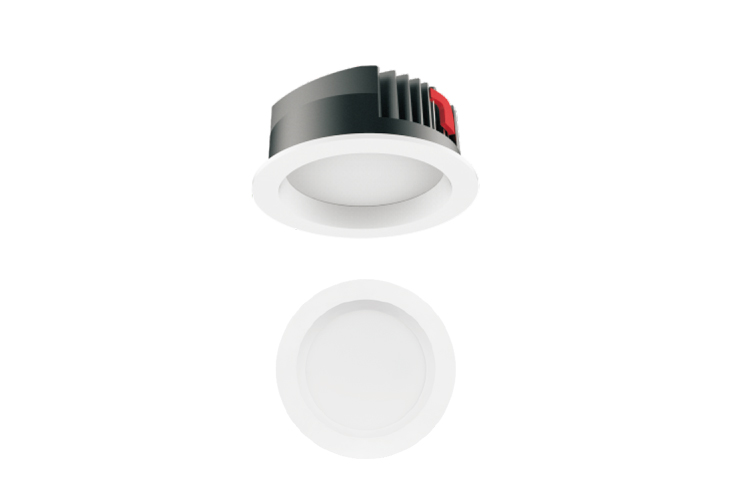

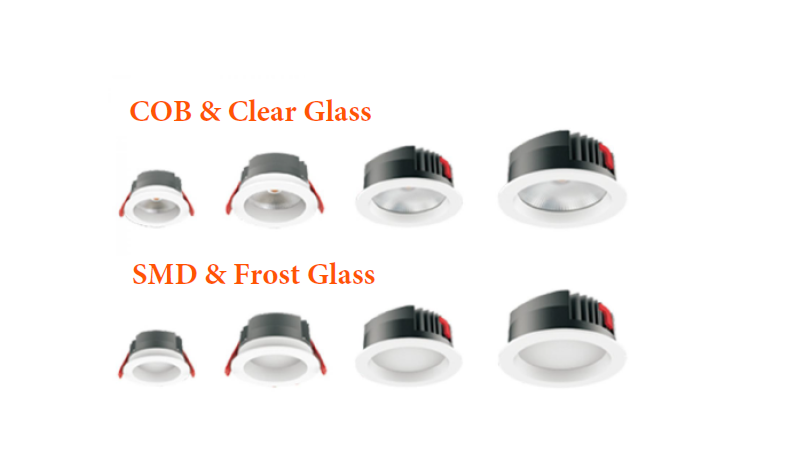

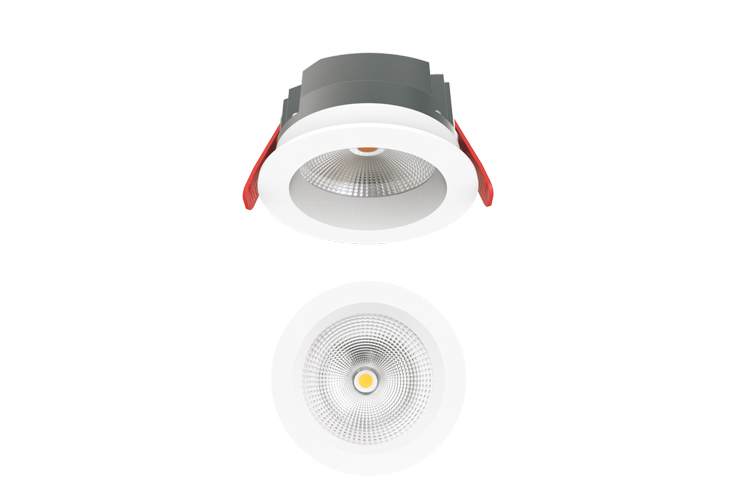

OUTDOOR DOWN LIGHT. Housing: die-cast aluminium, powder-coated, designed as heatsink. Anti-glare PC reflector and safety glass diffusor system. LED module: high-power CREE LEDs Array and SAMSUNG SMD CRI>90, LM-80 performance approval >50,000 hours. Remoted Type ELV, 0-10V, DALI, DMX and RDM LED constant current control gear. Deep recessed design achieves super eye comfort. IP65 and UGR<19.
Luminaire Type- 安裝方式-Tipo de luminaria
Recessed Mounted Type-嵌入式筒燈-Empotrada Tipo Montado

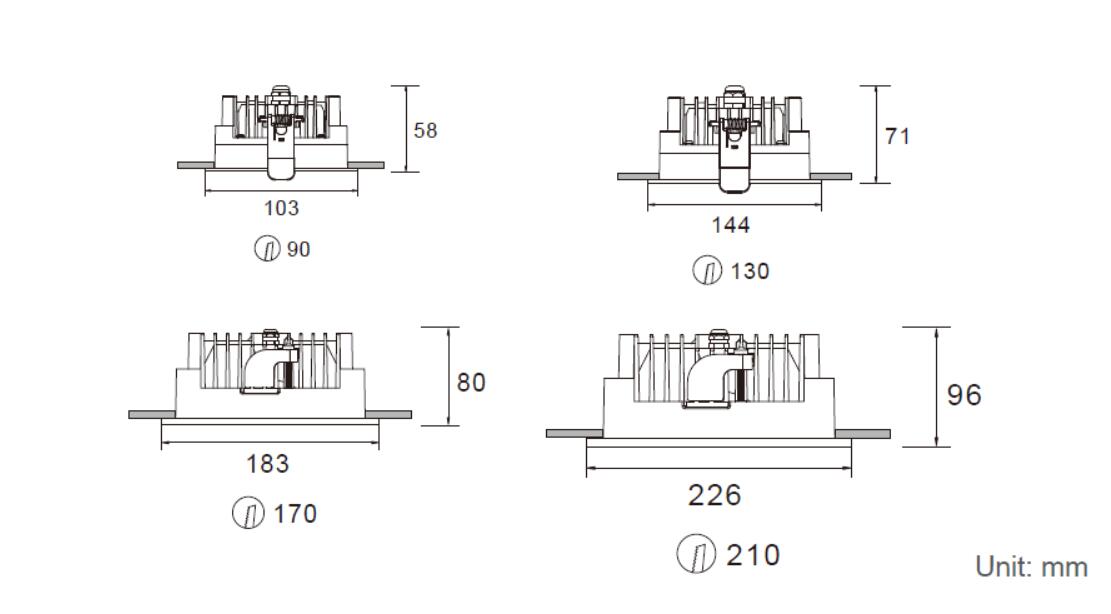

Dimension-尺寸-Dimensión
Cut off Dimension-開孔尺寸-Cortar Dimensión
Power Consumption Max-燈具功率
Consumo de energía Max
Input Voltage-輸入電壓-Voltaje de entrada
AC220-240V 50/60HZ
LED Driver Type
LED驅動款式
Tipo de controlador LED
Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格
Consulte la especificación de controlador de LED
1. ON/OFF Switch AC220-240V 50/60HZ
2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ
3. 0 -10V Dimming Driver AC100-240V 50/60HZ
4. Dali Dimming Driver AC100-240V 50/60HZ
5. DMX Driver AC100-240V 50/60HZ
6. RDM Driver AC100-240V 50/60HZ
7. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia
Control Protocol-控制協議Protocolo de Control
0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

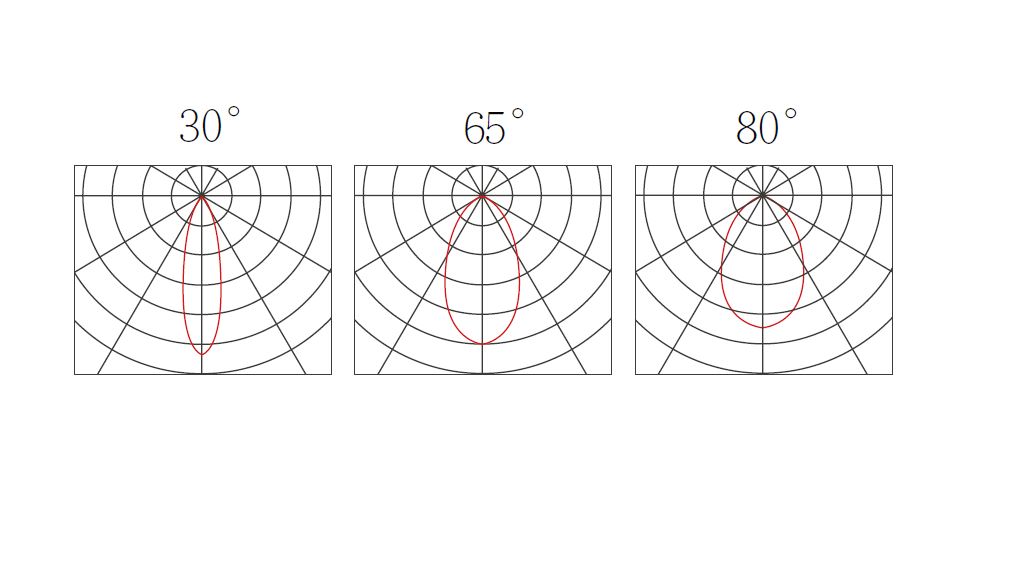

Beam Angle 光束角 ángulo de haz
Light Source Brand-光源品牌-Fuente de luz de marca
SAMSUNG -( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) ) @ SMD
CREE - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) ) @ COB
"Lumen Maintenance LM-80 Reported by TM-21"@ 25°C
L80(10k) > 60,000 hrs L70(10k) > 65,500 hrs
LED Life-LED壽命-La vida del LED
>60,000 hours
Color Temperature -色溫
Temperatura del color
2700K / 3000K / 4000K / 5000K / 6000K/ 6500K
Color Rendering Index-顯色指數
Índice de reproducción cromática
MacAdam Ellipses Binning
麥克亞當橢圓分級
Mac Adam binning elipse
Standard Deviation Colour Matching < 3 SDCM
標準偏差配色< 3 SDCM
Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy
燈具效率
La eficacia de la luminaria
100 Lm/w(2700K), 100 Lm/w(3000K), 120 Lm/w(4000K), 120Lm/w(5000K), 120 Lm/w(6000K), 120Lm/w(6500K)
120 Lm/w(2700K), 120 Lm/w(3000K), 140 Lm/w(4000K), 140Lm/w(5000K), 140 Lm/w(6000K), 140Lm/w(6500K)
LED Source Luminous Efficacy LED光源光效
Fuente luminosa LED Eficacia
Housing materials-外殼材料
Materiales de la carcasa
Die-cast aluminum & Tempered glass lampshade
壓鑄鋁和鋼化玻璃燈罩
Reflector de policarbonato y pantalla de vidrio templado
Housing Color
外殼顏色
color de la carcasa
Ingress Protection-防護等級
Protección de ingreso
IP65
Mech impact protection機械衝擊保護
Protección contra impactos mecánicos
IK08
Operating Temperature Range / 工作溫度範圍
Rango de temperatura de funcion amiento
-20 °C / +50 °C
Operating Humidity -工作濕度
Humedad de funcionamiento
0~90%, non-condensing-不結霜
sin condensación
Comply Testing Standard
符合測試標準
Cumplir el estándar de prueba
LED Luminaires: IEC/EN 60598-1 ; IEC/EN 60598-2-2 ; IEC/ EN62493 ; IEC/EN 62301 ; IEC TR 62778 & IEC 62471 (RG1) ;ROHS
LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547 /IEC 62384
