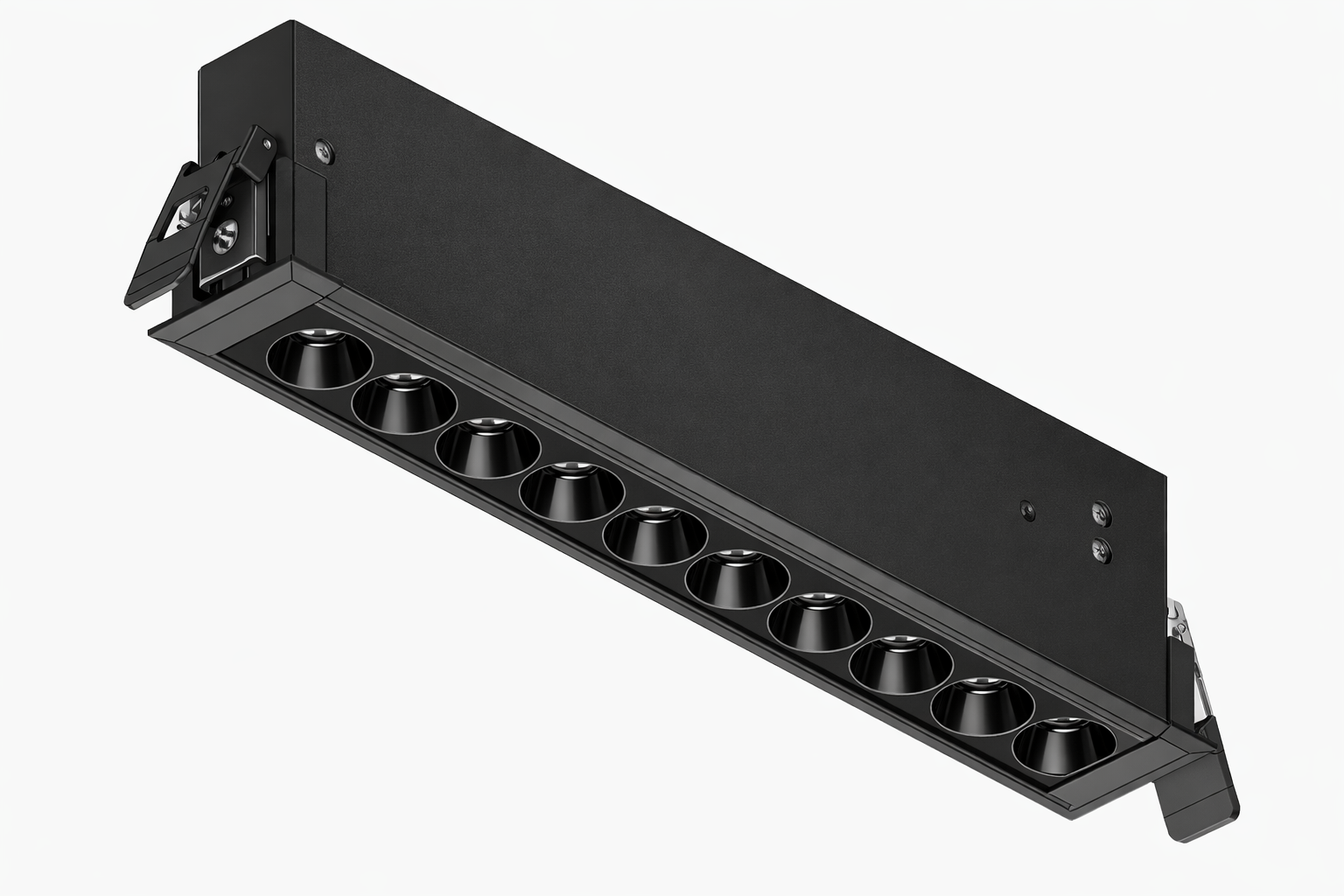

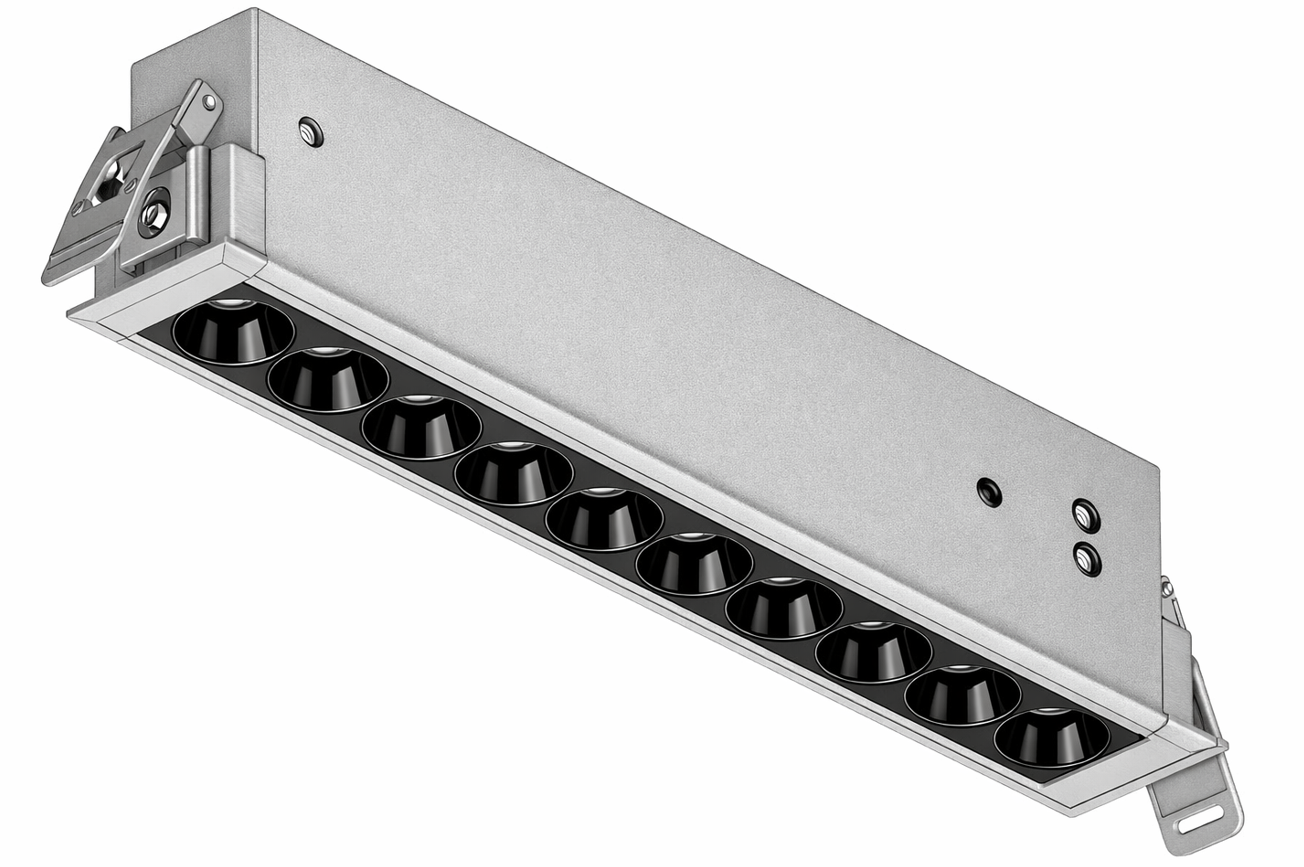

DUGORA-G3

Super Slim W: 29mm 20W Max IP20
Recessed LED LINEAR LIGHT

Recessed  linear light

Adopt high lumen efficiency SMD LED with even light output, aluminum light body providing excellent thermal management.

LED module: SMD LEDs, CRI>80, LM-80 performance approval >50,000 hours.

Integrated Type  0-10V, DALI,  and  LED constant current control gear.

Technical Data

  • Luminaire Type-安裝方式

    Tipo de luminaria



    Recessed Mounting / 嵌入式安裝 / Montaje empotrado

  • Dimension-尺寸-Dimensión

    L: 212 x W: 29 x H: 65 mm                  Cut off: 207x25mm



  • Power Consumption Max-燈具功率

    Consumo de energía Max

    12W    16W    18W   20W



  • Input Voltage-輸入電壓-Voltaje de entrada

    AC220-240V 50/60HZ

  • Power Factor / 功率因數/Factor de potencia

    PF>0.9

  • Total Harmonic Distortion/總諧波失/Distorsión armónica total

    THD<20%

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED



    Remoted-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. Integrated ON/OFF Switch  AC220-240V 50/60HZ

    3. Remoted 1 -10V Dimming Driver  AC220-240V 50/60HZ

    4. IntegratedDali Dimming Driver AC220-240V 50/60HZ

    5. Remoted DMX Driver AC220-240V 50/60HZ

    6. Remoted RDM Driver  AC220-240V 50/60HZ

  • Control Protocol-控制協議Protocolo de Control

    1-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

  • Beam Angle Combination

    光束角組合

    Combinación de ángulo de haz

    24°         36°         45°

  • Light Source Brand-光源品牌-Fuente de luz de marca

    OSRAM

  • "Lumen Maintenance LM-80 Reported by TM-21"

    L70 > 54000 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫 Temperatura del color

    2700K / 3000K / 3500K / 4000K / 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 90

  • MacAdam Ellipses Binning  麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy燈具效率

    La eficacia de la luminaria

    90 Lm/w(2700K), 90 Lm/w(3000K&3500K),100 Lm/w(4000K),  100 Lm/w(5000K & 6500K)



  • LED Source Luminous EfficacyLED光源光效

    Fuente luminosa LED Eficacia

    130 Lm/w(2700K), 130 Lm/w(3000K&3500K),140 Lm/w(4000K),  150 Lm/w(5000K & 6500K)

  • Housing materials-外殼材料-Materiales de la carcasa

    Die-casted Aluminium and Polycarbonate Reflector   or Die-casted Aluminium and Polycarbonate Lens

    壓鑄鋁和PC反射器  或壓鑄鋁和 PC透鏡

  • Housing Color-外殼顏色-color de la carcasa

    Matte White / Matte black   啞光白色 / 啞光黑色  Blanco mate / Matte black

  • Reflector Color 反光板顏色Color del reflector

    Chrom Black/  Specular  鉻黑 / 亮銀色

  • Ingress Protection-防護等級 Protección de ingreso

    IP20

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -30 °C / +50 °C

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaries:  IEC 60598-1; IEC 60598-2-1;IEC62471;IEC 62031; IEC62493 ; IEC 62471

                                 EMC: EN55015 ; IEC/EN 61000-3-2; IEC/EN 61000-3-3;IEC/EN61574 ; RoHS

    LED Driver:          IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

                                 IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384

  • Certification-認證-Certificación

Specification Code

Example Product Code:
DUGOURA-20W
DUGORA-G3
-
Power Consumption

Power Consumption

  • 12W
    12W
  • 16W
    16W
  • 18W
    18W
  • 20W
    20W
