LACHY

L: 147mm UGR<19 IP44

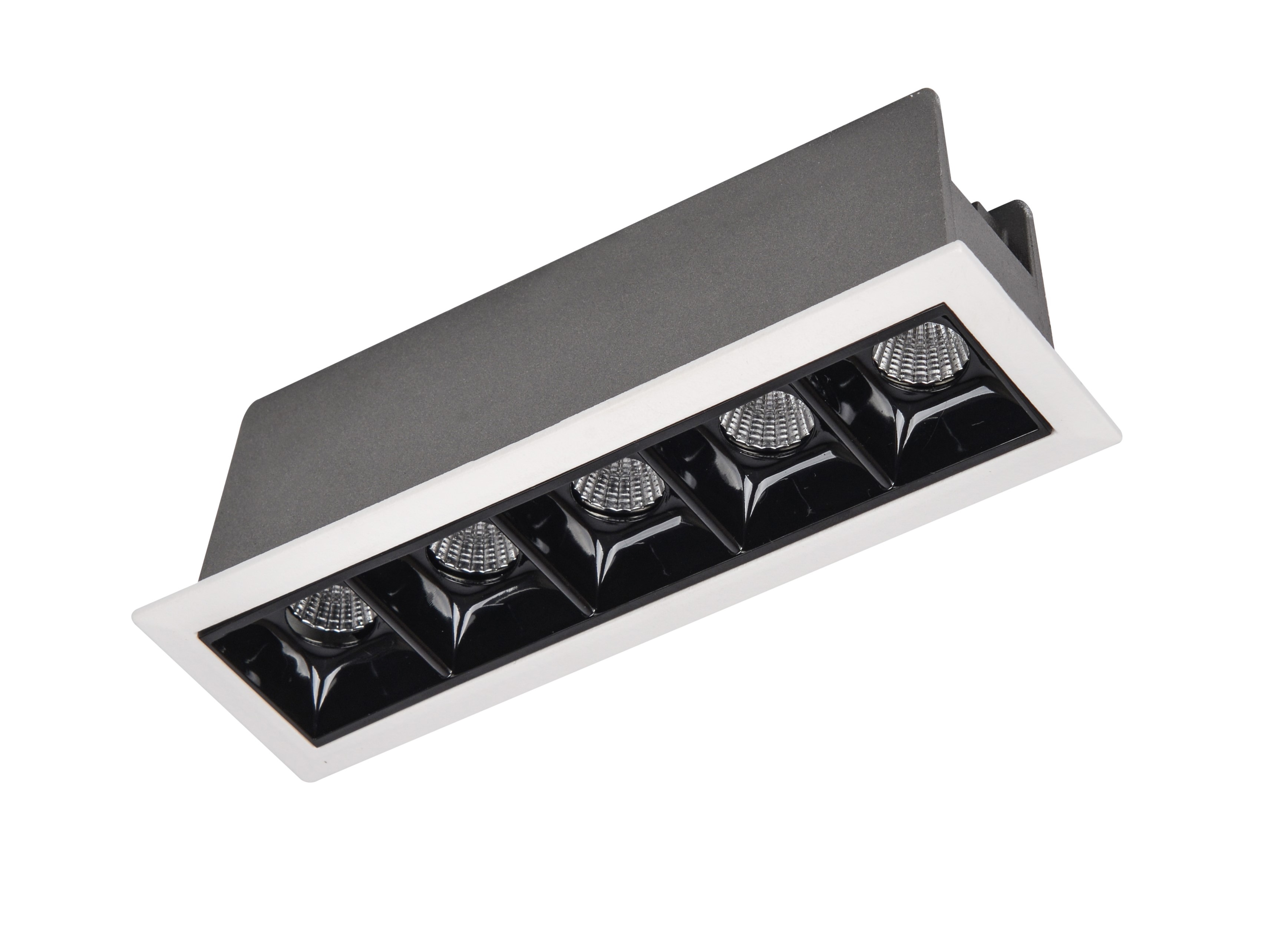

LINEAR RECESSED DOWN LIGHT

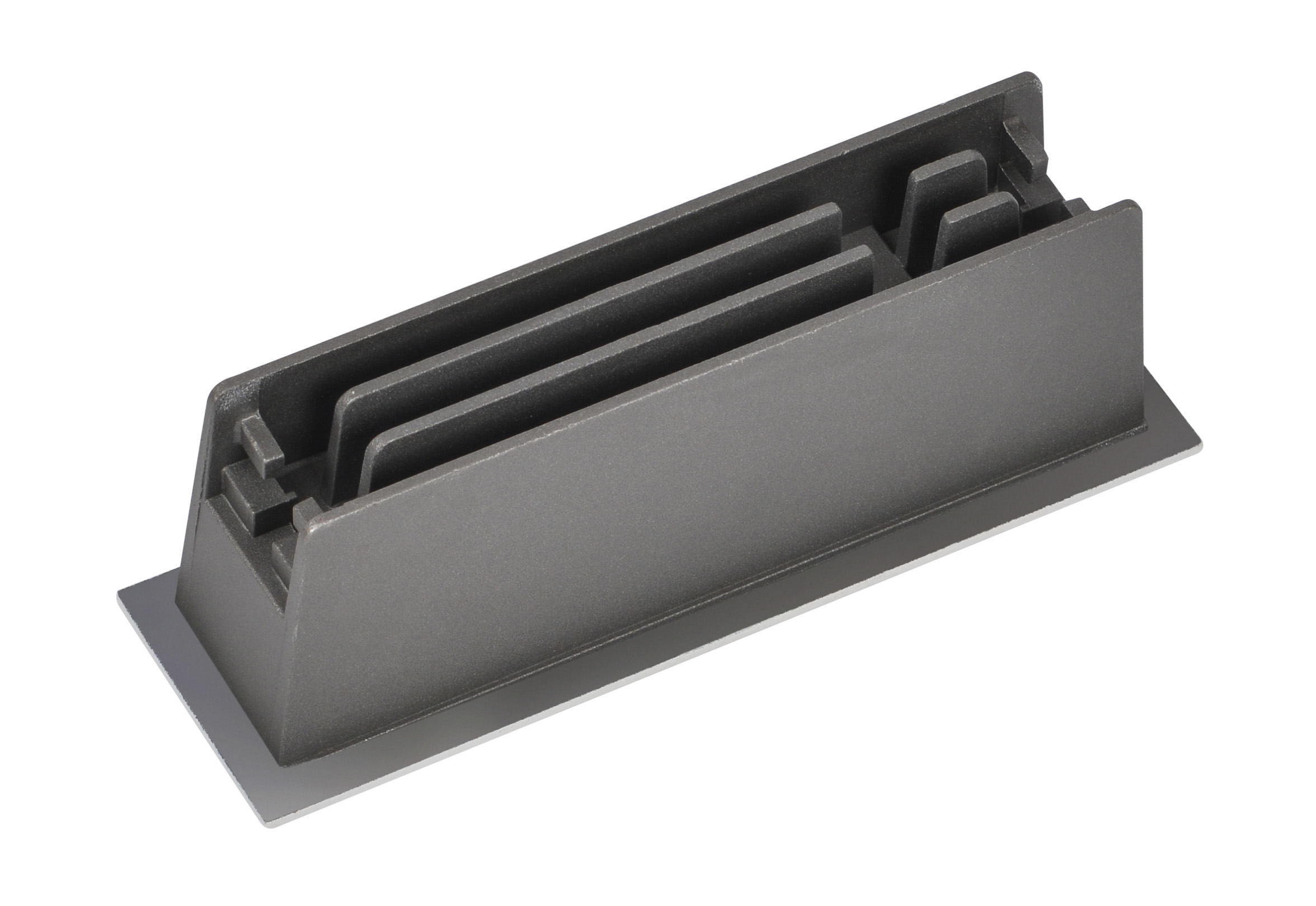

LINEAR RECESSED DOWN LIGHT. Housing: aluminium, powder-coated, designed as heat sink. Anti-glare reflector and diffusor system made of PMMA. LED module: high-power CREE LEDs Array, CRI>80, LM-80 performance approval >50,000 hours. Integrated-Type ELV , 0-10V, DALI, DMX and RDM LED constant current control gear. Ingress protection: IP44.UGR<19.

Technical Data

Luminaire Type-安裝方式Tipo de luminaria

Recessed Mount Type嵌入式線條燈Empotrada Tipo Mount

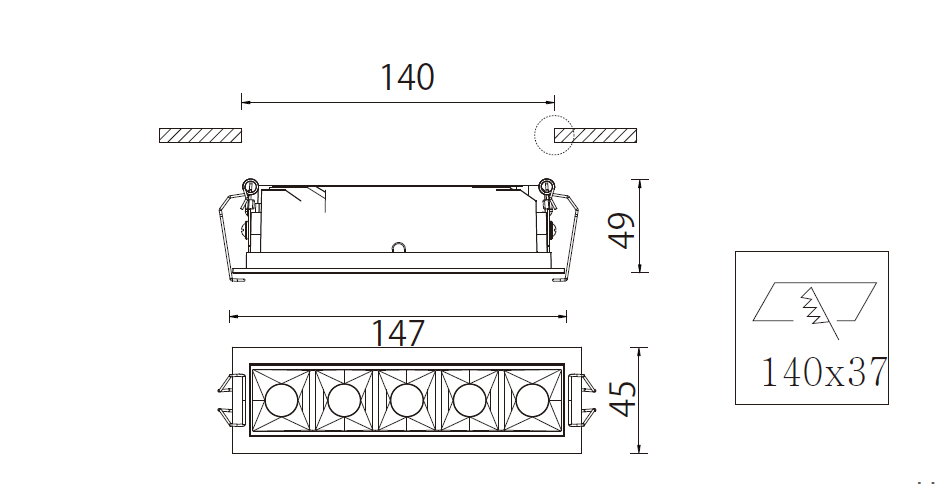

Dimension-尺寸-Dimensión

L:147x W:45 x H: 49 mm
Cut off Dimension-開孔尺寸-Cortar Dimensión

L:140 x W:37
QTY of LEDs-燈珠數量-CANT de LEDs

5 pcs CREE LED Array
Input Voltage-輸入電壓-Voltaje de entrada

AC100-240V 50/60HZ
Power Consumption Max-燈具功率

Consumo de energía Max
- 10W
- 15W
LED Driver Type

LED驅動款式

Tipo de controlador LED

Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC100-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. 0 -10V Dimming Driver  AC100-240V 50/60HZ

4. Dali Dimming Driver AC100-240V 50/60HZ

5. DMX Driver AC100-240V 50/60HZ

6. RDM Driver  AC100-240V 50/60HZ

7. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia
LED Driver Features驅動特性

Funciones del controlador de LED

POWER FACTOR : PF>0.90 @ Full Load

TOTAL HARMONIC DISTORTION: THD< 20%
Control Protocol-控制協議

Protocolo de Control

1-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

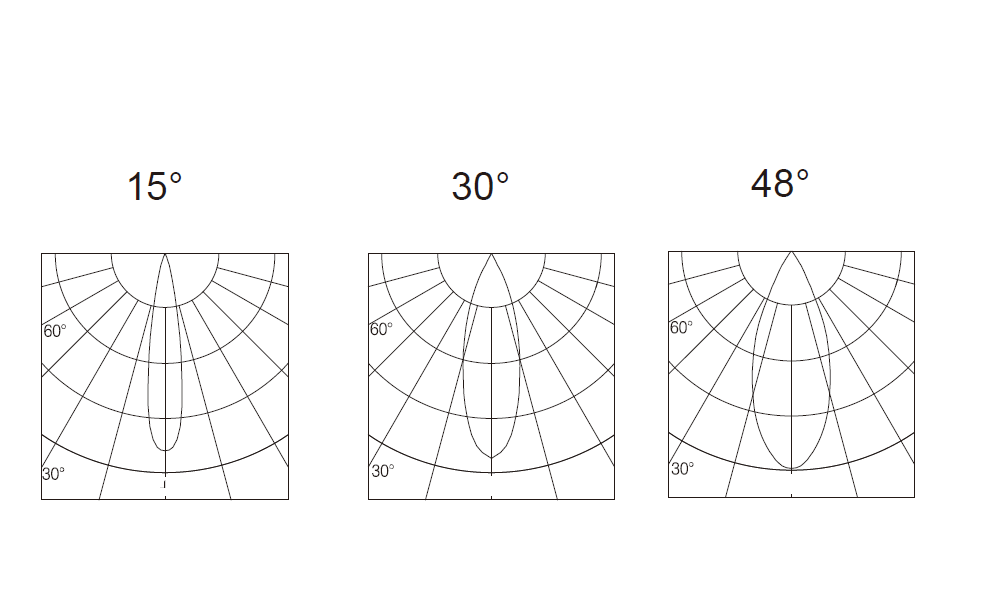

Beam Angle光束角ángulo de haz
- 15° 30° 48°
Light Source Brand-光源品牌-Fuente de luz de marca

CREE - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"

1. L90(10k) = 50,700 hrs

2. L80(10k) > 63,500 hrs

3. L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

> 80

>90
MacAdam Ellipses Binning 麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy燈具效率

La eficacia de la luminaria
- 100 Lm/w(2700K), 105 Lm/w(3000K), 115 Lm/w(4000K),
- 120 Lm/w(5000K), 120 Lm/w(6500K),
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia
- 130 Lm/w(2700K), 135 Lm/w(3000K), 145 Lm/w(4000K),
- 150 Lm/w(5000K), 150 Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa

Die-cast aluminum and PMMA Lens and Polycarbonate Reflector

壓鑄鋁和PMMA 透鏡和 PC反光杯

Lente de aluminio fundido a presión y PMMA y reflector de policarbonato
Trim Color-框邊顏色-Estilo Color

Matte white / Matte black 啞光白色 / 啞光黑色 Blanco mate / Matte black
Reflector Color-反光杯顏色-Reflector color

Matte Silver 啞銀Plata mate Black 黑色 Negro White 白色 Blanco

Dark Specular 亮黑色Especular oscuro Gold 金色 Oro
Ingress Protection-防護等級

Protección de ingreso

IP44
perating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Comply Testing Standard

符合測試標準 Cumplir el estándar de prueba

ED Luminaires: IEC/EN 60598-1 ; IEC/EN 60598-2-2 ; IEC/ EN62493 ; IEC/EN 62301 ; IEC TR 62778 & IEC 62471 (RG0)

LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547
