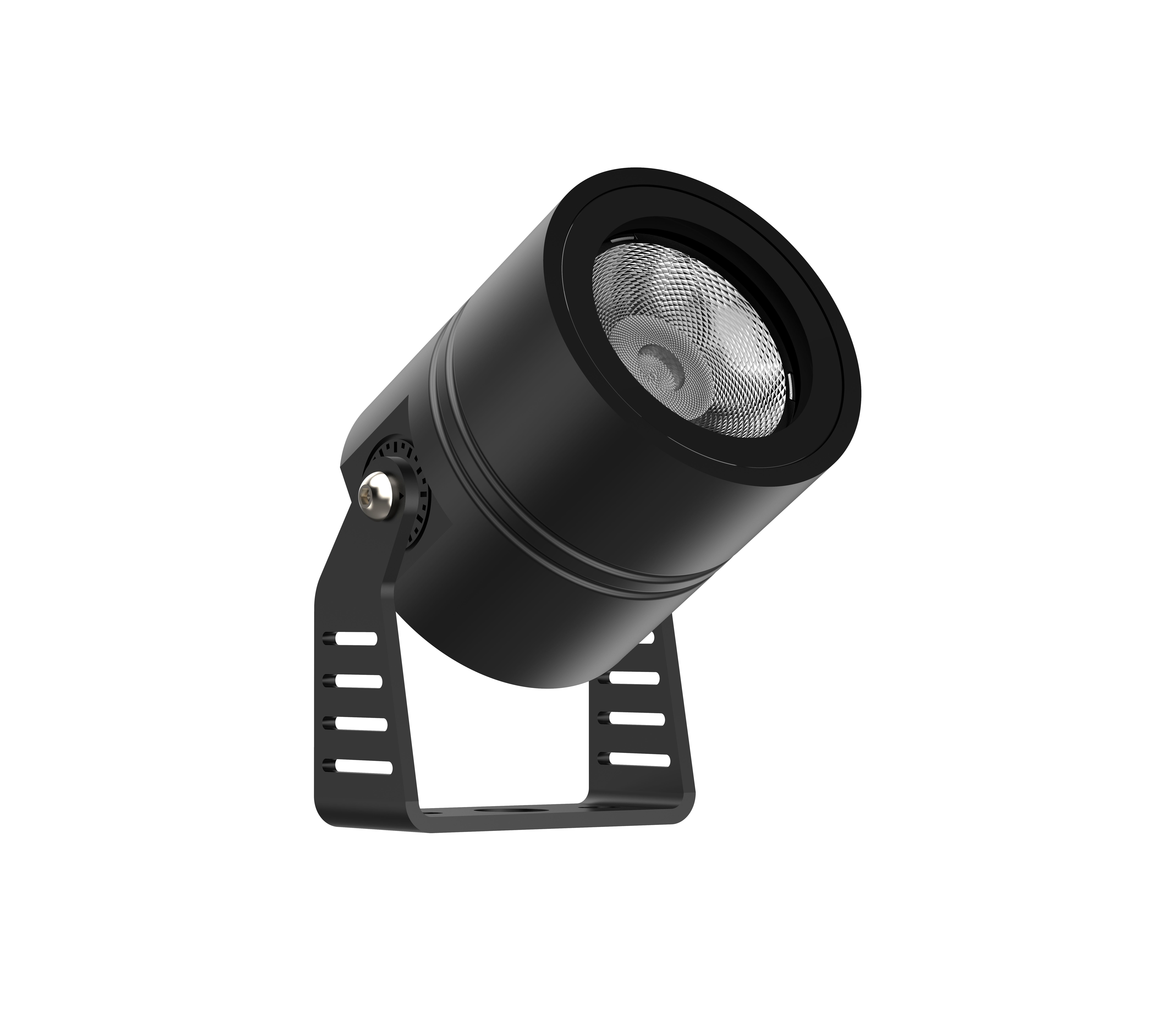

F-SPAMY-S

Dia 69mm 10W MAX IP66
Spot Light

Patent owned design, fashion and beautiful appearance, adopt isolated two bodies design could have the separate hest dissipation fully ensure the stability and long lifespan of LED light.

Housing adopts high pressure die-casting aluminum, lampshade adopts high strength toughened glass, resist the impact and friction.

Adop American CREE original LED light source, high flus output, excellent consistency of light color.

Technical Data

  • Installation Method / 安裝方式

    Metodo de instalacion

    U Shape Bracket Mounted

    U型支架安裝

    Soporte en forma de U montado

  • Optical Accessories / 光學配件

    Accesorios ópticos

    Cylindrical Hood / Cylindrical Hood Angle 45°

    圓柱形罩/圓柱形罩角度 45°

    Capó cilíndrico / ángulo de capó cilíndrico 45°

  • Dimension-尺寸-Dimensión

    Refer to Technical Drawing  請參閱技術圖紙

    Consulte el dibujo técnico

  • QTY of LEDs-燈珠數量-CANT de LEDs

    1 x CREE COB

  • Input Voltage-輸入電壓-Voltaje de entrada

    AC220V - 240V 50/60Hz  (Integrated-type LED Driver / 內置LED驅動 /Controlador de LED de tipo integrado)

    DC12V / DC24V / DC48V

  • Power Consumption / 燈具功率

    Consumo de energía

    5W     8W     10W

  • Control Protocol-控制協議

    Protocolo de Control

    1-10V / DALI / DMX 512 / RDM / ZIGBEE Wireless Control

  • Beam Angle

    光束角

    ángulo de haz



    15°     24°     36°     60°



  • Light Source Brand-光源品牌-Fuente de luz de marca

    CREE - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )

  • "Lumen Maintenance LM-80 Reported by TM-21"

    L70  54,000 hrs

  • LED Life-LED壽命-La vida del LED

    >100,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 80

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy

    燈具效率

    La eficacia de la luminaria



    70 Lm/w(2700K),    75 Lm/w(3000K),     80 Lm/w(4000K),

    85 Lm/w(5000K),    85 Lm/w(6500K),

  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia



    120 Lm/w(2700K),     130 Lm/w(3000K),     130 Lm/w(4000K),

    140 Lm/w(5000K),     140 Lm/w(6500K),

  • Housing materials-外殼材料

    Materiales de la carcasa

    Die-cast aluminum, Optical Lens & T4 tempered glass

    壓鑄鋁、光學透鏡、T4鋼化玻璃

    Aluminio fundido, lente óptica y vidrio templado T4

  • Housing Color

    外殼顏色

    color de la carcasa



    Matt Black / Matt White

    啞光黑/啞光白

    Negra mate / blanca mate

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -30 °C / +50 °C

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Ingress Protection-防護等級

    Protección de ingreso

    IP66

  • Mech impact protection 機械衝擊保護

    Protección contra impactos mecánicos

    IK08

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data-IES format

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
F-SPAMY-5W
F-SPAMY-S
-
Power Consumption

Power Consumption

  • 5W
    5W
  • 8W
    8W
  • 10W
    10W
