HANNAH@FENCE 18

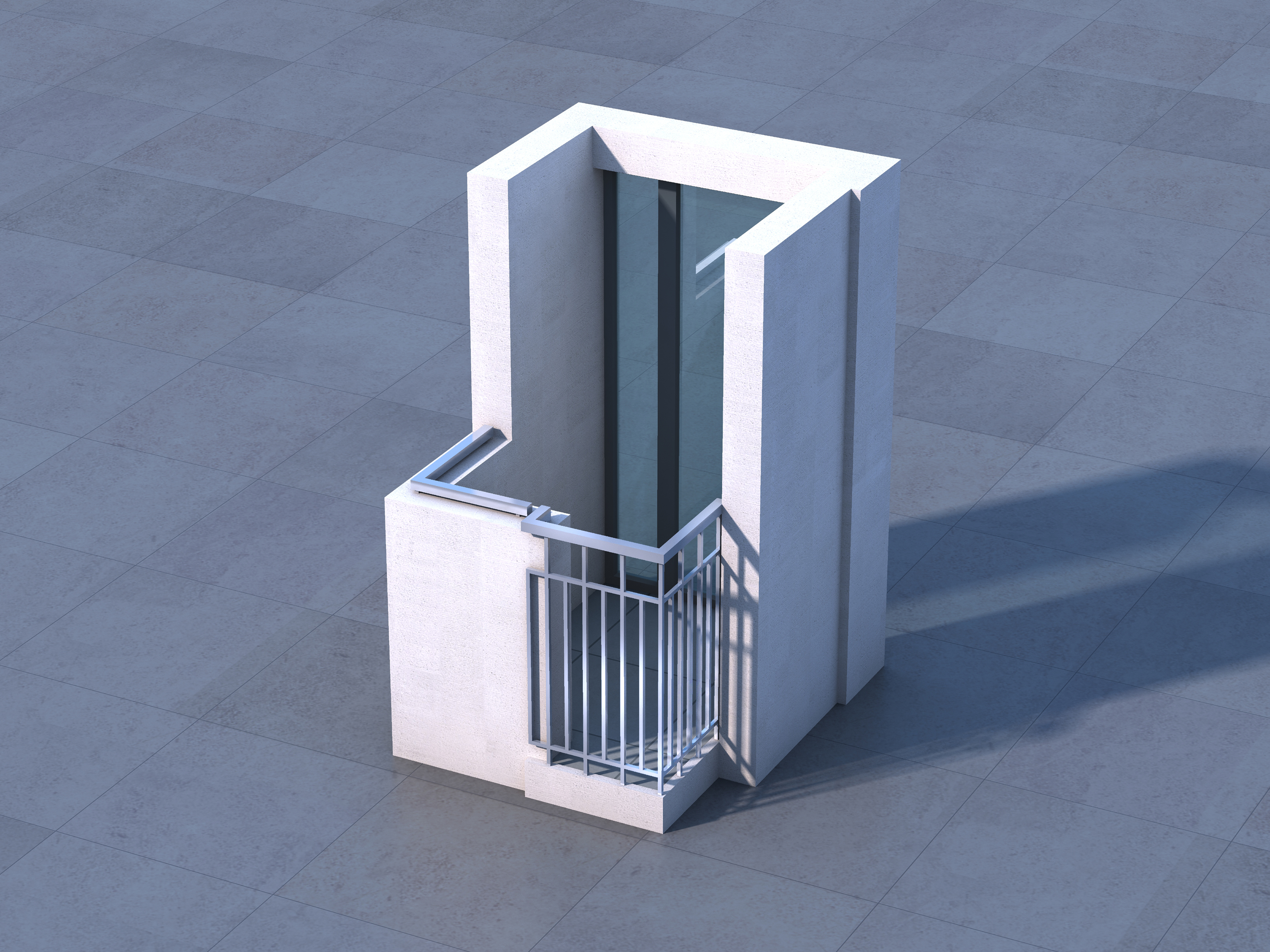

Balcony Application
  • Balcony Application
  • The metal guardrail welded on the ground is made of 316 stainless steel
  • 316 stainless steel (round hollow section) hollow handrail with a diameter of 50x3 mm
  • 100 mm pitch, 20x20x2 mm square stainless steel column base,
  • 12 mm stainless steel plate base, fixed on the concrete with M10 HILTI Anchor Bolt

Technical Data

  • Major Material:

    • Stainless Steel Grade S316L with ASTM A511 and Plate with ASTM A240
    • Welding comply BS EN 1011-1; BS EN 1011-2;  BS EN ISO 15614
    • Stainless Steel Fasteners  A4-70 comply wiht BS EN ISO 3506-1.
    • M10.S.S A4-70 Blot & Nut
  • Finishes

    • Hairline Finish
  • Certification

Technical Drawing
