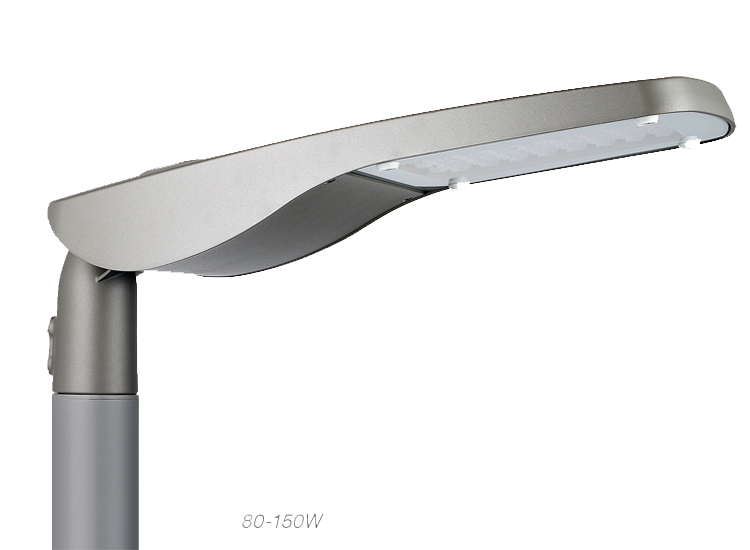

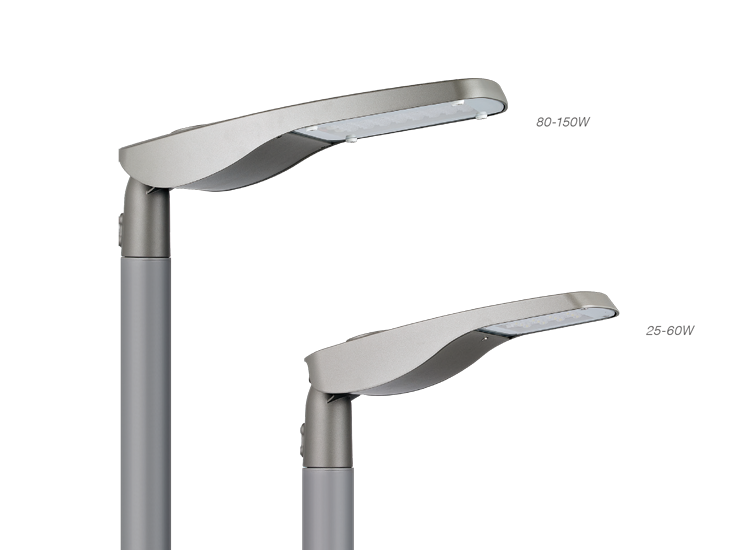

SOLLER

25W-150W IP66

LED STREET LIGHTING

Die-casting aluminium body, super white tempered glass.
Optical with PC lenses with high visual comfort and uniform lighting distribution, multiple optical distribution options.
High quality LED chips, Driver with 0-10V/DALI/programmed be options, and with surge protection up to 20KV.
The lighting cover is opened downwardis, with special customized opening screw.
Top and side fixing, angle can be adjustable, installation tube diameter Ø48/Ø60/Ø76mm.
Surface anti-ultravilet pure polyester powder painting, Corrosion resistance can be more than 1000 hours.
No photo-biological risk, (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.

Technical Data

Luminaire Type-安裝方式

Tipo de luminaria

Arm Mounting / Pole Mounting / Bracket Mounting-臂安裝/杆安裝/支架安裝

Brazo de montaje / montaje / poste de montaje del soporte
Power Consumption with LED Driver

LED燈具包括LED驅動電源功率

Consumo de energía con controlador de LED

L Type : 80W 100W 120W 150W

M Type: 40W 60W

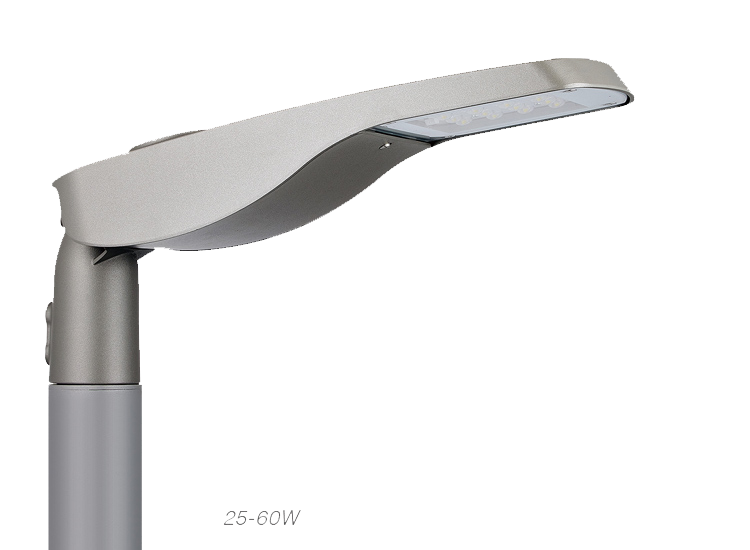

S Type: 25W 30W 40W 50W 60W
Input Voltage / 輸入電壓 Voltaje de entrada

100-240 VAC / 100-277VAC 50-60Hz,
Control

控制

Control
- SW -ON/OFF
- 1-10V / DALI
- 5-Step Time ( programmable LED driver dimming rate in 5 time zone )
- NEMA photocell (3PIN) with SW- ON/OFF ( Pre Setting Lux level : Light ON: 6 lux ON , Light OFF: 50lux)
- NEMA photocell (5PIN) with 0-10V Dimming for auto adjustment in brightness
- NEMA photocell (5PIN) with Dali Dimming Control for auto adjustment in brightness
- Zigbee Wireless Control
Power Factor / 功率因數/Factor de potencia

PF>0.90
Total Harmonic Distortion/總諧波失/Distorsión armónica total

THD<15%
Protection Against Surgers/防護措施/

PROTECCIÓN CONTRA LAS PROMOCIONES:

20kV
Light Source Brand-光源品牌-Fuente de luz de marca

CREE U.S.A
Photobiological safety-IEC 62471 / of Luminaire

光生物安全檢驗(IEC/EN 62471) 结果:

Seguridad fotobiológica-IEC 62471

RG1 -Risk Group 1

1 類危險（低危）

RG1 - Grupo de riesgo 1
"Lumen Maintenance LM-80 Reported by ISTM &TM-21"

L70 > 164,000hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature-色溫 Temperatura y color

2700K / 3000K / 4000K/ 5000K
Color Rendering Index-顯色指數

Índice de reproducción cromáca

>70 or >80
MacAdam Ellipses Binning 麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM 標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM

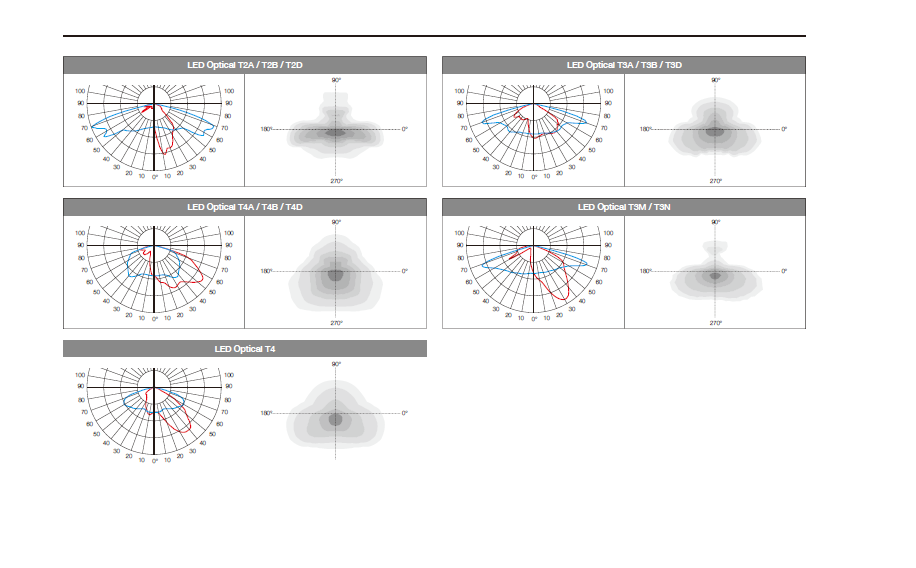

Beam Angle-光束角-ángulo de haz

Type : T2A   T2B    T2D   T3A    T3B    T3D

Type : T4 T4A T4B    T4D

Type :   T3M T3N
Luminaire Efficacy 燈具效率

La eficacia de la luminaria

140 m/w(2700K) @CRI >70 ; 130m/w(2700K) @CRI >80

140 lm/w(3000K) @CRI >70 ; 130m/w(3000K) @CRI >80

150 lm/w(4000K) @CRI >70 ; 140m/w(4000K) @CRI >80

160 lm/w(5000K) @CRI >70 ; 150m/w(5000K) @CRI >80
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia

160 m/w(2700K) @CRI >70 ; 150m/w(2700K) @CRI >80

160 lm/w(3000K) @CRI >70 ; 150m/w(3000K) @CRI >80

170 lm/w(4000K) @CRI >70 ; 160m/w(4000K) @CRI >80

180 lm/w(5000K) @CRI >70 ; 170m/w(5000K) @CRI >80
Housing materials 外殼材料 Materiales de la carcasa

Die-cast aluminium and Tempered glass --壓鑄鋁和鋼化玻璃--Die fundición de aluminio y vidrio templado
Housing Color 外殼顏色

color de la carcasa

Surface anti-ultravilet pure polyester powder painting,RAL 9006 Grey RAL 7024 Graphite Grey RAL 9005 Black

表面抗紫外線純聚酯粉末噴漆，RAL 9006 灰色 RAL 7024 石墨灰色 RAL 9005 黑色

Pintura en polvo de poliéster puro anti-ultravioleta de superficie, RAL 9006 Gris RAL 7024 Gris Grafito RAL 9005 Negro
Ingress Protection-防護等級 Protección de ingreso

IP66
Mech impact protection 機械衝擊保護

Protección contra impactos mecánicos

IK09
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C / -22 °F / +122 °F
Storage Temperature 儲藏溫度

Temperatura de almacenamiento

-40 °C / +70 °C / -40 °F / +158 °F
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación

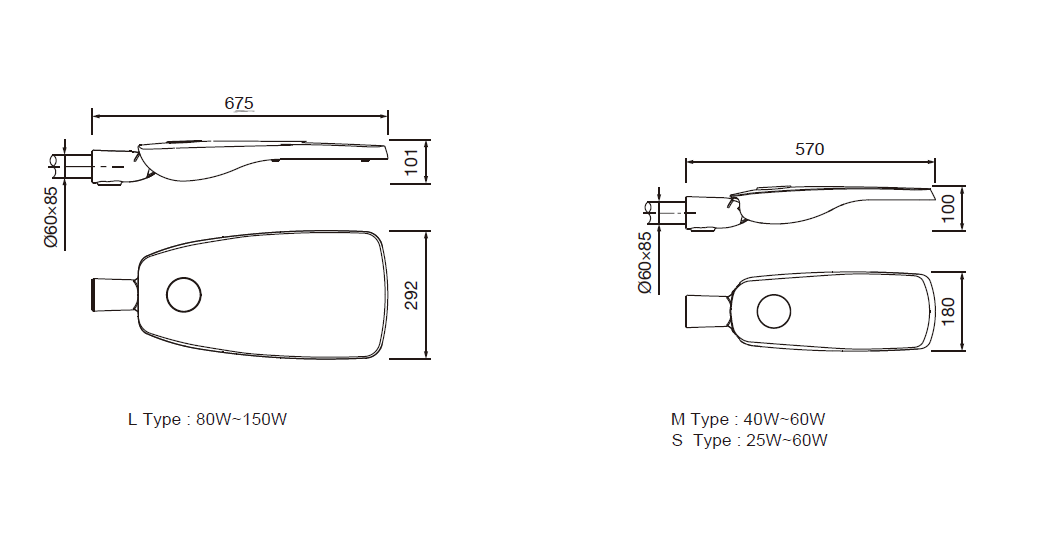

Dimension (LxWxH)/尺寸/ Dimensión

Refer to Drawing 參考圖紙 Consulte el dibujo
Certificate Standard Complied

符合安規標準

estándar certificado de cumplimiento

LED Luminaries: LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-3;IEC62471;IEC/EN 62031; IEC/EN 62493 ;RoHS

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384
