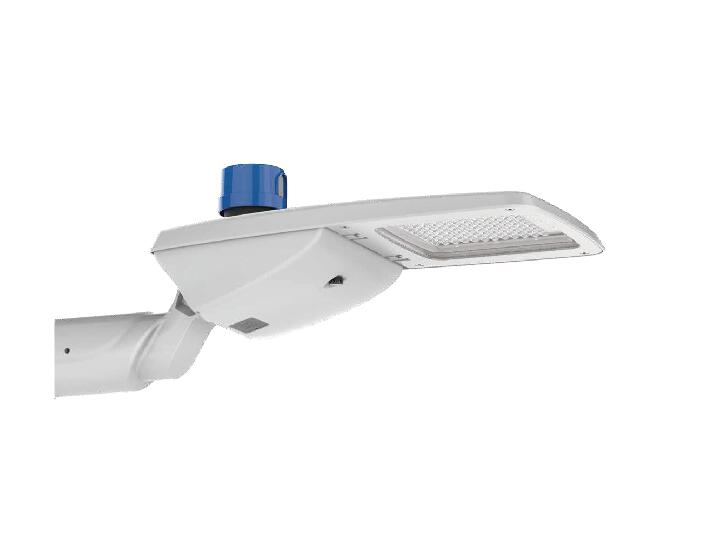

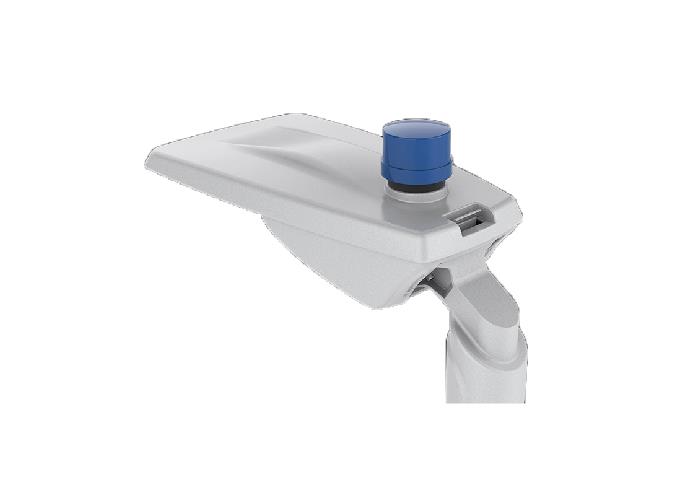

SOIN

90W- 150W
LED Street Light IP66

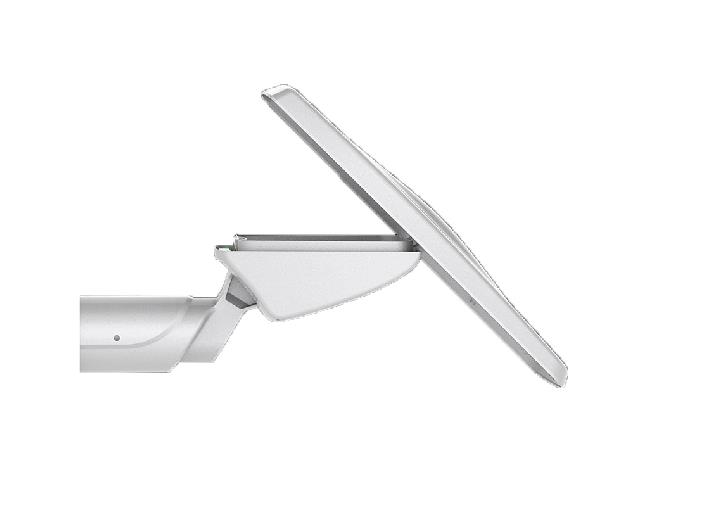

The SOIN Street Light is finished by Die-cast aluminium with separated and integrated LED Driver Box , with surface anti-ageing electrostatic spray processing,super resistance to corrosion and rotated bracket, Gaskets in anti-aging rubber , tempered clear Glass and Heat Resisting Cable.  It’s as well a great alternative to urban furniture due to its IP66 protection rating and IK08 Impact protection, anti-corrosion and vibration test approved. Adopt modular light distribution Lens and super clear tempered glass. Button design for opening LED driver box for easy power circuit connection. And, It is able to be controlled by ELV, 0-10V,DALI,Zigbee dimming system. LED module: high-power Nichia CRI>80 up to 130lm/w . LM-80 performance approve >50,000 hours; Fixing: Top or side fitting for pole with adjustable bracket.

Technical Data

  • Luminaire Type-

    安裝方式

    Tipo de luminaria

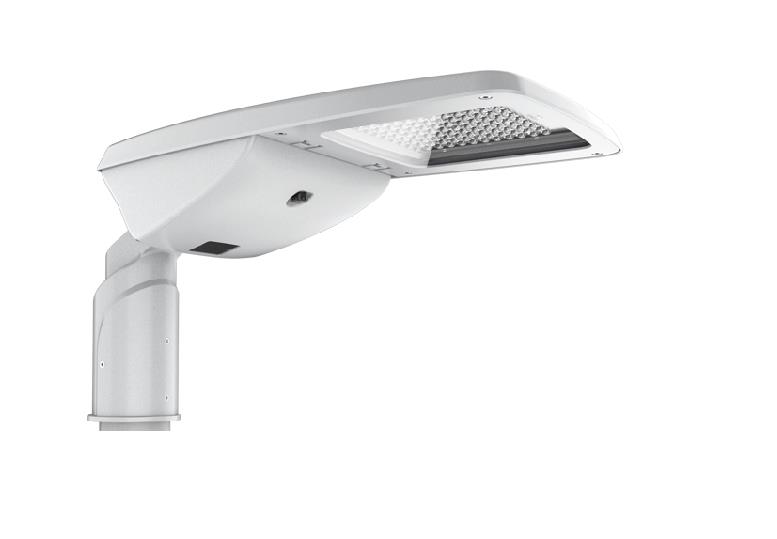

    Pole Mounted Top Mounted (Adjustable Angle) or Side Mounted

    適合燈杆安装頂部安裝或側面安裝

    Montaje superior o lateral de montaje en poste

  • Power Consumption with LED Driver

    LED燈具包括LED驅動電源功率

    Consumo de energía con controlador de LED

    • 90W
    • 100W
    • 120W
    • 150W
  • Input Voltage / 輸入電壓

    Voltaje de entrada

    100-240 VAC/100-277VAC for Class I

  • Control

    控制

    Control

    • SW -ON/OFF
    • NEMA photocell (3PIN) with SW- ON/OFF ( Pre Setting Lux level : Light ON: 6 lux ON , Light OFF: 50lux)
    • NEMA photocell (5PIN) with 0-10V Dimming for auto adjustment in brightness
    • NEMA photocell (5PIN) with Dali Dimming Control for auto adjustment in brightness
    •  Zigbee Wireless Control
  • Power Factor / 功率因數/Factor de potencia

    PF>0.9

  • Total Harmonic Distortion/總諧波失/Distorsión armónica total

    THD<15%

  • Protection Against Surgers/防護措施/PROTECCIÓN CONTRA LAS PROMOCIONES:

    6kV line-line, 12kV line-earth

  • Light Source Brand-光源品牌-Fuente de luz de marca

    Nichia

  • "Lumen Maintenance LM-80 Reported by TM-21"

    1. L90(10k) = 50,700 hrs

    2. L80(10k) > 63,500 hrs

    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED



    >200,000 hours (Ta=30℃@L70)

  • Color Temperature and Color

    色溫和顏色

    Temperatura y color del color

    • 3000K
    • 4000K
    • 5000K
  • Color Rendering Index-顯色指數

    Índice de reproducción cromáca

    >70 or >80

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse



    Standard Deviation Colour Matching 3 SCDM

    標準偏差配色  3 SCDM

    Coincidencia de color estándar Desviación

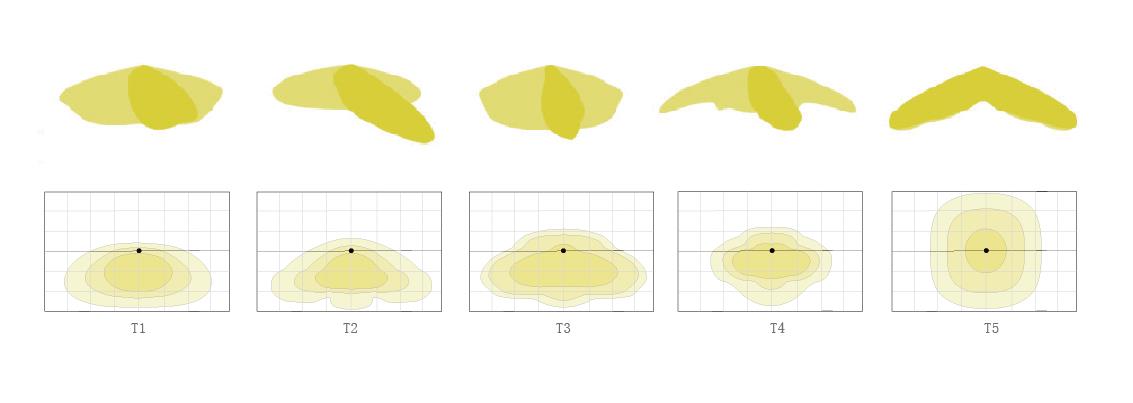

  • Beam Angle

    光束角

    ángulo de haz

    T1

    T2

    T3

    T4

    T5





  • uminaire Efficacy

    燈具效率

    La eficacia de la luminaria

    • 120 lm/w(3000K) @CRI >70 ; 100m/w(3000K) @CRI >80
    • 130 lm/w(4000K) @CRI >70 ; 120m/w(40000K) @CRI >80
    • 140 lm/w(5000K) @CRI >70 ; 130m/w(5000K) @CRI >80
  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia

    • 143 lm/w(3000K) @CRI >70 ; 134m/w(3000K) @CRI >80
    • 163 lm/w(4000K) @CRI >70 ; 143m/w(4000K) @CRI >80
    • 171 lm/w(5000K) @CRI >70 ; 153m/w(5000K) @CRI >80



  • Housing materials

    外殼材料

    Materiales de la carcasa

    Die-cast aluminium and Tempered glass

    壓鑄鋁和鋼化玻璃

    Die fundición de aluminio y vidrio templado

  • Housing Color

    外殼顏色

    color de la carcasa

    Polyester powders Coating(RAL 9006 Silver).

    聚酯粉末塗料 (RAL 9006 銀灰色)

    Polvos de poliéster Revestimiento(RAL 9006 Plata).

  • Ingress Protection-防護等級

    Protección de ingreso

    IP66

  • Mech impact protection

    機械衝擊保護

    Protección contra impactos mecánicos

    IK08

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -30 °C / +50 °C /  -22 °F / +122 °F

  • Storage Temperature

    儲藏溫度

    Temperatura de almacenamiento

    -40 °C / +70 °C /  -40 °F / +158 °F

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Accessories Type

    配件選擇

    Accesorios Tipo

    1. Spigot- φ34mm/42mm/60mm/76mm

    2. Wall mount bracket

    3. NEMA Socket - 3pin/5pin/7pin

    4. Photocell

    5. Shorting Cap

  • Dimension (LxWxH)

    尺寸

    Dimensión

    • 762×336×179mm @ 90W / 100W /120W / 150W



  • Net Weight /Gross Weight

    淨重/毛重

    Peso Neto / Peso Bruto

    • 7.9±0.3kg @ 90W / 100W/120W
    • 8.1±0.3kg @ 150W





  • Packing box size

    包裝箱尺寸

    Tamaño de la caja de embalaje

    • 816×376×160mm



  • Certificate Standard Complied

    符合安規標準

    estándar certificado de cumplimiento

    LED Luminaries:  IEC 60598-1;IEC 60598-2-1;IEC62471;RoHS

    LED Driver:          IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

                               IEC/EN 61000-3-3;IEC/EN61574;EN 55015

    LED Module:       IEC/EN 62031;IEC/EN 60838-2;IEC/EN 62471;LM-80-08:TM-21

  • Certification-認證-Certificación

Specification Code

Example Product Code:
SOIN-100W-NEMA-SW-T1-30-70-60
SOIN
-
POWER CONSUMPTION
-
Control
-
BEAM ANGLE
-
COLOR TEMPERATURE
-
COLOR RENDERING INDEX
-
Spigot Type

POWER CONSUMPTION

  • 90W
    90W
  • 100W
    100W
  • 120W
    120W
  • 150W
    150W

Control

  • ZI
    ZIGBEE Wireless Control
  • SW
    ON/OFF Switch
  • NEMA-SW
    NEMA photocell (3PIN) with SW- ON/OFF
  • NEMA-AN
    NEMA photocell (5PIN) with 0-10V Dimming
  • NEMA-DA
    NEMA photocell (5PIN) with Dali Dimming

BEAM ANGLE

  • T1
    T1
  • T2
    T2
  • T3
    T3
  • T4
    T4
  • T5
    T5

COLOR TEMPERATURE

  • 30
    3000K
  • 40
    4000K
  • 50
    5000k

COLOR RENDERING INDEX

  • 80
    >80
  • 70
    >70

Spigot Type

  • 34
    φ34mm
  • 42
    φ42mm
  • 60
    φ60mm
  • 76
    φ76mm

Technical Drawing

Product Download Tab

DATA SHEET

DIMENSION DRAWING

ACCESSORIES

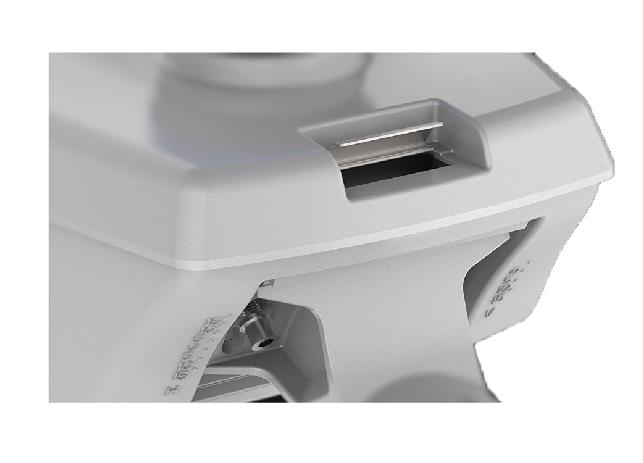

FIXTURE DETAILS
