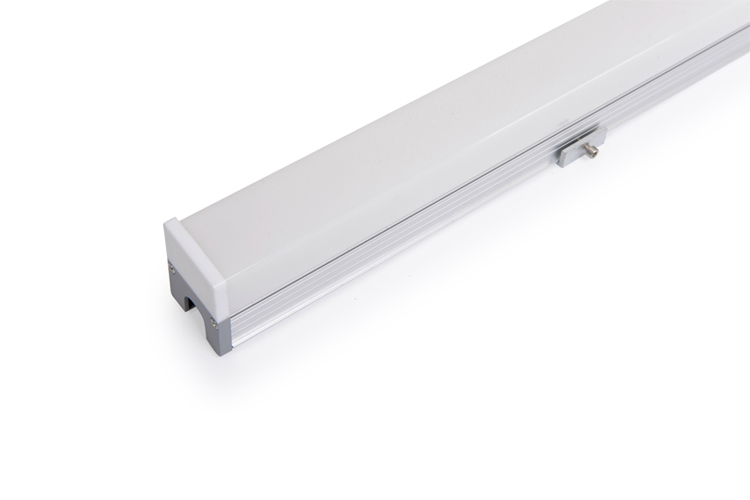

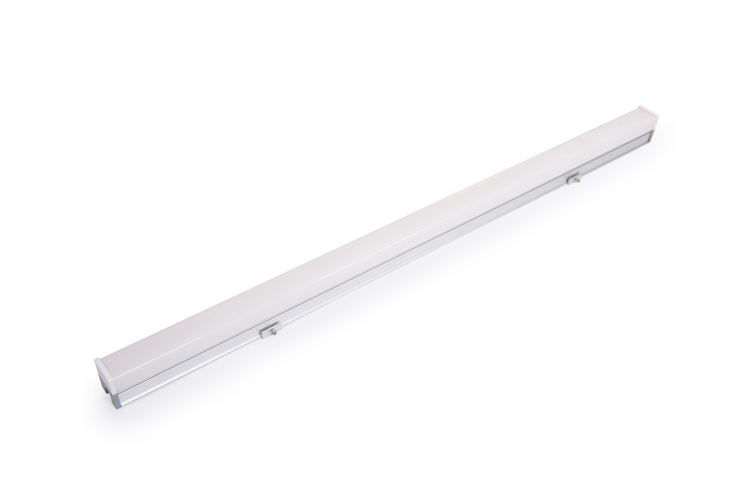

LYNEE

RGBW W:41xH:55mm 10W Max IP65

LED COLOR LINEAR

LED COLOR LINEAR is a indoor and outdoor fixture with RGBW color for media façade application. It is able to be controlled by DMX and RDM. Built-in 16-bit PWM embedded LED IC, featuring 16-bit gray scale control, supports up to 65,536 gray scales for color depths. The high visual refresh rate can facilitate CCD cameras and video cameras to capture the full video images in real time without flickers.

Technical Data

Luminaire Type/ 安裝方式

Tipo de luminaria

Surface Mounted Type

明裝式燈具

Superficie Tipo Montado
Color -顏色-Color

RGBO (Orange White: 2700K)

RGBW (Warm White: 3000K)

RGBN( Nature White: 4000K)

RGBD ( Day White: 5000K)

RGBC (Cool White: 6500K)
Power Consumption Max

燈具最大功率

Consumo de energía Max
- 5W @ L: 500mm
- 10W @ L: 1000mm
- Tailor-made - 客制生產-Hecho a medida
Pixels & DMX Channels

像素和DMX 通道

Píxeles y canales DMX
- 5 PXL =20 DMX Channels @ 5W(500mm)
- 10 PXL= 40 DMX Channels @ 10W (1000mm)
- 1 PXL =4 DMX Channels @ 5W(500mm)
- 1 PXL= 4 DMX Channels @ 10W (1000mm)
- Tailor-made - 客制生產-Hecho a medida
Control Protocol-控制協議

Protocolo de Control

DMX 512A / RDM
Input Voltage / 輸入電壓

Voltaje de entrada

DC24V
Color Range

顏色範圍

Gama de colores

16.7 Million additive RGB colors and White LED

1670萬RGB顏色配合白光LED

16.7 Millones de colores aditivos RGB; LED blanco
RGBW Color Resolution with Gamma correction

RGBW顏色經過伽馬校正的分辨率

Resolución de color RGB W con la corrección de gamma

4 x 16-bit gray scale control and Gamma correction, supports up to 65,536 gray scales for color depths

4 x 16位灰度控制，支持高達65,536個灰度級的顏色深度

4 x control de escala de grises de 16 bits, soporta hasta 65.536 escalas de gris para profundidades de color
Beam Angle/光束角

ángulo de haz

110°
Light Source Brand/光源品牌

Fuente de luz de marca

OSRAM - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
LED Life/LED壽命

La vida del LED

>50,000 hours
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 2 SDCM

標準偏差配色< 2 SDCM

Coincidencia de color estándar Desviación < 2 SDCM
Luminaire Efficacy-燈具效率

La eficacia de la luminaria
- 40 Lm/w(RGBO@Full Load)
- 40 Lm/w(RGBW@Full Load)
- 50 Lm/w(RGBN@Full Load)
- 55 Lm/w(RGBD@Full Load)
- 55 Lm/w(RGBC@Full Load)
LED Source Luminous Efficacy-LED光源光效

Fuente luminosa LED Eficacia
- 50 Lm/w(RGBO@Full Load)
- 50 Lm/w(RGBW@Full Load)
- 60 Lm/w(RGBN@Full Load)
- 70 Lm/w(RGBD@Full Load)
- 70 Lm/w(RGBC@Full Load)
Housing materials/外殼材料

Materiales de la carcasa

Aluminium Alloy and Milky Polycarbonate Diffuser

鋁合金和乳白PC罩

Aleación de aluminio y difusor de policarbonato lechoso
Trim Housing Color/ 邊框殼顏色

Anodised Aluminium Titanium and Milky Diffuser /陽極氧化鋁鈦和乳白罩

Aluminio anodizado titanio y Vía Difusor

Anodised Aluminium Black and Milky Diffuser /陽極氧化鋁黑和乳白罩

Aluminio anodizado Negro y Vía Difusor

Tailor-made/客制生產-Hecho a medida
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +60 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Ingress Protection/ 防護等級

Protección de ingreso

IP65 - (IEC 60529)
Dimension/尺寸

Dimensión
- W41 x H55 x L500 mm
- W41 x H55 x L1000 mm
Environment/ 使用環境

Medio ambiente

Outdoor /戶外/al aire libre
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC 60598-1 / IEC 60598-2-3 / Photometric data-IES format

LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 6 / IEC 61547
