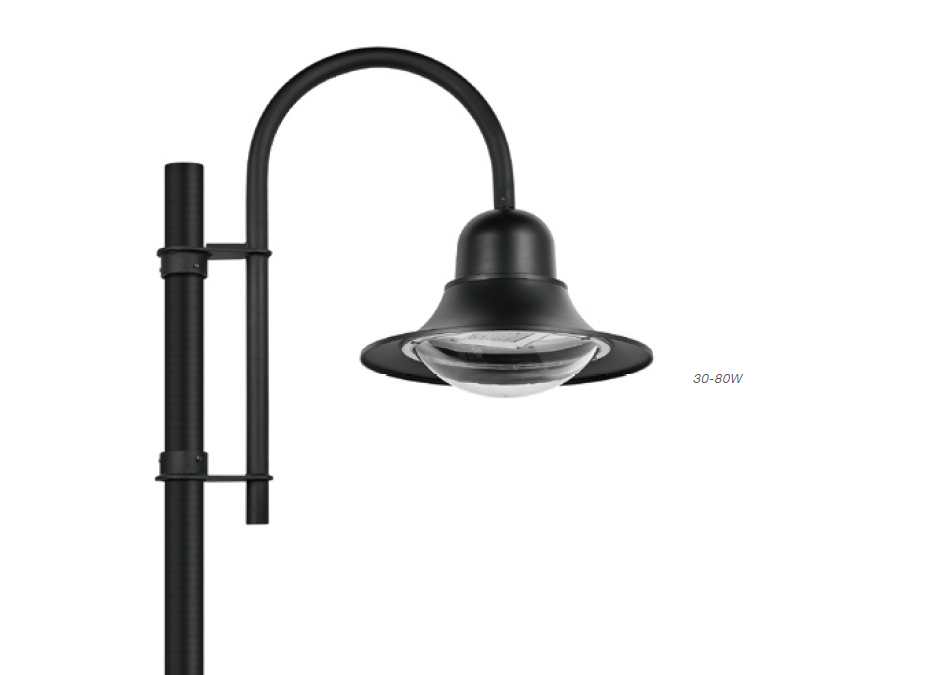

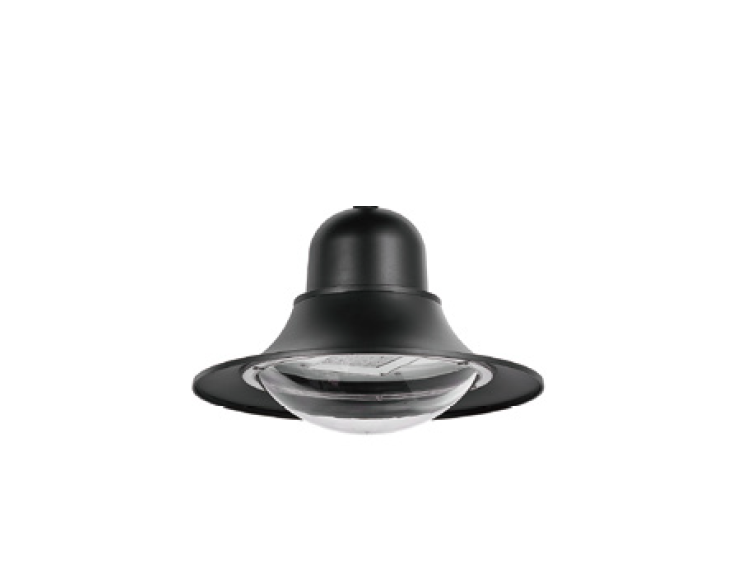

GOCHA-U

30W-80W

LED Garden Light IP66

Die-casting aluminium body, PC transparent diffuser, Chrome plastic reflector.
Optical with PC lenses with high visual comfort and uniform lighting distribution, multiple optical distribution options.
High quality LED chips, Driver with 0-10V/DALI/programmed options, and with surge protection up to 20KV.
LED module is used inside, which is easy to install and replace.
No photo-biological risk, (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.
Street lighting control system for use with smart LEDs. It can be compatible with remote management system.

Technical Data

Luminaire Type-安裝方式Tipo de luminaria

Pole Mounted: 3-6m燈杆安裝: 3-6m montado en poste: 3-6m
Power Consumption with LED Driver

LED燈具包括LED驅動電源功率

Consumo de energía con controlador de LED

30W 40W 60W 80W
Input Voltage / 輸入電壓Voltaje de entrada

100 ~ 240VAC (50~60HZ)
Control Protocol/控制協議

Protocolo de Control

SW: ON/OFF Switch Driver AN: 1-10V Dimming Driver

DA: Dali Dimming Driver DMX: DMX 512 Dimming Driver

RDM : RDM Dimming Driver ZI: ZIGBEE Wireless Control

MS: Motion Sensor DS: Daylight Sensor
Power Factor / 功率因數/Factor de potencia

PF>0.95
Total Harmonic Distortion/總諧波失/Distorsión armónica total

THD <20%
Protection Against Surgers/防護措施/PROTECCIÓN CONTRA LAS PROMOCIONES:

Line-Earth:6KV

Line-Line:4KV
Light Source Brand-光源品牌-Fuente de luz de marca

CREE
"Lumen Maintenance LM-80 Reported by TM-21"

L70 > 45,000 Hours
LED Life-LED壽命-La vida del LED

>50,000 hours
Color Temperature 色溫 Temperatura y color

2700K / 3000K / 4000K/ 5000K/ 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

>80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching 3 SCDM

標準偏差配色 3 SCDM

Coincidencia de color estándar Desviación

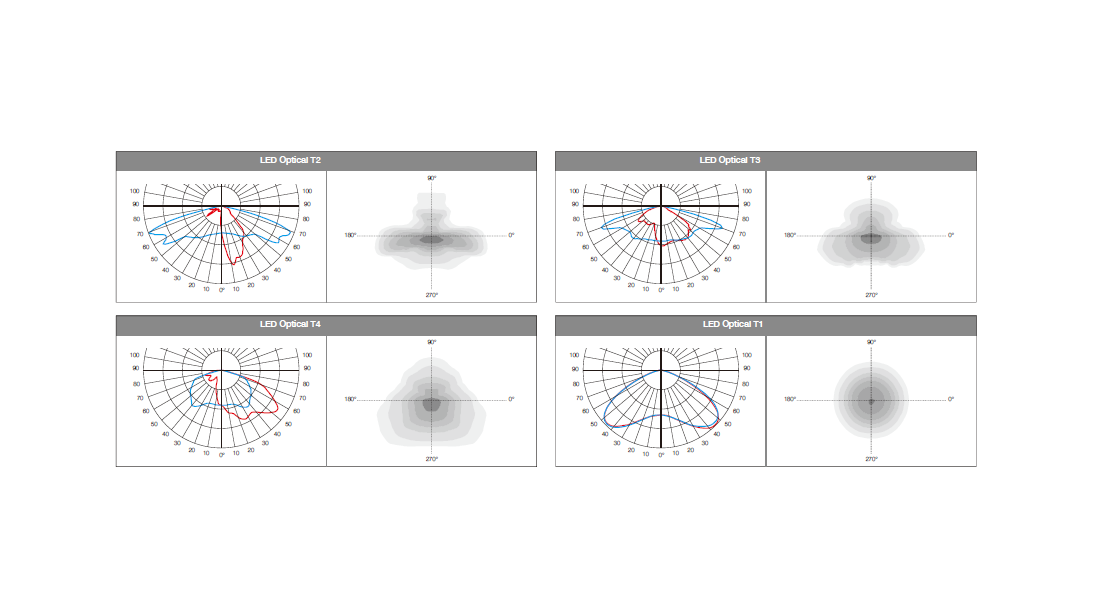

Beam Angle光束角

ángulo de haz
- Symmetric Optical Type : T1
- Asymmetric Optical Type : T2 T3 T4
Luminaire Efficacy燈具效率

La eficacia de la luminaria

100m/w(2700K) 100m/w(3000K) 120m/w(4000K) 130m/w(5000K) 130m/w(6500K)
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia

130m/w(2700K) 130m/w(3000K) 150m/w(4000K) 160m/w(5000K) 160m/w(6500K)
Housing materials 外殼材料

Materiales de la carcasa

Die-cast aluminium and Polycarbonate

壓鑄鋁和聚碳酸酯

Aluminio fundido a presión y policarbonato
Housing Color 外殼顏色 color de la carcasa

Polyester powders Coating (Matt gray RAL 9006/ or Matt Black RAL 9005).

聚酯粉末塗料(灰色RAL 9006 或 RAL 9005黑色)

Revestimiento de polvos de poliéster (Gris Mate RAL 9006/ o Negro Mate RAL 9005).
Ingress Protection-防護等級

Protección de ingreso

IP66 - (IEC 60529)
Mech impact protection

機械衝擊保護

Protección contra impactos mecánicos

IK09
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Installation Height 安裝高度Altura de montaje

3-6 M

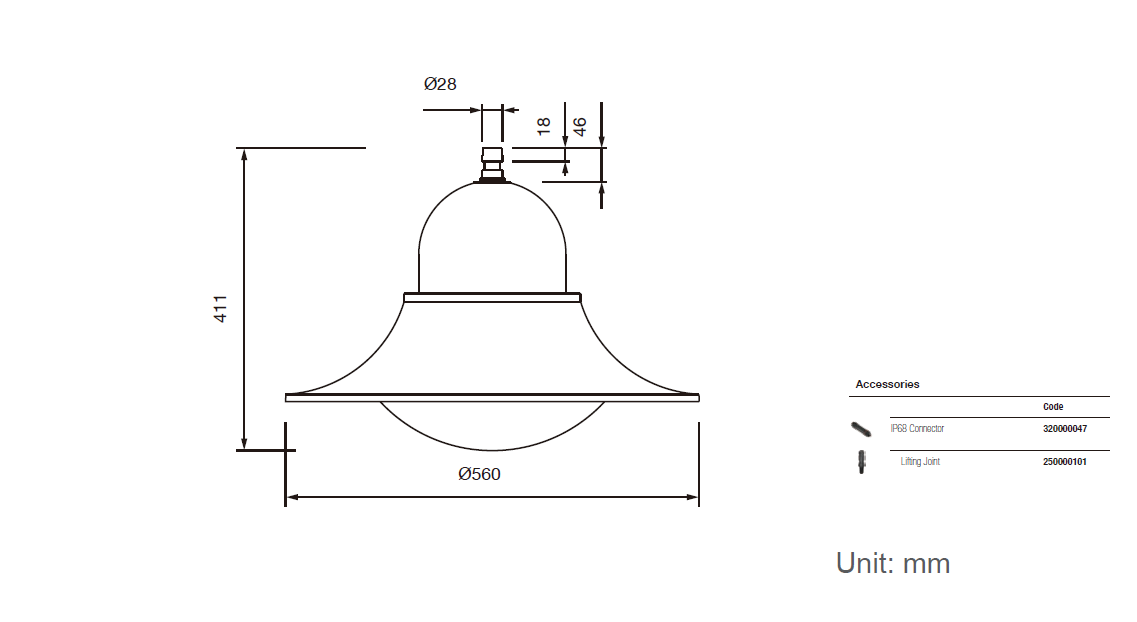

Dimension 尺寸 Dimensión

Dia 560 x H: 411 mm
Net Weight /Gross Weight 淨重/毛重

Peso Neto / Peso bruto

6.8 kg / 7.2 kg
Certificate Standard Complied

符合安規標準

estándar certificado de cumplimiento

LED Luminaries: IEC/EN 60598-1 ; IEC/EN 60598-2-3; IEC TR 62778; IEC62471;IEC/EN 62031

IEC/EN 62493 ;RoHS

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384
