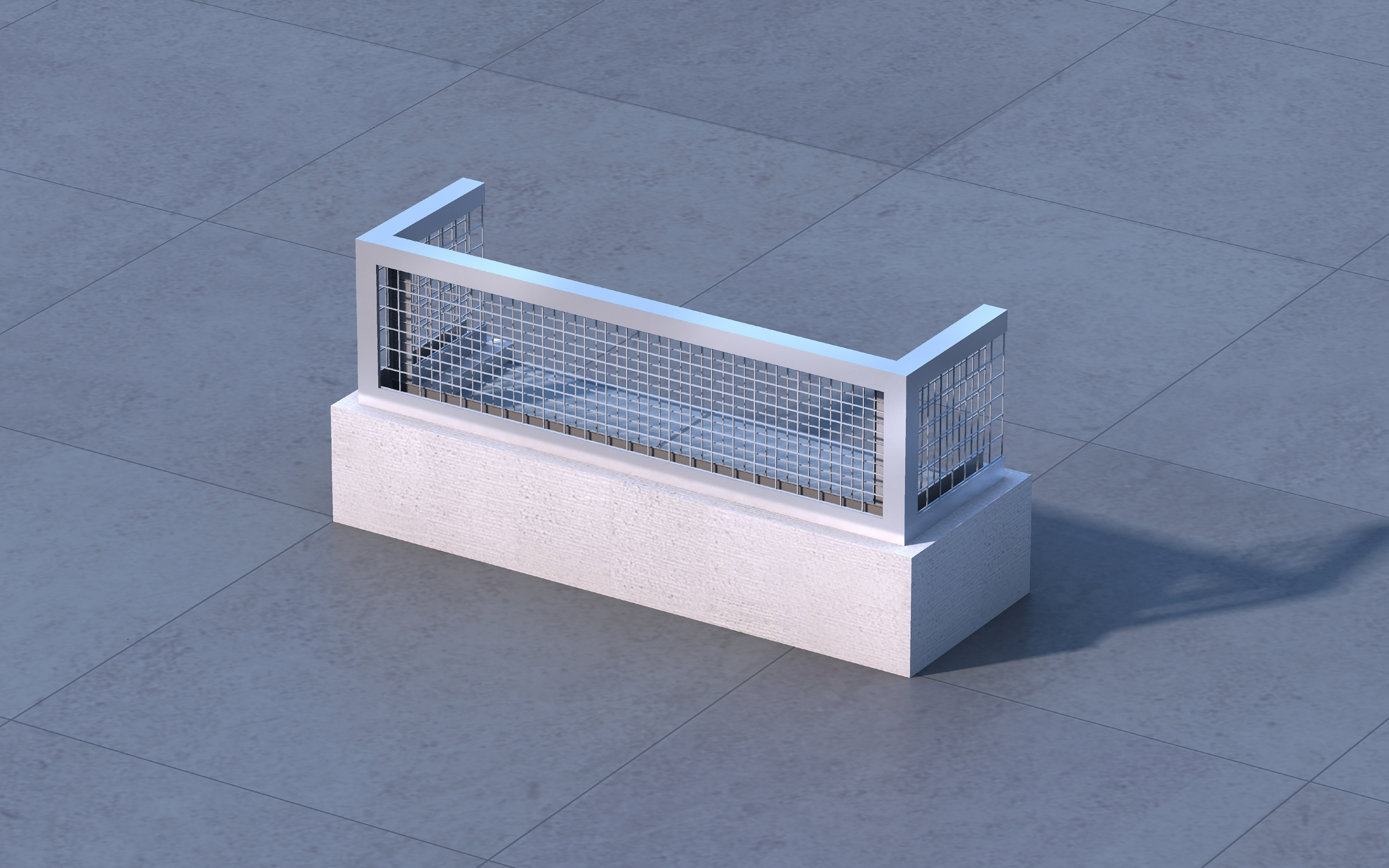

HANNAH@Steel-Grating-Fence 88

Air conditioning equipment platform
  • Air conditioning equipment platform
  • GSM U Section 60x65x5mm
  • GSM L Section PLATE  50x210x5mm
  • Fixed on the concrete with M10 HILTI Anchor Bolt
  • STEEL GRATING OF 50x50x2mm  GMS.
  • Hot Dip Galvanised  Steel-BS EN ISO 1461:2009
  • Painting System with AkzoNobel acrylic polyurethane RAL 9006 Printing for 10 years durability.

Technical Data

  • Major Material:

    • GSM U Section 60x65x5mm
    • GSM L Section PLATE  50x210x5mm
    • Fixed on the concrete with M10 HILTI Anchor Bolt
    • GMS STEEL GRATING OF 50x50x2mm
    • Hot Dip Galvanised  Steel BS EN ISO 1461:2009
    • Painting System with AkzoNobel acrylic polyurethane Printing for 10 years durability.

  • Structure Materials And Finishes

    • Hot Dip Galvanised  Steel-BS EN ISO 1461:2009
    • Other Painting Color Option : White RAL 9003 , Grey RAL 9006  or  Matte Black RAL 9005
    • Painting System with AkzoNobel acrylic polyurethane Printing for 10 years durability.

  • Certification

Technical Drawing
