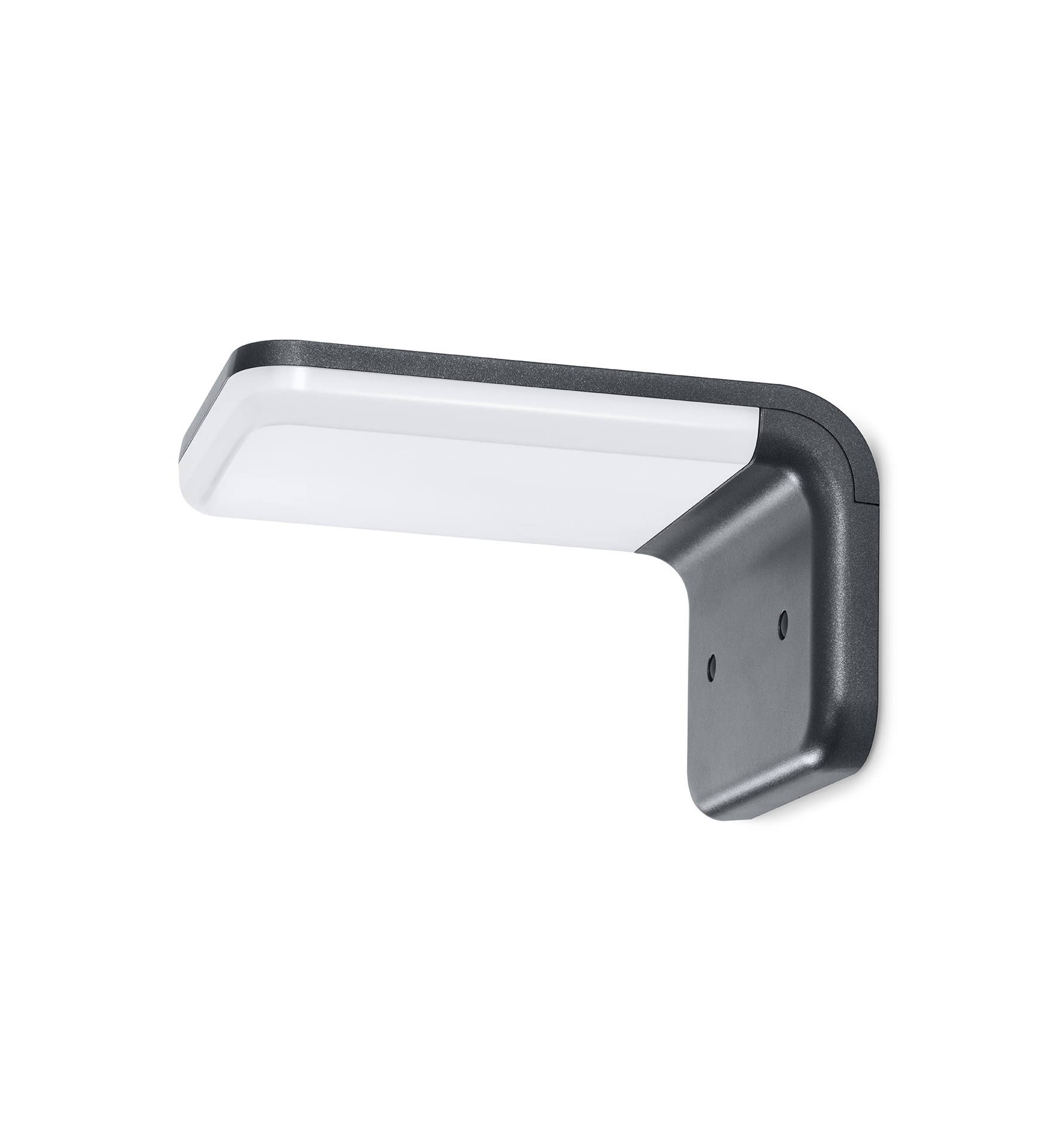

INOVA-A

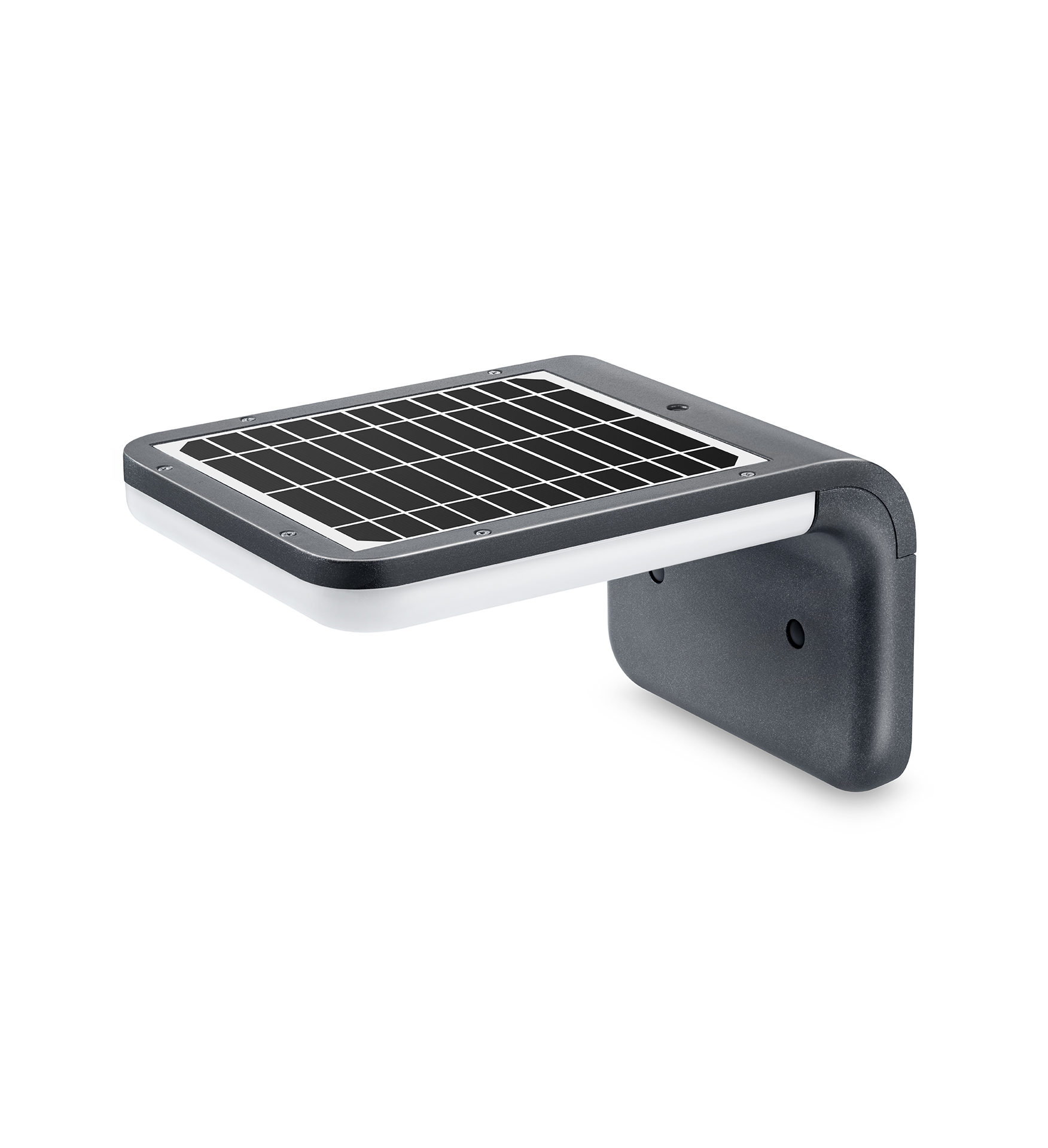

INOVA-A

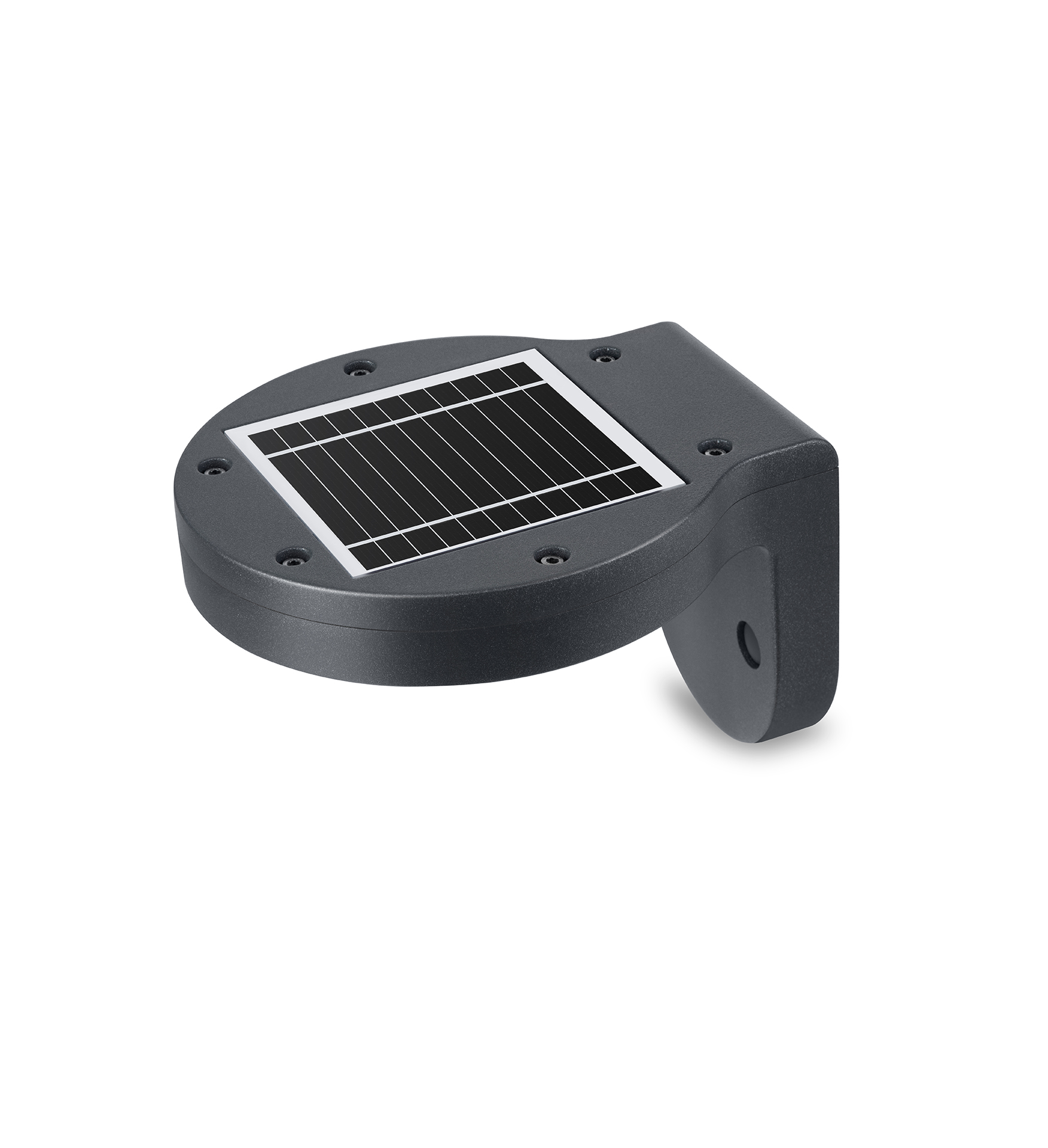

INOVA-B

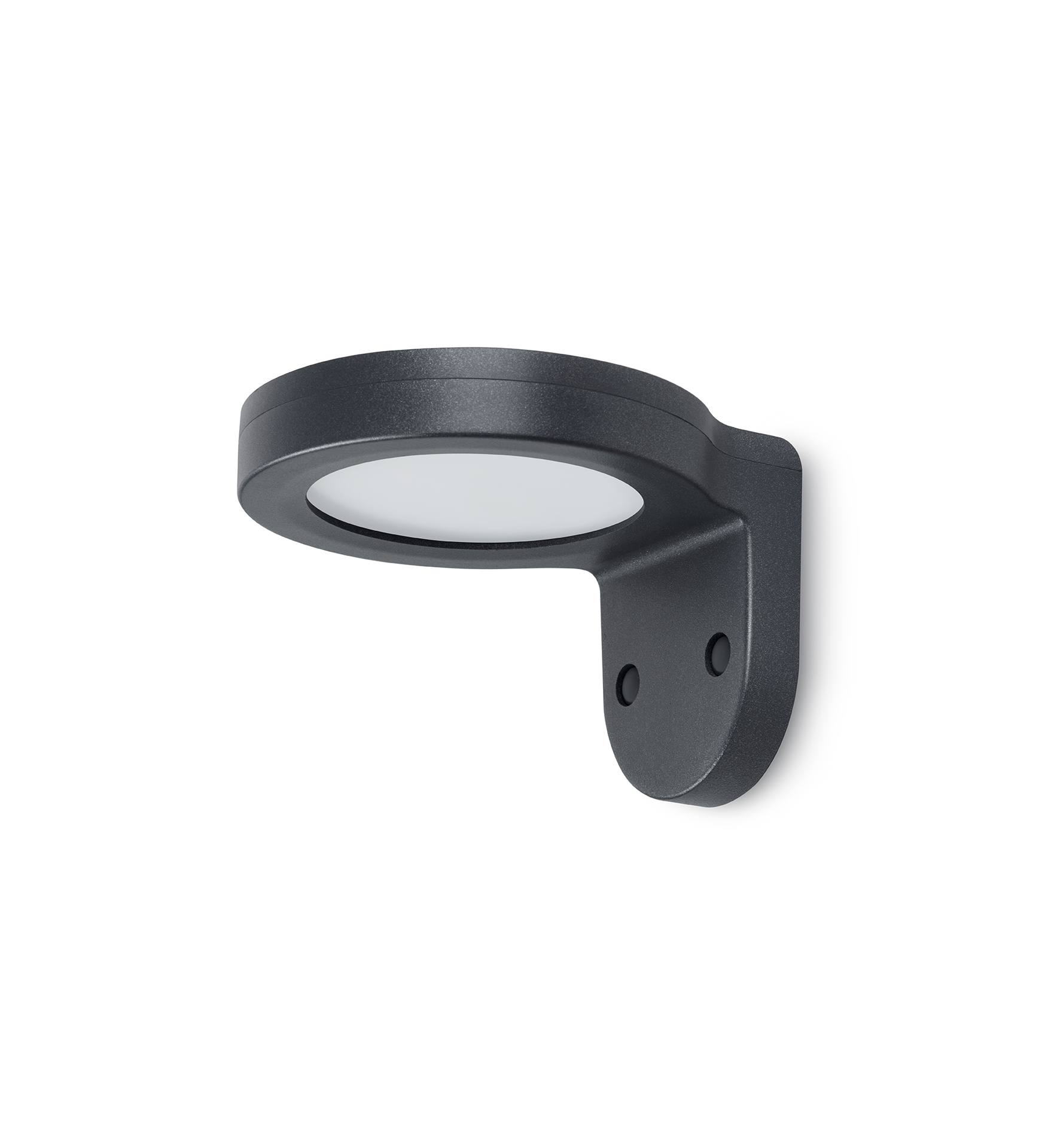

INOVA-B
Solar Sensor wall Light
Outdoor Waterproof LED Solar Garden Wall Light
  • Solar panel: high efficiency monocrystalline silicon with 25 years lifetime
  • LED lamp: Bridgelux from USA, good quality for 50000h lifes
  • Power Lithium Battery: high capacity lithium battery, intelligent charging to prolong battery's service life
  • MPPT Controller: Independently developed intelligent MPPT controller with 95% charging efficiency
  • Exclusive private mold, Self-designed and Independent research and development
  • Die-cast aluminum framework and elegant look
  • Compact and portable, easy to install
  • Light control, time control and the microwave sensor function

Technical Data

  • Power Consumption

    • 5W Type A
    • 2W Type B

  • Solar Panel Power

    • Type A:  5.5V / 4.7W  Mono-Crystalline Silicon Solar Panel Up to 21% Photoelectric Conversion Efficiency
    • Type B: 5.5V / 1W  Mono-Crystalline Silicon Solar Panel Up to 21% Photoelectric Conversion Efficiency

  • Battery Capacity

    • Type A:  5.2AH Long Service Life and High Security Powerful Lithium Battery
    • Type B: 2.6AH Long Service Life and High Security Powerful Lithium Battery

  • Light Source Brand

    U.S.A Bridgelux

  • Color Temperature

    3000K / 4000K / 5000K / 5700K

  • Color Rendering Index

    > 80

  • Luminaire Efficacy

    • 90 Lm/w(3000K),
    • 100 Lm/w(4000K),
    • 110 Lm/w(5000K),
    • 110 Lm/w(5700K),

  • MICROWAVE SENSOR

    Radiation frequency: 5.8GHz±100MHz

    Microwave Sensor Detection Angle: 160°

    Maximum Detection Distance : Up to 10 meter

    Brightness on Standby: 20% Brightness



  • Discharging Time

    > 36 Hours

  • Housing materials

    Die-Cast Aluminum and Opal Polycarbonate

  • Housing Color

    Dark Grey

  • Ingress Protection

    IP66

  • Operating Temperature Range

    -30 °C / +50 °C

  • Dimension

    Type A: 265 x 195 x 155mm

    Type B: 152 x 134 x 100mm

  • Certification

Specification Code

Example Product Code:
INOVA-5W
INOVA
-
Power

Power

  • 5W
    5W Type A
  • 2W
    2W Type B

Technical Drawing
