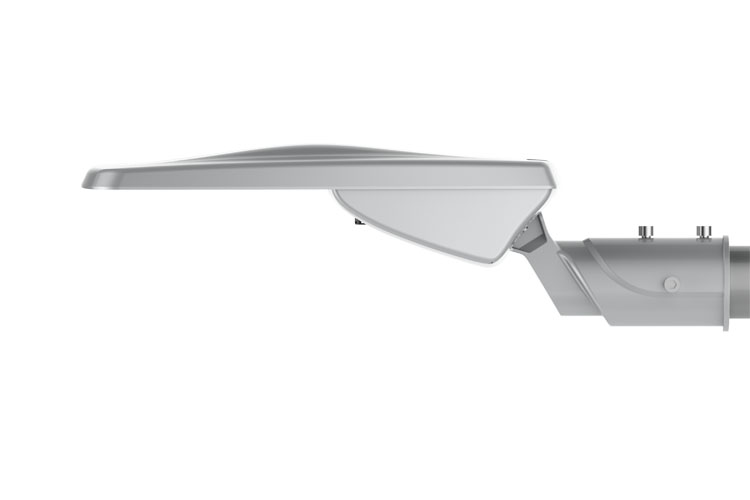

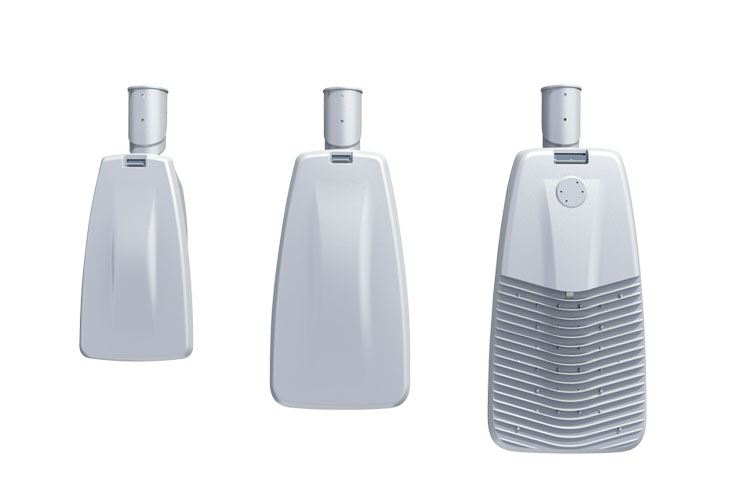

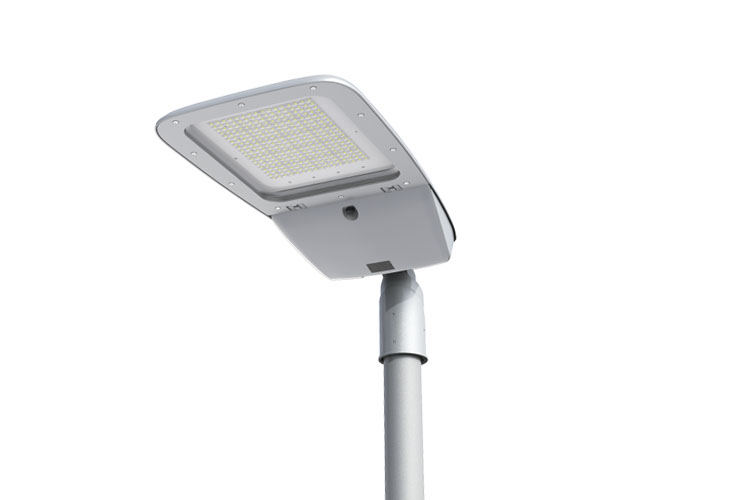

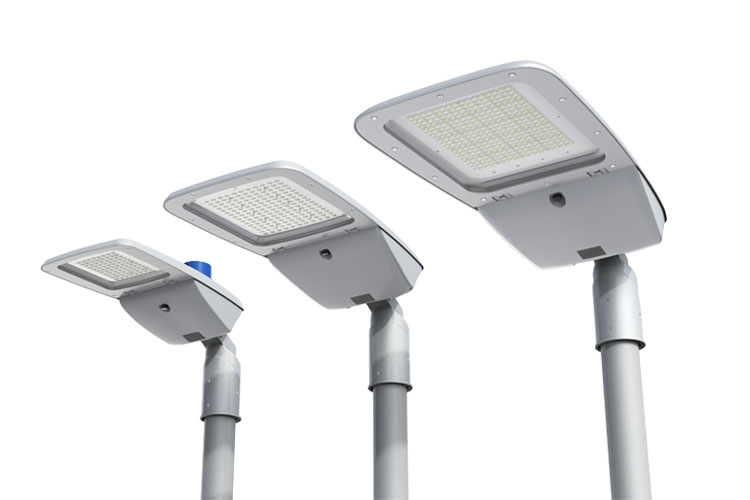

STEE

30W-150W IP66

LED STREET LIGHTING

LED STREET LIGHTING is finished by Die-cast aluminium with separated and integrated LED Driver Box, with surface anti-ageing electrostatic spray processing,super resistance to corrosion and rotated bracket, Gaskets in anti-aging rubber , tempered clear Glass and Heat Resisting Cable. It’s as well a great alternative to urban furniture due to its IP protection rating and IK08 Impact protection, anti-corrosion and vibration test approved,durable and state-of-the-art fixture.Designed for roadway and parking lot area,replace traditional street and area light with quick payback and superior performance. Adopt modular light distribution Lens and super clear tempered glass. Button design for opening LED driver box for easy power circuit connection. And, It is able to be controlled by 1-10V,DALI,Zigbee dimming system. LED module: high-power NICHIA LED, CRI>80 up to 130lm/w. TM21 L70 performance approve >60,000 hours; Fixing: Top or side fitting for pole with adjustable bracket.

Technical Data

Luminaire Type-

安裝方式

Tipo de luminaria

Arm Mounting / Pole Mounting / Bracket Mounting

臂安裝/杆安裝/支架安裝

Brazo de montaje / montaje / poste de montaje del soporte
Power Consumption with LED Driver

LED燈具包括LED驅動電源功率

Consumo de energía con controlador de LED
- 30W 50W 70W
- 90W 120W 150W
Input Voltage / 輸入電壓Voltaje de entrada

AC220-240V 50-60Hz
Control控制Control

Integrated LED Driver

內置LED電源
- SW -ON/OFF
- 1-10V / DALI
- 5-Step Time ( programmable LED driver dimming rate in 5 time zone )
- NEMA photocell (3PIN) with SW- ON/OFF ( Pre Setting Lux level : Light ON: 6 lux ON , Light OFF: 50lux)
- NEMA photocell (5PIN) with 0-10V Dimming for auto adjustment in brightness
- NEMA photocell (5PIN) with Dali Dimming Control for auto adjustment in brightness
- Zigbee Wireless Control
Power Factor / 功率因數

Factor de potencia

PF>0.90 or PF >0.95 Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED
Total Harmonic Distortion/總諧波失

Distorsión armónica total

THD<15% Refer to LED driver specification 請參閱LED驅動器規格
Consulte la especificación de controlador de LED
Protection Against Surgers防護措施

La protección contra la surgers
- 6kV line-line
- 10kV line-earth
Light Source Brand-光源品牌-Fuente de luz de marca

NICHIA - ( Photobiological safety-IEC 62471 ) & Photobiological safety of LED street Light is IEC/EN 62471 (Exempt Group)
"Lumen Maintenance LM-80 Reported by TM-21"

L70(10k) > 60,000 hrs
LED Life-LED壽命-La vida del LED

>100,000 hours
Color Temperature 色溫 Temperatura
- 3000K 4000K 5000K
Color Rendering Index-顯色指數

Índice de reproducción cromáca
- >70
- >80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM

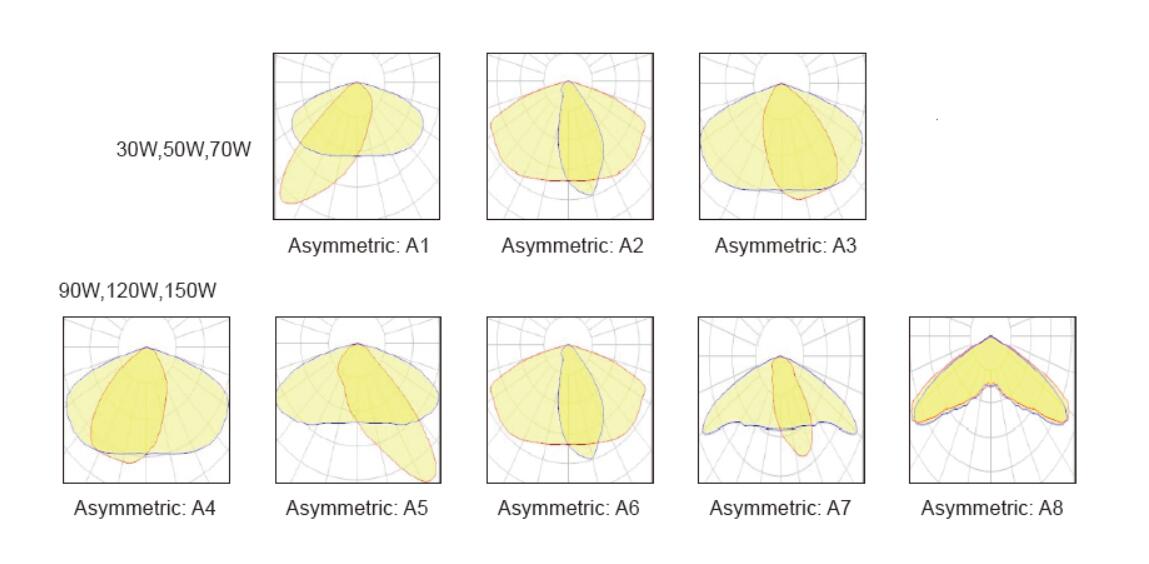

Beam Angle

光束角

ángulo de haz

A1 @ 30W & 50W & 70W A2 @ 30W & 50W & 70W A3 @ 30W & 50W & 70W

A4 @ 30W & 50W & 70W A5 @ 30W & 50W & 70W A6 @ 30W & 50W & 70W

A7 @ 30W & 50W & 70W

A8 @ 90W & 120W & 150W A9 @ 90W & 120W & 150W A10 @ 90W & 120W & 150W

A11 @ 90W & 120W & 150W A12 @ 90W & 120W & 150W A13 @ 90W & 120W & 150W

A14 @ 90W & 120W & 150W A15 @ 90W & 120W & 150W A16 @ 90W & 120W & 150W

A17 @ 90W & 120W & 150W A18 @ 90W & 120W & 150W
uminaire Efficacy

燈具效率

La eficacia de la luminaria
- 130 Lm/w(3000K) @CRI >70 ; 120 Lm/w(3000K) @CRI >80
- 140 Lm/w(4000K) @CRI >70 ; 130 Lm/w(4000K) @CRI >80
- 140 Lm/w(5000K) @CRI >70 ; 130 Lm/w(5000K) @CRI >80
LED Source Luminous Efficacy

LED光源光效

Fuente luminosa LED Eficacia
- 150 Lm/w(3000K) @CRI >70 ; 140 Lm/w(3000K) @CRI >80
- 160 Lm/w(4000K) @CRI >70 ; 150 Lm/w(4000K) @CRI >80
- 160 Lm/w(5000K) @CRI >70 ; 150 Lm/w(5000K) @CRI >80
Housing materials

外殼材料

Materiales de la carcasa

Die-cast aluminium and Tempered glass

壓鑄鋁和鋼化玻璃

Die fundición de aluminio y vidrio templado
Housing Color外殼顏色

color de la carcasa

Polyester powders Coating(RAL 9006 Silver).聚酯粉末塗料 (RAL 9006 銀灰色)

Polvos de poliéster Revestimiento(RAL 9006 Plata).
Ingress Protection-防護等級

Protección de ingreso

IP66 - (IEC 60529)
Mech impact protection機械衝擊保護

Protección contra impactos mecánicos

IK08 ( EN 62262: 2002)
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Storage Temperature儲藏溫度

Temperatura de almacenamiento

-40 °C / +70 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación

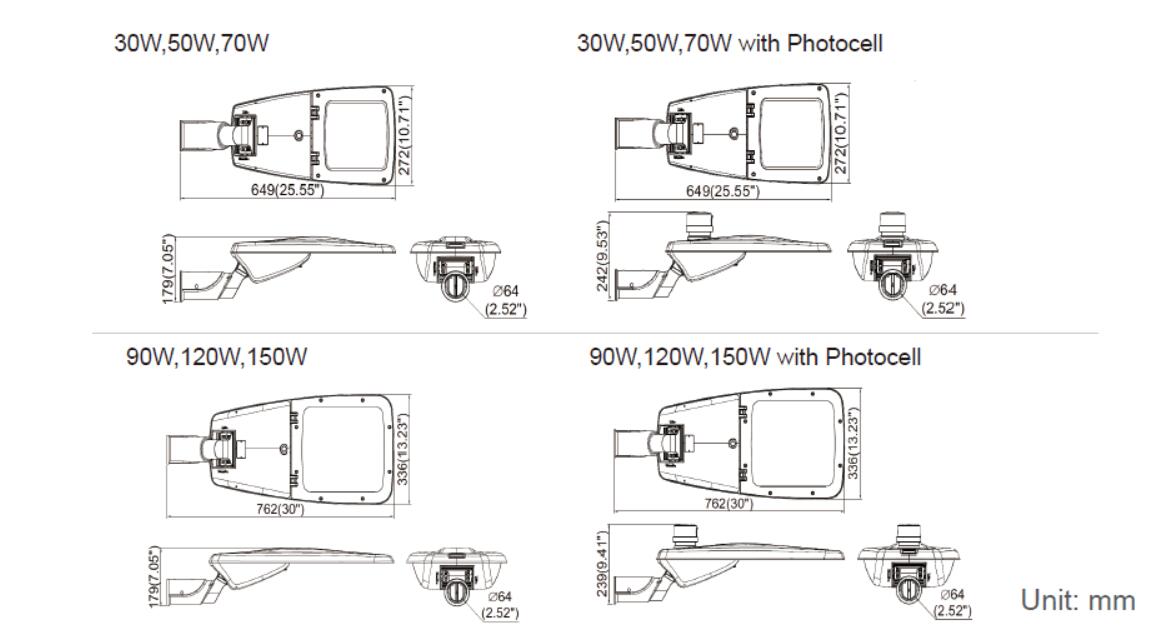

Dimension (LxWxH)/尺寸/ Dimensión
- 649×272×179mm @ 30W & 50W & 70W 762x336x179mm @ 90W & 120W & 150W
Net Weight /淨重/Peso Neto
- 5.9 ± 0.3kg @ 30W & 50W & 70W 7.9± 0.3kg @ 90W & 120W
- 8.1± 0.3kg @ 150W
Packing box size/包裝箱尺寸

Tamaño de la caja de embalaje
- 687×312×160mm @ 30W & 50W & 70W
- 816×376×160mm @ 90W & 120W & 150W
Certificate Standard Complied

符合安規標準

estándar certificado de cumplimiento

LED Luminaries: LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-3;IEC62471;IEC/EN 62031; IEC/EN 62493 ; IEC/EN 62471 (Exempt Group)

EMC: EN55015 ; IEC/EN 61000-3-2; IEC/EN 61000-3-3;IEC/EN61574 ; RoHS

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384
