TRADA

24W & 28W

TRACK LIGHT

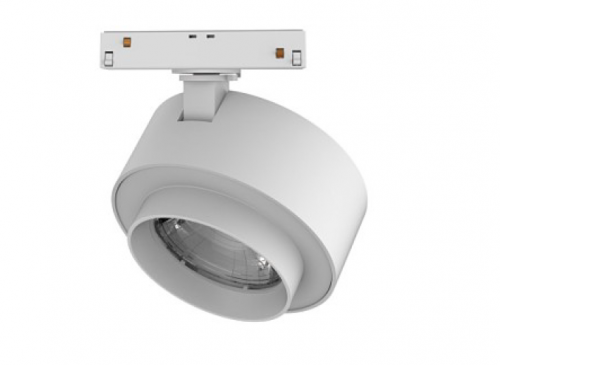

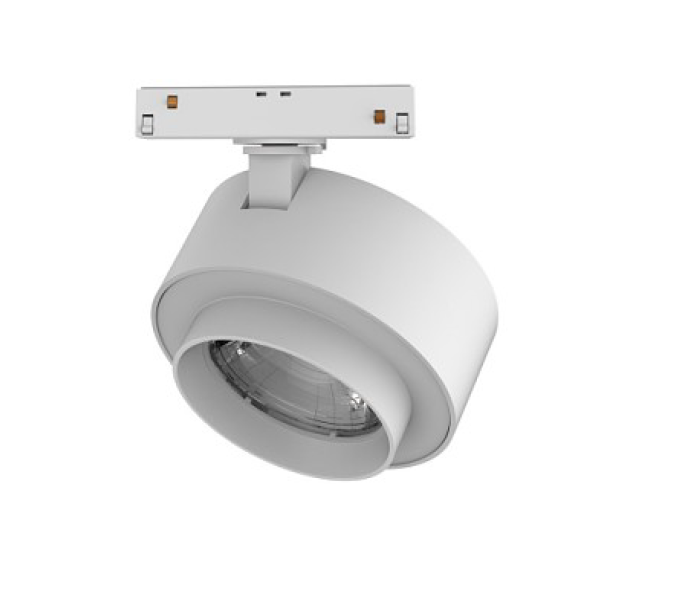

TRADA track light. Housing: die-cast aluminium, powder-coated, designed as heat sink. Anti-glare reflector and diffusor system made of PMMA. LED module: high-power CREE LEDs .

Accessories: Spherolit lenswide Flood , Spherolit lens Oval Flood, Barn Door, Snoot, Cross Lover , Honeycomb

Technical Data

Luminaire Type-

安裝方式

Tipo de luminaria

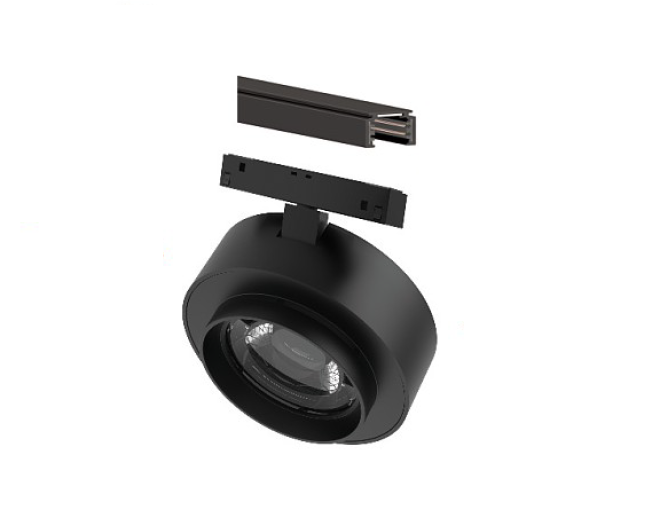

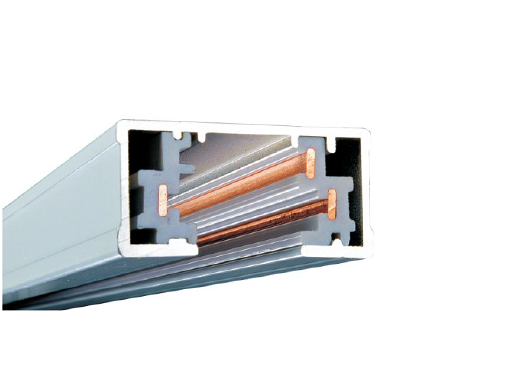

Track Mounted Type

軌道燈具

Tipo de huella Montado
Dimension-尺寸-Dimensión

Dia 120 x H: 92 x D: 64 mm
Input Voltage-輸入電壓-Voltaje de entrada
- AC220-240V 50/60HZ
- DC Constant Current
Power Consumption Max-燈具功率

Consumo de energía Max
- 24W
- 28W
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type or Remote-type  LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC220-240V 50/60HZ @ Integrated-type

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. 1 -10V Dimming Driver(0-100%)  AC100-240V 50/60HZ

4. Dali Dimming Driver (0-100%) AC100-240V 50/60HZ

5. DMX Driver (Remoted Driver )(0-100%) AC100-240V 50/60HZ (Dimming range from 0-100%)

6. RDM Driver (Remoted Driver )(0-100%)  AC100-240V 50/60HZ

7. Emergency Backup (Remoted Driver ) >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia

8. ZIGBEE Wireless Control (Remoted Driver)(0-100%)  AC100-240V 50/60HZ
LED Driver Features

驅動特性

Funciones del controlador de LED
- POWER FACTOR : PF≧0.90 @ Full Load
- TOTAL HARMONIC DISTORTION: THD< 20%
Control Protocol-控制協議

Protocolo de Control

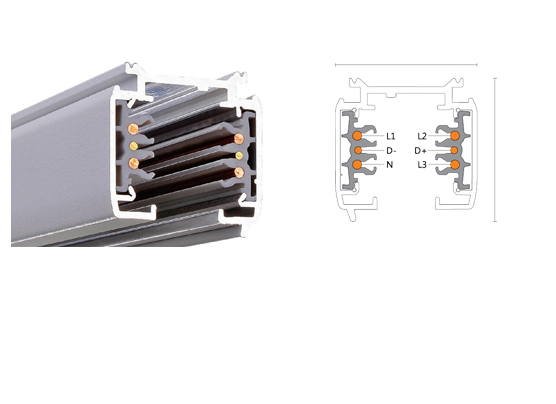

1-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

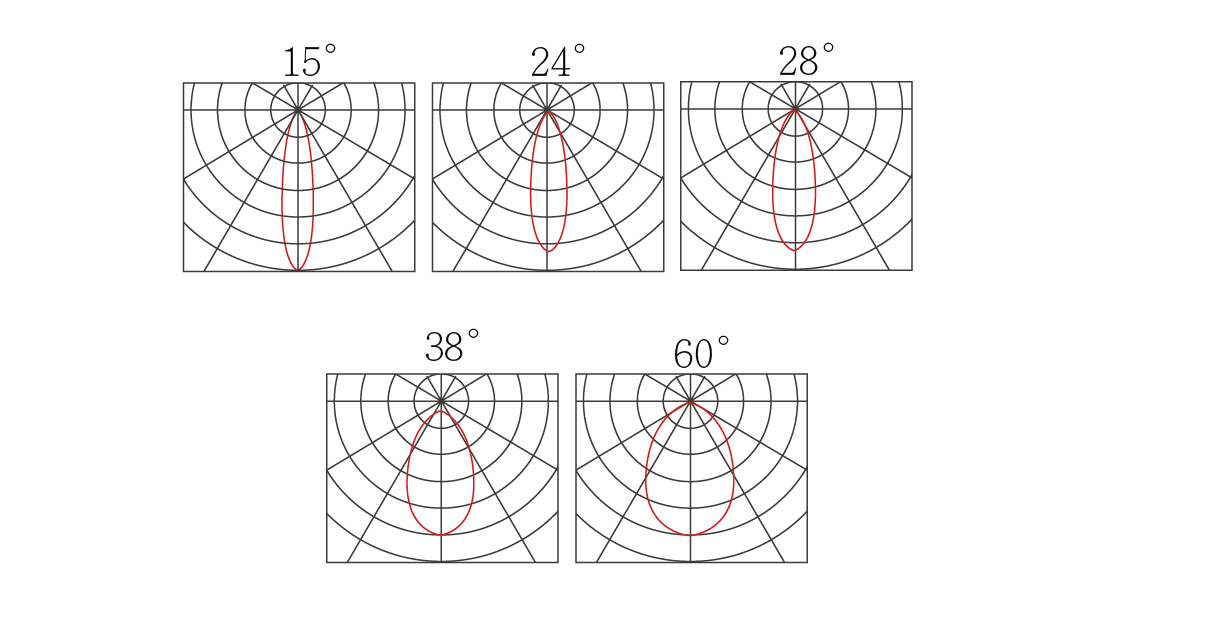

Beam Angle

光束角

ángulo de haz
- 15° 24° 28° 38° 60°
Light Source Brand-光源品牌-Fuente de luz de marca

CREE - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"

1. L90(10k) = 50,700 hrs

2. L80(10k) > 63,500 hrs

3. L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática
- >80
- >90
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy

燈具效率

La eficacia de la luminaria
- 95 Lm/w(2700K),
- 95 Lm/w(3000K),
- 95Lm/w(4000K),
- 110 Lm/w(5000K),
- 110 Lm/w(6500K),
LED Source Luminous Efficacy

LED光源光效

Fuente luminosa LED Eficacia
- 125 Lm/w(2700K),
- 125 Lm/w(3000K),
- 125 Lm/w(4000K),
- 140 Lm/w(5000K),
- 140 Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa
- Die-cast aluminum and PMMA Lens
- 壓鑄鋁和PMMA透鏡
- Aluminio fundido a troquel y lente de PMMA
Housing Color

外殼顏色

color de la carcasa

Powder Coating :Matte black body / Matte white body

粉末塗料：啞光黑色燈身 / 啞光白色燈身

Recubrimiento en polvo: cuerpo negro mate / cuerpo blanco mate
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜sin condensación
Ingress Protection-防護等級

Protección de ingreso

IP20

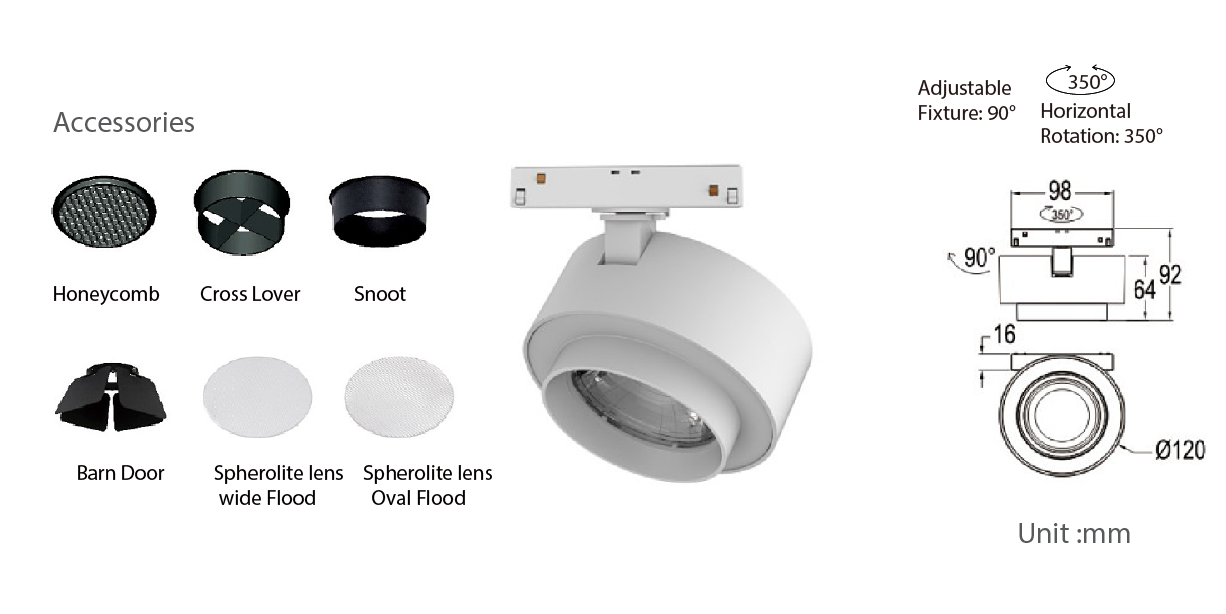

Accessories

配件

Accesorios
- Honeycomb蜂窩罩 Panal
- Cross Lover 十字罩 Amante de la cruz
- Snoot 束光筒 Snoot
- Barn Door倉門罩 Puerta de granero
- Spherolite lens wide Flood 球狀透鏡寬鏡片Lente de spherolite amplia inundación
- Spherolite lens Oval Flood 球形透鏡橢圓拉伸鏡片 Lente Esferolita Oval Flood
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC 60598-1 / IEC 60598-2-2
