WEER

DIA 76 12W Max IP68

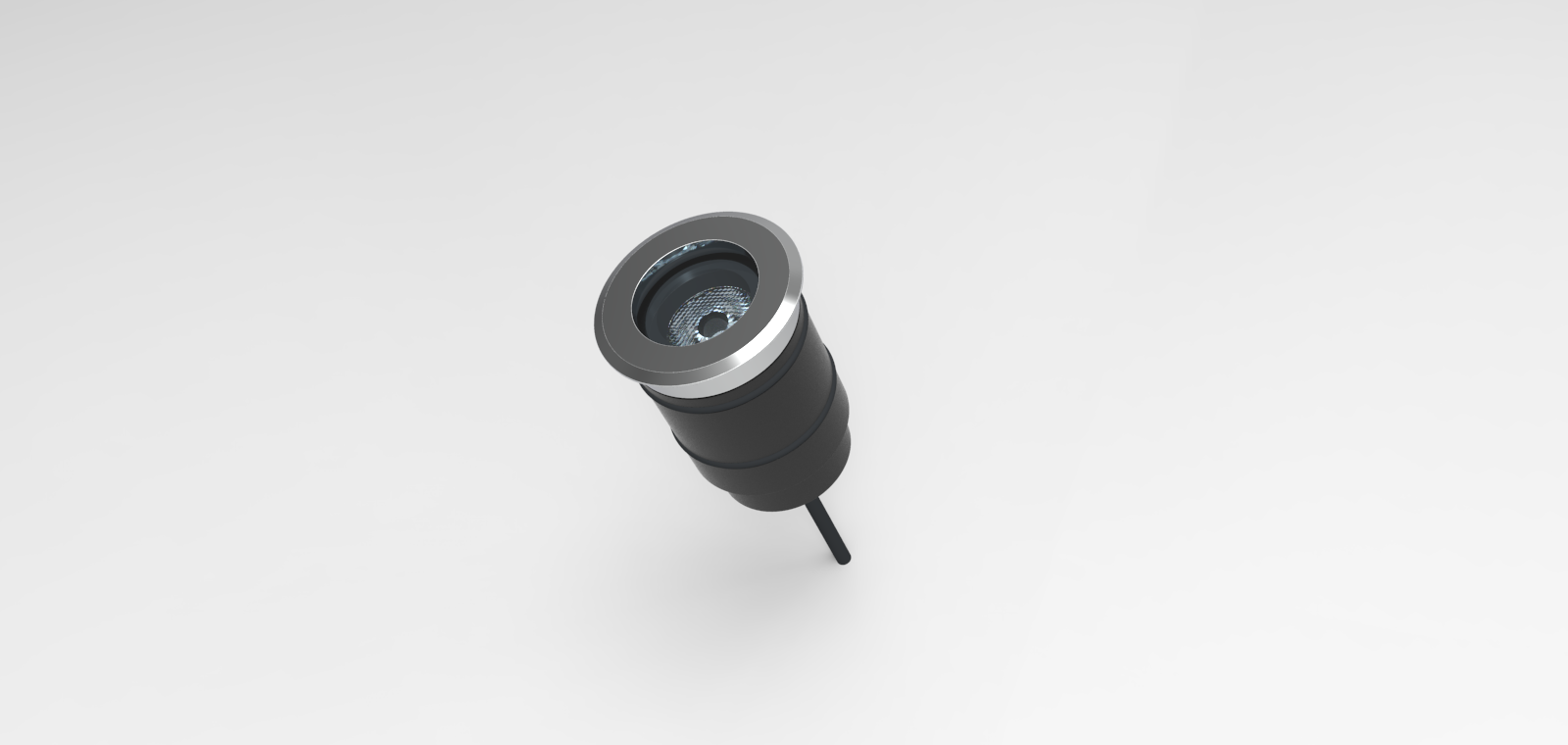

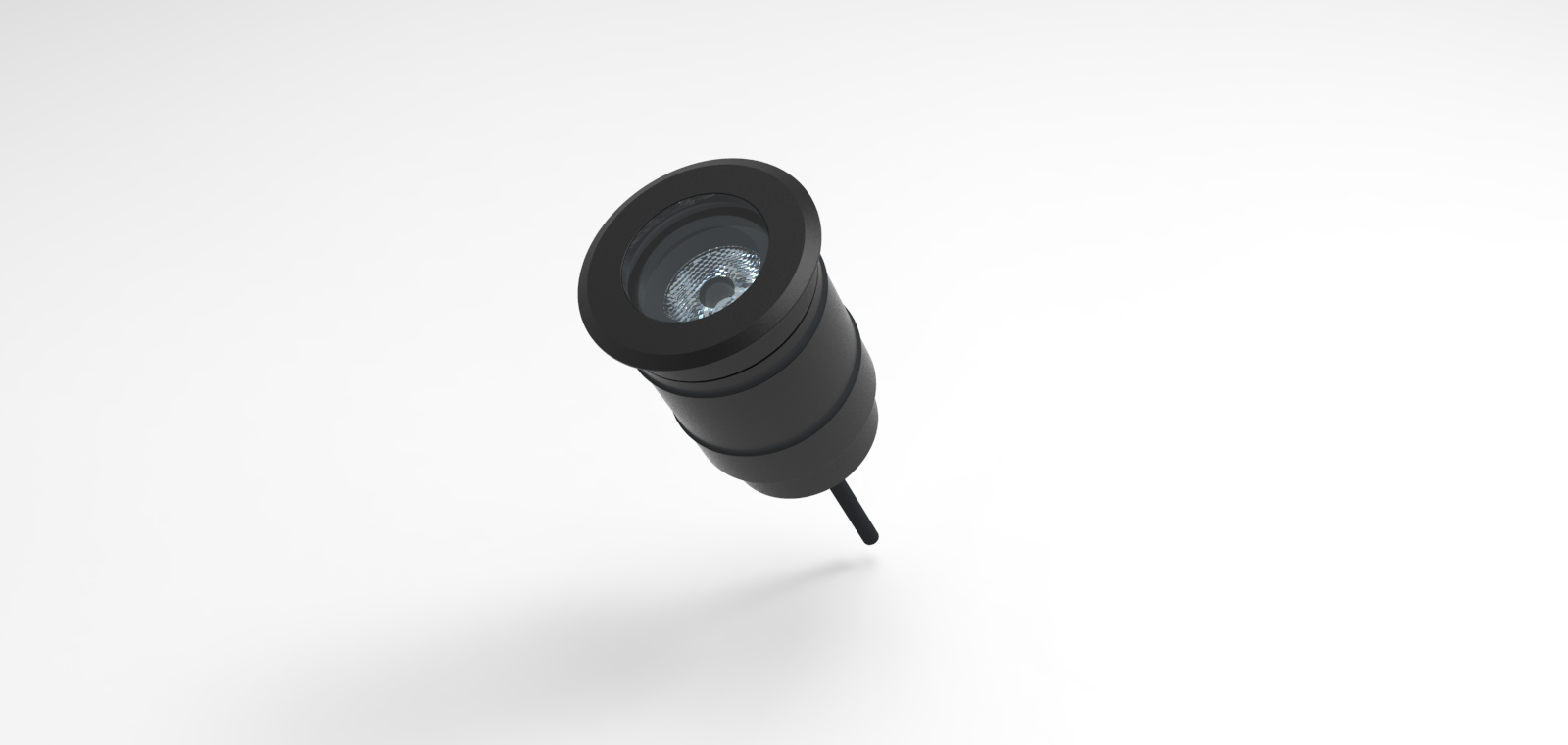

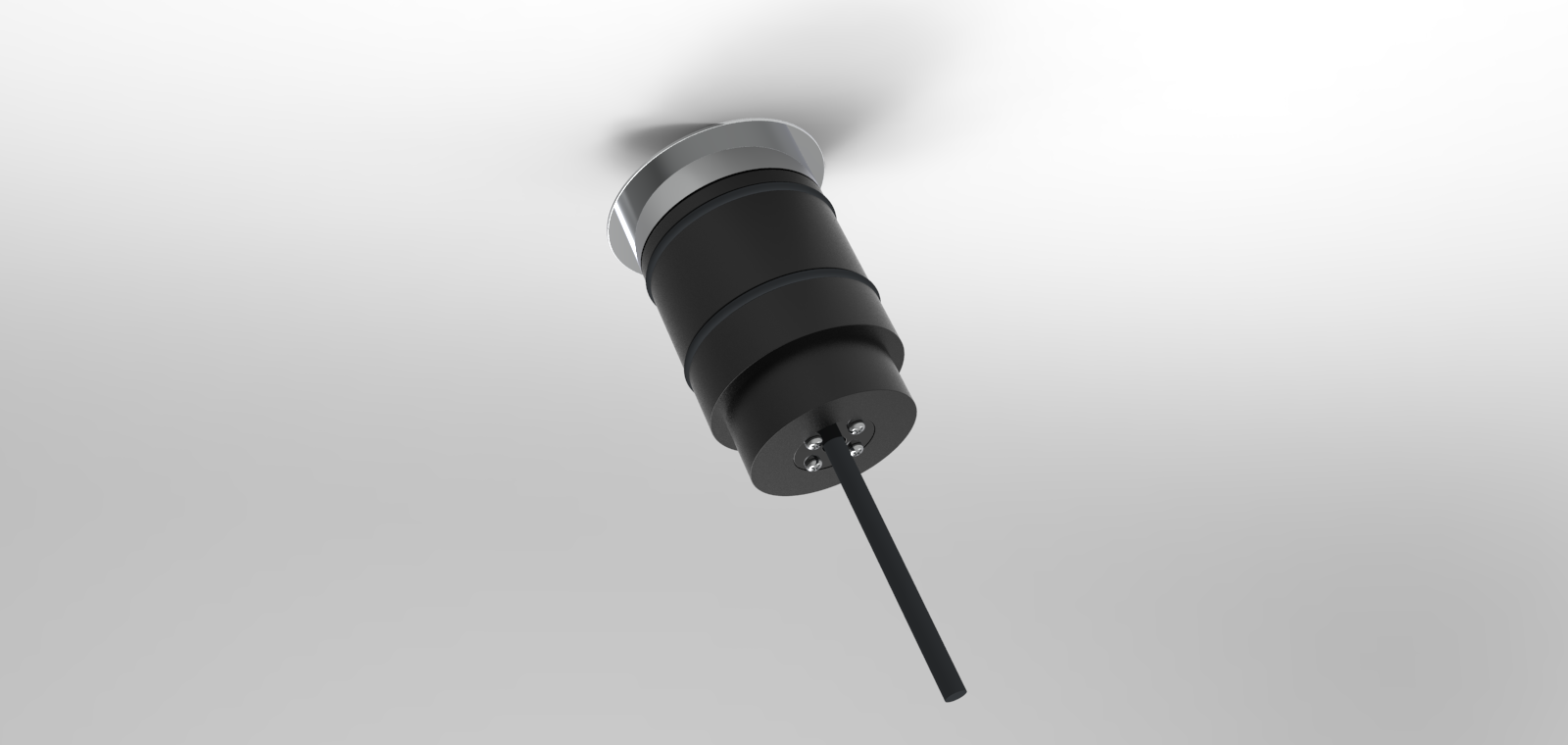

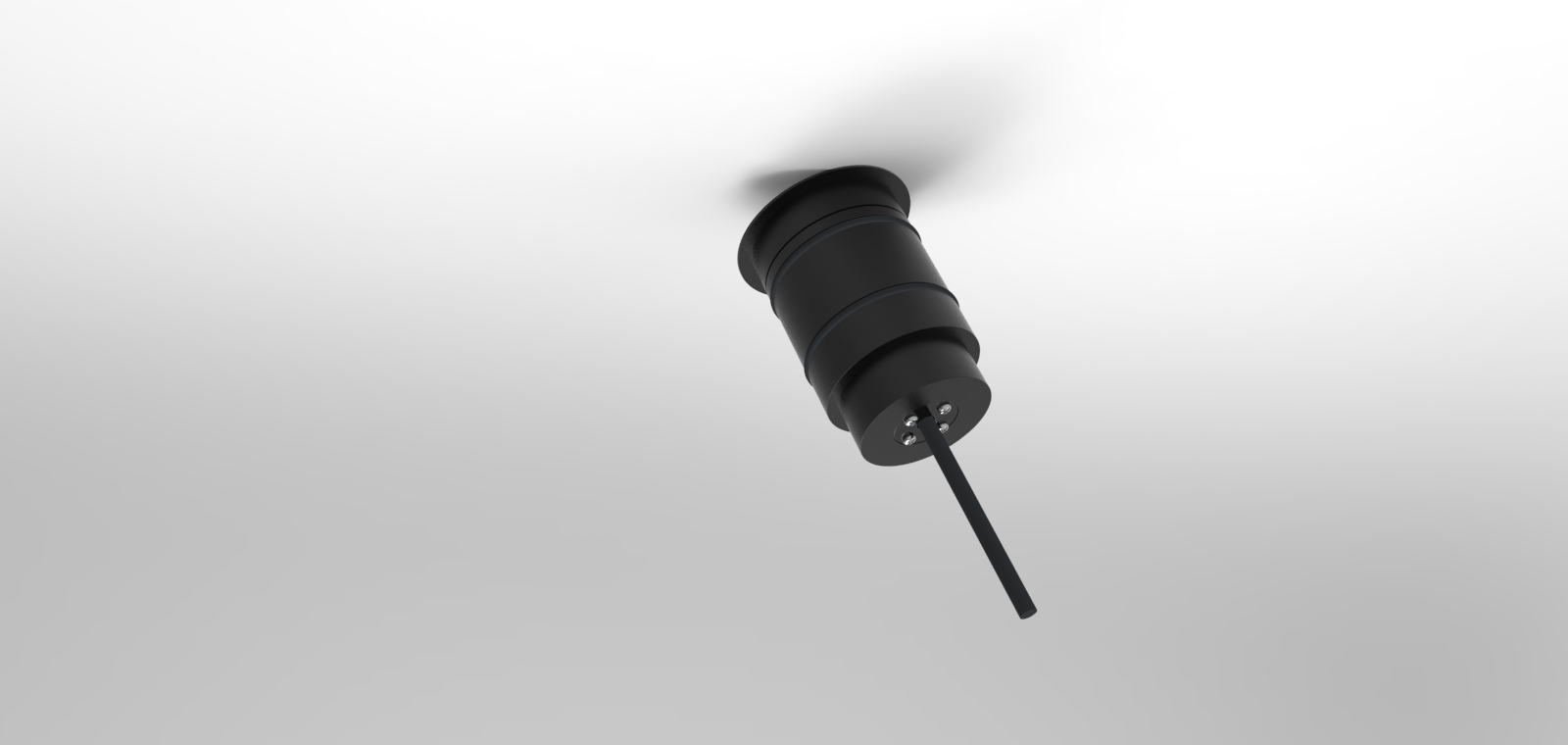

INGROUND UP LIGHT

LED in-ground luminaires with small dimensions for flush-mounting installation. The luminaire housing made of die-cast alumiumim and AISI 316 stainless steel Cover with tempered glass. Optics with PMMA lens.It is available in monocolor and RGB color. Outer casing made of ABS material. It is able to be controlled by DMX and RDM. It’s as well a great alternative to urban furniture due to its IP68 protection rating.

Technical Data

Luminaire Type安裝方式Tipo de luminaria

Recessed In-Ground Type 內嵌式地埋燈 Empotrada en el suelo del Tipo
Power Consumption Max 燈具功率

Consumo de energía Max
- 5W 8W 10W 12W
Input Voltage 輸入電壓

Voltaje de entrada
- 1000mA @12W
- 800mA @ 10W
- 700mA @ 8W
- 350mA @5W
- DC24V + DMX 512 @ MONO @ RGBW
LED Driver Type

LED驅動款式

Tipo de controlador LED

Remoted-type  LED Driver--Refer to LED driver specification 請參閱LED驅動器規格 Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC100-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. 0 -10V Dimming Driver  AC100-240V 50/60HZ

4. Dali Dimming Driver AC100-240V 50/60HZ

5. DMX Driver AC100-240V 50/60HZ

6. RDM Driver  AC100-240V 50/60HZ
Control Protocol控制協議Protocolo de Control

0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

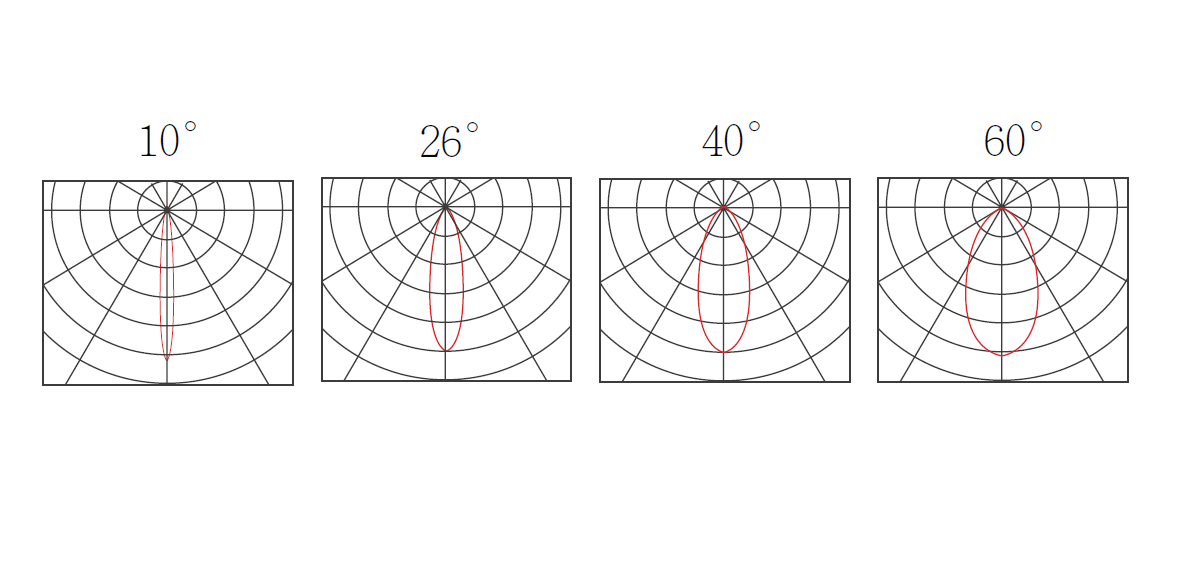

Beam Angle光束角ángulo de haz

10° 26° 40° 60°
Light Source Brand/光源品牌

Fuente de luz de marca

CREE - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
QTY of LEDs-燈珠數量-CANT de LEDs

1 PCS CREE LED COB Array
"Lumen Maintenance LM-80 Reported by TM-21"

L70(10k) > 60,000 hrs
LED Life/LED壽命 La vida del LED

>60,000 hours
Color Temperature / 色溫 /Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K / RGBW (3500 / 4000K /5000K)
Color Rendering Index/顯色指數

Índice de reproducción cromática

>80

>90
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy 燈具效率

La eficacia de la luminaria

70 Lm/w(2700K), 80 Lm/w(3000K), 90 Lm/w(4000K),

90 Lm/w(5000K), 90 Lm/w(6500K), 50 Lm/w(RGBW),
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia

120 Lm/w(2700K), 130 Lm/w(3000K), 140 Lm/w(4000K),

140Lm/w(5000K), 140 Lm/w(6500K), 100 Lm/w(RGBW),
Housing materials/外殼材料

Materiales de la carcasa

Die cast aluminium ,tempered glass wiht #316 Stainless Steel Cover

壓鑄鋁,鋼化玻璃和#316不锈鋼面蓋

Aluminio fundido, vidrio templado de con # 316 de la cubierta de acero inoxidable
Housing Color/ 外殼顏色

Color de la carcasa
- #316 Stainless Steel Cover #316不锈鋼面蓋 # 316 de la cubierta de acero inoxidable
- #316 Stainless Steel Chrome Black ＃316不銹鋼鉻黑 # 316 Acero inoxidable Cromo Negro
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Ingress Protection/ 防護等級

Protección de ingreso

IP68
Mech impact protection 機械衝擊保護

Protección contra impactos mecánicos

IK08
Dimension-尺寸-Dimensión

Refer to Dimension Drawing請參閱尺寸圖

Consulte el dibujo de dimensiones
- Type A
- Type B
- Type C
Comply Testing Standard 符合測試標準

Cumplir el estándar de prueba
- LED Luminaries: LVD: IEC 60598-1; IEC 60598-2-1;IEC62471;IEC 62031; IEC62471, ROHS TM21-L70
- LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;
- IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384
