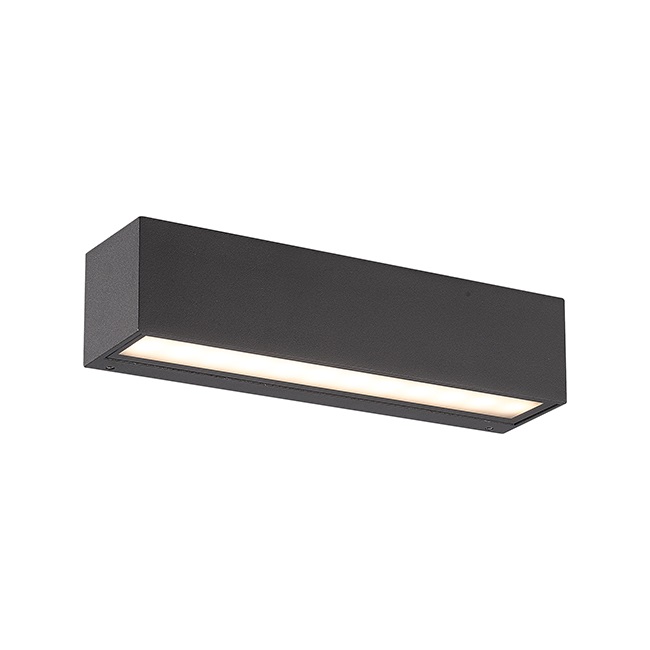

LAHAN-W

W60xH60mm IP67 Max 36W

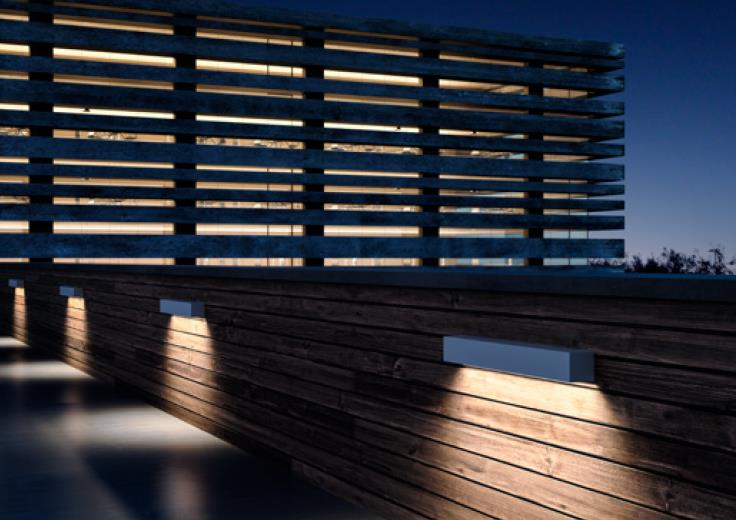

Linear Wall Mounted Type

Die-cast aluminium Aluminium with Clear Tempted glass and Silicon rubber gasket
Resistant to corrosive environment. Coated with epoxy resin and UV stabilized polyester powder.
Protection: IP67
IK Rating: Protection against mechanical impact IK10
Finish Color: Black RAL9005 / Grey RAL 9006 / White RAL 9003

Technical Data

Luminaire Type-安裝方式 Tipo de luminaria

Wall mounted Type 壁裝燈具 Tipo montado en la pared

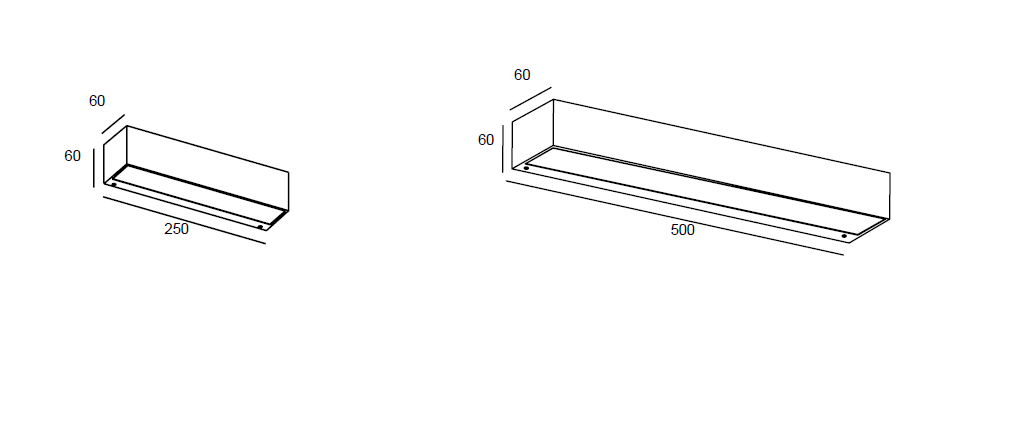

Dimension-尺寸-Dimensión
- L: 250 x W: 60 x H: 60mm

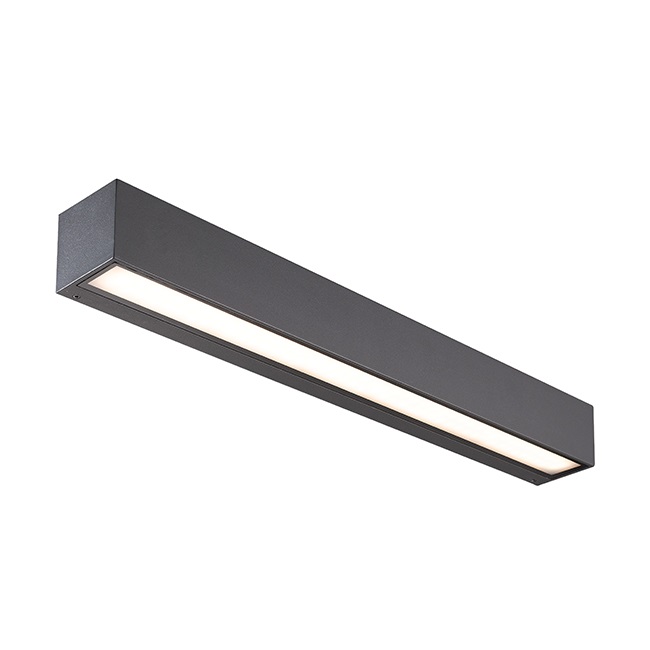

- L: 500 x W: 60 x H: 60mm
Power Consumption Max-燈具功率

Consumo de energía Max

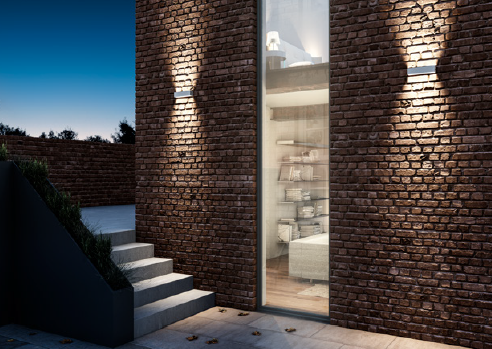

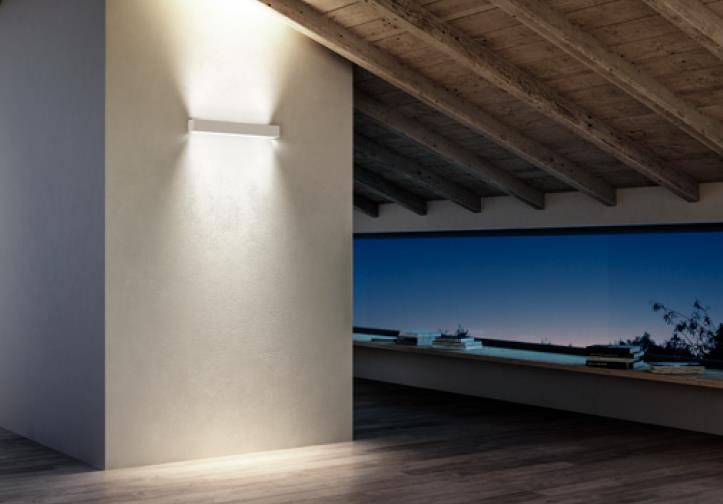

- L: 250:mm Up Light or Down Light : 7W
- L: 250:mm Up Light and Down Light : 15W
- L: 500 :mm Up Light or Down Light : 16W
- L: 500:mm Up Light and Down Light : 20W
Input Voltage-輸入電壓-Voltaje de entrada

AC220-240V 50/60HZ
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch AC100-240V 50/60HZ

2.1 -10V Dimming Driver AC100-240V 50/60HZ

3. Dali Dimming Driver AC100-240V 50/60HZ or DC48V with Dali Dimming

4. Remote Type Emergency Battery Kit with battery Back up 2 hours or 3hours
LED Driver Features驅動特性

Funciones del controlador de LED
- POWER FACTOR : PF>0.90 or PF:>0.95 Refer to LED Driver Data sheet
- TOTAL HARMONIC DISTORTION: THD< 20% Refer to LED Driver Data sheet
Control Protocol-控制協議

Protocolo de Control

1-10V / Dali

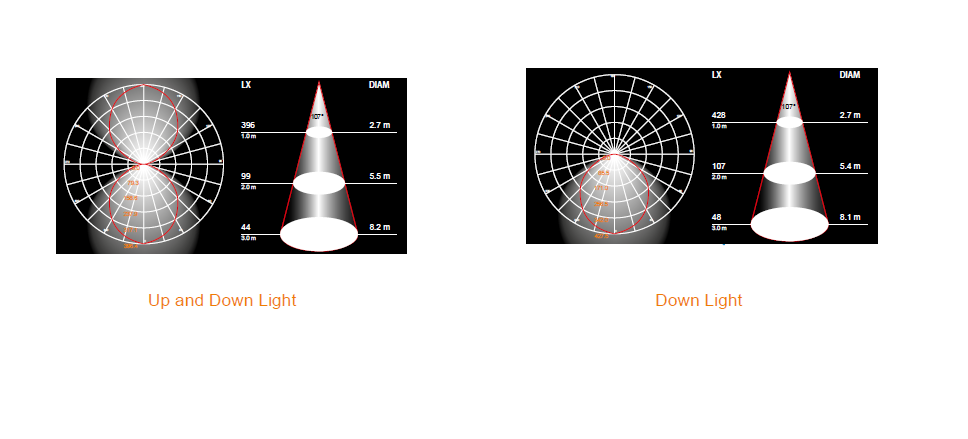

Beam Angle/光束角/ángulo de haz

110°
Light Source Brand-光源品牌-Fuente de luz de marca

OSRAM LED
"Lumen Maintenance LM-80 Reported by TM-21"

L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

> 80
MacAdam Ellipses Binning 麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM 標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy 燈具效率

La eficacia de la luminaria

90 lm/w(2700K), 90lm/w(3000K), 100 lm/w(4000K),

110 lm/w(5000K), 110 lm/w(6500K)
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia

130 lm/w(2700K), 130lm/w(3000K), 140 lm/w(4000K),

150 lm/w(5000K), 150 lm/w(6500K)
Housing materials-外殼材料

Materiales de la carcasa

Die-cast Aluminium and Clear Tempered Glass

壓鑄鋁和透明鋼化玻璃

Aluminio fundido a presión y vidrio templado transparente
Housing Color外殼顏色 color de la carcasa

Coated with epoxy resin and top coated with UV stabilized polyester powder

Color: Black RAL9005 Grey RAL 9006 / White RAL9003

顏色：黑色RAL9005 銀灰色RAL 9006 /白色RAL9003

Color: Negro RAL9005 / Grey 9006 / Blanco RAL9003
Ingress Protection-防護等級 Protección de ingreso

IP67
Mech impact protection 機械衝擊保護

Protección contra impactos mecánicos

IK08
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Comply Testing Standard 符合測試標準

Cumplir el estándar de prueba

LED Luminaries: LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471;IEC/EN 62031; IEC/EN 62493 ; IEC/EN 62471(Risk Group 1)EN60598-2-22 Hot Wire Testing: 850°C

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384
