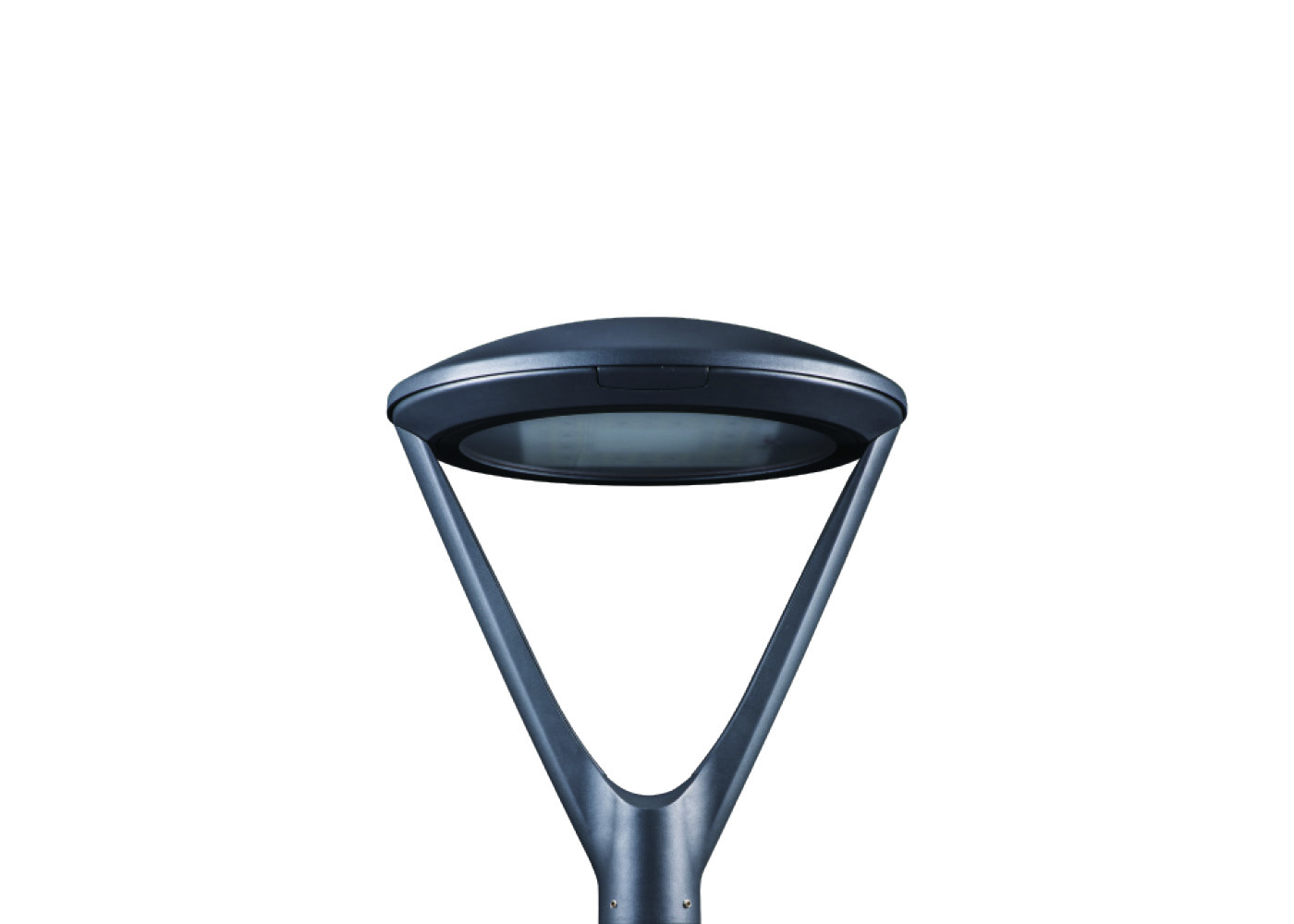

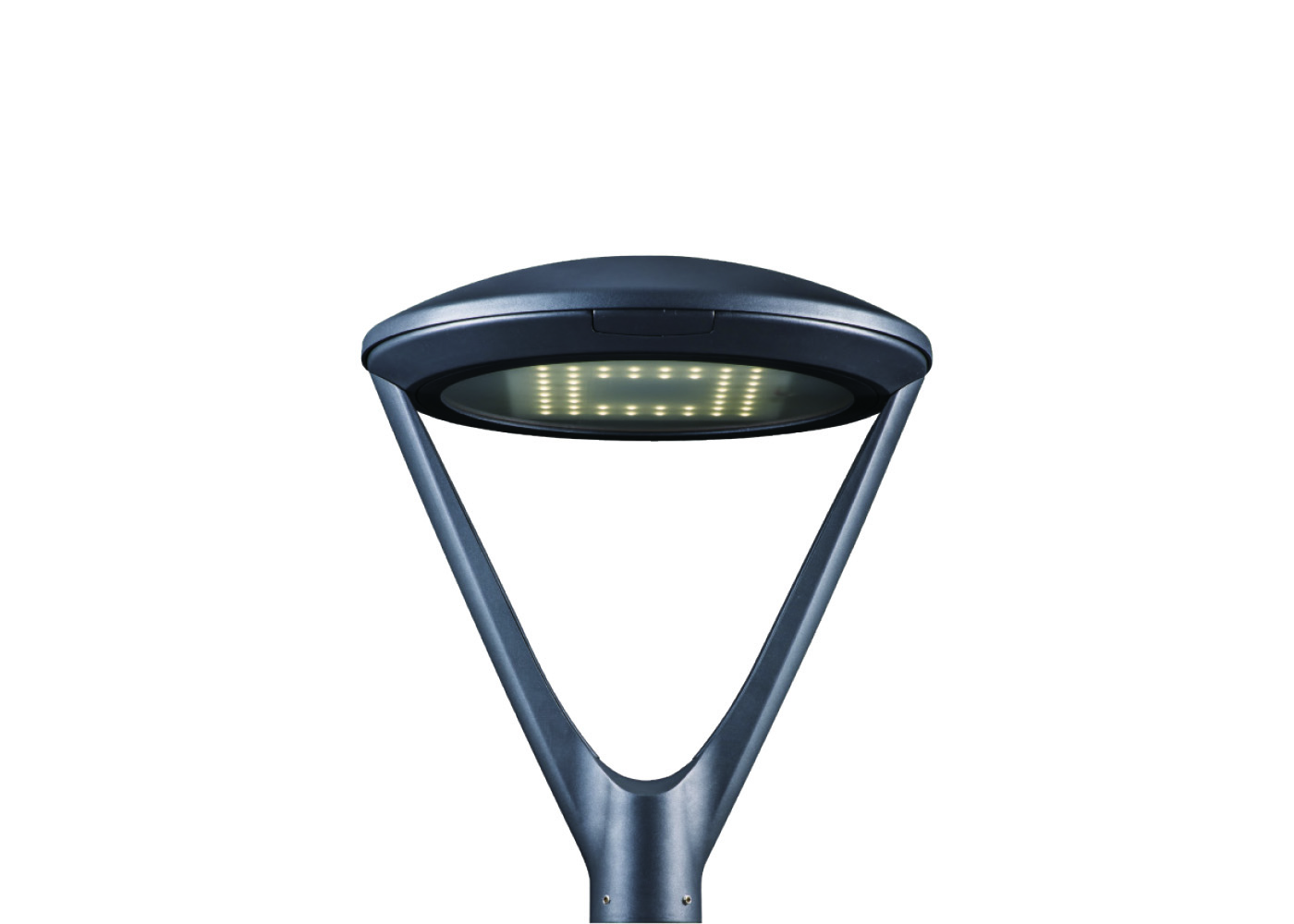

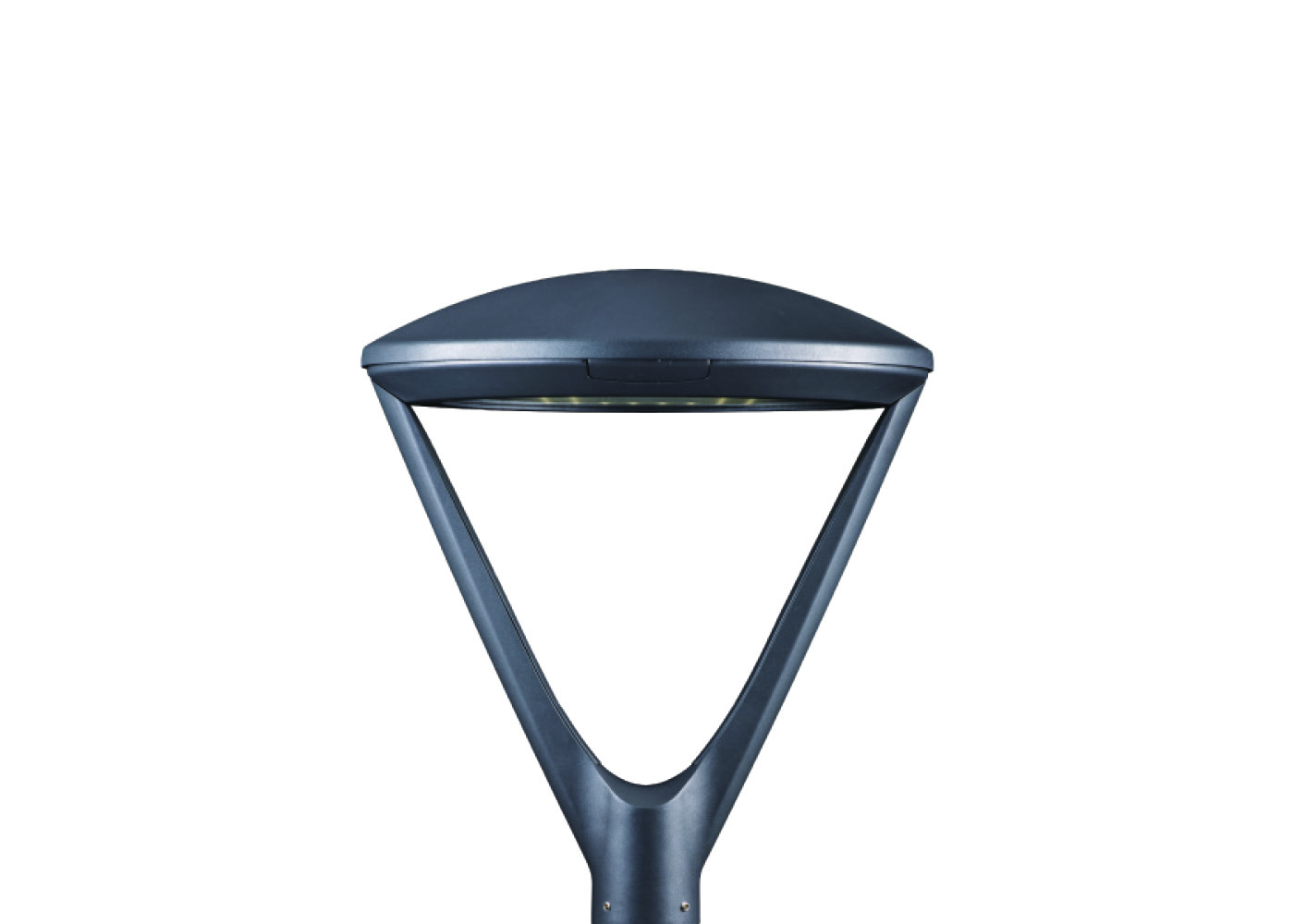

GALORE-Q

20W-100W IP66

LED Garden Light IP66

The aesthetics of the city is inseparable from lighting, Lotus satisfied the trend of urban differentiation with smooth curvature, which effectively prevents the accumulation of dust and leaves, not only creates a neat atmosphere, but also provides excellent heat dissipation.In general, the traditional industrial lighting design is not obvious enough, in contrast, the design of lotus is inspired by the Pine Greeting Guests, and through continuous optimization, the overall display is more modern.

• Professional optic provide an excellent effect, managing glare while
providing high Levels of visibility.
• IK09, IP66 Rated
• Area, site and pedestrian scale applications

Technical Data

Luminaire Type- 安裝方式 Tipo de luminaria

Pole top φ60 or φ76mm Mounted 杆安裝φ60 或 φ76mm Poste superior φ60 φ76mm
Power Consumption with LED Driver

LED燈具包括LED驅動電源功率

Consumo de energía con controlador de LED

20W 40W 60W 80W 100W
Input Voltage / 輸入電壓

Voltaje de entrada

220 ~ 240VAC (50~60Hz)
Control Protocol/控制協議

Protocolo de Control
- Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

  Consulte la especificación de controlador de LED

  1. ON/OFF Switch AC100-240V 50/60HZ

  2. 1 -10V Dimming Driver AC100-240V 50/60HZ

  3. Dali Dimming Driver AC100-240V 50/60HZ
LED Driver Features驅動特性

Funciones del controlador de LED

POWER FACTOR : PF>0.90 or PF:>0.95 @ Full Load TOTAL HARMONIC DISTORTION: THD< 20%

Life:>50000 hours . Refer to LED Driver data sheet
Protection Against Surgers/防護措施/PROTECCIÓN CONTRA LAS PROMOCIONES:

Line-Earth:10KV

Line-Line:6KV
Light Source Brand-光源品牌-Fuente de luz de marca

CREE
"Lumen Maintenance LM-80 Reported by TM-21"

L70 > 45,000 Hours
LED Life-LED壽命-La vida del LED

Ambient temperature ta = 25 °C > 500,000 h: L 70 B 50

Ambient temperature ta =55 °C > 90,000 h: L 70 B 50
Color Temperature 色溫 Temperatura y color

3000K 4000K 5000K
Color Rendering Index-顯色指數

Índice de reproducción cromática
- >70
- >80
MacAdam Ellipses Binning 麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM

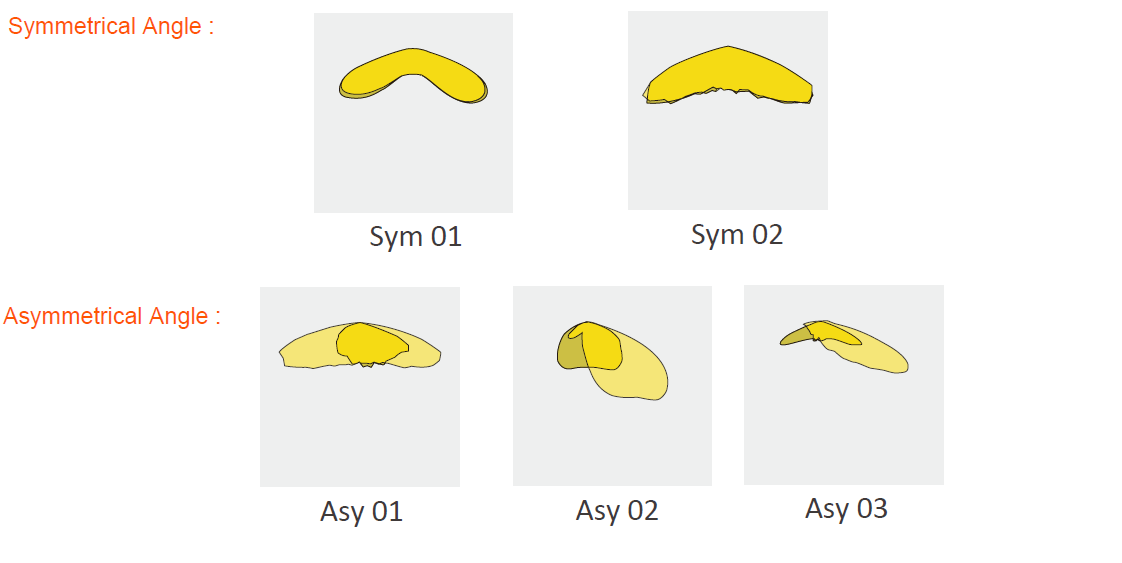

Beam Angle光束角ángulo de haz

Symmetrical Angle : SYM01 SYM 02

Asymmetrical Angle : ASY01 ASY02 ASY03
Luminaire Efficacy燈具效率

La eficacia de la luminaria

110 Lm/w(3000K) @CRI >70 ; 120 Lm/w(4000K) @CRI >70 130 Lm/w(5000K) @CRI >70

100 Lm/w(3000K) @CRI >80 ; 110 Lm/w(4000K) @CRI >80 120 Lm/w(5000K) @CRI >80
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia

143 Lm/w(3000K) @CRI >70 ; 163 Lm/w(4000K) @CRI >70; 171 Lm/w(5000K) @CRI >70 ;

134 Lm/w(3000K) @CRI >80; 143 Lm/w(4000K) @CRI >80 ; 153 Lm/w(5000K) @CRI >80
Housing materials 外殼材料

Materiales de la carcasa

Die-cast aluminium alloy and 5mm thickness tempered glass 壓鑄鋁和5mm厚鋼化玻璃

Aluminio fundido a presión y Vidrio templado
Housing Color 外殼顏色 color de la carcasa

Anti-corrosion Polyester powders Coating--Graphite RAL 7024 Matte White RAL 9003 Grey RAL9006

防腐聚酯粉末塗料——石墨 RAL 7024 啞光白 RAL 9003 銀灰RAL9006

Revestimiento de polvos de poliéster anticorrosión: grafito RAL 7024 Blanco mate RAL 9003 Gris RAL9006
Ingress Protection-防護等級

Protección de ingreso

IP66
Mech impact protection機械衝擊保護

Protección contra impactos mecánicos

IK09
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Dimension 尺寸 Dimensión

490x440x600 mm
Net Weight /Gross Weight 淨重/毛重

Peso Neto / Peso bruto

10.0kg & 13.8kg
Certificate Standard Complied

符合安規標準

estándar certificado de cumplimiento

LED Luminaries: IEC/EN 60598-1 ; IEC/EN 60598-2-3; IEC TR 62778; IEC 62031

LED Driver: IEC 61347-1; IEC 61347-2-13; EN 55015; IEC 61000-3-2;IEC 61000-3-3;

IEC 61547;EN 62384
