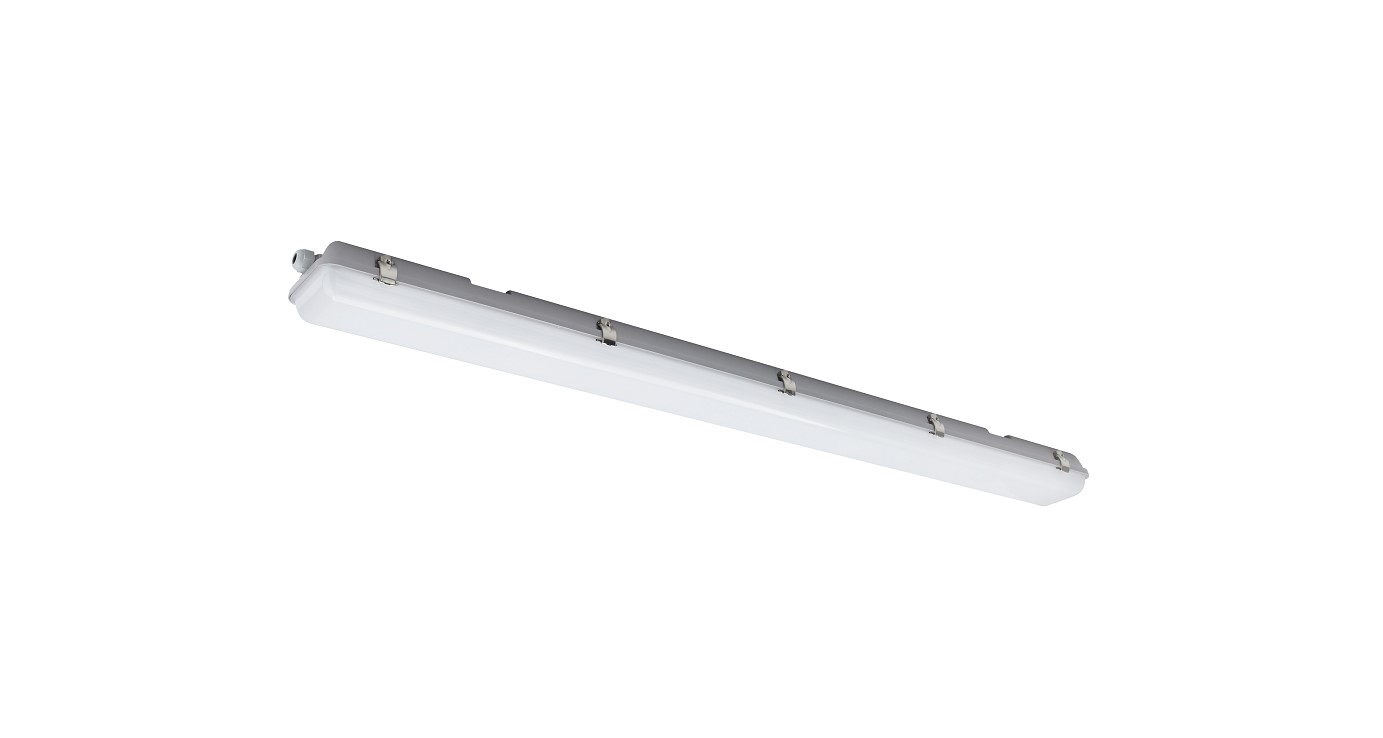

BAWATY

W75&115xH70mm 60W Max IP66

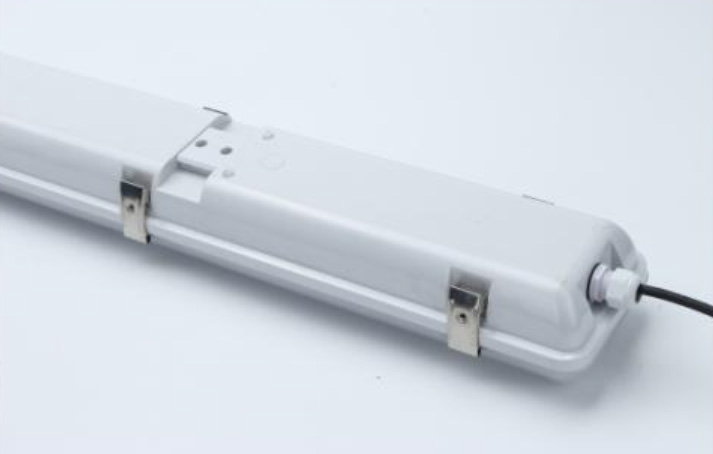

LED TRI-PROOF LIGHT

LED TRI-PROOF LIGHT BAWATY is well design for resistant Dust and Moisture resistance and waterproof.Light grey Light grey Glass fibre reinforced
polyester and high transmission opal polycarbonate with refraction prisms diﬀuser. Silicone-sponge Gasket , stainless steel toggles and stainless-steel Quick ﬁx bracket. Ingress-protected to a level of IP66. Comply with Hot Wire Testing: 850°C and Electrical protection class I. Mech impact protection : IK10

Technical Data

Luminaire Type- 安裝方式 Tipo de luminaria

Surface Mounted Type 明裝式燈具 Superficie Tipo Montado

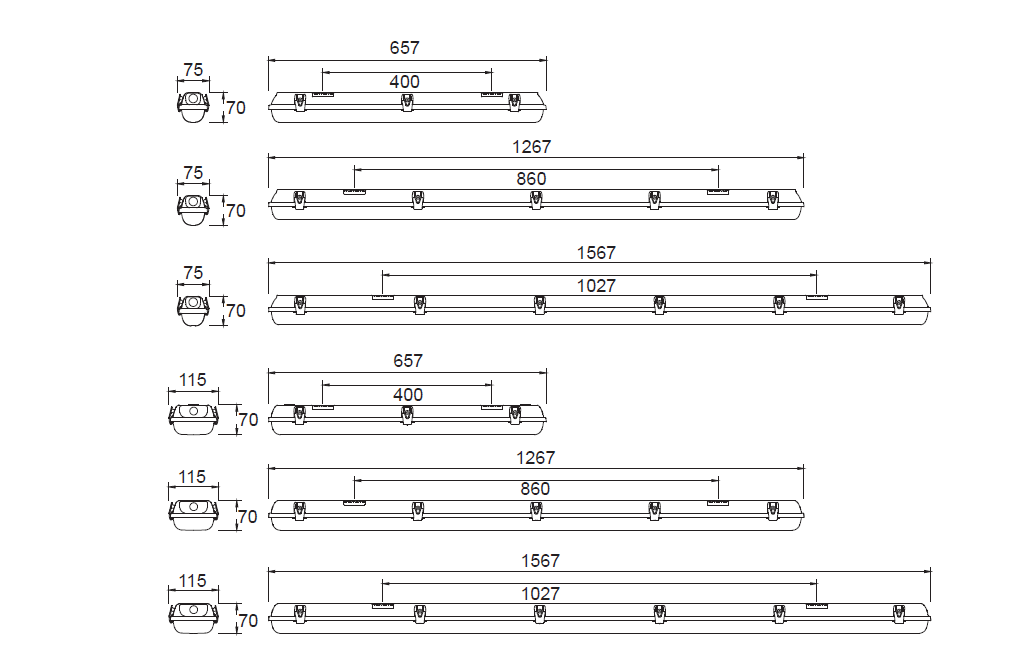

Dimension-尺寸-Dimensión

W:75 x H:70 x L:657 mm W:115 x H:70 x L:657 mm W:75 x H:70 x L:1267 mm W:115 x H:70 x L:1267 mm

W:75 x H:70 x L:1567 mm W:115 x H:70 x L:1567 mm
Input Voltage-輸入電壓-Voltaje de entrada

AC220-240V 50/60HZ
Power Consumption Max-燈具功率

Consumo de energía Max

6W @ W:75  x L:657 mm; @ W:115 x L:657 mm 7W @ W:75  x L:657 mm; @ W:115 x L:657 mm

8W @ W:75  x L:657 mm; @ W:115 x L:657 mm 9W @ W:75  x L:657 mm; @ W:115 x L:657 mm

10W @ W:75  x L:657 mm; @ W:115 x L:657 mm 12W @ W:75  x L:657 mm; @ W:115 x L:657 mm

14W @ W:75  x L:657 mm; @ W:115 x L:657 mm 16W @ W:75  x L:657 mm; @ W:115 x L:657 mm

18W @ W:75  x L:657 mm; @ W:115 x L:657 mm 20W @ W:75 x L:1267 mm @ W:115 x L:657 mm @ W:115 x L:1267 mm

24W @ W:75 x L:1267 mm @ W:115 x L:657 mm @ W:115 x L:1267 mm

28W @ W:75 x L:1267 mm @ W:115 x L:1267 mm 30W @ W:75 x L:1267 mm @ W:115 x L:1267 mm

32W @ W:75 x L:1267 mm @ W:115 x L:1267 mm 36W @ W:75 x L:1267 mm @ W:115 x L:1267 mm @ W:115 x L:1567 mm

44W @ W:75 x L:1567 mm @ W:115 x L:1567 mm 40W @ W:75 x L:1267 mm @ W:115 x L:1267 mm @ W:115 x L:1567 mm

48W @  W:75 x L:1567 mm @ W:115 x L:1567 mm 52W @ W:75 x L:1567 mm @ W:115 x L:1567 mm

54W @ W:75 x L:1567 mm @ W:115 x L:1567 mm 60W @ W:75 x L:1567 mm @ W:115 x L:1567 mm
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch AC220-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC220-240V 50/60HZ

3. 1-10V Dimming Driver AC220-240V 50/60HZ

4. Dali Dimming Driver AC220-240V 50/60HZ

5. Microwave Motion Sensor 5.8Ghz (Hold time, Stand-by DIM Level,Twilight Time;Detection Area,Daylight Sensor)

6. ZIGBEE Wireless Control (Remoted Driver ) AC220-240V 50/60HZ

7. Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia
LED Driver Features 驅動特性

Funciones del controlador de LED
- POWER FACTOR (Lambda): PF>0.95 or PF > 0.9 TOTAL HARMONIC DISTORTION: THD< 20%
- LED DRIVE LIFETIME: 50,000 hour or 100,000 Hours and Electrical protection class I and class II
Control Protocol-控制協議

Protocolo de Control

1-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

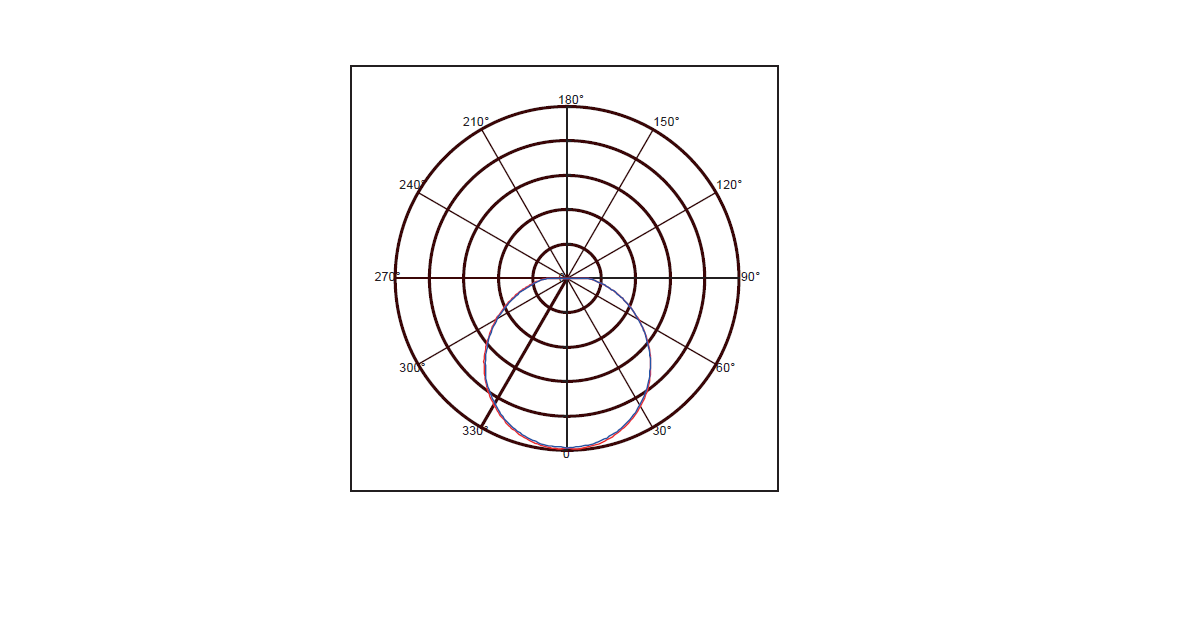

Beam Angle 光束角 ángulo de haz

120°
Light Source Brand-光源品牌-Fuente de luz de marca

Everlight SMD LED (LM-80 Report No. 14-04-VLP-0038-TP)
Lumen Maintenance ISTM & TM-21"@ 25 °C

流明維持率(光通量衰減)報告: ISTM & TM-21"@ 25 °C

Mantenimiento de lúmenes ISTM y TM-21 "@ 25 ° C
- L70 > 54,000 hrs
LED Life-LED壽命-La vida del LED

Comply with LM-80-08 @ 55⁰C L70> 54000 hours
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

> 80 or >90
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Photobiological safety-IEC 62471 / of Luminaire

光生物安全檢驗(ICE/EN 62471) 结果:

Seguridad fotobiológica-IEC 62471
- Exempt ( Risk Group 0; RG0)
- 豁免(無危險)
- Eximir
Luminaire Efficacy 燈具效率

La eficacia de la luminaria
- 120 Lm/w(2700K), 120 Lm/w(3000K), 125 Lm/w(4000K),
- 130 Lm/w(5000K), 130 Lm/w(6500K),
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia
- 140 Lm/w(2700K), 140 Lm/w(3000K), 150 Lm/w(4000K),
- 160 Lm/w(5000K), 160 Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa

Glass fibre reinforced polyester with Recyclable Aluminium and Polycarbonate Linear-Prisms diffuser ,

Silicone-sponge Gasket , stainless steel toggles and Stainless-steel Quick fix bracket.

玻璃纖維增強聚酯 ,鋁片和PC棱鏡擴散罩，矽膠墊片，不銹鋼扣和不銹鋼快速固定支架。

Policarbonato con difusor de prismas lineales de aluminio y policarbonato reciclable,
Junta de esponja de silicona, palanca de acero inoxidable y soporte de fijación rápida de acero inoxidable.
Housing Color

外殼顏色

color de la carcasa

Grey body and Milky Polycarbonate Linear-Prisms diffuser ,

灰色燈身和乳白棱鏡擴散罩

Cuerpo Gris y Milky difusor
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Ingress Protection-防護等級 Protección de ingreso

IP66 (IEC 60529: 2013)
Mech impact protection 機械衝擊保護

Protección contra impactos mecánicos

IK10 (IEC 62262:2002)
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC/ EN 60598-1 / EN 60598-2-1 / EN 62031 / EN 62493 / IEC/EN 62471 / IEC 60598-2-22 /  IEC 62031

  EN 55015 / EN 61000-3-2 / EN 61000-3-3 / EN 61547 / IEC 62262 / IEC 60529 / IEC TR62778

Luminaries Performance : IEC 62722-1 / IEC 62722-2-1   FSD regulation PPA 104A (4th Rev). RoHS

LED Driver: EN 55015 / EN 61000-3-2 / EN 61347-1 / EN 61347-2-13 / EN 61547 / EN 62384
